Whirlpool
Side-By-Side Refrigerator

Model # ED25PSXDN01 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool ED25PSXDN01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

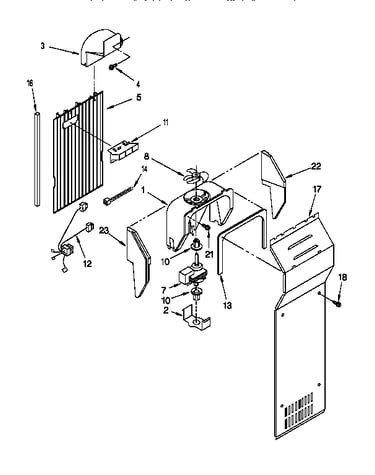

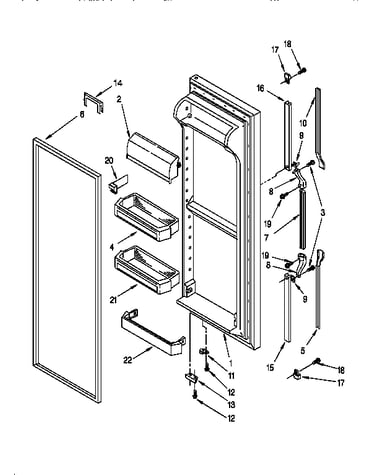

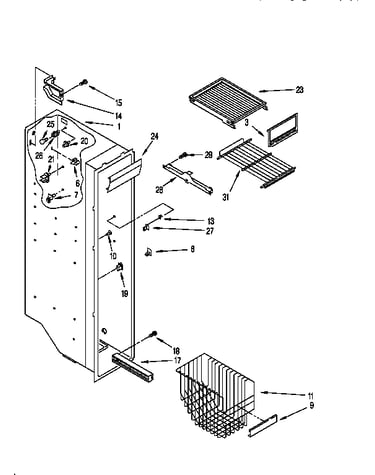

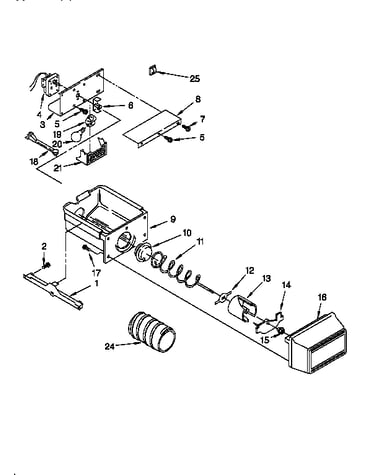

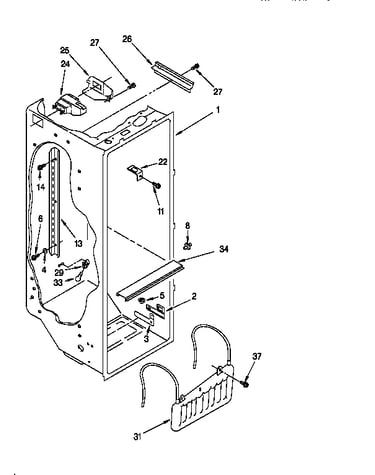

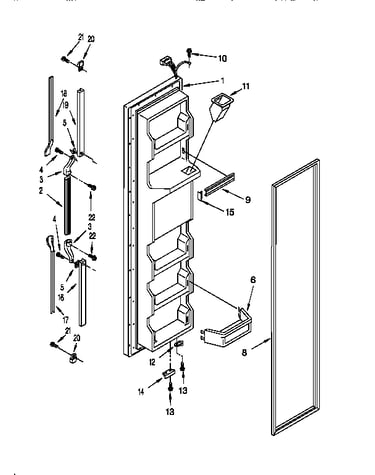

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 326 parts  |
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#100

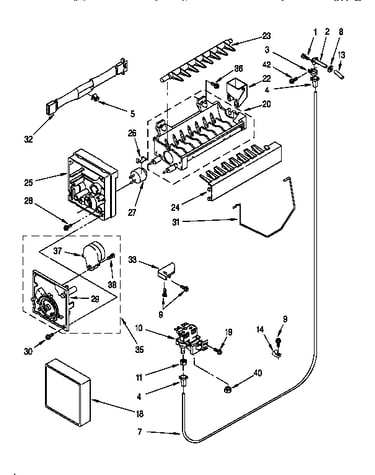

Icemaker diagram

Ice maker assembly - refrigerator ice maker by whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Refrigerator Thermostat 2161284
#9

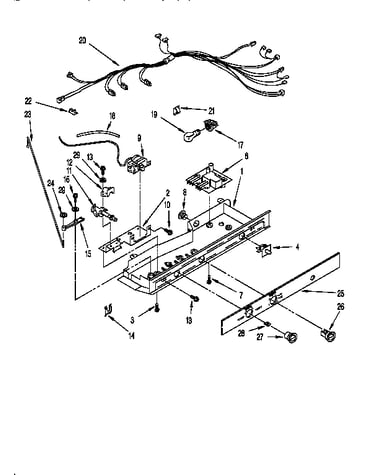

Control diagram

Refrigerator thermostat

Part #2161284

Replaced by #WP2198202

?
Manufacturer substitution
This part replaces 2161284. Substitute parts can look different from the original.
BEST SELLER
$67.73 |
8% OFF Phone Price : $73.73
In Stock
Refrigerator Defrost Bi-metal 2176066
#35

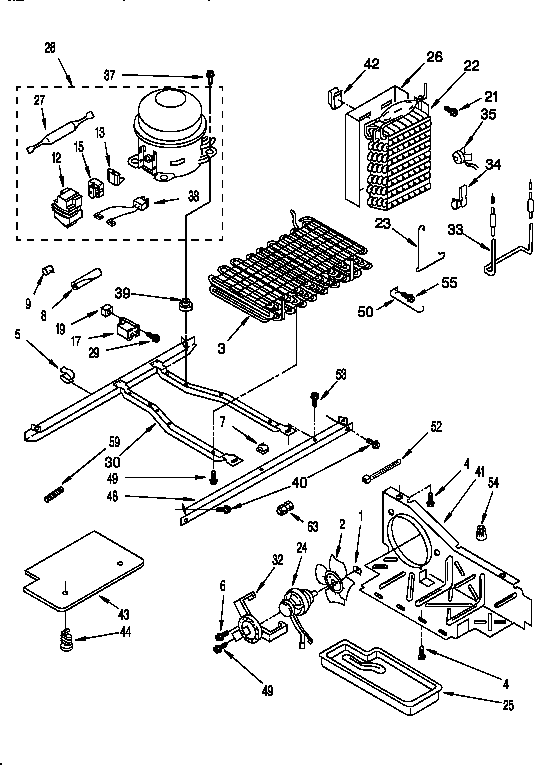

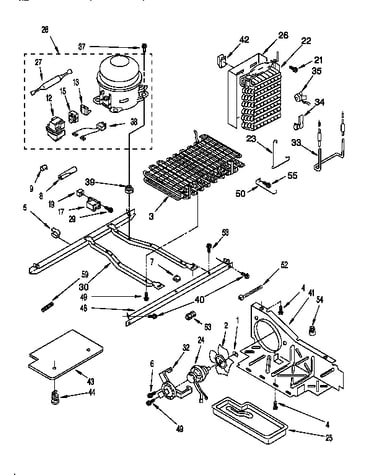

Unit diagram

Refrigerator defrost bi-metal

Part #2176066

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2176066. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Light Bulb 527949
Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Meat Pan 2179279
#11

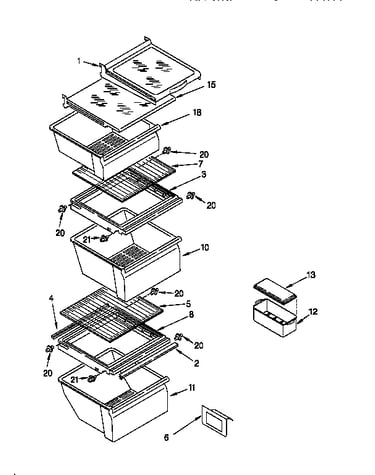

Refrigerator shelf diagram

Refrigerator meat pan

Part #2179279

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2179279. Substitute parts can look different from the original.
BEST SELLER
$56.14 |
10% OFF Phone Price : $62.14
In Stock
Refrigerator Door Closer Cam 2155311
#54

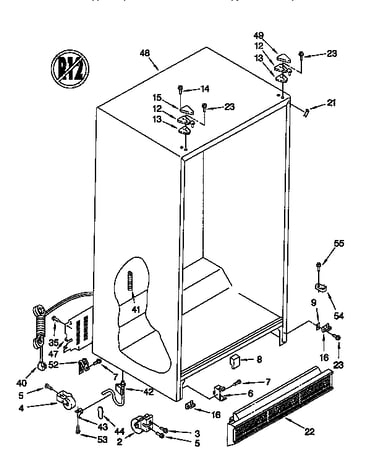

Cabinet diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
BEST SELLER
$10.54 |
16% OFF Phone Price : $12.54
In Stock
Refrigerator Door Chute 2179993
#9

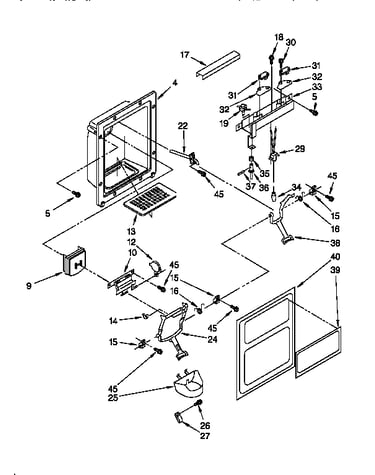

Dispenser front diagram

Refrigerator door chute

Part #2179993

Replaced by #WP2180353

?
Manufacturer substitution
This part replaces 2179993. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Drier Tube 2164409
#27

Unit diagram

Drier tube

Part #2164409

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2164409. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Compressor 2169446
#28

Unit diagram

Refrigerator compressor

Part #2169446

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 2169446. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Refrigerator Heater 2176065
#33

Unit diagram

Refrigerator heater

Part #2176065

Replaced by #WP2323198

?
Manufacturer substitution
This part replaces 2176065. Substitute parts can look different from the original.
BEST SELLER
$41.34 |
13% OFF Phone Price : $47.34
In Stock
