Kenmore
Mechanical Sewing Machine

Model # 15812292 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 15812292 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

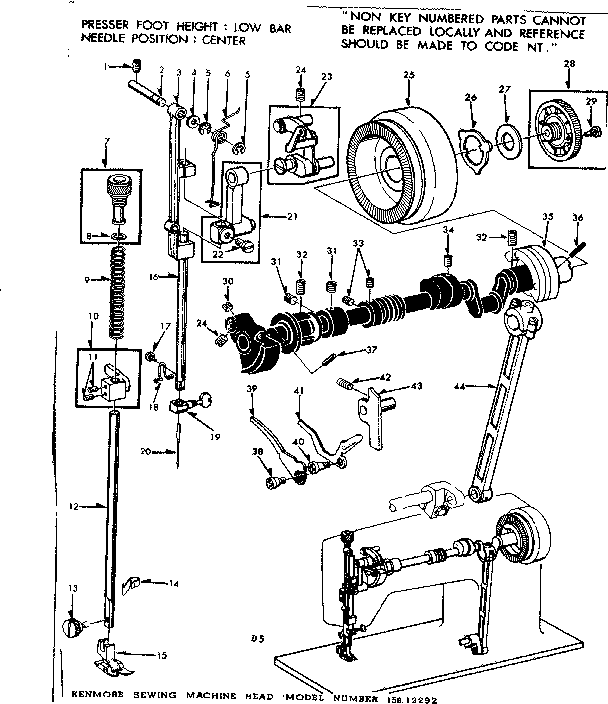

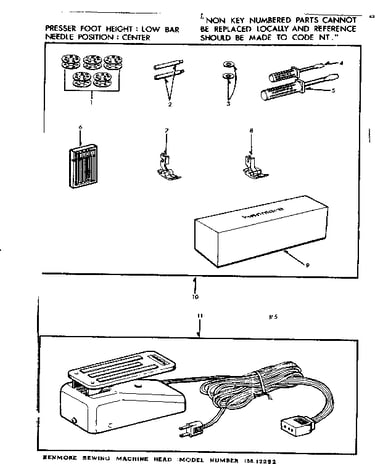

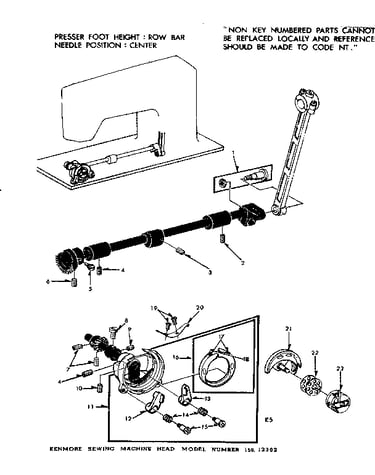

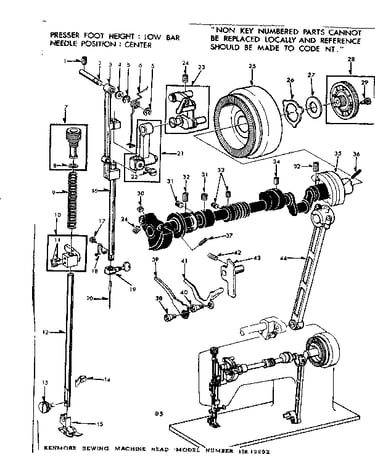

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 208 parts  |
Guard Cord 53648
#11

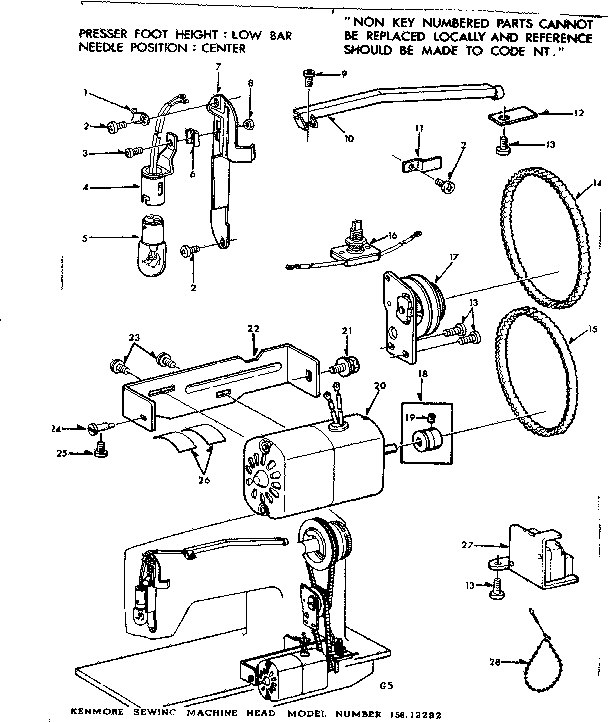

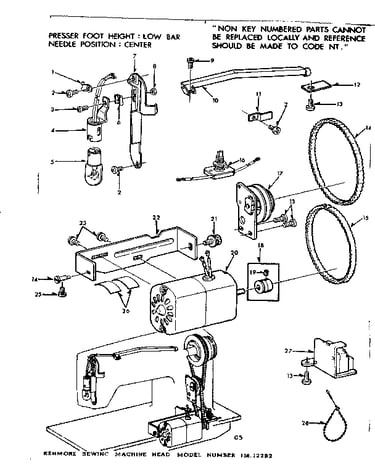

Motor assembly diagram

Guard cord

Part #53648

The manufacturer no longer makes this part, and there's no substitute part

Washer 42269
#45

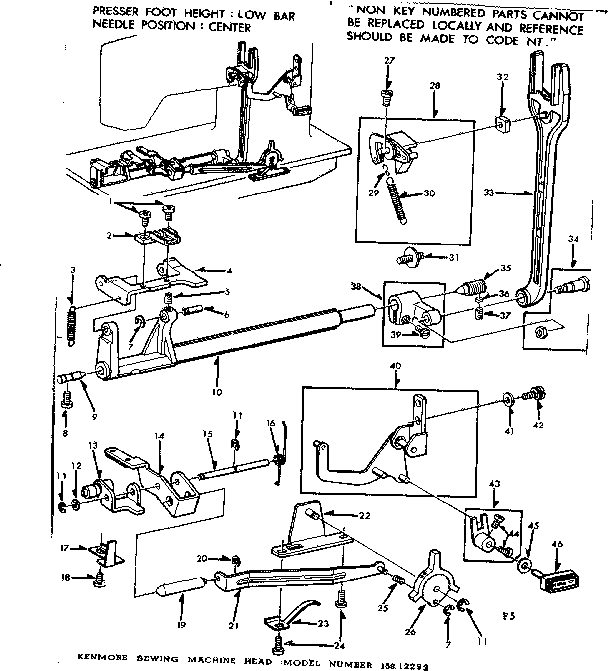

Feed regulator assembly diagram

Washer

Part #42269

The manufacturer no longer makes this part, and there's no substitute part

Spacer 54056
#19

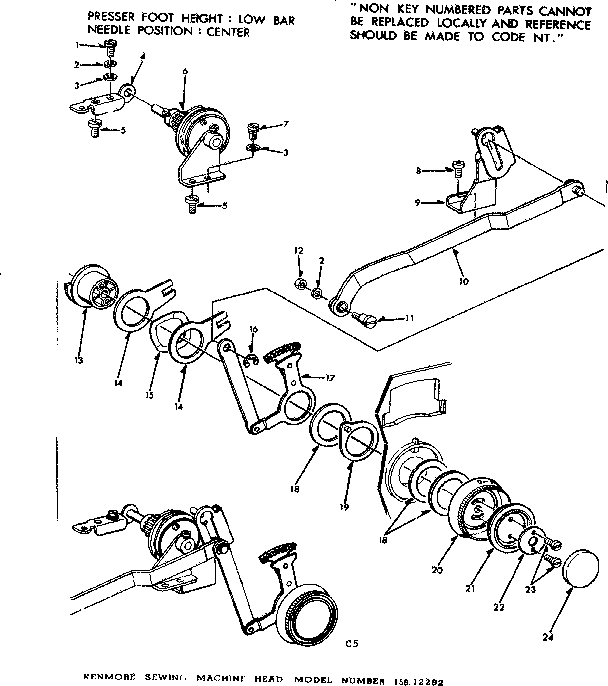

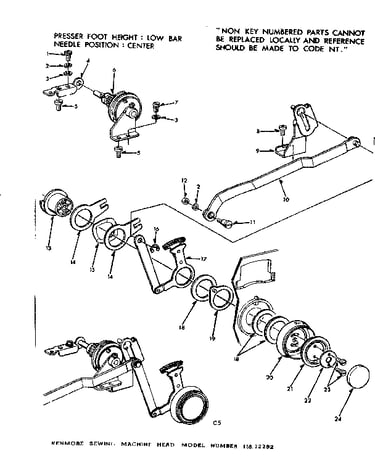

Zigzag cam assembly diagram

Spacer

Part #54056

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 39836
#21

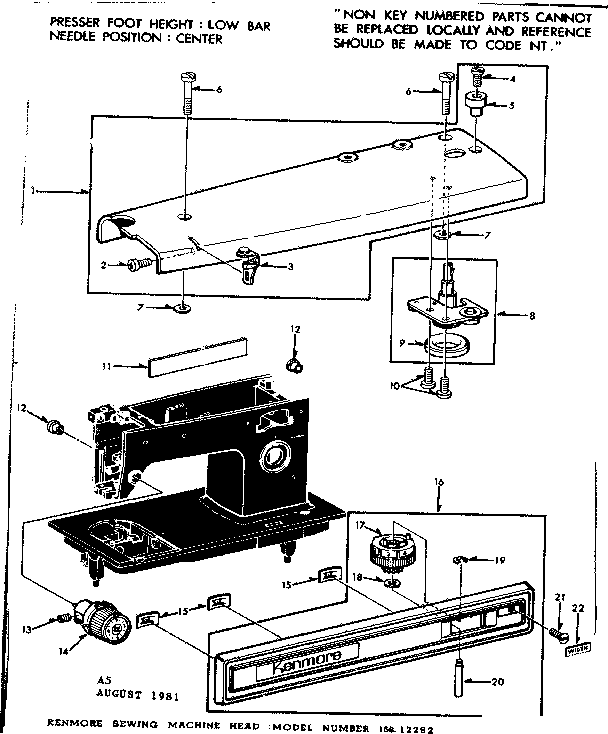

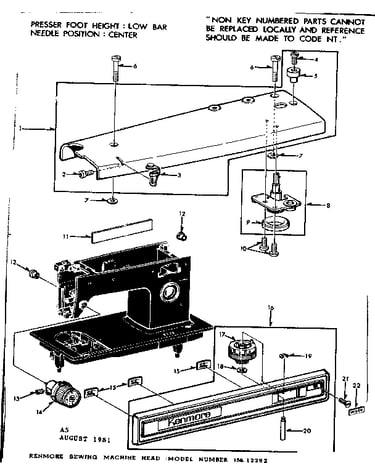

Base assembly diagram

Set screw

Part #39836

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket 54587
#22

Motor assembly diagram

Motor bracket

Part #54587

The manufacturer no longer makes this part, and there's no substitute part

Drop Stopper 54484
#17

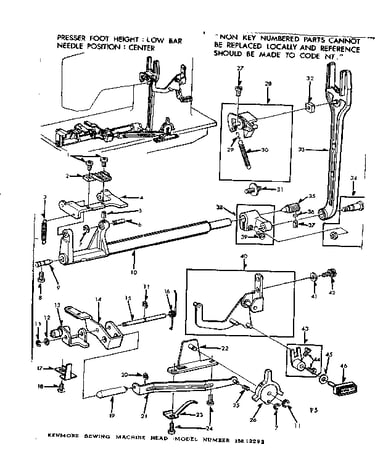

Feed regulator assembly diagram

Drop stopper

Part #54484

The manufacturer no longer makes this part, and there's no substitute part

Washer 45618
#18

Zigzag cam assembly diagram

Washer

Part #45618

The manufacturer no longer makes this part, and there's no substitute part

Separator 53844
#25

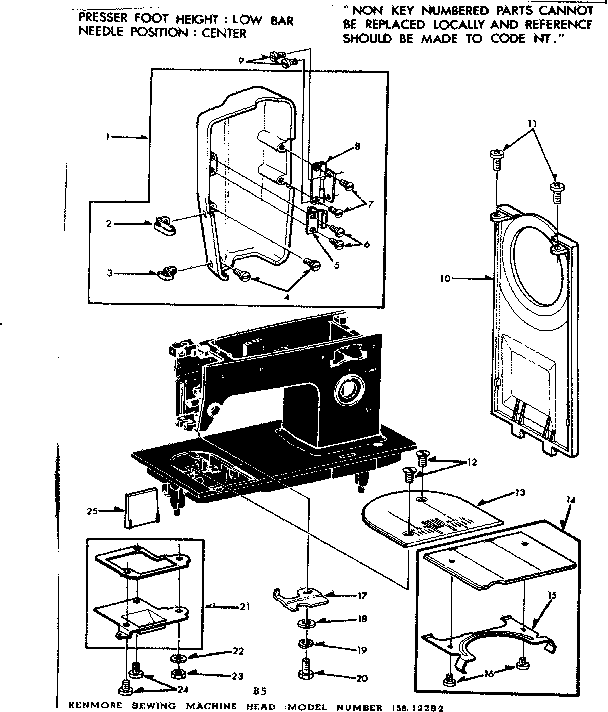

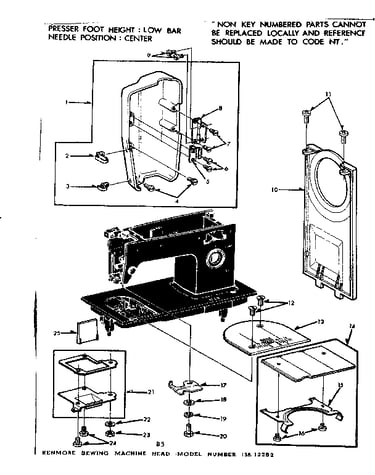

Face covers diagram

Separator

Part #53844

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Set Screw 40583
#31

Feed regulator assembly diagram

Sewing machine set screw

Part #40583

The manufacturer no longer makes this part, and there's no substitute part

Bracket 53222
#4

Zigzag cam assembly diagram

Bracket

Part #53222

The manufacturer no longer makes this part, and there's no substitute part
