Model # 580327850 Official Craftsman remote controlled transfer switch

Here are the diagrams and repair parts for Official Craftsman 580327850 remote controlled transfer switch, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Taptite 32713
#23

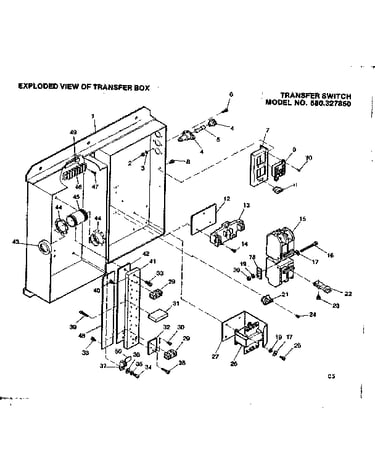

Transfer box diagram

Taptite

Part #32713

Replaced by #32713GS

?
Manufacturer substitution
This part replaces 32713. Substitute parts can look different from the original.
This item is not returnable
$5.77
In Stock
Cover 51640
#18

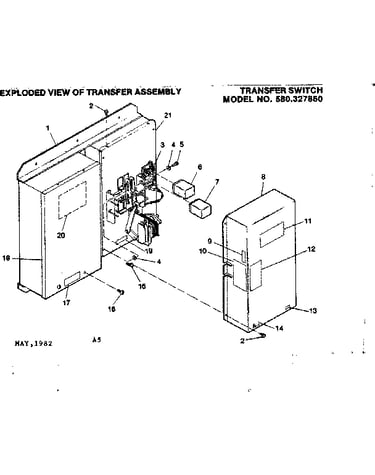

Transfer assembly diagram

Cover

Part #51640

The manufacturer no longer makes this part, and there's no substitute part

Screw 46852
#17

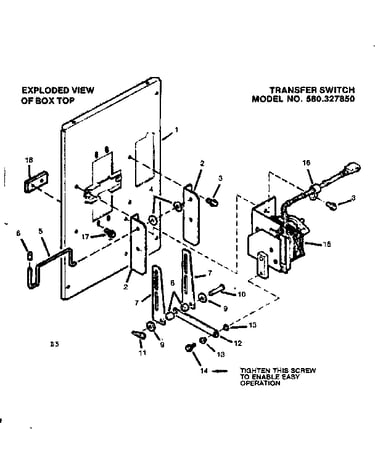

Box top diagram

Screw

Part #46852

The manufacturer no longer makes this part, and there's no substitute part

Cover 47810
#1

Box top diagram

Cover

Part #47810

The manufacturer no longer makes this part, and there's no substitute part

Plate 47820
#49

Transfer box diagram

Plate

Part #47820

The manufacturer no longer makes this part, and there's no substitute part

Guide 45158
#2

Box top diagram

Guide

Part #45158

The manufacturer no longer makes this part, and there's no substitute part

Socket 47803
#9

Transfer box diagram

Socket

Part #47803

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 22158
#20

Transfer box diagram

Hex nut

Part #22158

The manufacturer no longer makes this part, and there's no substitute part

Support 47804
#7

Transfer box diagram

Support

Part #47804

The manufacturer no longer makes this part, and there's no substitute part

Nipple 51601
#45

Transfer box diagram

Nipple

Part #51601

The manufacturer no longer makes this part, and there's no substitute part
