Model # GSS22IBPHCC Official GE refrigerator - p series

Here are the diagrams and repair parts for Official GE GSS22IBPHCC refrigerator - p series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

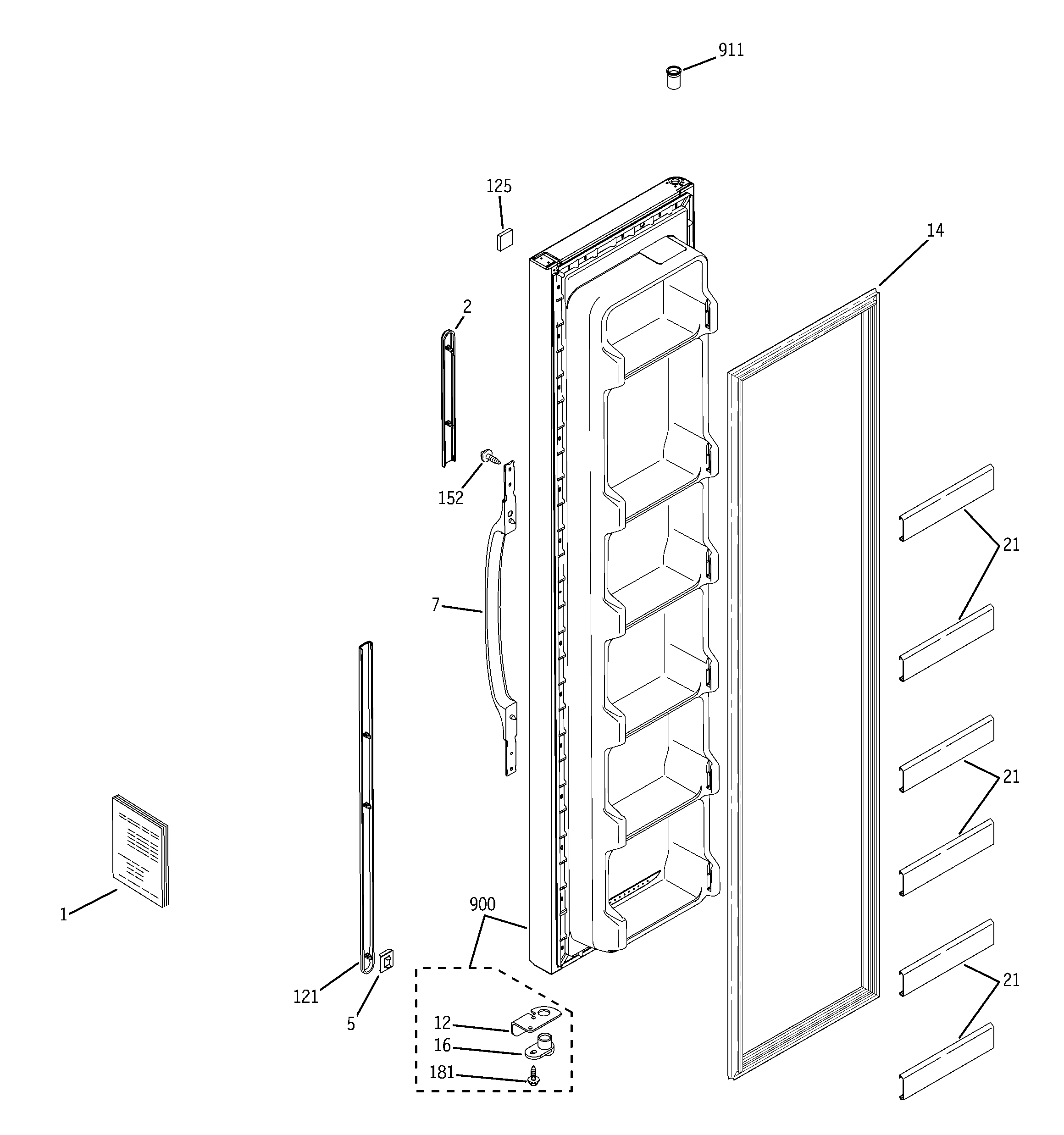

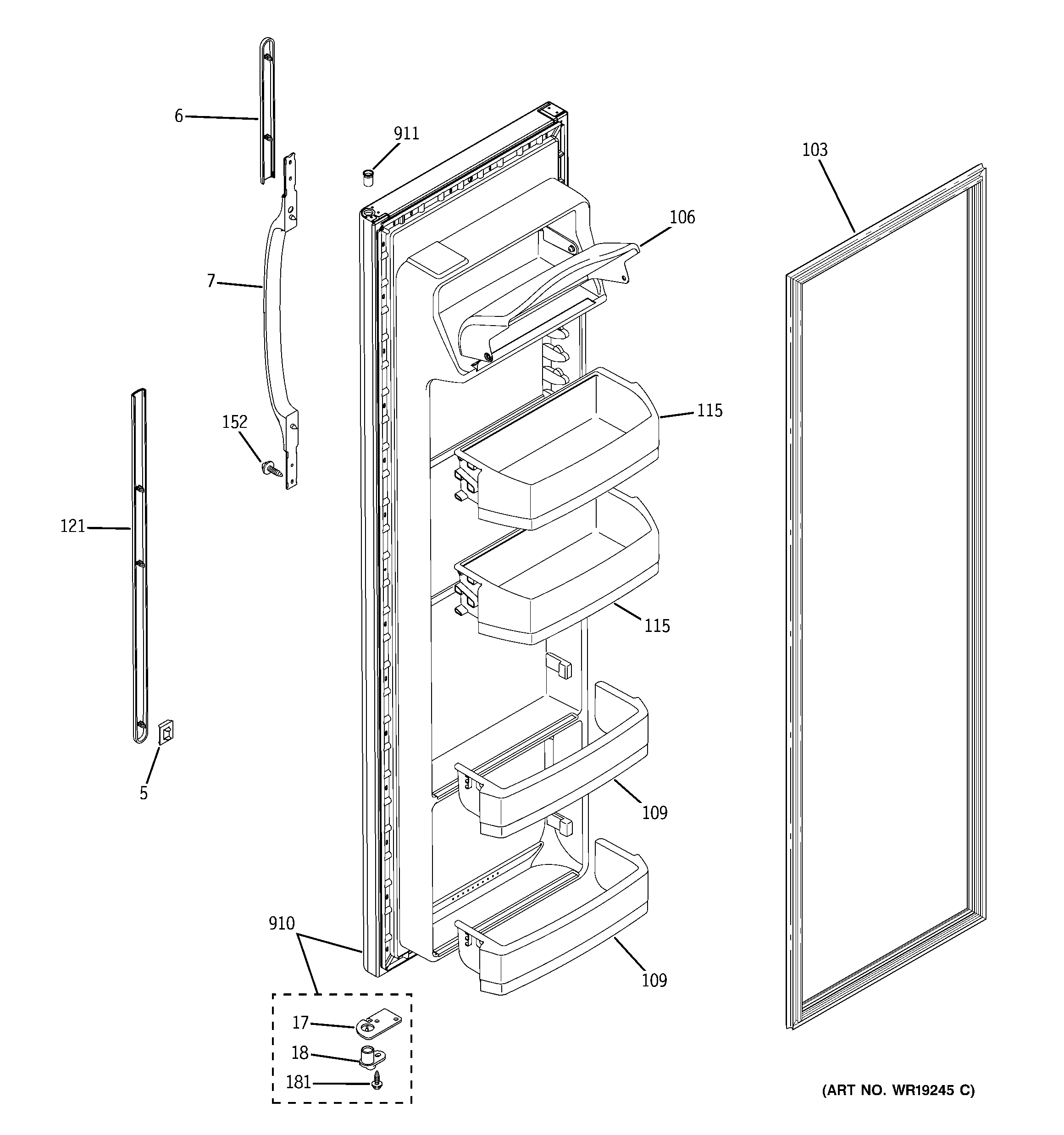

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Refrigerator Temperature Sensor WR55X10380
#244

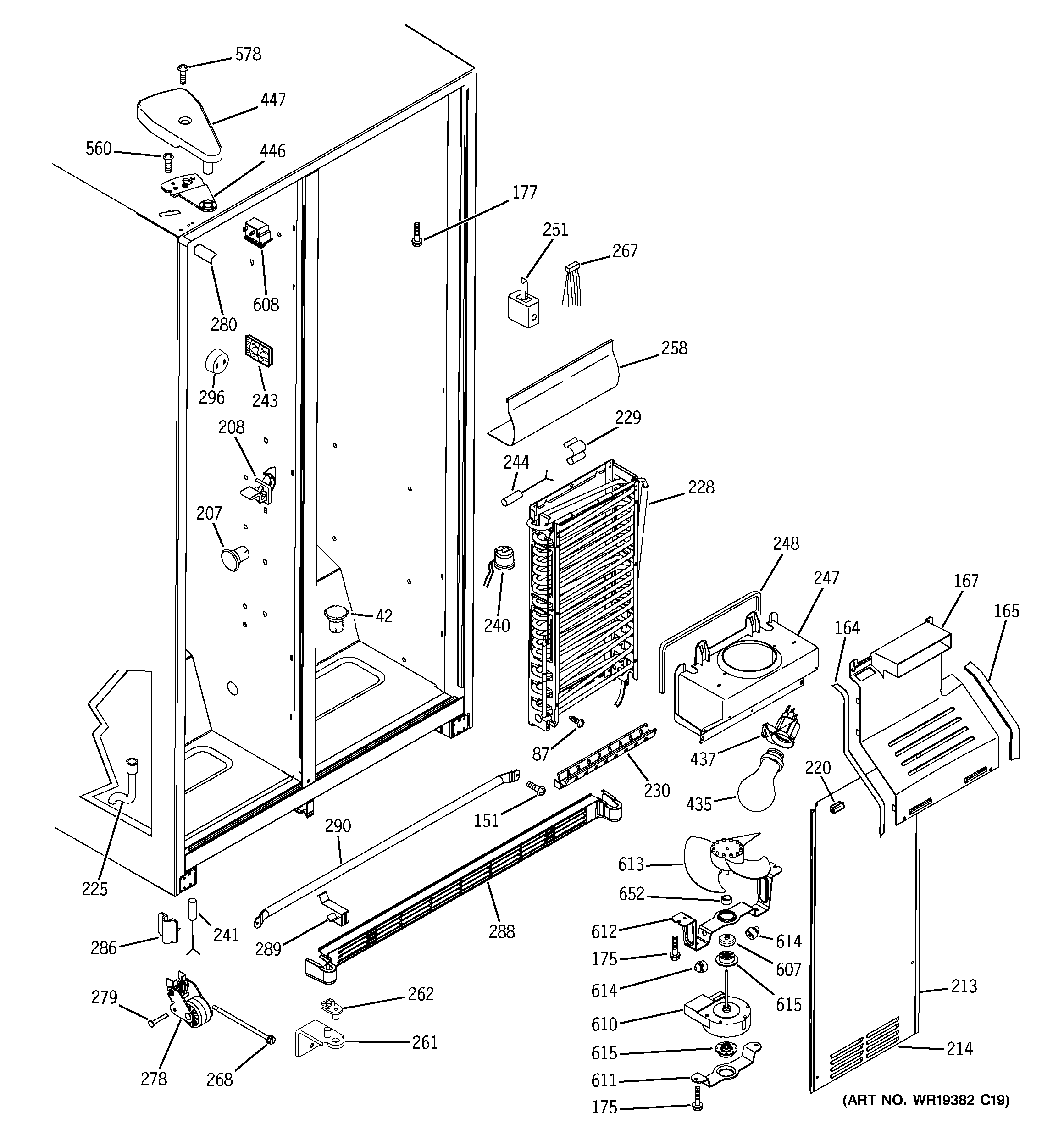

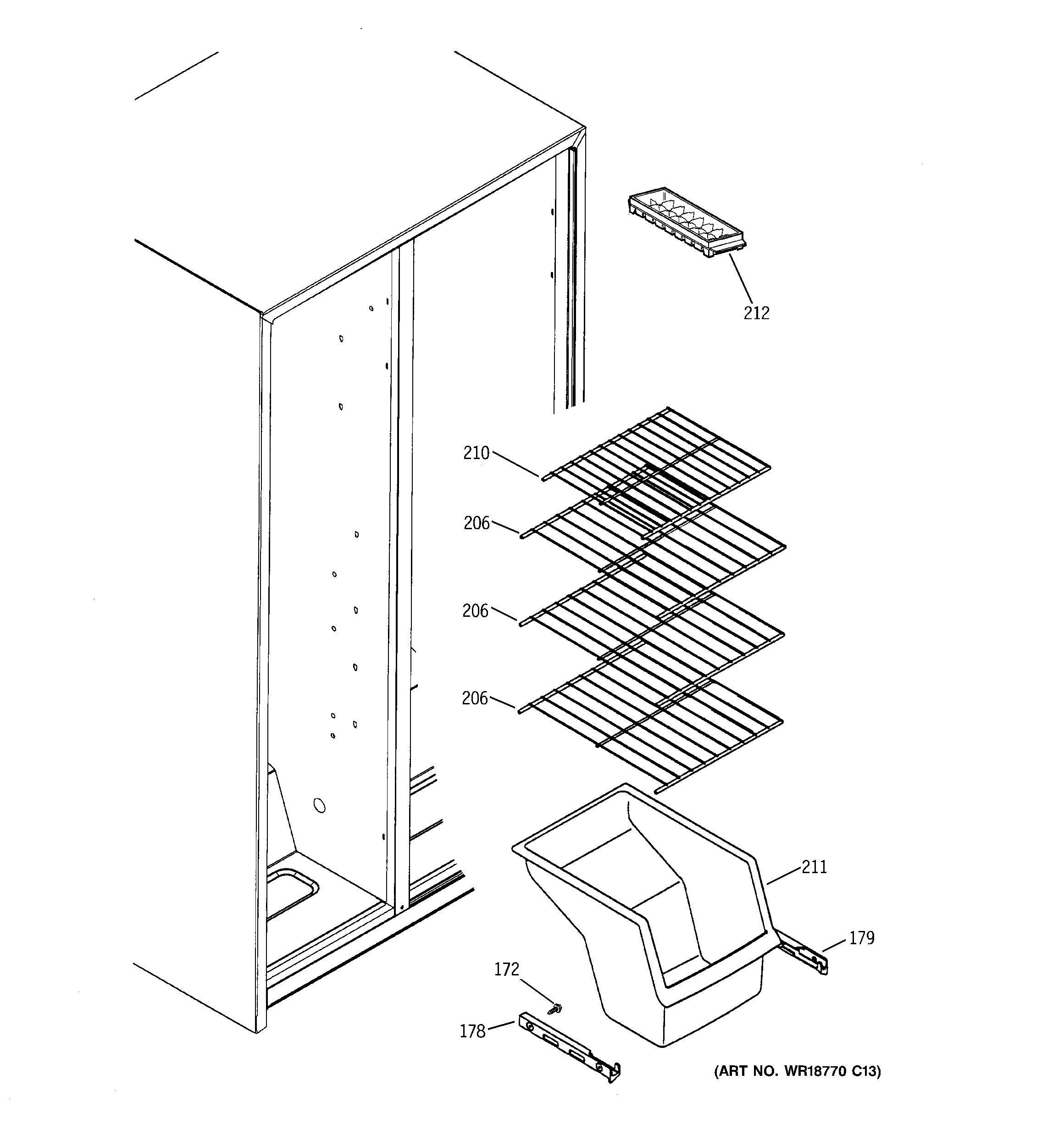

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10380

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10380. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Damper & The WR50X10034
#242

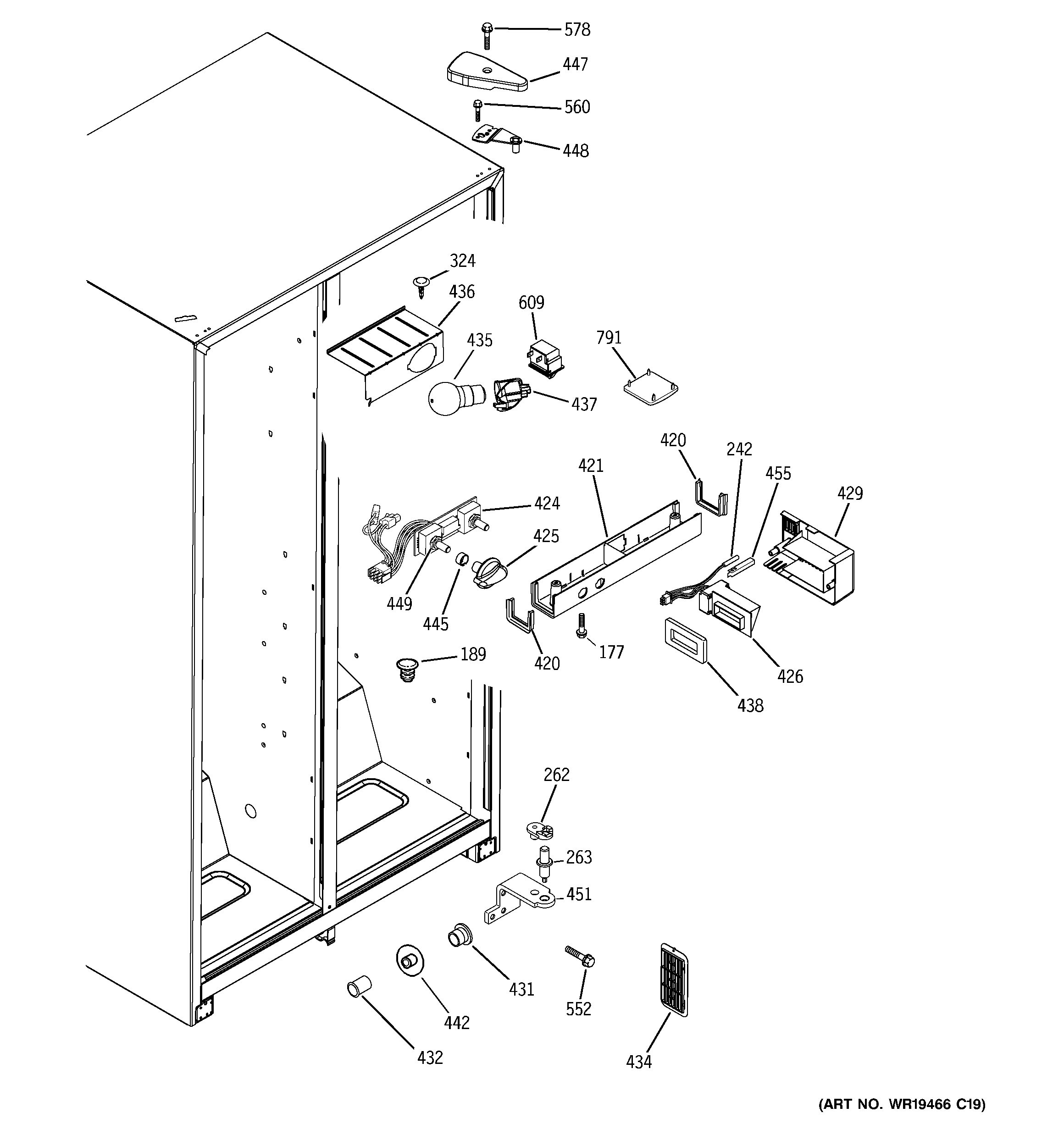

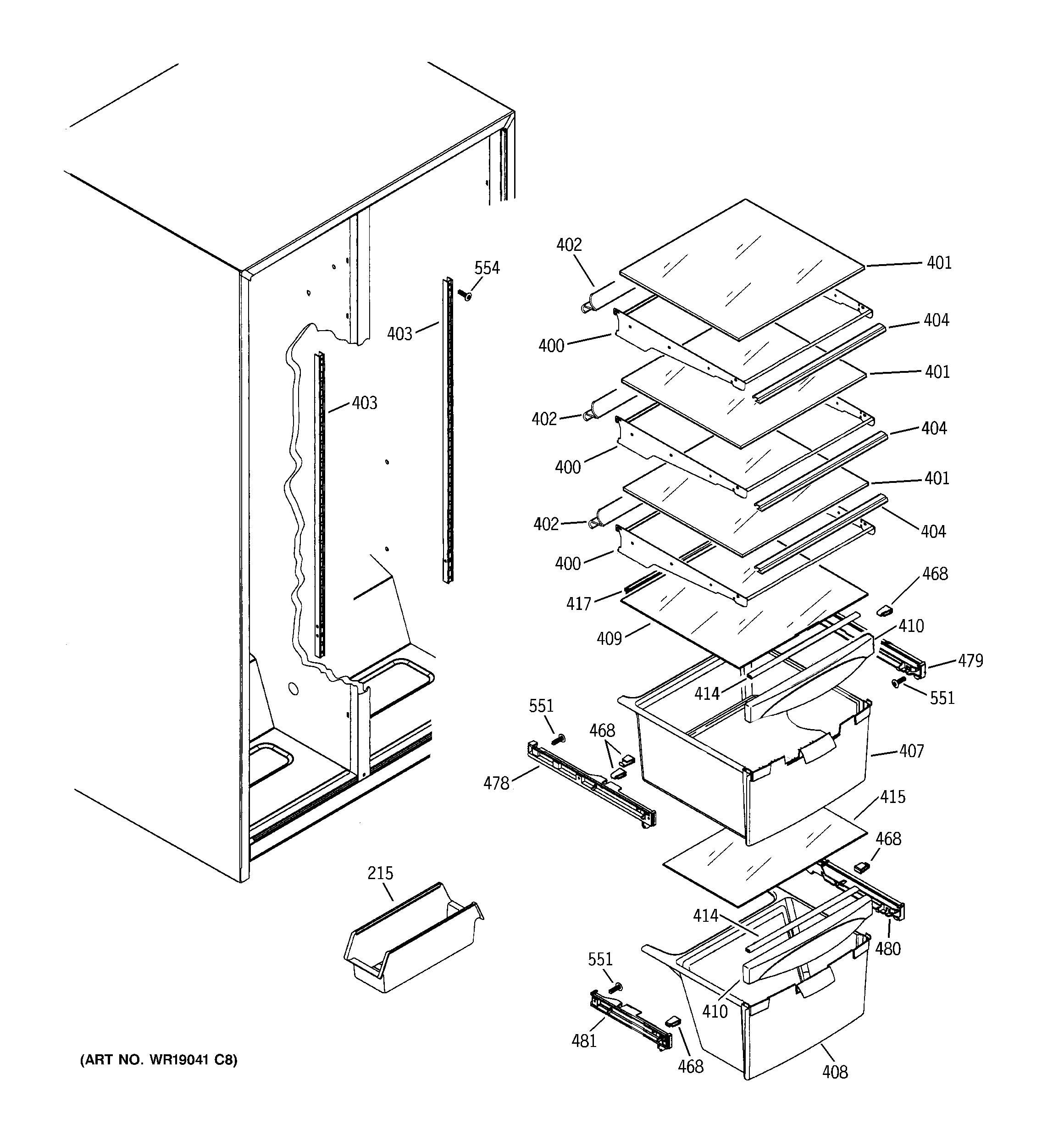

Fresh food section diagram

Damper & the

Part #WR50X10034

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10034. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR50X10027
#241

Freezer section diagram

Refrigerator temperature sensor

Part #WR50X10027

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10027. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Filter Dryer WR86X96
#740

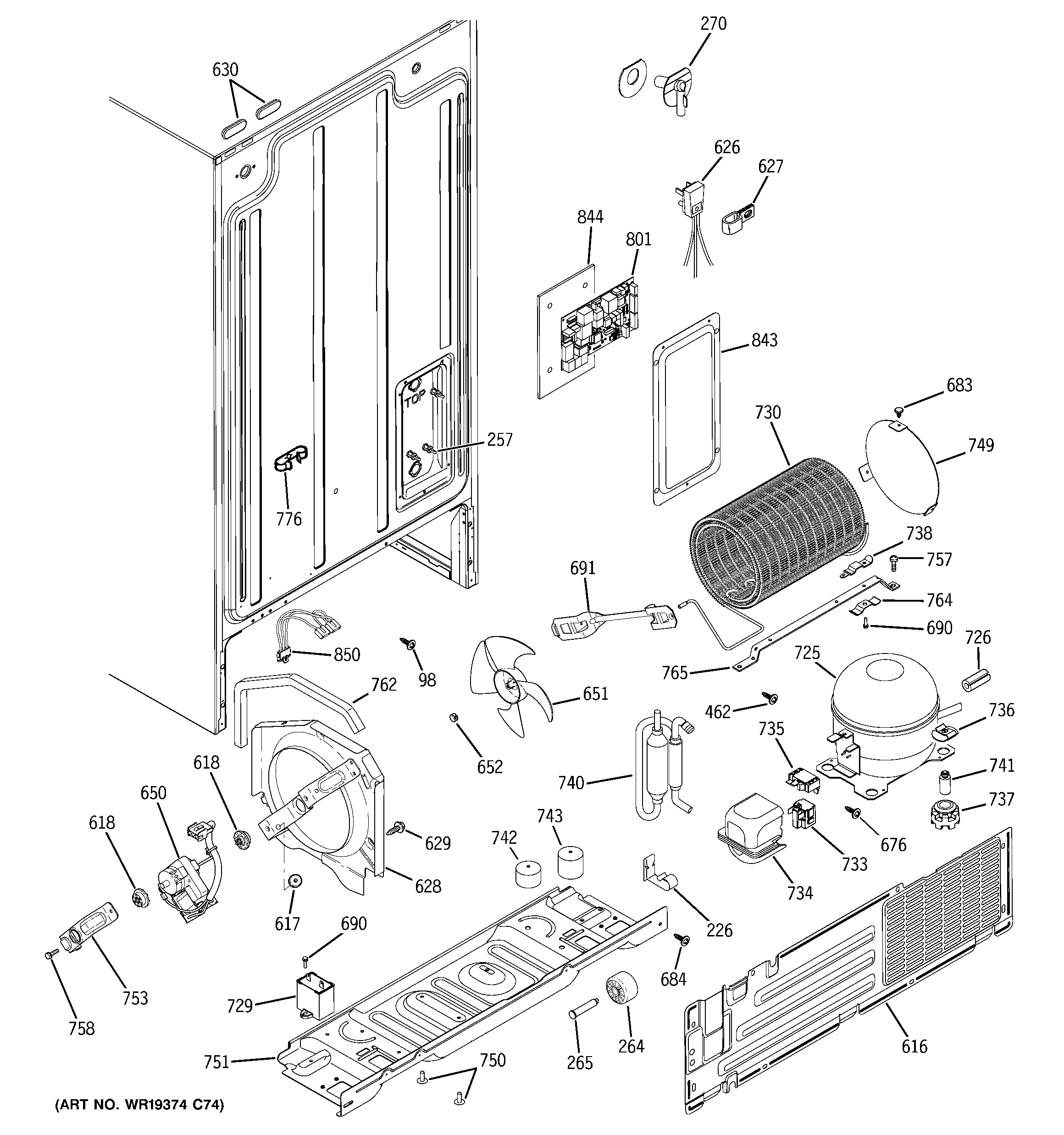

Sealed system & mother board diagram
