Kenmore
Chest Freezer

Model # 2538190610 Official Kenmore chest freezer

Here are the diagrams and repair parts for Official Kenmore 2538190610 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Drier 152474
#1

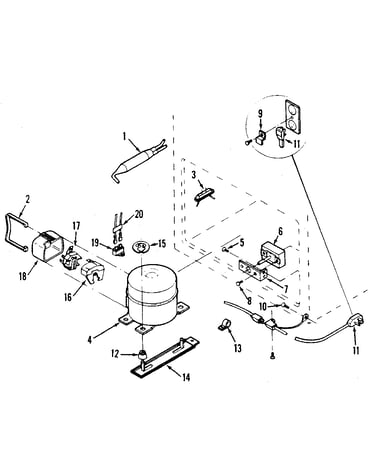

Unit diagram

Drier

Part #152474

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 152474. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Clip 300792
#8

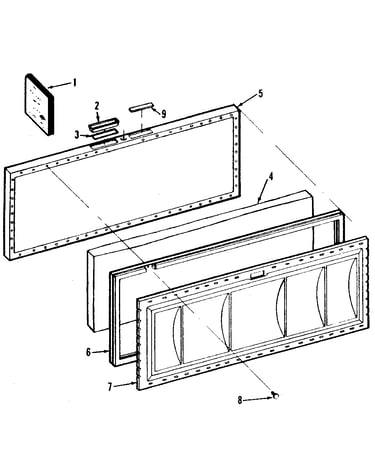

Lid diagram

Clip

Part #300792

Replaced by #5304406520

?
Manufacturer substitution
This part replaces 300792. Substitute parts can look different from the original.
BEST SELLER
$33.42 |
15% OFF Phone Price : $39.42
In Stock
Paint (white) 94566-64

#NI

All parts diagram

Paint (white)

Part #94566-64

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 94566-64. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Paint (white) 105639

#NI

All parts diagram

Paint (white)

Part #105639

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 105639. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Grommet 114221
#12

Unit diagram

Grommet

Part #114221

Replaced by #218513300

?
Manufacturer substitution
This part replaces 114221. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Hinge (white) 3925006
#8

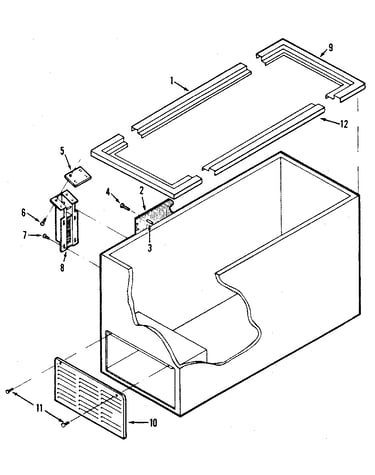

Cabinet diagram

Hinge (white)

Part #3925006

Replaced by #297321900

?
Manufacturer substitution
This part replaces 3925006. Substitute parts can look different from the original.
$68.89 |
8% OFF Phone Price : $74.89
In Stock
Relay 300398
#17

Unit diagram

Relay

Part #300398

Replaced by #5303007173

?
Manufacturer substitution
This part replaces 300398. Substitute parts can look different from the original.
$152.69 |
7% OFF Phone Price : $164.69
In Stock
Capacitor 300399
#19

Unit diagram

Capacitor

Part #300399

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 300399. Substitute parts can look different from the original.
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Chest Freezer Access Panel Screw 50149
#11

Cabinet diagram

Chest freezer access panel screw

Part #50149

Replaced by #131420300

?
Manufacturer substitution
This part replaces 50149. Substitute parts can look different from the original.
This item is not returnable
$15.80
In Stock
Spacer 53320
#3

Cabinet diagram

Spacer

Part #53320

Replaced by #5300053320

?
Manufacturer substitution
This part replaces 53320. Substitute parts can look different from the original.
$18.29
In Stock
