Hotpoint
Top-Mount Refrigerator

Model # CTF23EFCR Official Hotpoint refrigerator

Here are the diagrams and repair parts for Official Hotpoint CTF23EFCR refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 232 parts  |
Light Switch WR23X193
#609

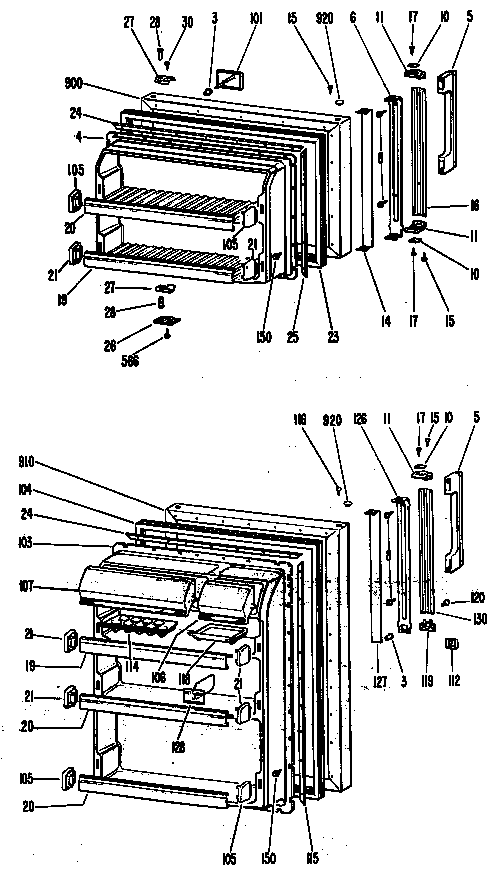

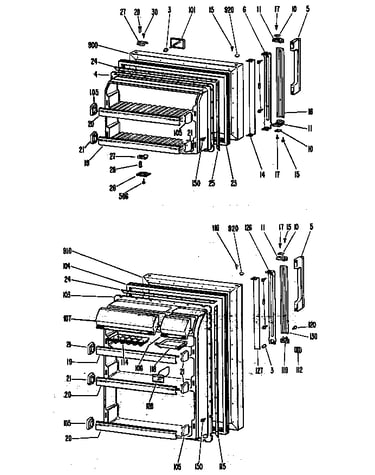

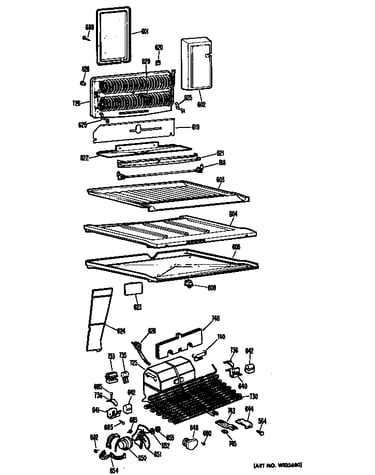

Unit diagram

Light switch

Part #WR23X193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Evaporator Fan Blade WR60X123
#613B

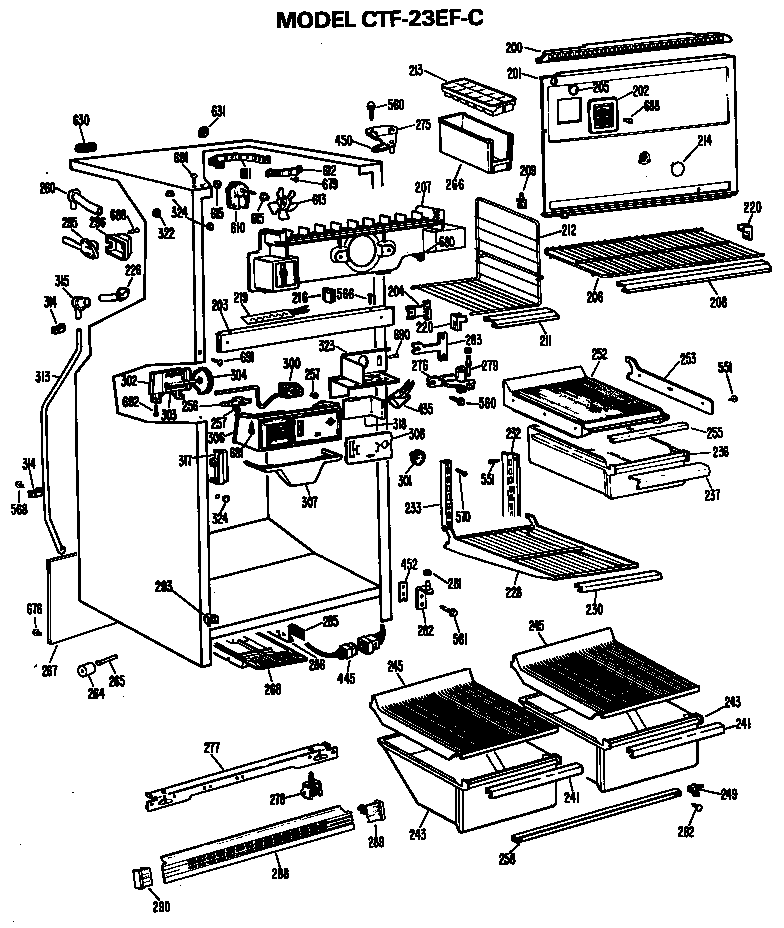

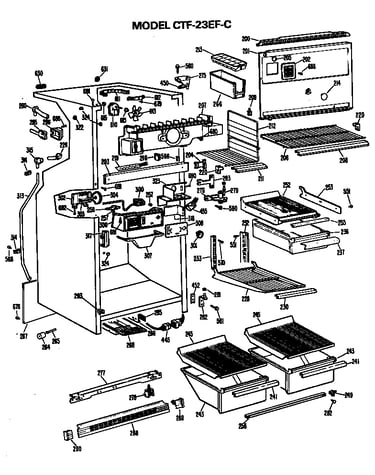

Chassis diagram

Refrigerator evaporator fan blade

Part #WR60X123

$65.59 |
8% OFF Phone Price : $71.59
In Stock
Refrigerator Defrost Heater WR51X299
#618

Unit diagram

Refrigerator defrost heater

Part #WR51X299

Replaced by #WR51X466

?
Manufacturer substitution
This part replaces WR51X299. Substitute parts can look different from the original.
$212.27 |
5% OFF Phone Price : $224.27
In Stock
Refrigerator Roller WR2X3594
#264

Chassis diagram

Refrigerator roller

Part #WR2X3594

This item is not returnable
$21.62 |
22% OFF Phone Price : $27.62
In Stock
Refrigerator Freezer Shelf WR71X6038
#212

Chassis diagram

Refrigerator freezer shelf

Part #WR71X6038

$24.49
In Stock
Cvr Mtg B WR2X7029
#736

Unit diagram

Cvr mtg b

Part #WR2X7029

This item is not returnable
$2.49
In Stock
Refrigerator Cabinet Sealer Plug WR2X4097
#630

Chassis diagram

Refrigerator cabinet sealer plug

Part #WR2X4097

$17.96 |
10% OFF Phone Price : $19.96
In Stock
Refrigerator Screw WR1X1596
#685

Unit diagram

Refrigerator screw

Part #WR1X1596

This item is not returnable
$2.49
In Stock
Refrigerator Evaporator Cover Seal WR14X313
Refrigerator evaporator cover seal

Part #WR14X313

$17.31 |
10% OFF Phone Price : $19.31
In Stock
Refrigerator Water Tubing Clip WR1X5278
#626A

Unit diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
