Norge
Gas Range

Model # UNGA2H1 Official Norge gas range

Here are the diagrams and repair parts for Official Norge UNGA2H1 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

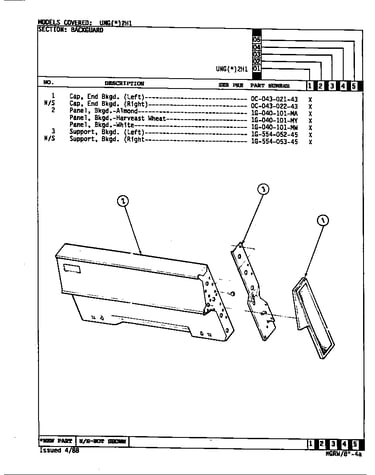

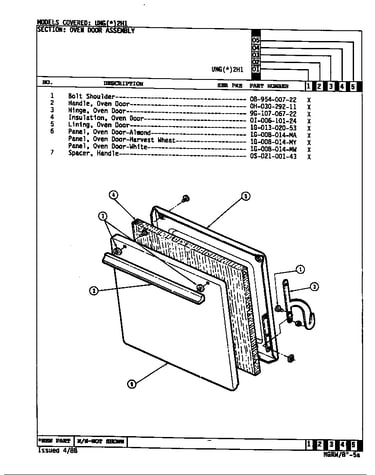

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Oven Switch 0S03004999
#16

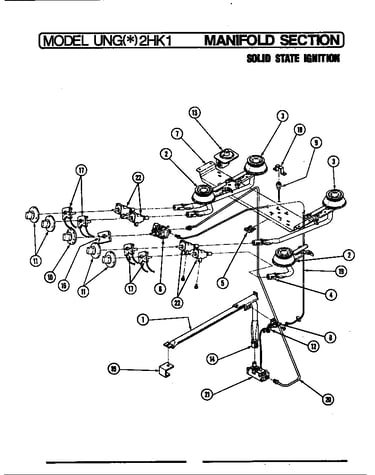

Controls (solid state ignition) (unga2hk1) (ungw2hk1) diagram

Oven switch

Part #0S03004999

The manufacturer no longer makes this part, and there's no substitute part

Switch 0S03005999
#17

Controls (solid state ignition) (unga2hk1) (ungw2hk1) diagram

Switch

Part #0S03005999

The manufacturer no longer makes this part, and there's no substitute part

Top - White 1G080084MW
#41A

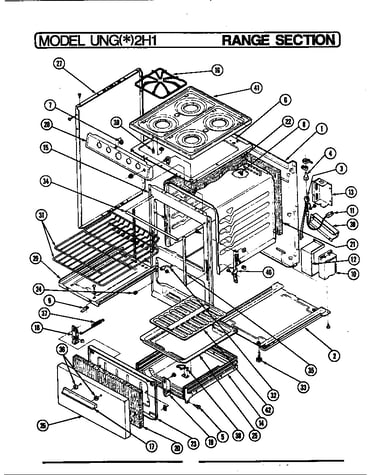

Body diagram

Top - white

Part #1G080084MW

The manufacturer no longer makes this part, and there's no substitute part

Broiler Tray 5G06700153
#42

Body diagram

Broiler tray

Part #5G06700153

The manufacturer no longer makes this part, and there's no substitute part

Burner 9G20103153
Burner

Part #9G20103153

The manufacturer no longer makes this part, and there's no substitute part

Disconnect Block 0B02800550
#3

Body diagram

Disconnect block

Part #0B02800550

The manufacturer no longer makes this part, and there's no substitute part

Disconnect Block 0B02800650
#4

Body diagram

Disconnect block

Part #0B02800650

The manufacturer no longer makes this part, and there's no substitute part

Filter Top L 0F00104816
#7

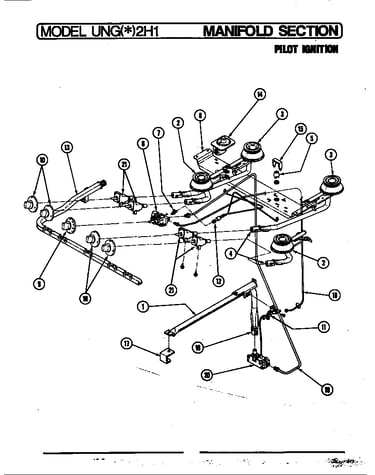

Controls (pilot ignition) (unga2h1) (ungw2h1) diagram

Filter top l

Part #0F00104816

The manufacturer no longer makes this part, and there's no substitute part

Extension Cord 0C03001199
#11

Body diagram

Extension cord

Part #0C03001199

The manufacturer no longer makes this part, and there's no substitute part

Oven Burner Clip 7G12000299
#9

Body diagram

Oven burner clip

Part #7G12000299

The manufacturer no longer makes this part, and there's no substitute part
