Model # 5KSB1585SER0 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid 5KSB1585SER0 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |

Blender Jar Assembly W10514321
#2

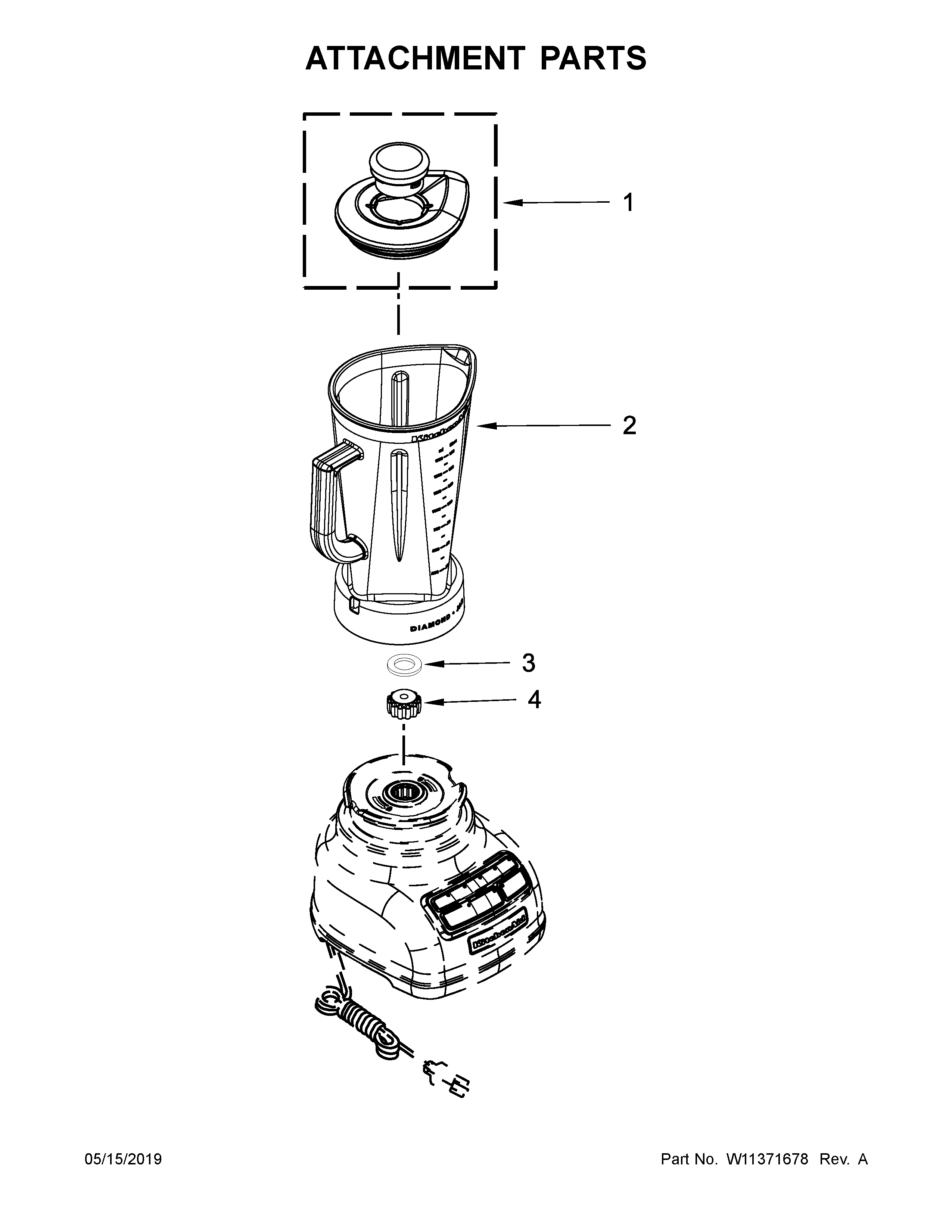

Attachment parts diagram

Blender jar assembly

Part #W10514321

Replaced by #WPW10514321

?
Manufacturer substitution
This part replaces W10514321. Substitute parts can look different from the original.
$80.63
7% OFF Phone Price : $86.63
In Stock
Power Cord W10858987
#8

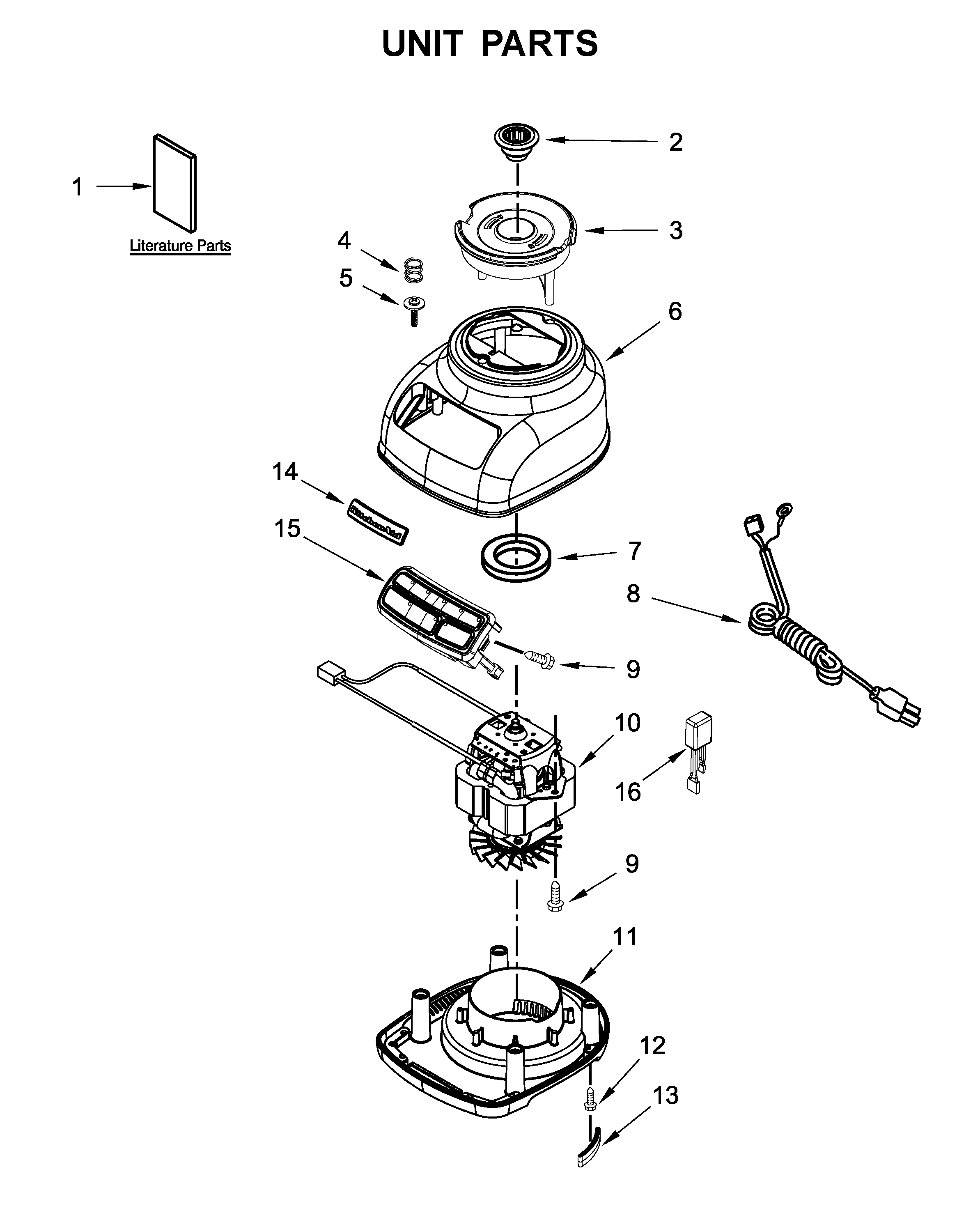

Unit parts diagram

Power cord

Part #W10858987

In Stock
Housing-pain W10646512
#6D

Unit parts diagram

Housing-pain

Part #W10646512

In Stock
Housing-pain W10646510
#6E

Unit parts diagram

Housing-pain

Part #W10646510

In Stock
Assy-almond W10646874
#1

Attachment parts diagram

Assy-almond

Part #W10646874

In Stock
Housing-pain W10646525
#6A

Unit parts diagram

Housing-pain

Part #W10646525

In Stock
Blender Jar Lock Spring W10573822
#4

Unit parts diagram

Blender jar lock spring

Part #W10573822

In Stock
Housing-pain W10646514
#6B

Unit parts diagram

Housing-pain

Part #W10646514

In Stock
Blender Base (black) W10497274
#11

Unit parts diagram

Blender base (black)

Part #W10497274

In Stock
Housing-pain W10646511
#6C

Unit parts diagram

Housing-pain

Part #W10646511

In Stock
