Model # WBXR1060T3WW Official GE washer
Here are the diagrams and repair parts for Official GE WBXR1060T3WW washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
WBXR1060T3WW Washer
#650
Suspension, pump & drive components diagram
Pump bracket label
Part #WH23X81
Replaced by #WH23X10030
?
Manufacturer substitution
This part replaces WH23X81. Substitute parts can look different from the original.
$58.79 |
9% OFF Phone Price : $64.79
In Stock
#370

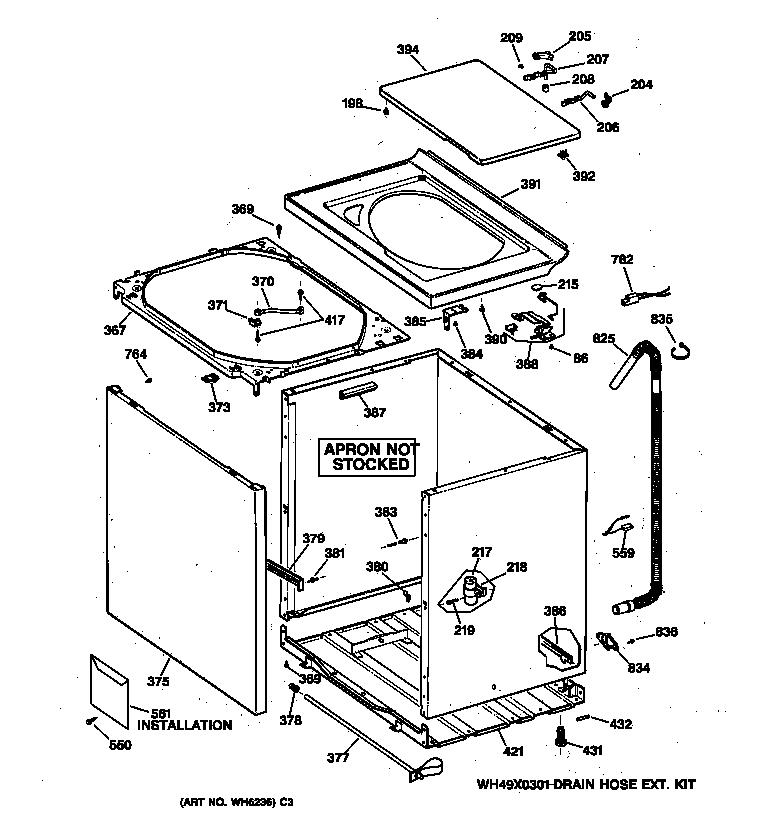

Cabinet, cover & front panel diagram
Washer dampening strap (replaces wh01x2727)
Part #WH1X2727
$30.67 |
16% OFF Phone Price : $36.67
In Stock
#304

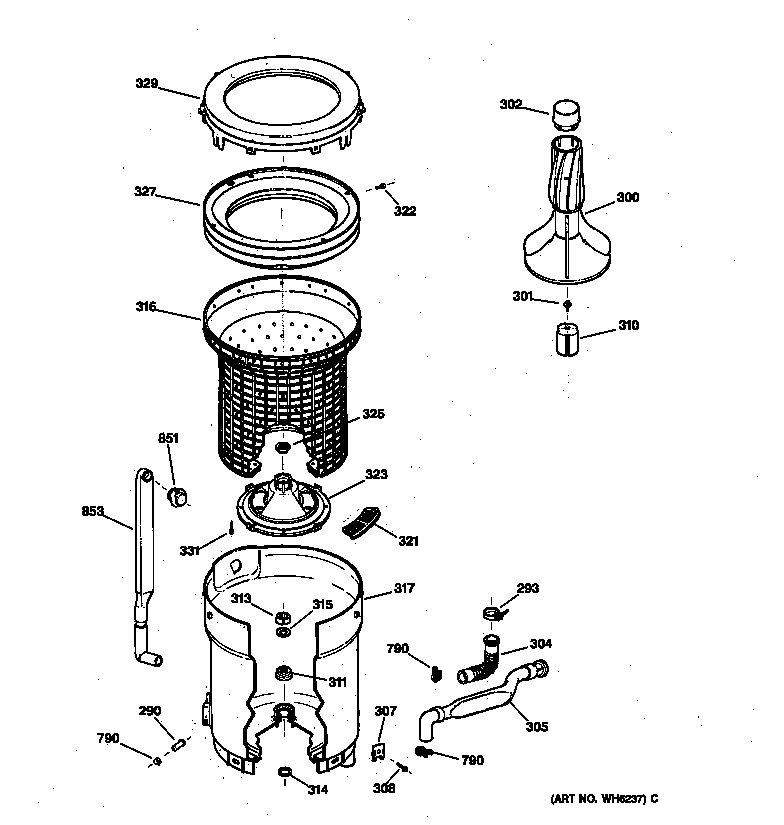

Tub, basket & agitator diagram
Washer tub-to-pump hose
Part #WH41X371
Replaced by #WH41X22935
?
Manufacturer substitution
This part replaces WH41X371. Substitute parts can look different from the original.
This item is not returnable
$15.53 |
11% OFF Phone Price : $17.53
In Stock
Washer hose clamp kit
Part #WH1X2036
$11.59 |
15% OFF Phone Price : $13.59
In Stock
#91
Controls & backsplash diagram
Sw rotary
Part #WH12X999
Replaced by #WH12X10498
?
Manufacturer substitution
This part replaces WH12X999. Substitute parts can look different from the original.
This item is not returnable
$20.74 |
22% OFF Phone Price : $26.74
In Stock
#8
Controls & backsplash diagram
Washer timer knob (replaces wh01x2754, wh1x2710, wh1x2770)
Part #WH1X2754
This item is not returnable
$7.71 |
11% OFF Phone Price : $8.71
In Stock
#302
Tub, basket & agitator diagram
Agitator cap
Part #WH43X136
Replaced by #WH43X10005
?
Manufacturer substitution
This part replaces WH43X136. Substitute parts can look different from the original.
$31.48
In Stock
#369
Cabinet, cover & front panel diagram
Laundry center screw
Part #WH2X1217
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
#431
Cabinet, cover & front panel diagram
Washer leveling leg
Part #WH2X1187
This item is not returnable
$15.47 |
11% OFF Phone Price : $17.47
In Stock
#401
Suspension, pump & drive components diagram
Tub shield
Part #WH45X159
Replaced by #WH45X10046
?
Manufacturer substitution
This part replaces WH45X159. Substitute parts can look different from the original.
$10.53 |
16% OFF Phone Price : $12.53
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $15.47 |11% OFF Phone Price : $17.47
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
