Electric Range

Model # YISE630VS11 Official Ikea electric slide-in range

Here are the diagrams and repair parts for Official Ikea YISE630VS11 electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

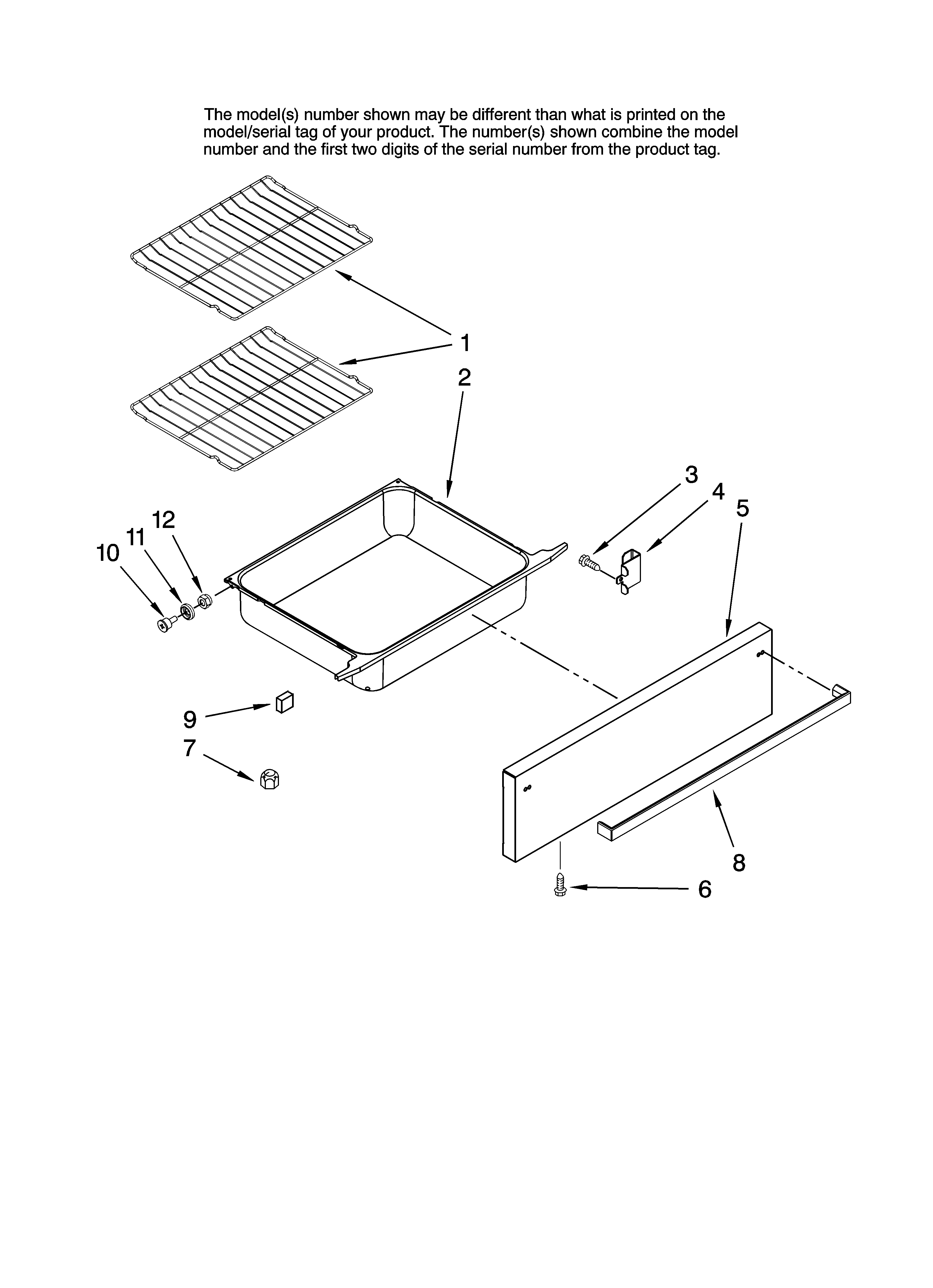

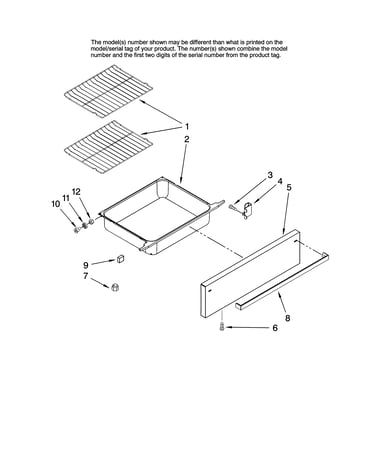

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Oven Bulb 7407P103-60
#24

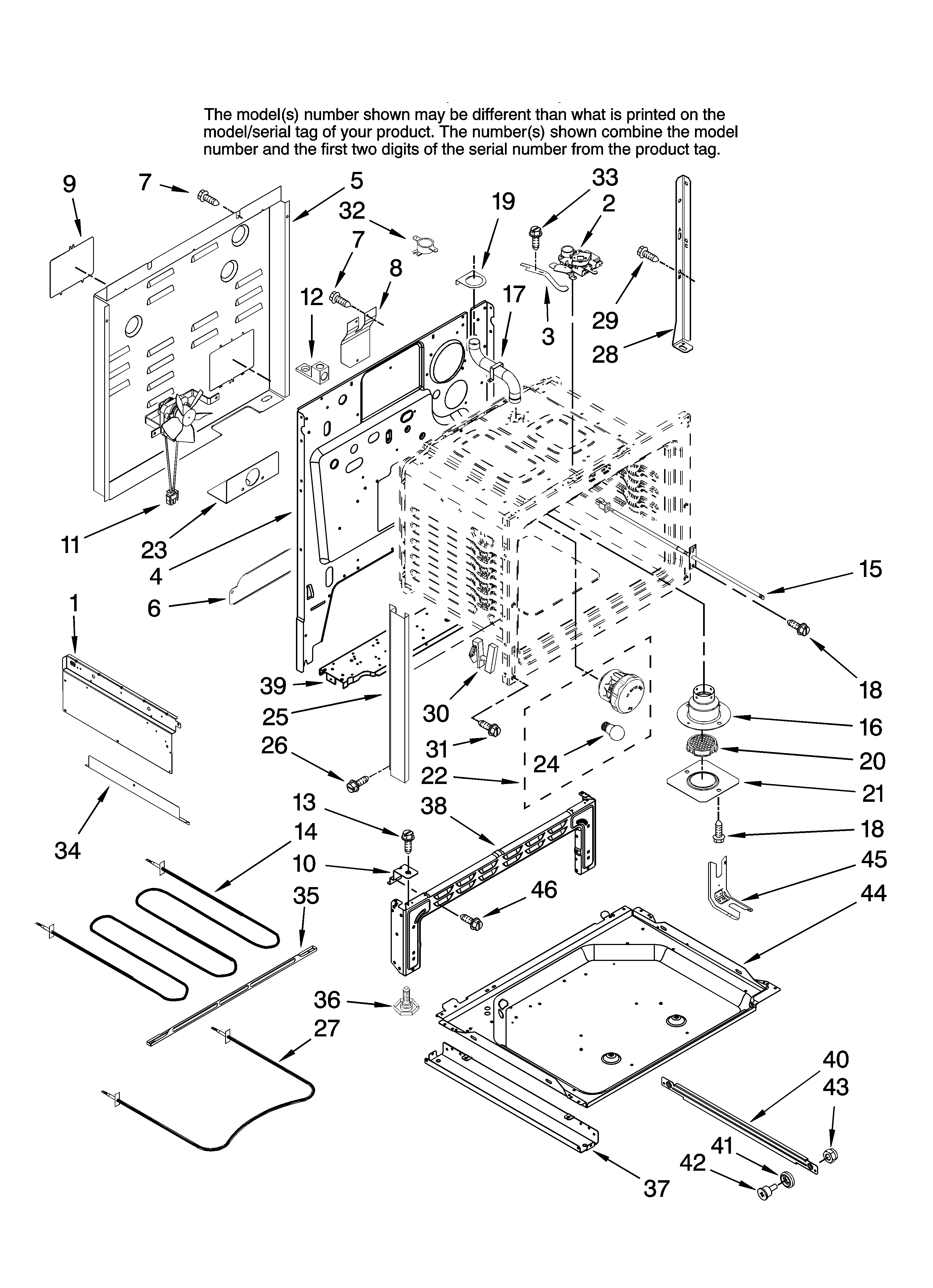

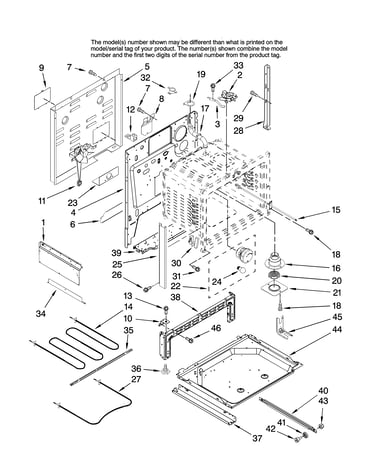

Chassis parts diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Oven Sensor 74004943
#15

Chassis parts diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$36.94 |
14% OFF Phone Price : $42.94
In Stock
Range Surface Element Control Switch 7403P238-60
#4A

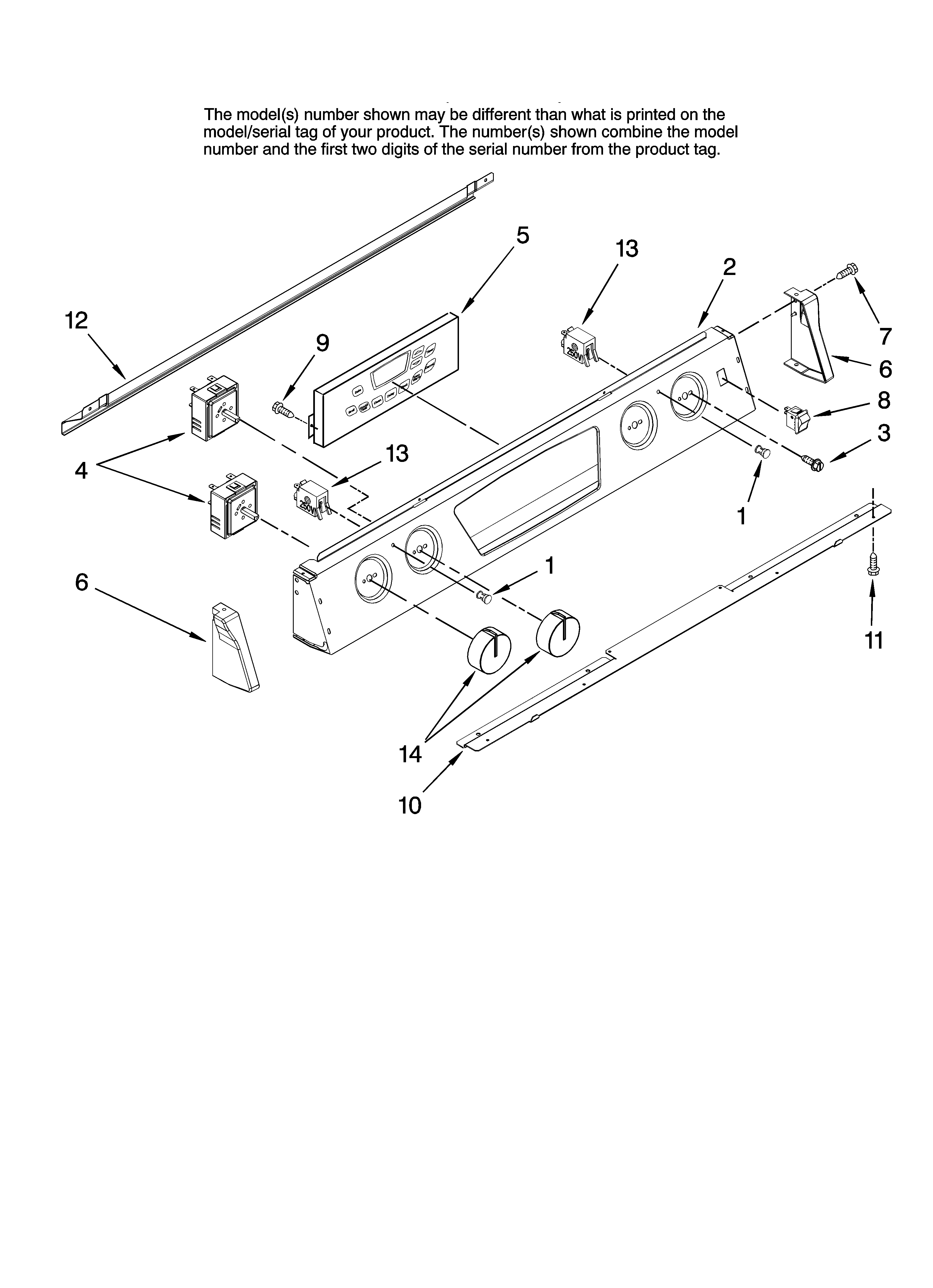

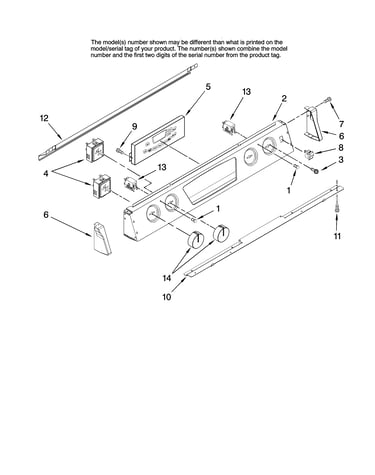

Control panel parts diagram

Range surface element control switch

Part #7403P238-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P238-60. Substitute parts can look different from the original.
BEST SELLER
$50.39 |
11% OFF Phone Price : $56.39
In Stock
Range Surface Element Control Switch 7403P239-60
#4

Control panel parts diagram

Range surface element control switch

Part #7403P239-60

Replaced by #WP7403P239-60

?
Manufacturer substitution
This part replaces 7403P239-60. Substitute parts can look different from the original.
BEST SELLER
$47.96 |
11% OFF Phone Price : $53.96
In Stock
Element (120 74008568
#4

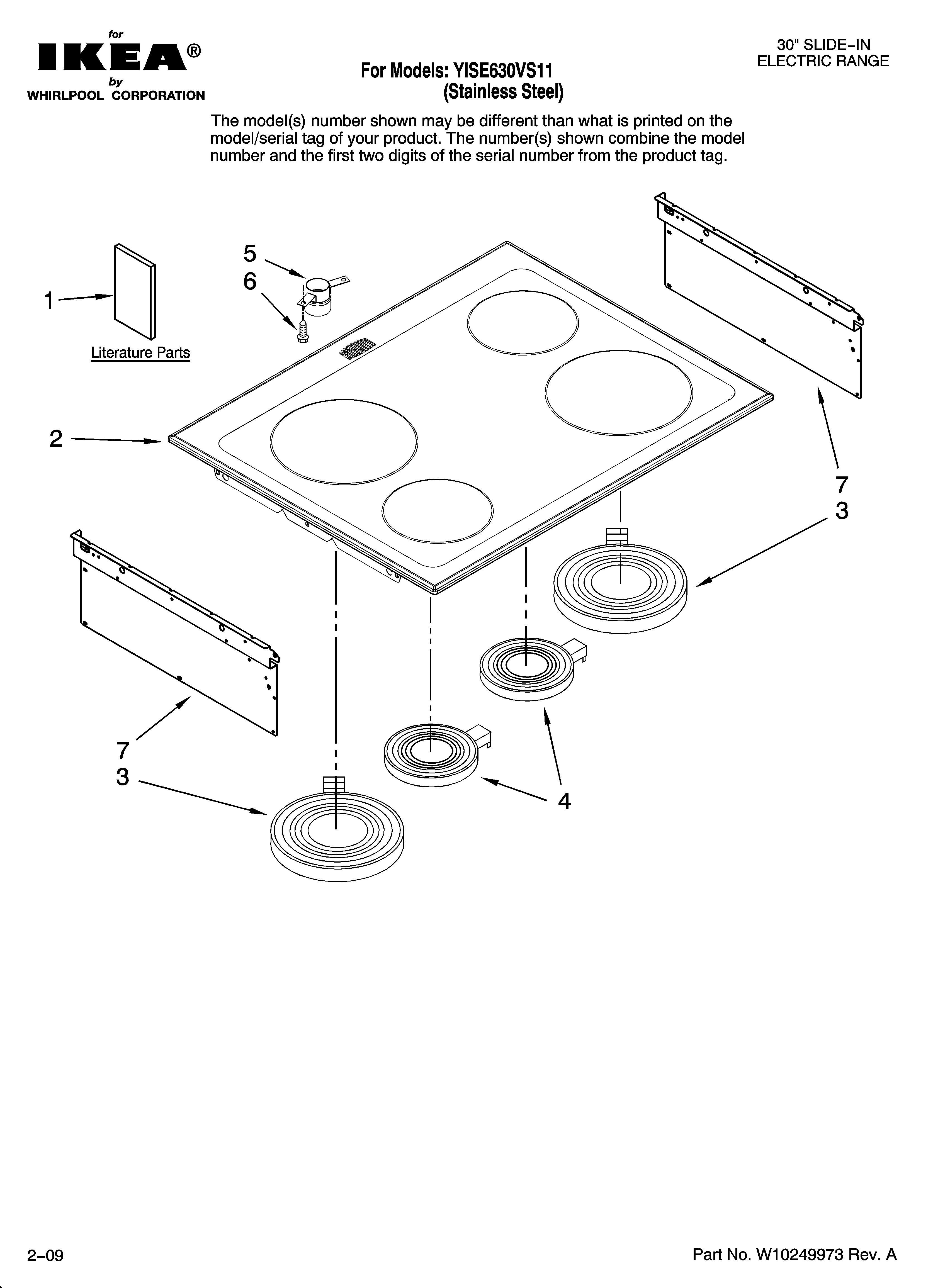

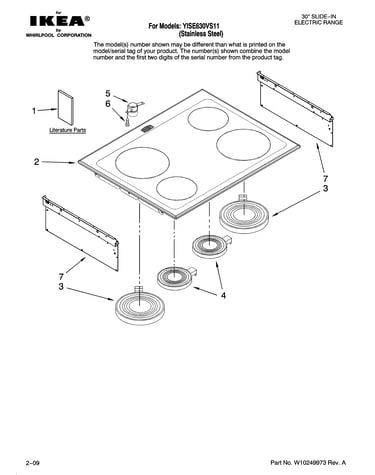

Cooktop parts diagram

Element (120

Part #74008568

Replaced by #W10823711

?
Manufacturer substitution
This part replaces 74008568. Substitute parts can look different from the original.
BEST SELLER
$148.63 |
7% OFF Phone Price : $160.63
In Stock
Bake Element 74010883
#27

Chassis parts diagram

Bake element

Part #74010883

Replaced by #WPW10310274

?
Manufacturer substitution
This part replaces 74010883. Substitute parts can look different from the original.
BEST SELLER
$64.47 |
9% OFF Phone Price : $70.47
In Stock
Hex Head Bolt W10116760
Hex head bolt

Part #W10116760

The manufacturer no longer makes this part, and there's no substitute part

Appliance Spray Paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) 350930
#NI

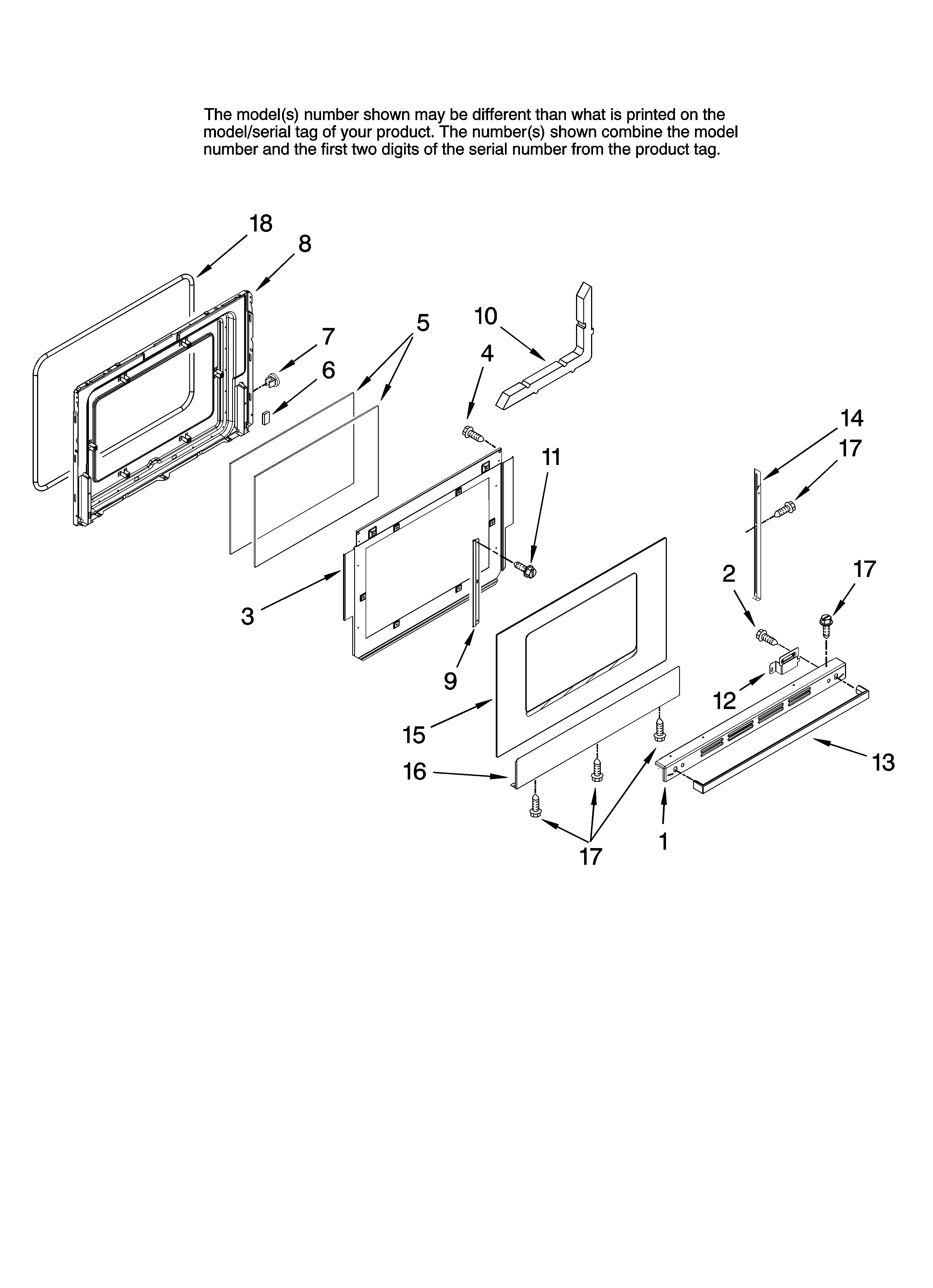

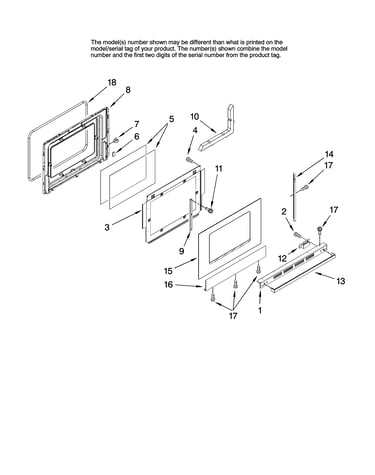

Door parts, optional parts (not included) diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930

BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Oven Door Gasket W10162384
#18

Door parts, optional parts (not included) diagram

Range oven door gasket

Part #W10162384

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces W10162384. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Element (250 74009034
#3

Cooktop parts diagram

Element (250

Part #74009034

Replaced by #W10823696

?
Manufacturer substitution
This part replaces 74009034. Substitute parts can look different from the original.
$114.82 |
10% OFF Was : $127.57
In Stock
