GE
Washer

Model # GFWS1705H0DG Official GE washer

Here are the diagrams and repair parts for Official GE GFWS1705H0DG washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Washer Shock Absorber WH01X20826
#253

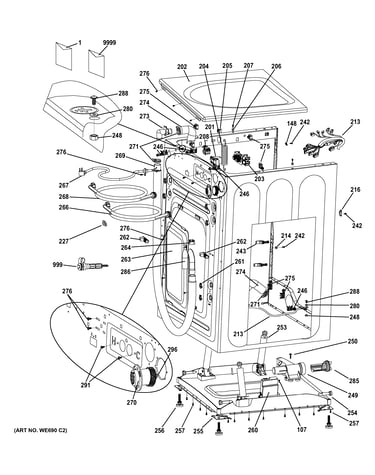

Cabinet & top panel diagram

Washer shock absorber

Part #WH01X20826

BEST SELLER
$73.93 |
8% OFF Phone Price : $79.93
In Stock
Pump WH23X20825
#249

Cabinet & top panel diagram

Pump

Part #WH23X20825

Replaced by #WH11X34740

?
Manufacturer substitution
This part replaces WH23X20825. Substitute parts can look different from the original.
BEST SELLER
$103.89
In Stock
Washer Dispenser Actuator (replaces Wh43x10031) WH43X10059
#140

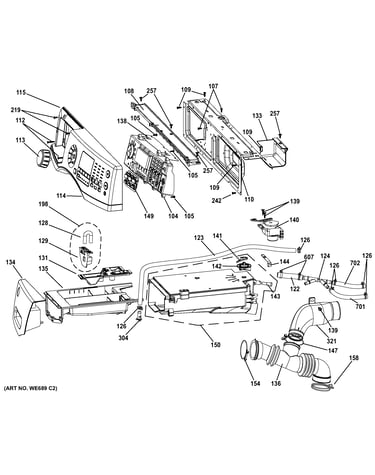

Controls & dispenser diagram

Washer dispenser actuator (replaces wh43x10031)

Part #WH43X10059

$129.55 |
8% OFF Phone Price : $141.55
In Stock
Washer Door Lock Strike WH01X20823
#223

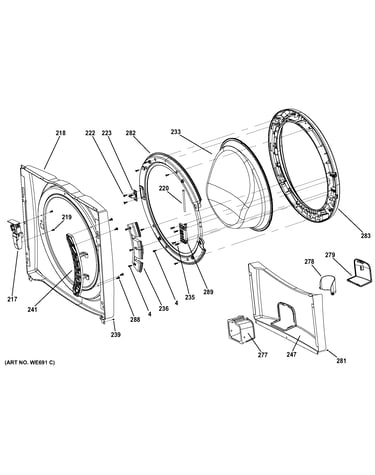

Front panel & door diagram

Washer door lock strike

Part #WH01X20823

This item is not returnable
$16.04 |
11% OFF Phone Price : $18.04
In Stock
Washer Drive Pulley Kit WH07X10022
#322

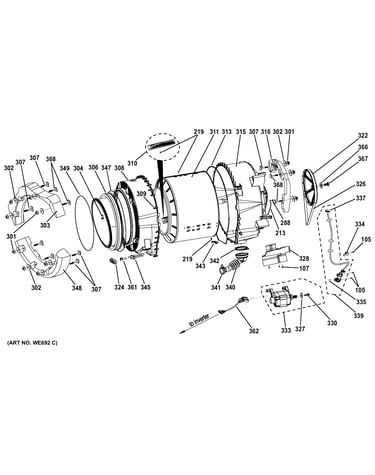

Tub & motor diagram

Washer drive pulley kit

Part #WH07X10022

$100.93 |
11% OFF Phone Price : $112.93
In Stock
Washer Water-level Pressure Switch WH12X20898
#208

Cabinet & top panel diagram

Washer water-level pressure switch

Part #WH12X20898

$51.96 |
10% OFF Phone Price : $57.96
In Stock
Washer Door Boot Spring Clamp WH08X10056
#349

Tub & motor diagram

Washer door boot spring clamp

Part #WH08X10056

$33.71 |
15% OFF Phone Price : $39.71
In Stock
Washer Door Boot Spring Clamp, Inner WH08X10055
#347

Tub & motor diagram

Washer door boot spring clamp, inner

Part #WH08X10055

$50.52 |
11% OFF Phone Price : $56.52
In Stock
Washer Tub Seal WH08X10054
#313

Tub & motor diagram

Washer tub seal

Part #WH08X10054

$30.99 |
16% OFF Phone Price : $36.99
In Stock
Washer Door Hinge Block WH02X20920
#289

Front panel & door diagram

Washer door hinge block

Part #WH02X20920

$25.82 |
19% OFF Phone Price : $31.82
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

View all

Why is the water in my washing machine the wrong temperature?

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Read more

Why does my washing machine overfill?

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Read more

Why doesn't my washing machine work at all?

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Read more

Why your washing machine won't finish its cycle

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Read more

Why won't my washing machine agitate or spin?

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Read more

Why won't my washing machine fill?

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Read more

Why won't my washing machine start?

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Read more

Why won't my washing machine drain?

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Read more

Why is my washing machine noisy or shaking?

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Read more

Repair guides for gas ranges
