Model # 79030473400 Official Kenmore gas wall oven
Here are the diagrams and repair parts for Official Kenmore 79030473400 gas wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

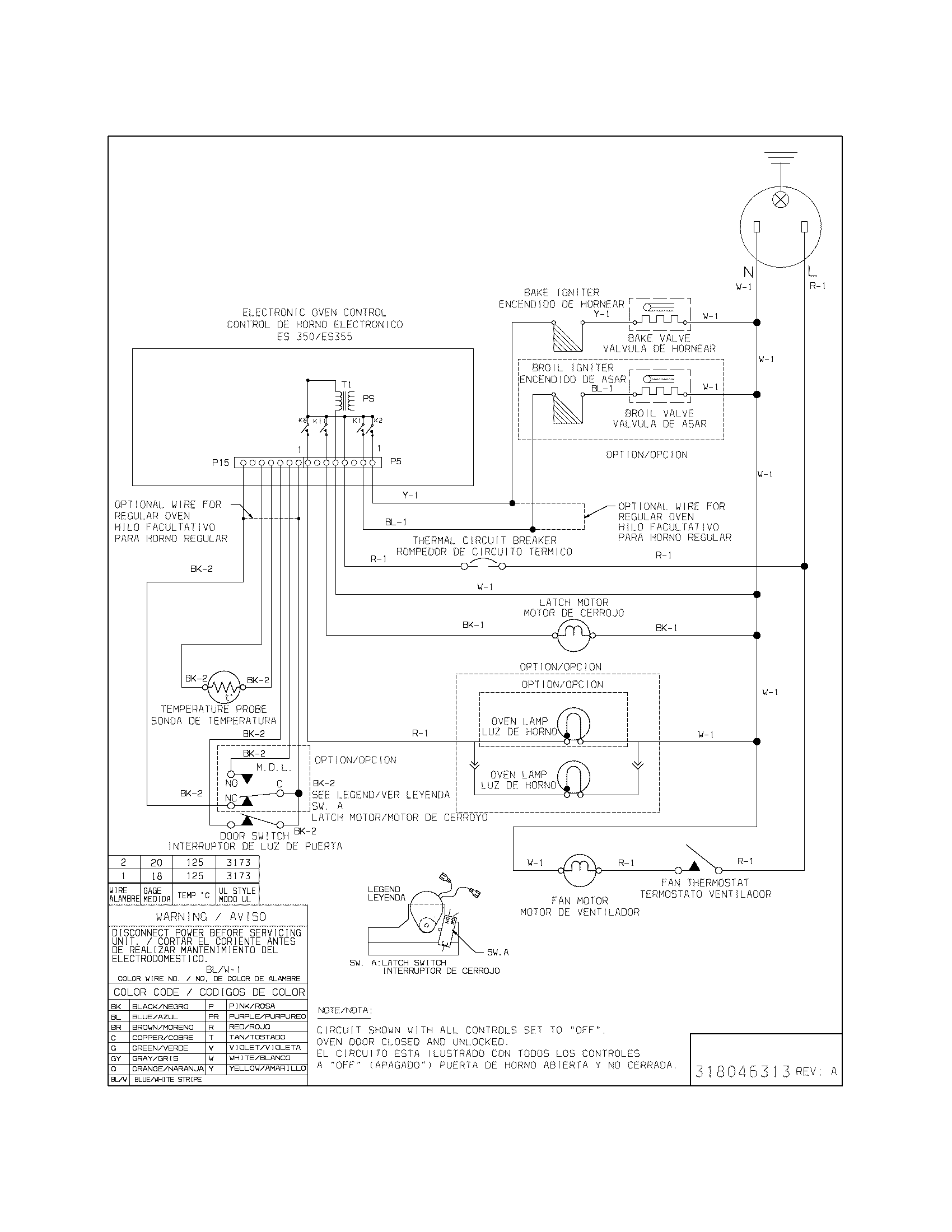

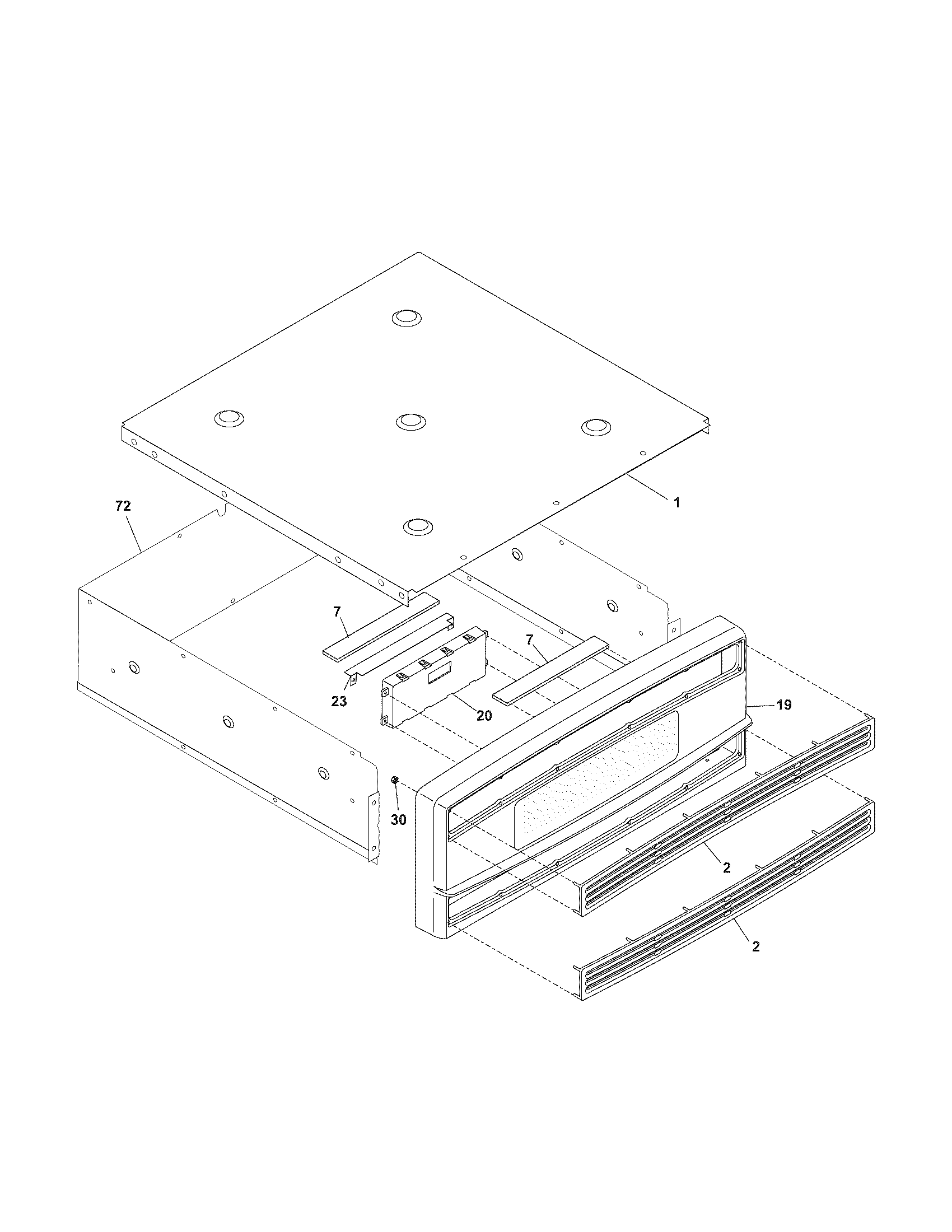

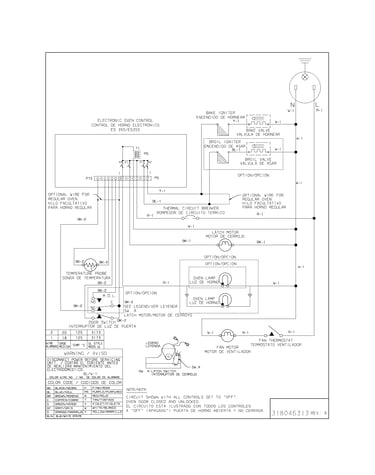

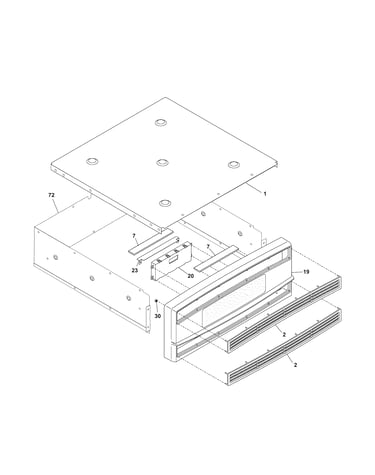

SELECT DIAGRAM
Browse Parts for79030473400 Wall Ovens
- #19

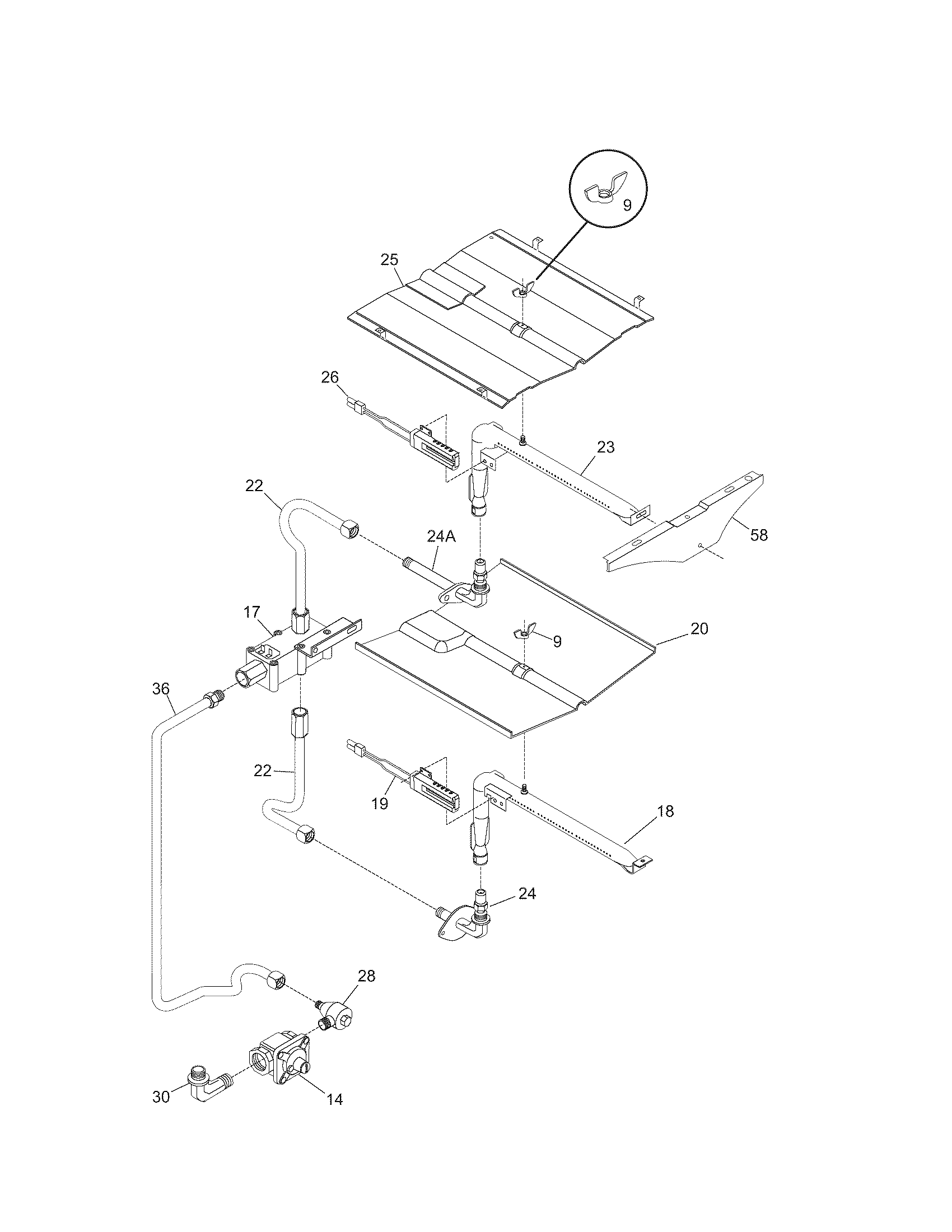

Burner diagram
Frigidaire range oven burner igniterPart #318177710
Replaced by #5303935066
?Manufacturer substitutionThis part replaces 318177710. Substitute parts can look different from the original.$34.33 |15% OFF Phone Price : $40.33In Stock - #15

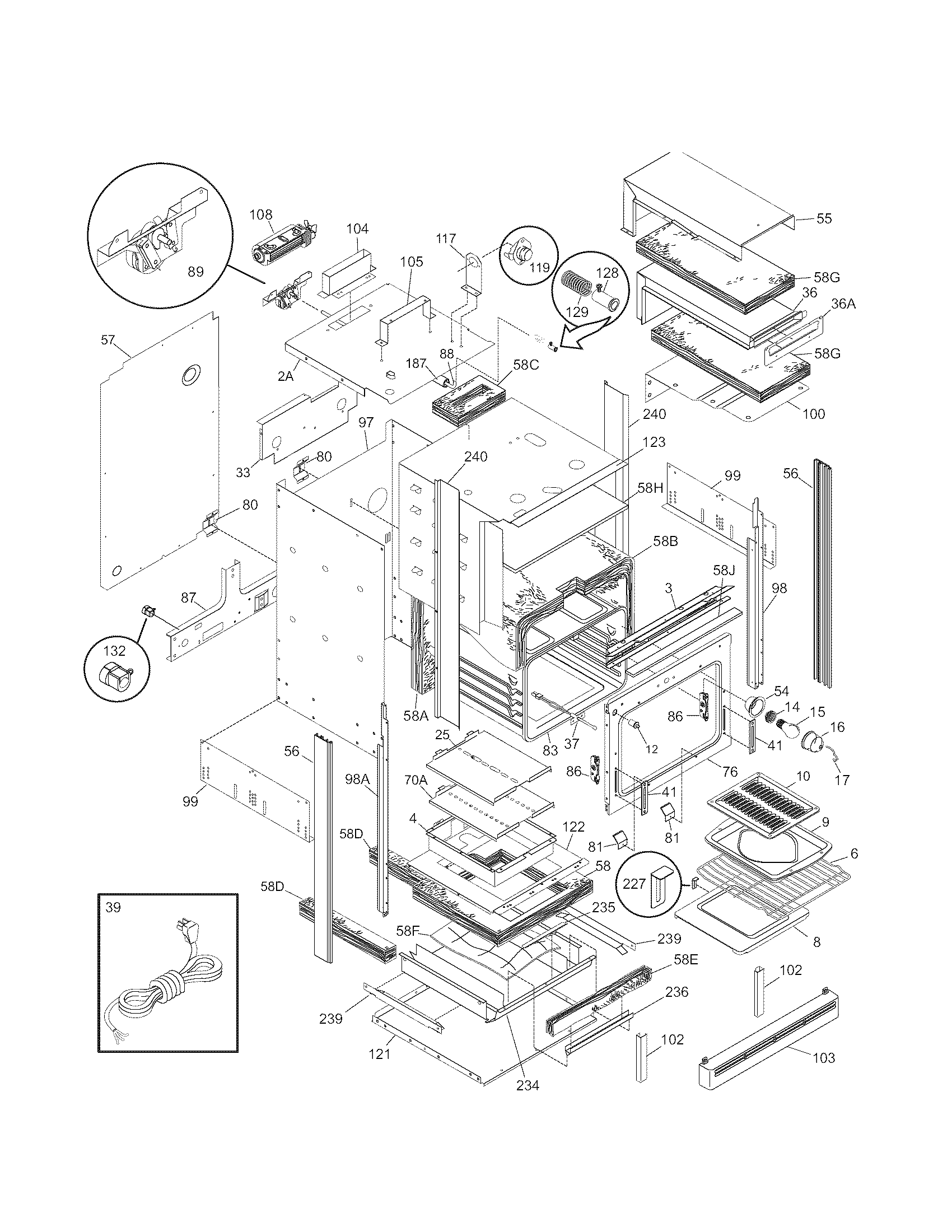

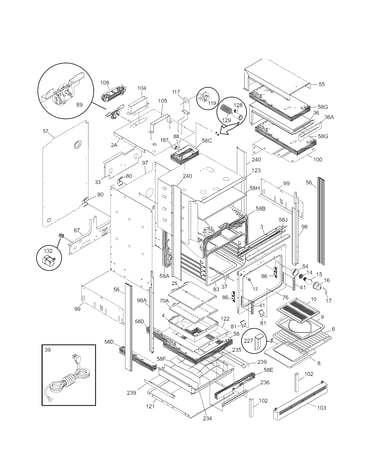

Body diagram
Range oven light bulbPart #5303013071
Replaced by #316538904
?Manufacturer substitutionThis part replaces 5303013071. Substitute parts can look different from the original.$15.89 |11% OFF Phone Price : $17.89In Stock - #NI
Body diagram
ScrewPart #08016432
Replaced by #131243700
?Manufacturer substitutionThis part replaces 08016432. Substitute parts can look different from the original.$55.42In Stock - #14
Body diagram
Range oven light socketPart #318224000
Replaced by #316116400
?Manufacturer substitutionThis part replaces 318224000. Substitute parts can look different from the original.$43.02 |12% OFF Phone Price : $49.02In Stock - #NI

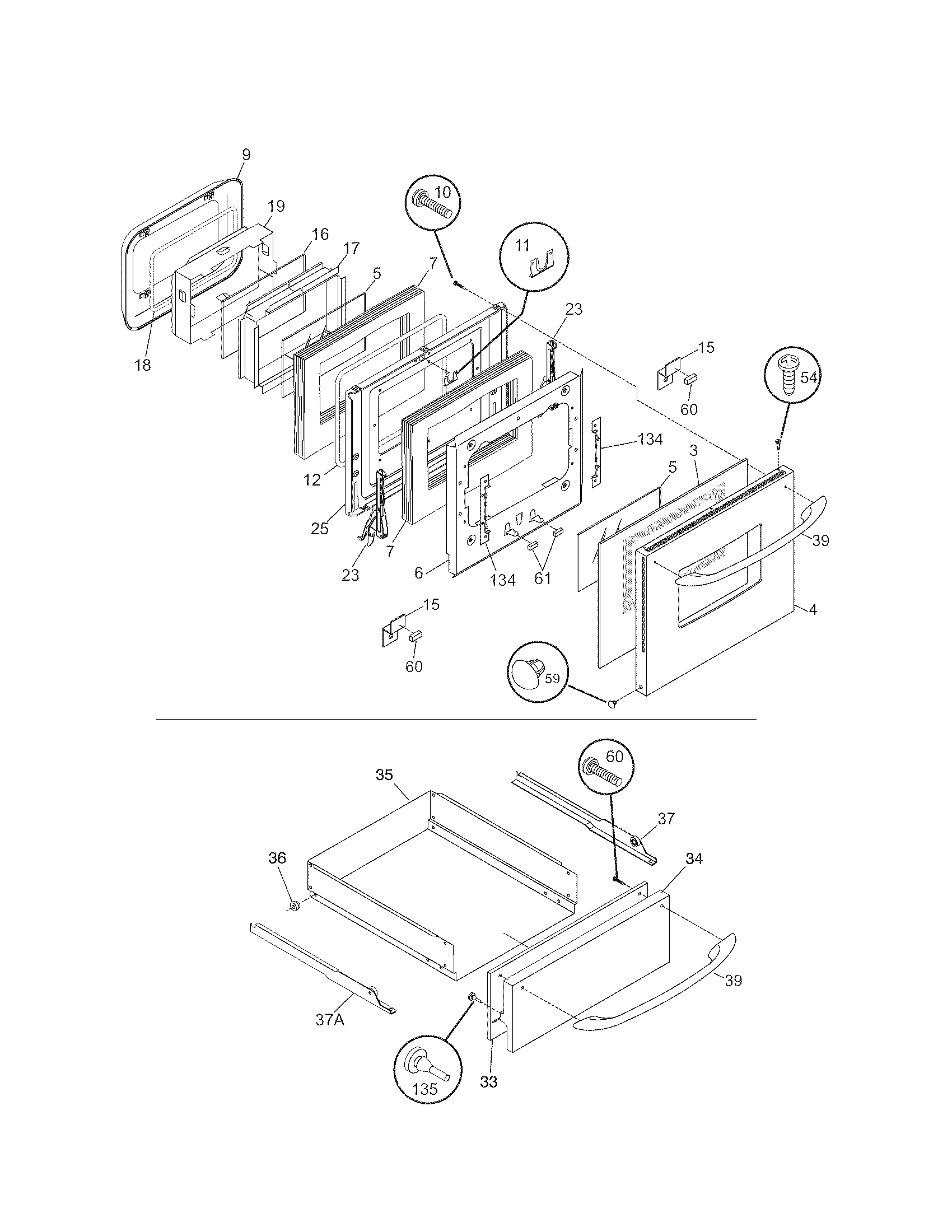

Door/drawer diagram
Electrolux appliance stainless steel cleaner, 1-ozPart #316136900
$19.94 |9% OFF Phone Price : $21.94In Stock - #26
Burner diagram
Range broil igniterPart #316119302
Replaced by #5303935068
?Manufacturer substitutionThis part replaces 316119302. Substitute parts can look different from the original.$96.47 |11% OFF Phone Price : $108.47In Stock - #9
Burner diagram
NutPart #3201885
Replaced by #5303013272
?Manufacturer substitutionThis part replaces 3201885. Substitute parts can look different from the original.This item is not returnable$18.06 |10% OFF Phone Price : $20.06In Stock - Screw
Part #3051070
Replaced by #5304500008
?Manufacturer substitutionThis part replaces 3051070. Substitute parts can look different from the original.$28.59In Stock - #54
Door/drawer diagram
Range screwPart #5303300265
This item is not returnable$16.40In Stock - Screw
Part #5303311306
Replaced by #5304480396
?Manufacturer substitutionThis part replaces 5303311306. Substitute parts can look different from the original.$38.79In Stock
