Model # WFG500M4HS0 Official Whirlpool gas freestanding range

Here are the diagrams and repair parts for Official Whirlpool WFG500M4HS0 gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Light Bulb 4364092
#11

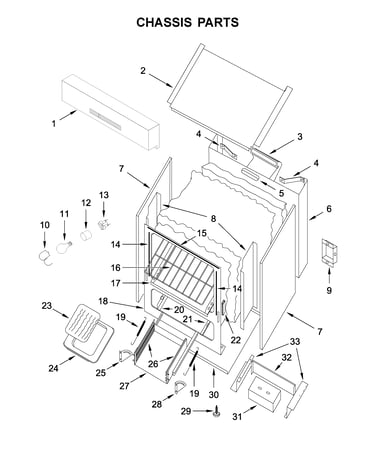

Chassis parts diagram

Light bulb

Part #4364092

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4364092. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Cross Brace, Rear W11222996
#32

Chassis parts diagram

Cross brace, rear

Part #W11222996

$50.78
In Stock
Whirlpool Backguard, Vented W11224747
#1

Chassis parts diagram

Whirlpool backguard, vented

Part #W11224747

$364.31
In Stock
Whirlpool Burner Baffle W11225277
#14

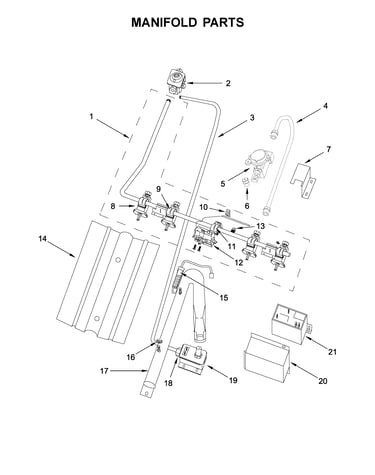

Manifold parts diagram

Whirlpool burner baffle

Part #W11225277

$91.29
In Stock
Whirlpool Slide, Drawer (right) W11224733
#21

Chassis parts diagram

Whirlpool slide, drawer (right)

Part #W11224733

$59.82
In Stock
Brace, Back W11223015
#4

Chassis parts diagram

Brace, back

Part #W11223015

$52.80
In Stock
Whirlpool Manifold Panel W11224722
#9

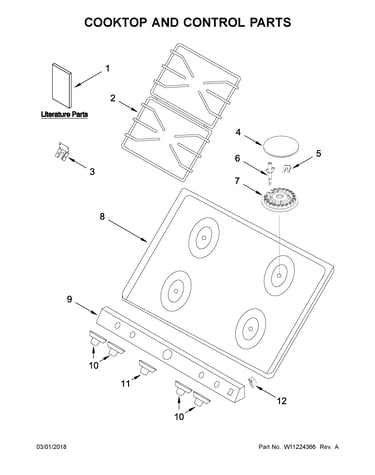

Cooktop and control parts diagram

Whirlpool manifold panel

Part #W11224722

$261.53
In Stock
Whirlpool Burner Box Bottom W11224715
#2

Chassis parts diagram

Whirlpool burner box bottom

Part #W11224715

$133.36
In Stock
Whirlpool Tubing, Burner (rear) W11236838
#4A

Manifold parts diagram

Whirlpool tubing, burner (rear)

Part #W11236838

$73.33
In Stock
Whirlpool Box, Power W11224765
#9

Chassis parts diagram

Whirlpool box, power

Part #W11224765

$58.13
In Stock
