Model # 148294 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 148294 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 197 parts  |
Taper Pin S039
#127

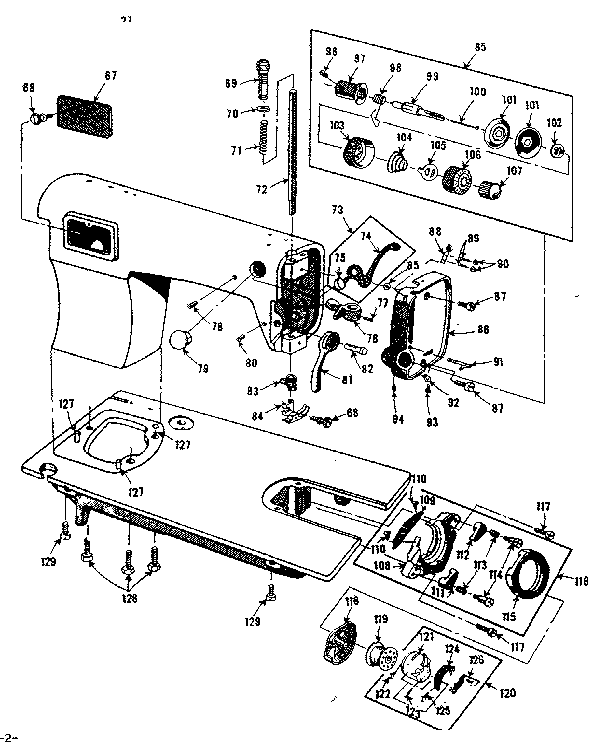

Shuttle assembly diagram

Taper pin

Part #S039

The manufacturer no longer makes this part, and there's no substitute part

Bracket S0930
#76

Shuttle assembly diagram

Bracket

Part #S0930

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Screwdriver S053B
#179

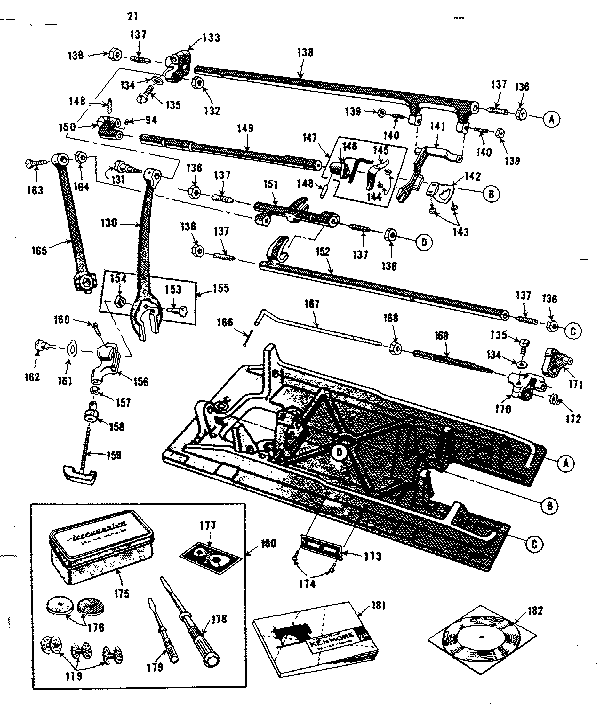

Connecting rod assembly diagram

Sewing machine screwdriver

Part #S053B

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Presser Foot J11155
#84

Shuttle assembly diagram

Sewing machine presser foot

Part #J11155

The manufacturer no longer makes this part, and there's no substitute part

Set Screw S0336
#24

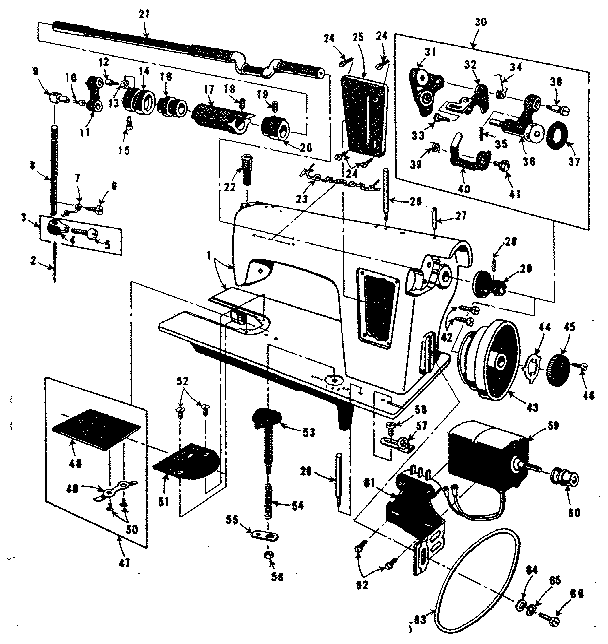

Unit parts diagram

Set screw

Part #S0336

The manufacturer no longer makes this part, and there's no substitute part

Bushing J01202
#16

Unit parts diagram

Bushing

Part #J01202

The manufacturer no longer makes this part, and there's no substitute part

Set Screw J2269
#19

Unit parts diagram

Set screw

Part #J2269

The manufacturer no longer makes this part, and there's no substitute part

Ten Screw J1585
#125

Shuttle assembly diagram

Ten screw

Part #J1585

The manufacturer no longer makes this part, and there's no substitute part

Spindle S0964
#6

Attachment parts diagram

Spindle

Part #S0964

The manufacturer no longer makes this part, and there's no substitute part

Screw S0969
#14

Attachment parts diagram

Screw

Part #S0969

The manufacturer no longer makes this part, and there's no substitute part
