Model # 11087371800 Official Sears gas dryer
Here are the diagrams and repair parts for Official Sears 11087371800 gas dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

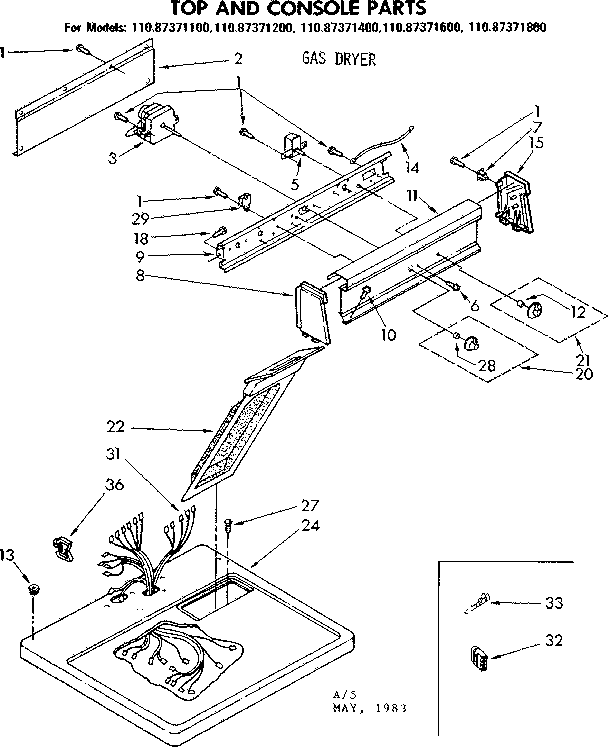

SELECT DIAGRAM
Browse Parts for11087371800 Gas Dryer
- #30

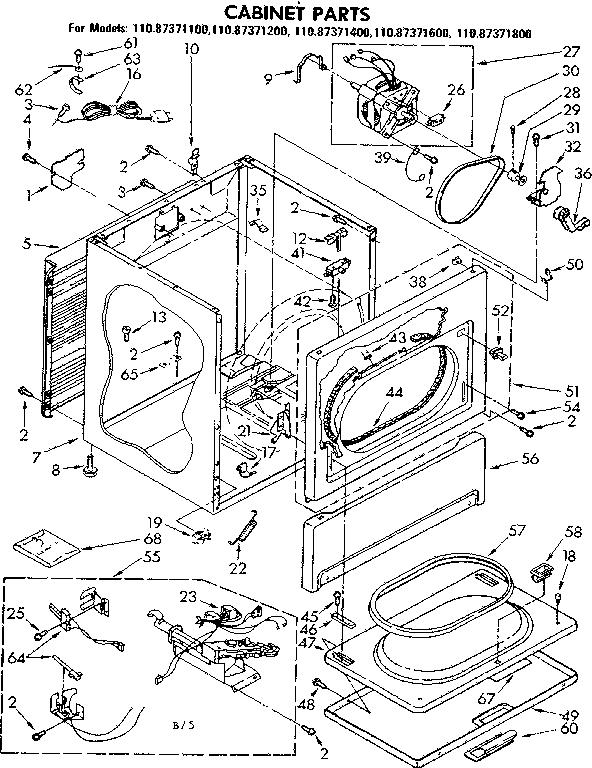

Cabinet parts diagram
Drum beltPart #349533
Replaced by #341241
?Manufacturer substitutionThis part replaces 349533. Substitute parts can look different from the original.$9.39 |10% OFF Phone Price : $10.39In Stock - #26
Cabinet parts diagram
SwitchPart #337351
Replaced by #279827
?Manufacturer substitutionThis part replaces 337351. Substitute parts can look different from the original.$83.61 |7% OFF Phone Price : $89.61In Stock - #27
Cabinet parts diagram
MotorPart #660199
Replaced by #279827
?Manufacturer substitutionThis part replaces 660199. Substitute parts can look different from the original.$83.61 |7% OFF Phone Price : $89.61In Stock - #26A
Cabinet parts diagram
SwitchPart #349588
Replaced by #279827
?Manufacturer substitutionThis part replaces 349588. Substitute parts can look different from the original.$83.61 |7% OFF Phone Price : $89.61In Stock - #64
Cabinet parts diagram
Dryer igniterPart #338900
Replaced by #279311
?Manufacturer substitutionThis part replaces 338900. Substitute parts can look different from the original.$25.73 |19% OFF Phone Price : $31.73In Stock - #64A
Cabinet parts diagram
IgniterPart #686590
Replaced by #279311
?Manufacturer substitutionThis part replaces 686590. Substitute parts can look different from the original.$25.73 |19% OFF Phone Price : $31.73In Stock - #37

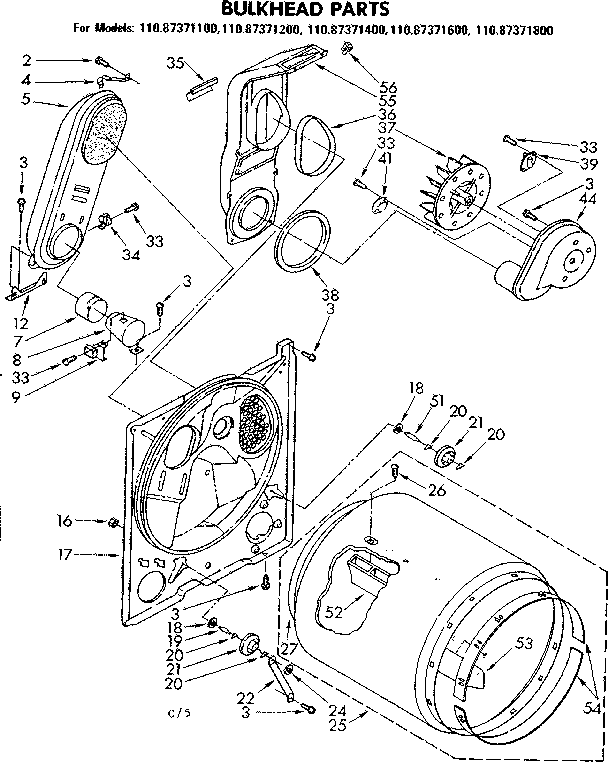

Bulkhead parts diagram
Dryer blower wheelPart #343939
Replaced by #WP694089
?Manufacturer substitutionThis part replaces 343939. Substitute parts can look different from the original.$24.31 |20% OFF Phone Price : $30.31In Stock - #58
Cabinet parts diagram
CatchPart #690081
Replaced by #279570
?Manufacturer substitutionThis part replaces 690081. Substitute parts can look different from the original.This item is not returnable$4.08 |20% OFF Phone Price : $5.08In Stock - #52
Cabinet parts diagram
StrikePart #690082
Replaced by #279570
?Manufacturer substitutionThis part replaces 690082. Substitute parts can look different from the original.This item is not returnable$4.08 |20% OFF Phone Price : $5.08In Stock - #39
Bulkhead parts diagram
FusePart #660877
Replaced by #WP3390719
?Manufacturer substitutionThis part replaces 660877. Substitute parts can look different from the original.$15.44 |11% OFF Phone Price : $17.44In Stock
