Model # 315212050 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 315212050 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

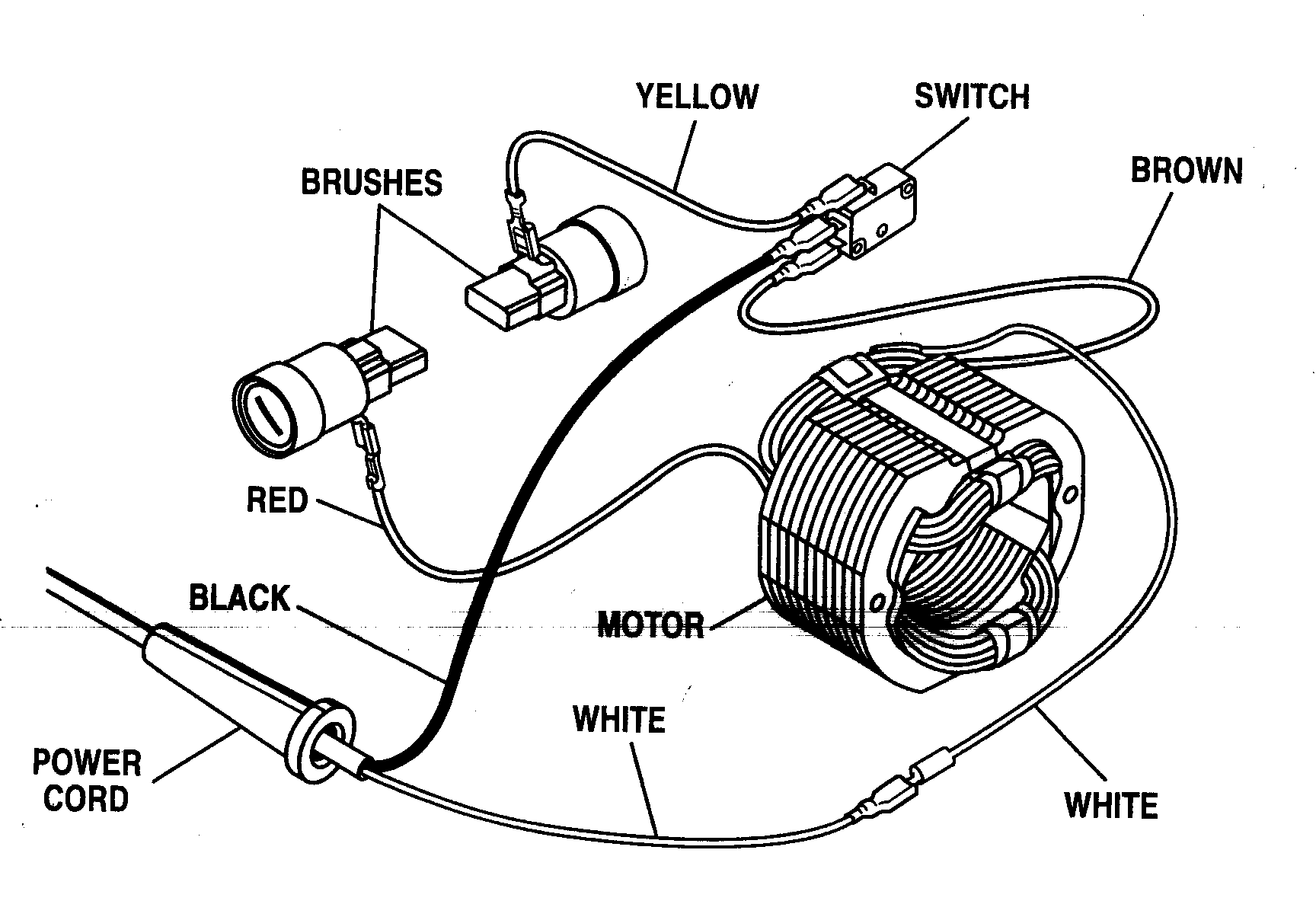

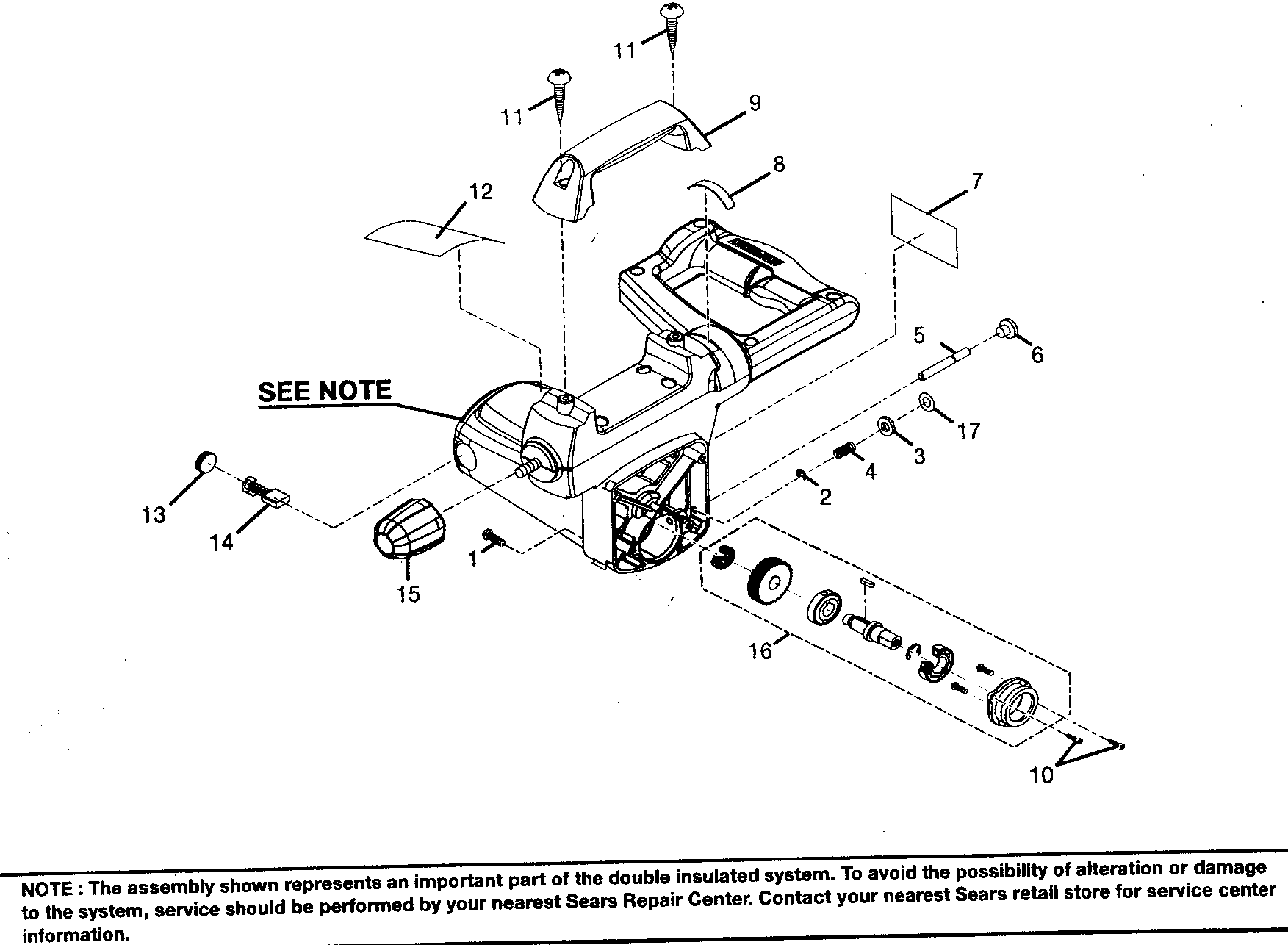

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Miter Saw Wing Screw 555516000
#30

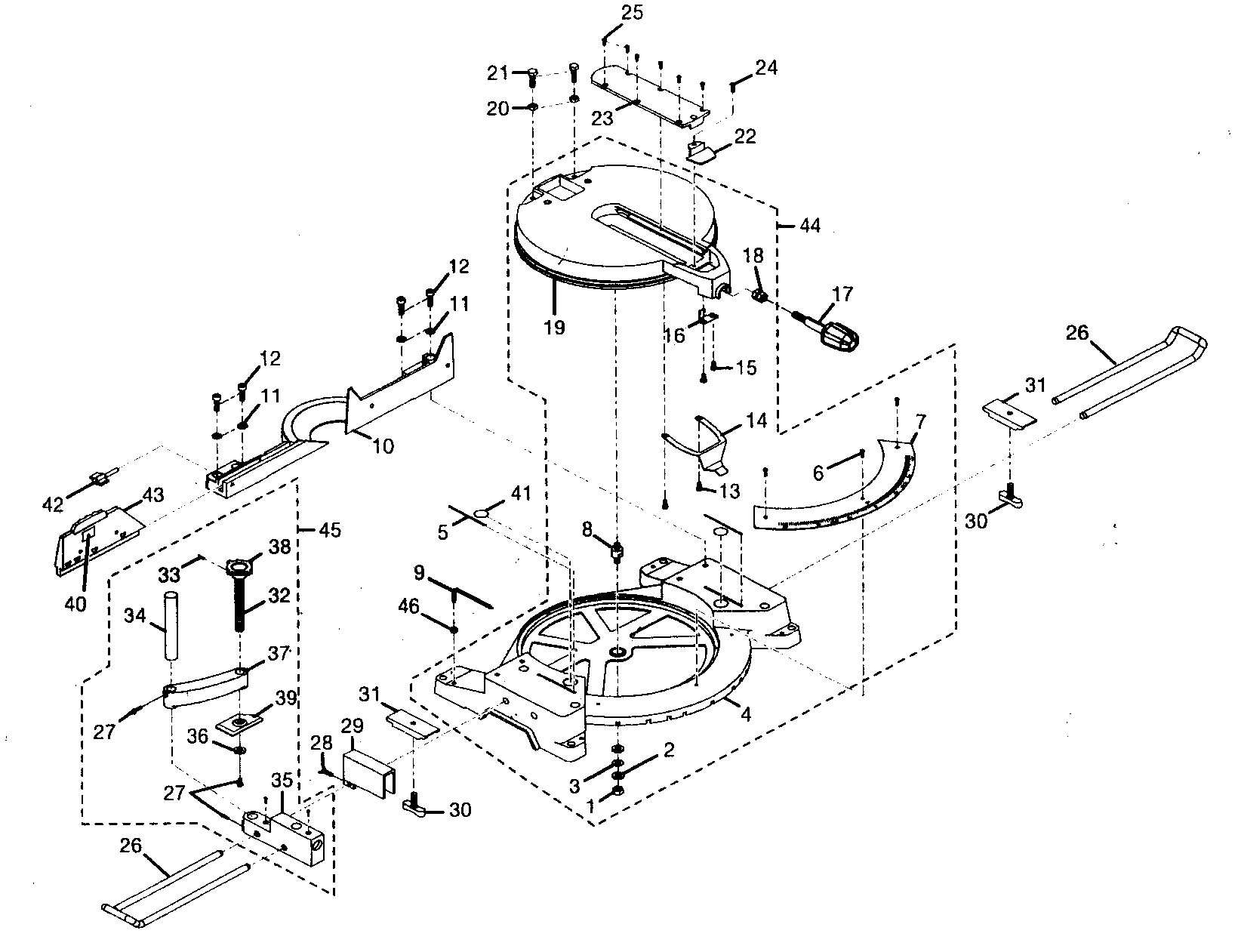

Base assy diagram

Miter saw wing screw

Part #555516000

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Miter Lock Handle Clamp Nut 558111109
#18

Base assy diagram

Miter saw miter lock handle clamp nut

Part #558111109

The manufacturer no longer makes this part, and there's no substitute part

Blade Bolt 555512000
#39

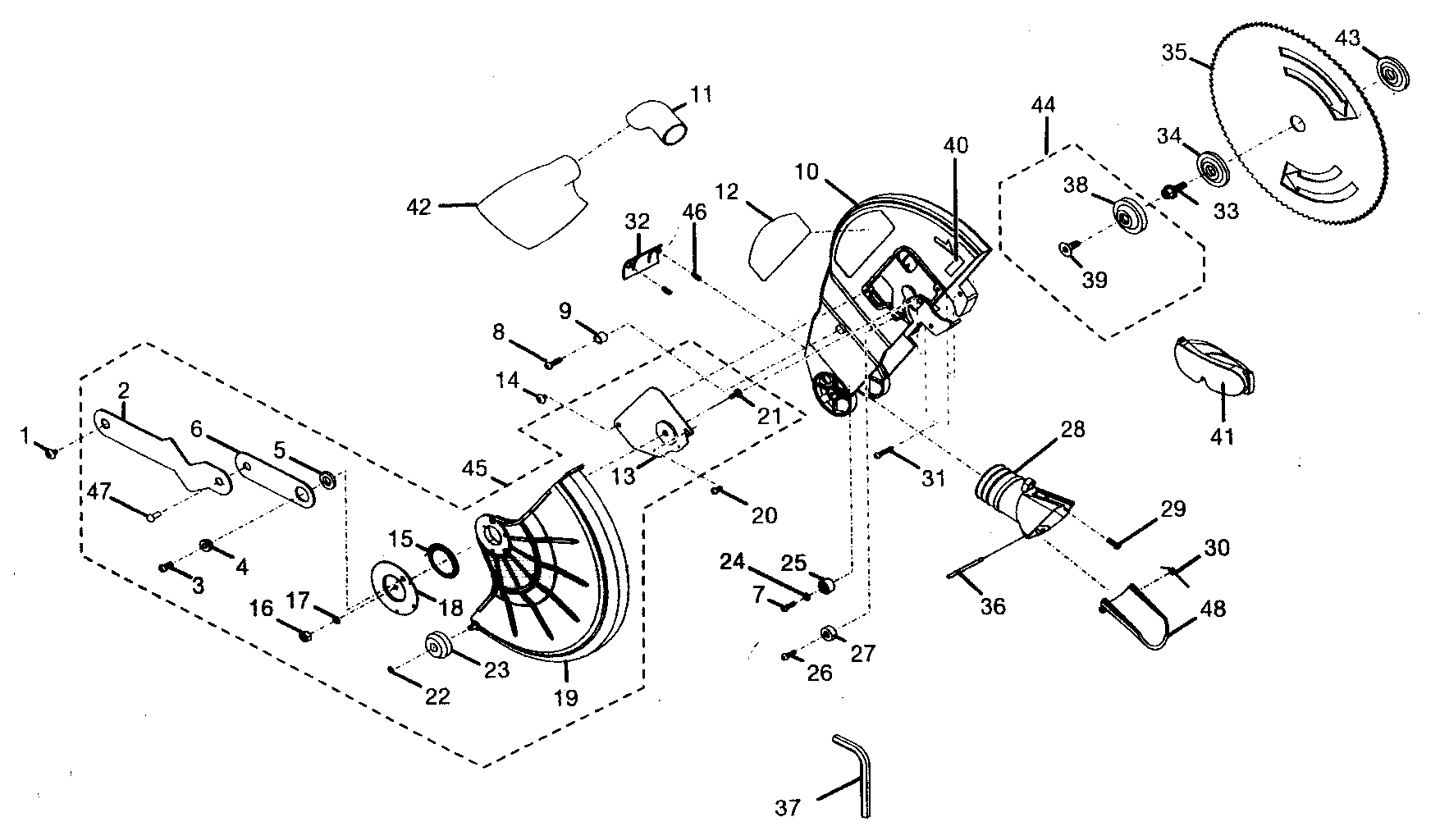

Blade assy diagram

Blade bolt

Part #555512000

The manufacturer no longer makes this part, and there's no substitute part

Stop Block 555407000
#25

Blade assy diagram

Stop block

Part #555407000

The manufacturer no longer makes this part, and there's no substitute part

Laser Glass 511513000
#41

Blade assy diagram

Laser glass

Part #511513000

The manufacturer no longer makes this part, and there's no substitute part

Bolt Cover 555409000
#13

Blade assy diagram

Bolt cover

Part #555409000

The manufacturer no longer makes this part, and there's no substitute part

Bnd Relief 588004100
#16

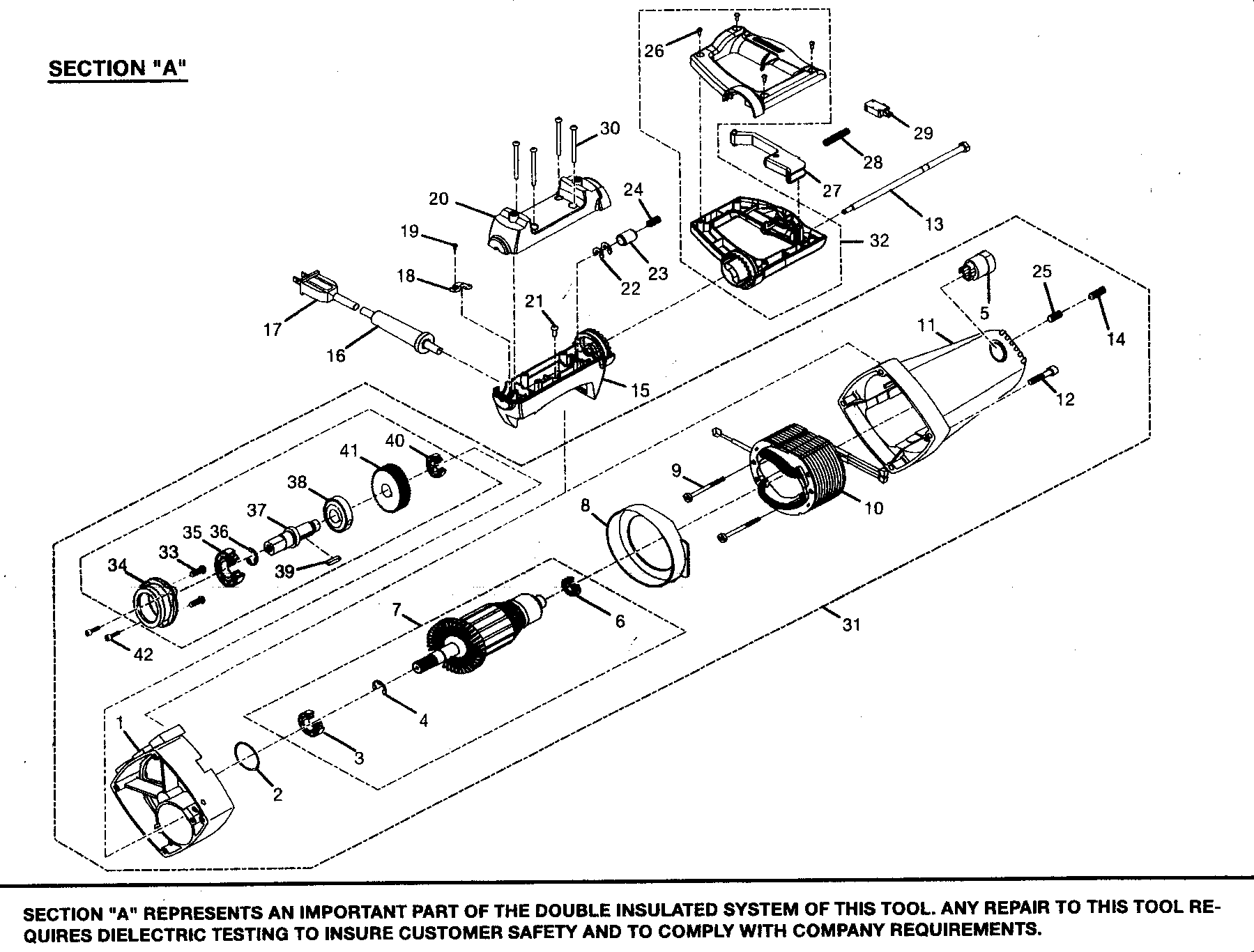

Motor assy diagram

Bnd relief

Part #588004100

The manufacturer no longer makes this part, and there's no substitute part

Bracket 555201000
#10

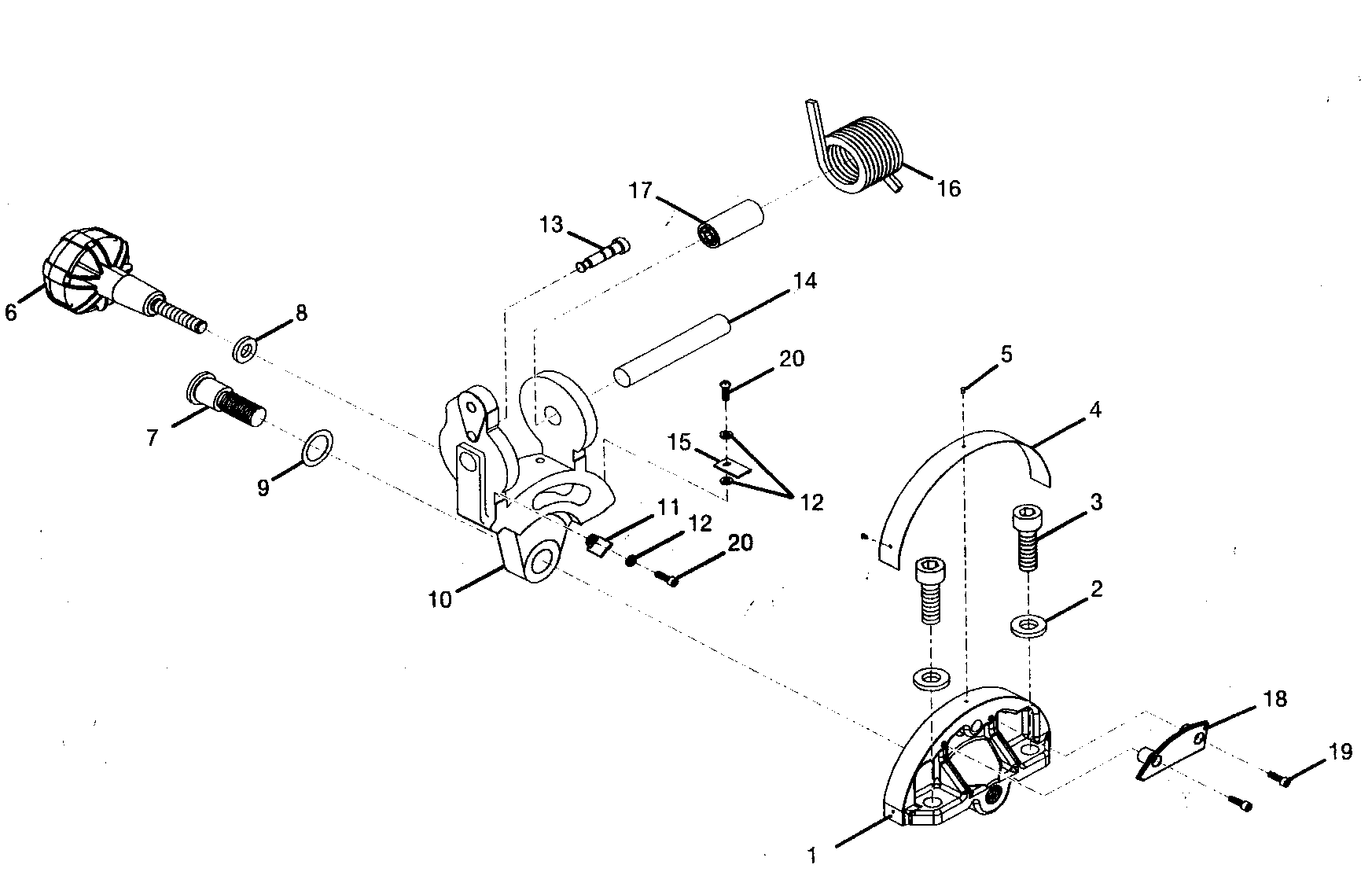

Hinge assy diagram

Bracket

Part #555201000

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Dust Bag 511517000
#42

Blade assy diagram

Miter saw dust bag

Part #511517000

The manufacturer no longer makes this part, and there's no substitute part

Screw A90101050603
#9

Motor assy diagram

Screw

Part #A90101050603

The manufacturer no longer makes this part, and there's no substitute part
