Model # LA6400XPW3 Official Whirlpool washer
Here are the diagrams and repair parts for Official Whirlpool LA6400XPW3 washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

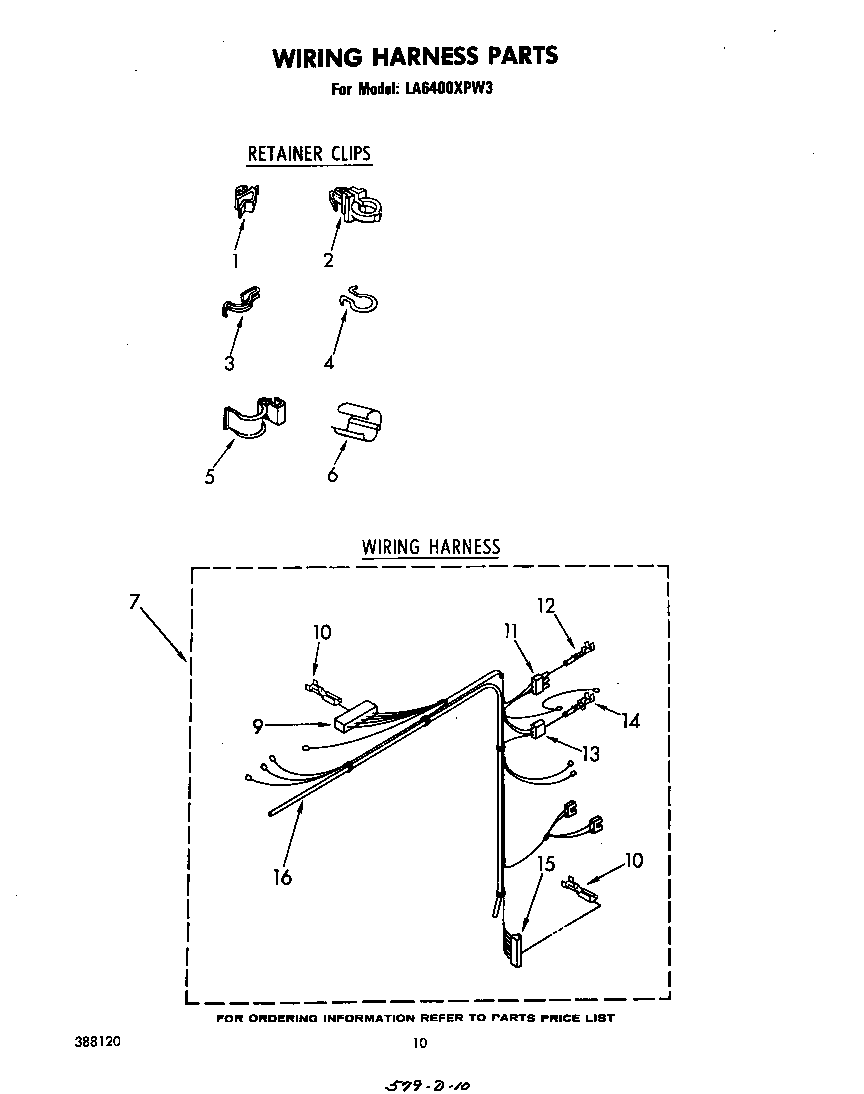

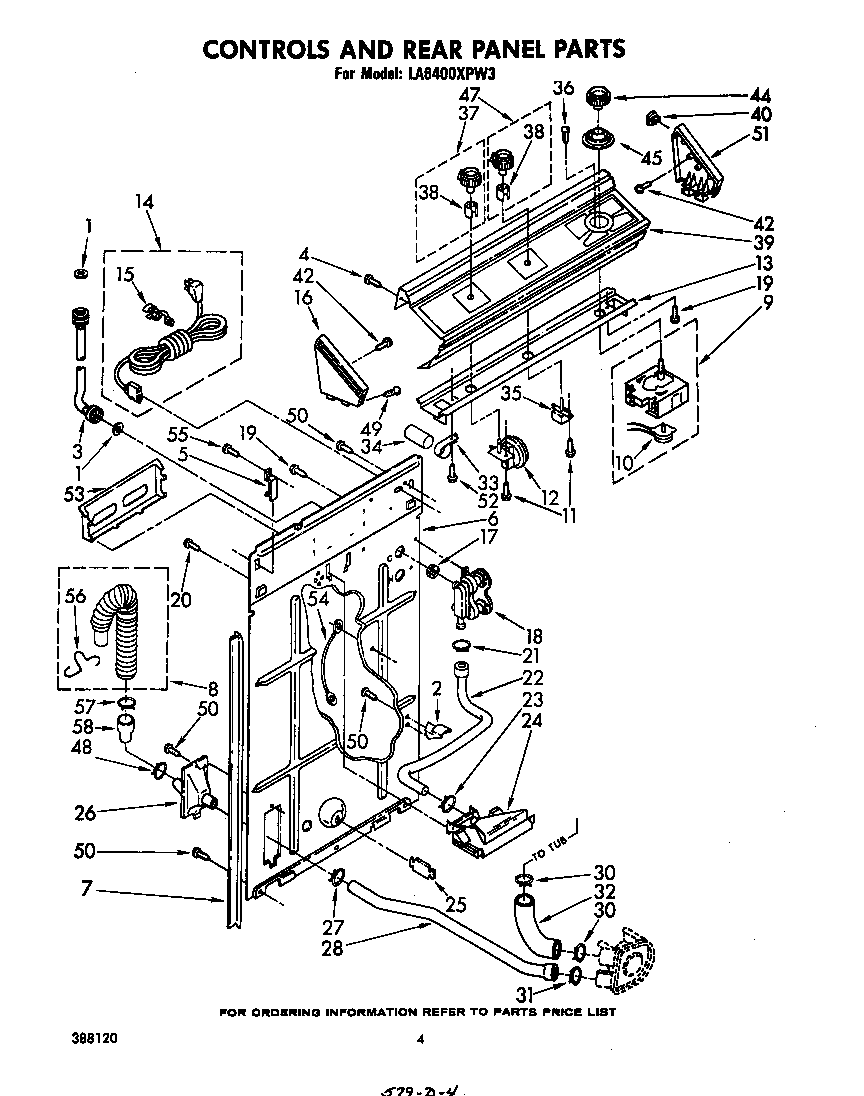

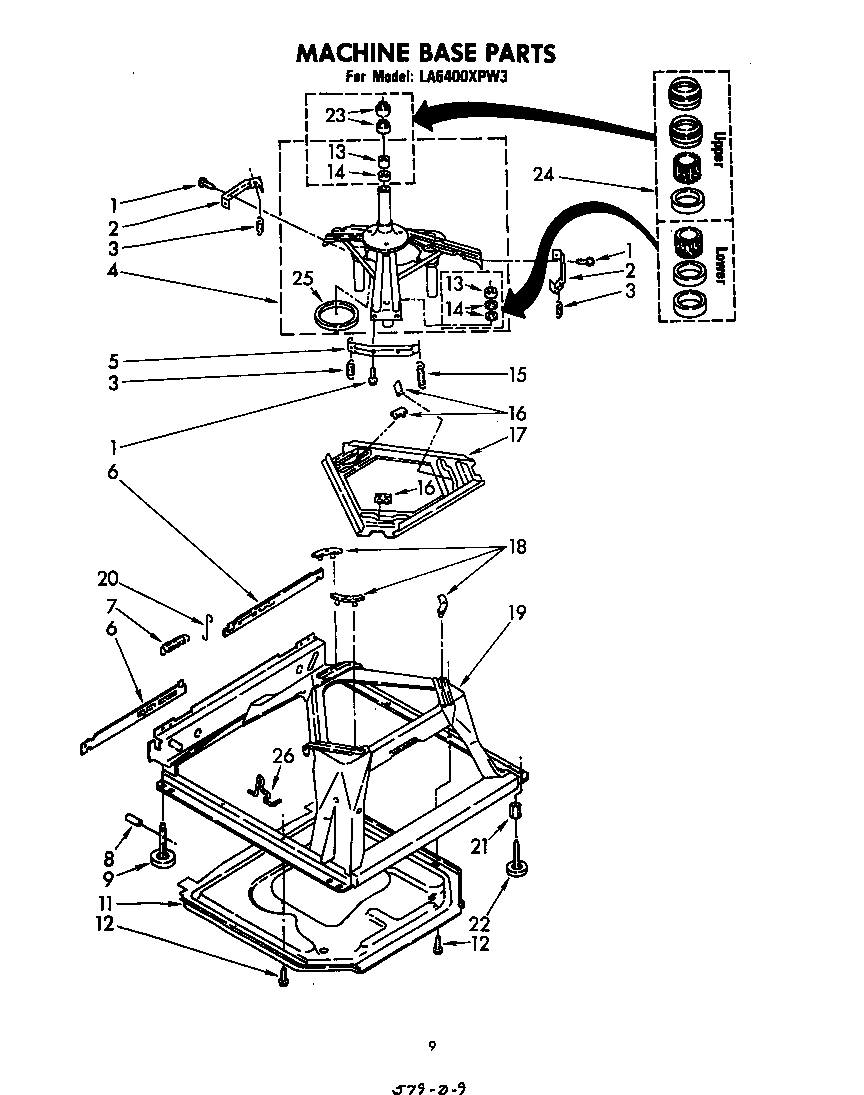

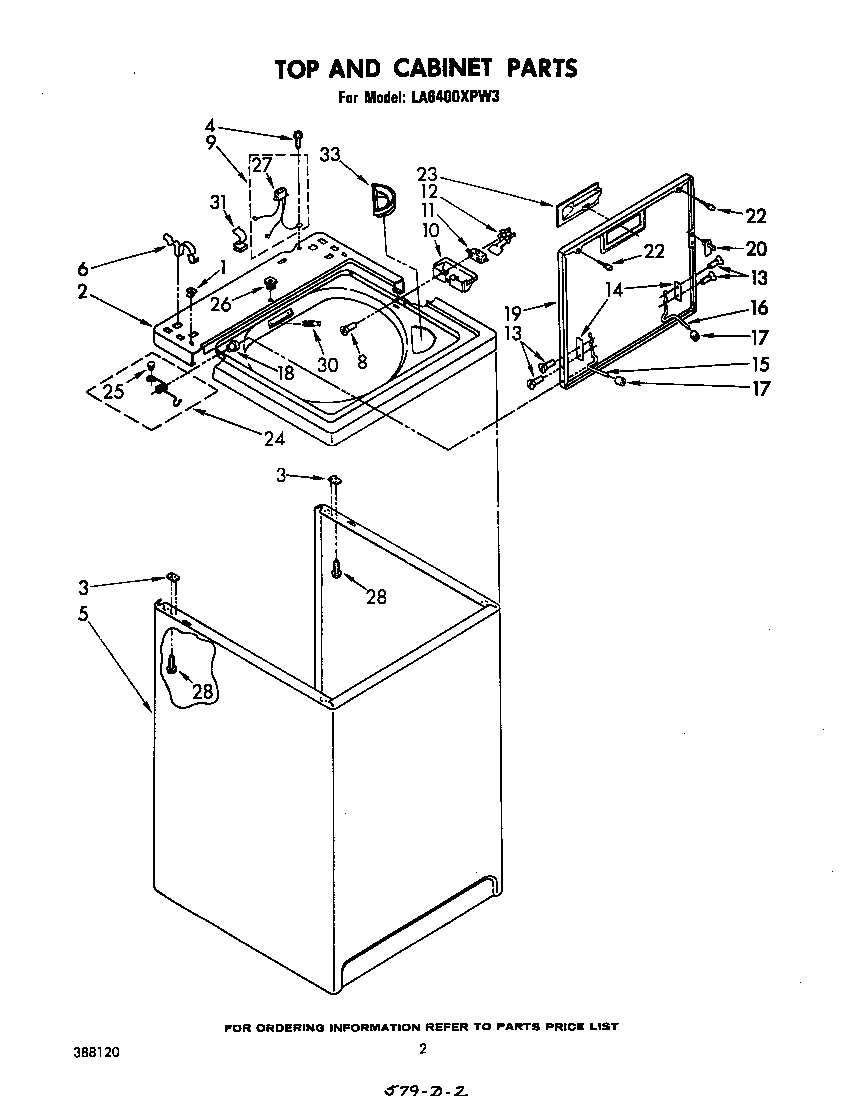

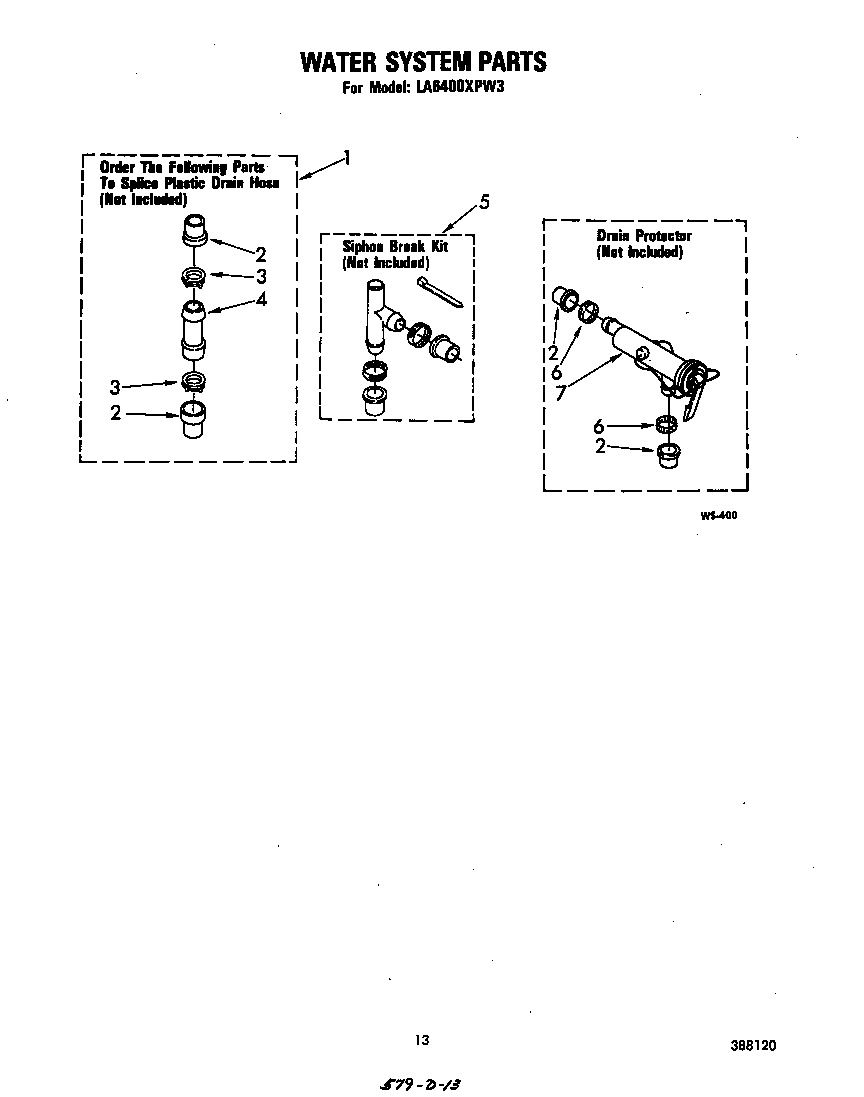

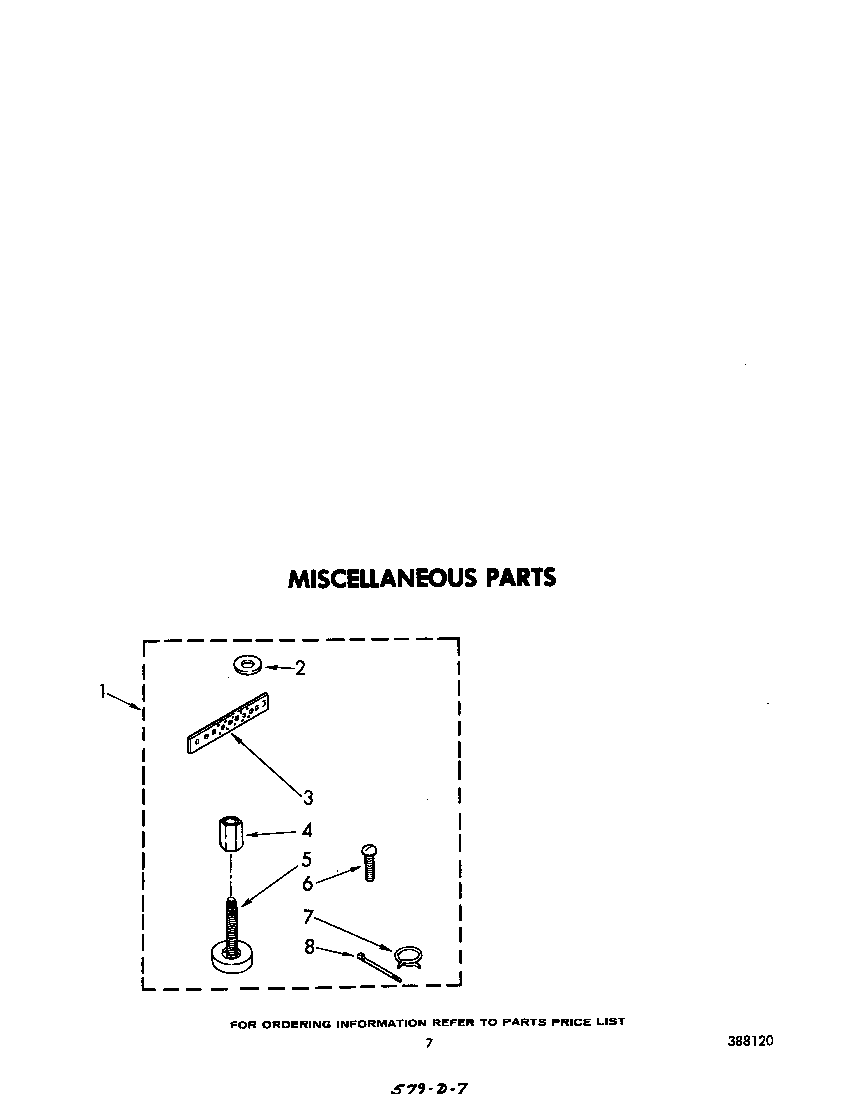

SELECT DIAGRAM
Browse Parts forLA6400XPW3 Washer
- #13

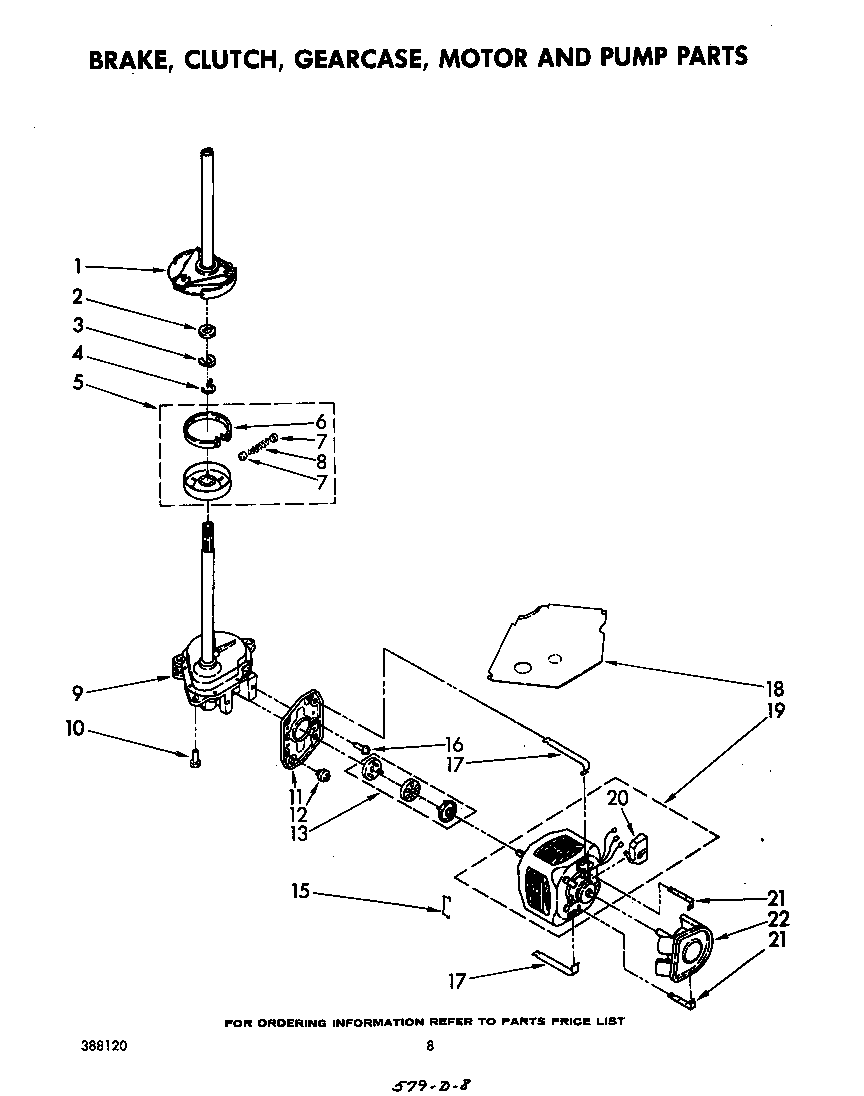

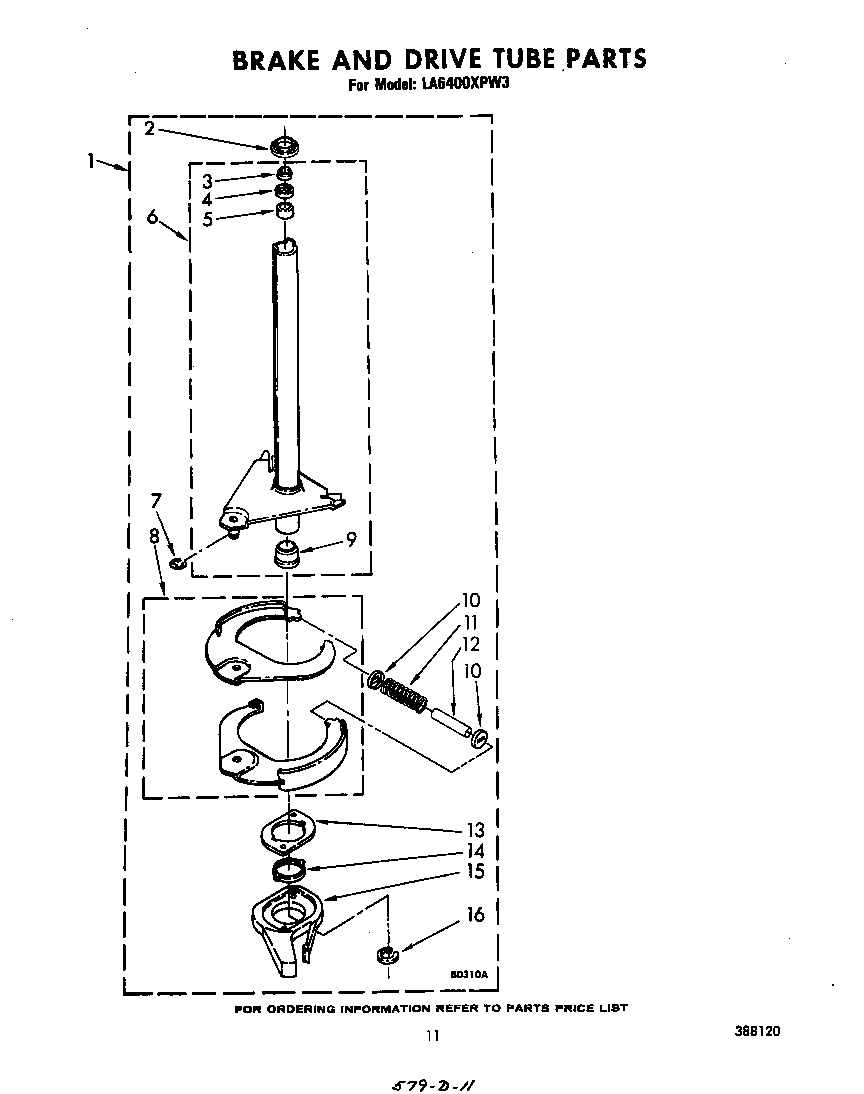

Brake, clutch, gearcase, motor and pump diagram
CouplingPart #285140
Replaced by #285753A
?Manufacturer substitutionThis part replaces 285140. Substitute parts can look different from the original.$21.82 |22% OFF Phone Price : $27.82In Stock - #27

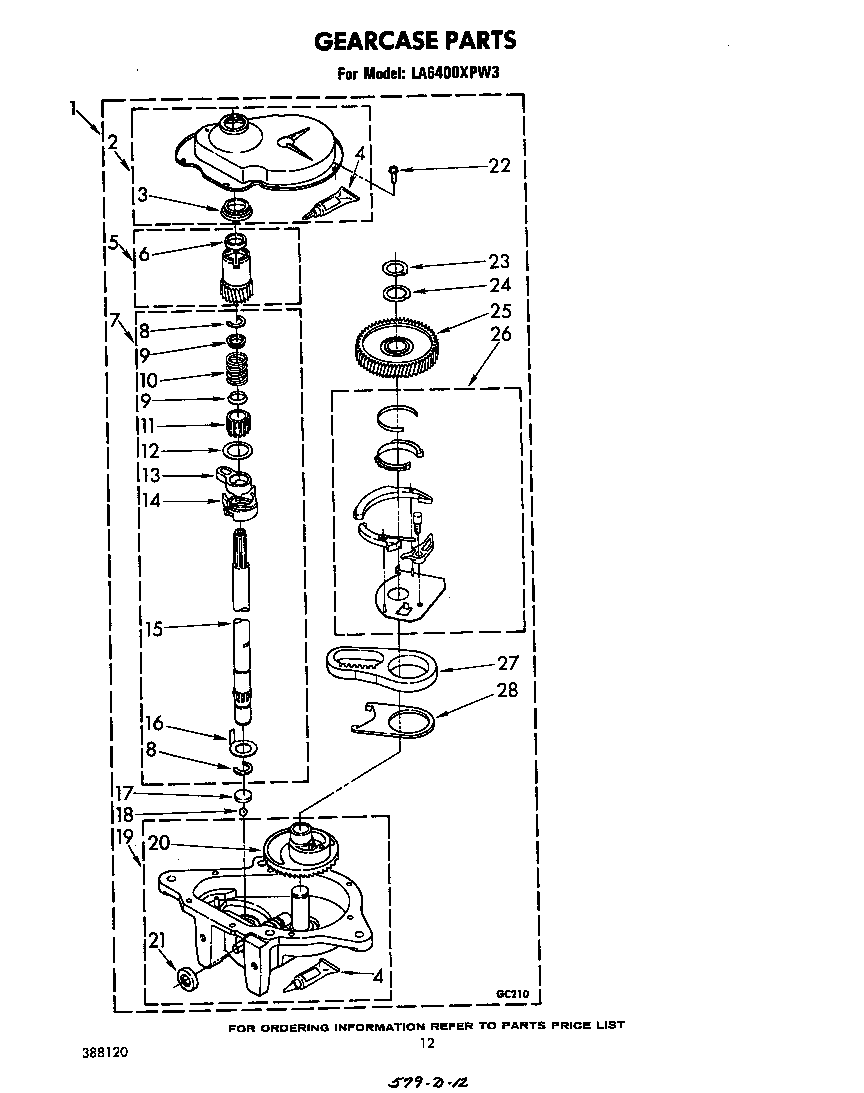

Gearcase diagram
RackPart #62534
Replaced by #3360629
?Manufacturer substitutionThis part replaces 62534. Substitute parts can look different from the original.$217.67 |5% OFF Phone Price : $229.67In Stock - #28
Gearcase diagram
ActuatorPart #62621
Replaced by #3360629
?Manufacturer substitutionThis part replaces 62621. Substitute parts can look different from the original.$217.67 |5% OFF Phone Price : $229.67In Stock - #5
Gearcase diagram
PinionPart #63320
Replaced by #3360629
?Manufacturer substitutionThis part replaces 63320. Substitute parts can look different from the original.$217.67 |5% OFF Phone Price : $229.67In Stock - #25
Gearcase diagram
GearPart #62570
Replaced by #3360629
?Manufacturer substitutionThis part replaces 62570. Substitute parts can look different from the original.$217.67 |5% OFF Phone Price : $229.67In Stock - Gear case
Part #63563
Replaced by #3360629
?Manufacturer substitutionThis part replaces 63563. Substitute parts can look different from the original.$217.67 |5% OFF Phone Price : $229.67In Stock - #5
Brake, clutch, gearcase, motor and pump diagram
ClutchPart #63174
Replaced by #285785
?Manufacturer substitutionThis part replaces 63174. Substitute parts can look different from the original.$30.32 |17% OFF Phone Price : $36.32In Stock - Drive basket
Part #64033
Replaced by #W10820043
?Manufacturer substitutionThis part replaces 64033. Substitute parts can look different from the original.$98.21 |11% OFF Phone Price : $110.21In Stock - #22
Brake, clutch, gearcase, motor and pump diagram
PumpPart #64076
Replaced by #WP3363394
?Manufacturer substitutionThis part replaces 64076. Substitute parts can look different from the original.$27.04 |18% OFF Phone Price : $33.04In Stock - #11

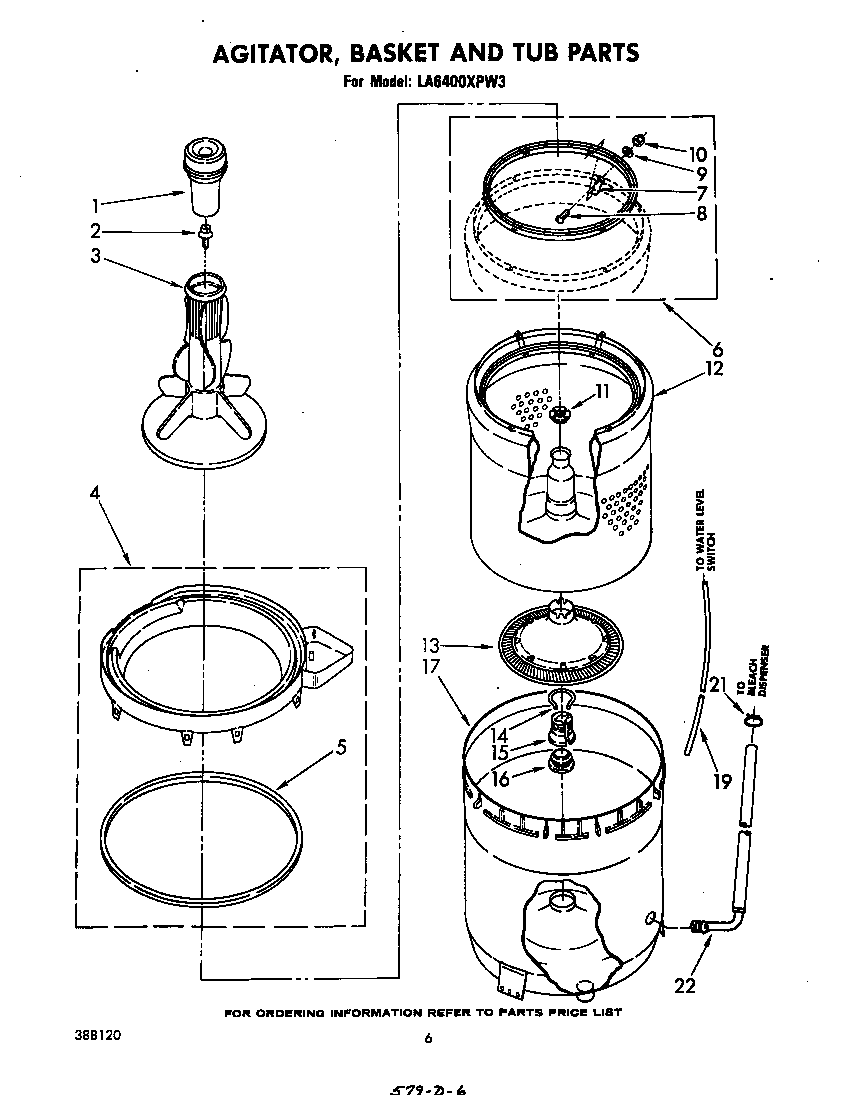

Agitator, basket and tub diagram
Washer spanner nutPart #21366
Replaced by #WP21366
?Manufacturer substitutionThis part replaces 21366. Substitute parts can look different from the original.This item is not returnable$6.17 |14% OFF Phone Price : $7.17In Stock
