Thermador
Upright Freezer

Model # T18ID80NRP/01 Official Thermador freezer

Here are the diagrams and repair parts for Official Thermador T18ID80NRP-01 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

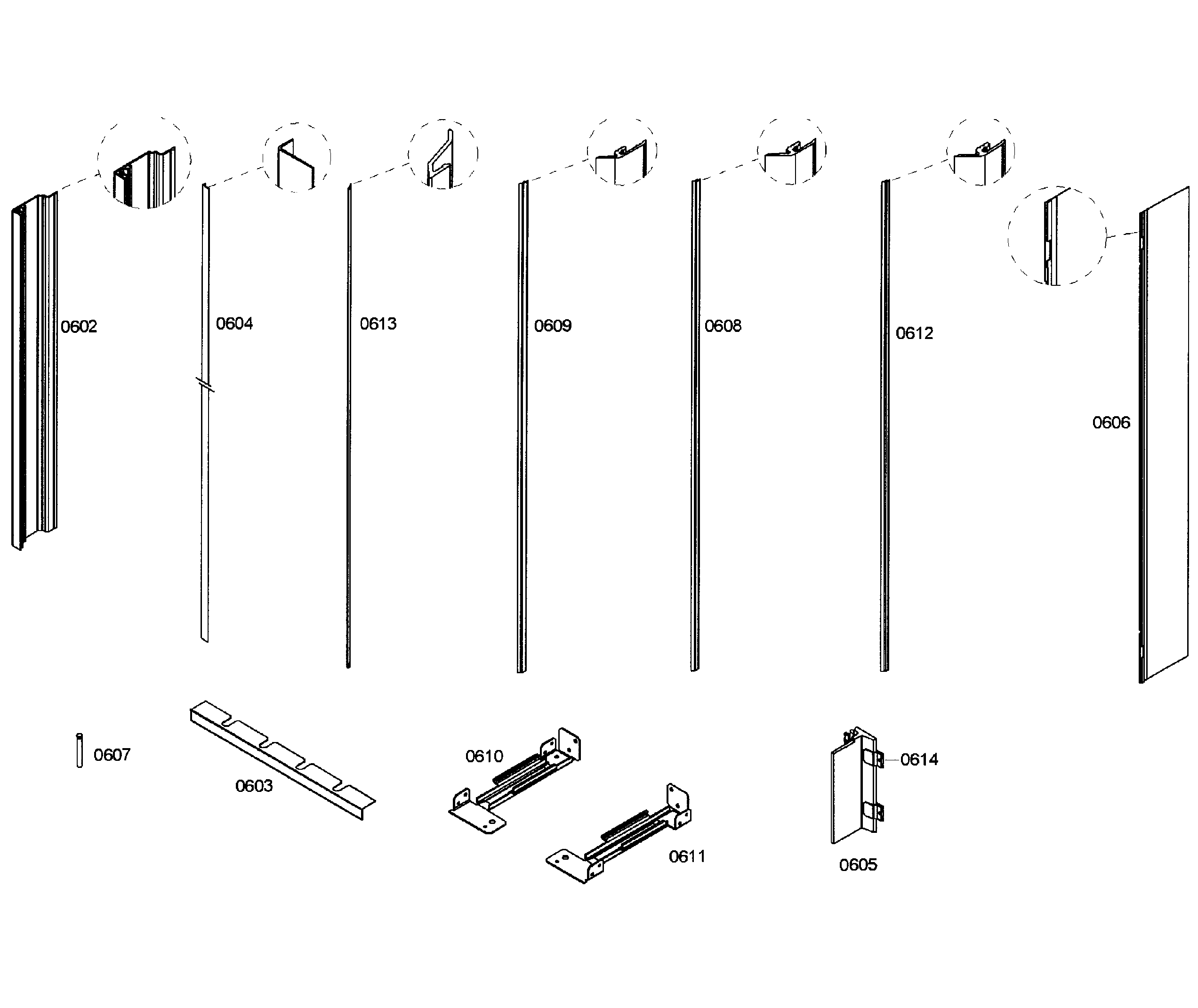

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 184 parts  |
Clip 603971
#313

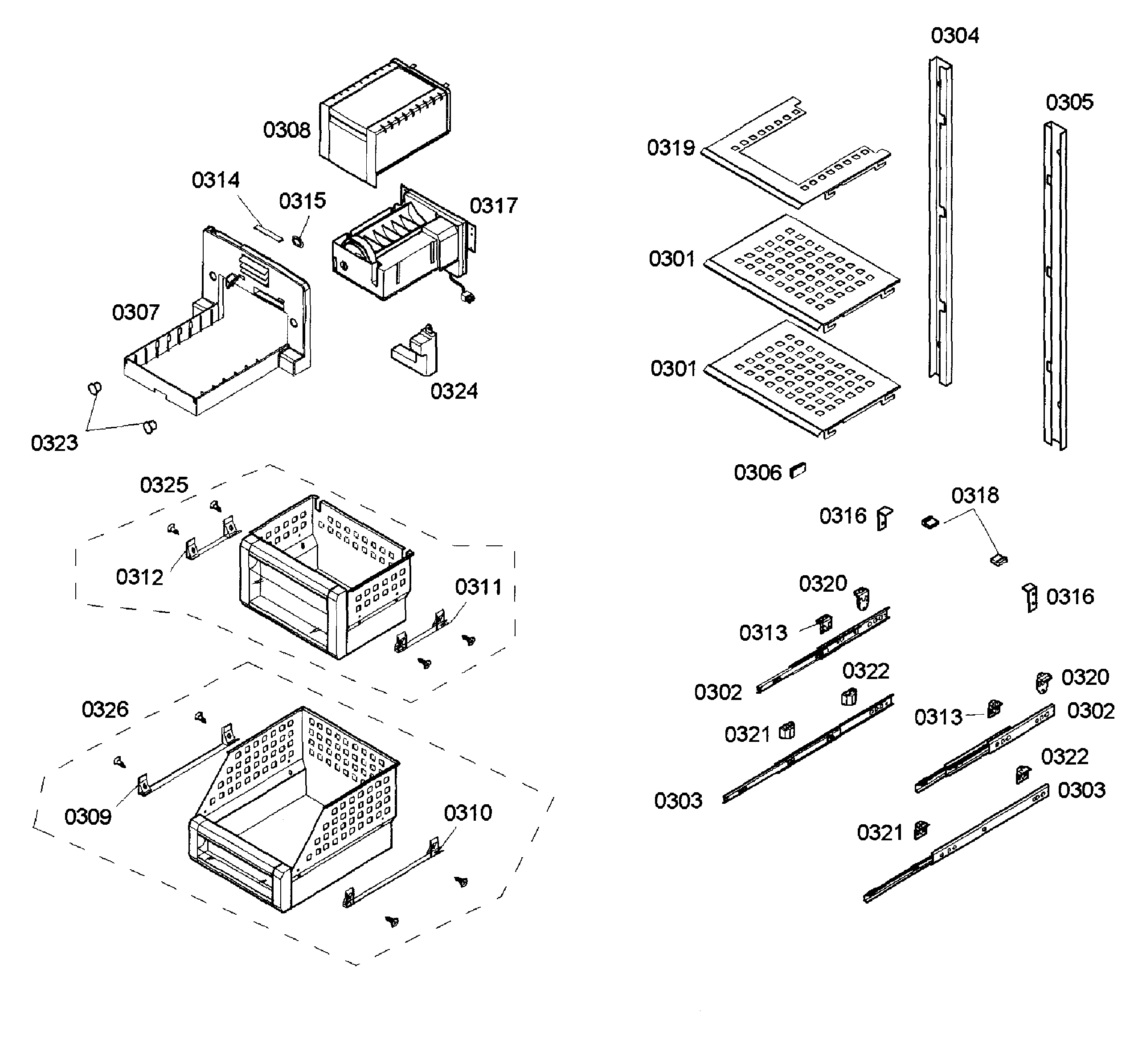

Shelfs diagram

Clip

Part #603971

Replaced by #00623319

?
Manufacturer substitution
This part replaces 603971. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Fan 605322
#434

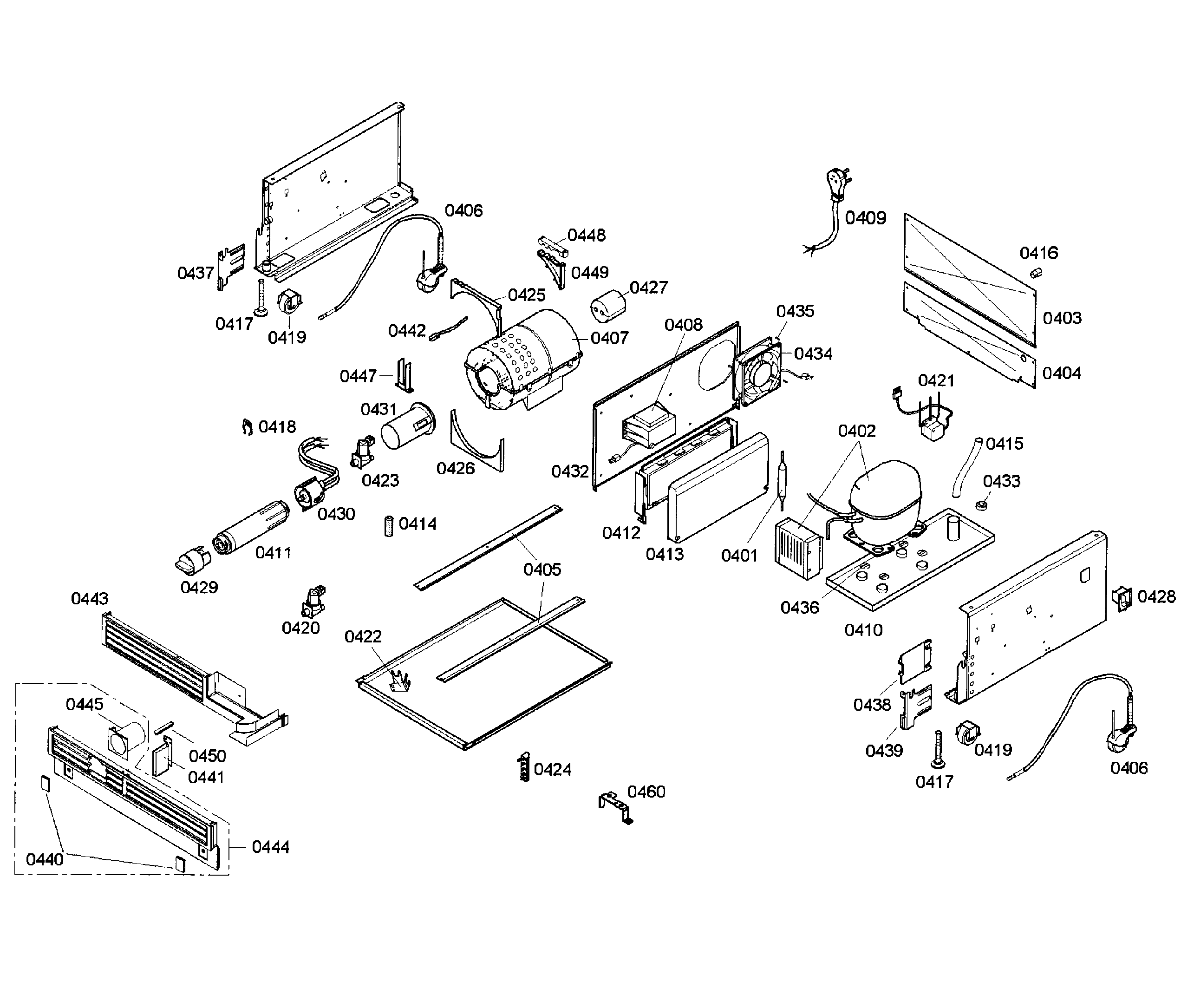

Compressor diagram

Fan

Part #605322

Replaced by #00652338

?
Manufacturer substitution
This part replaces 605322. Substitute parts can look different from the original.
$97.79 |
11% OFF Phone Price : $109.79
In Stock
Panel 664225
#502

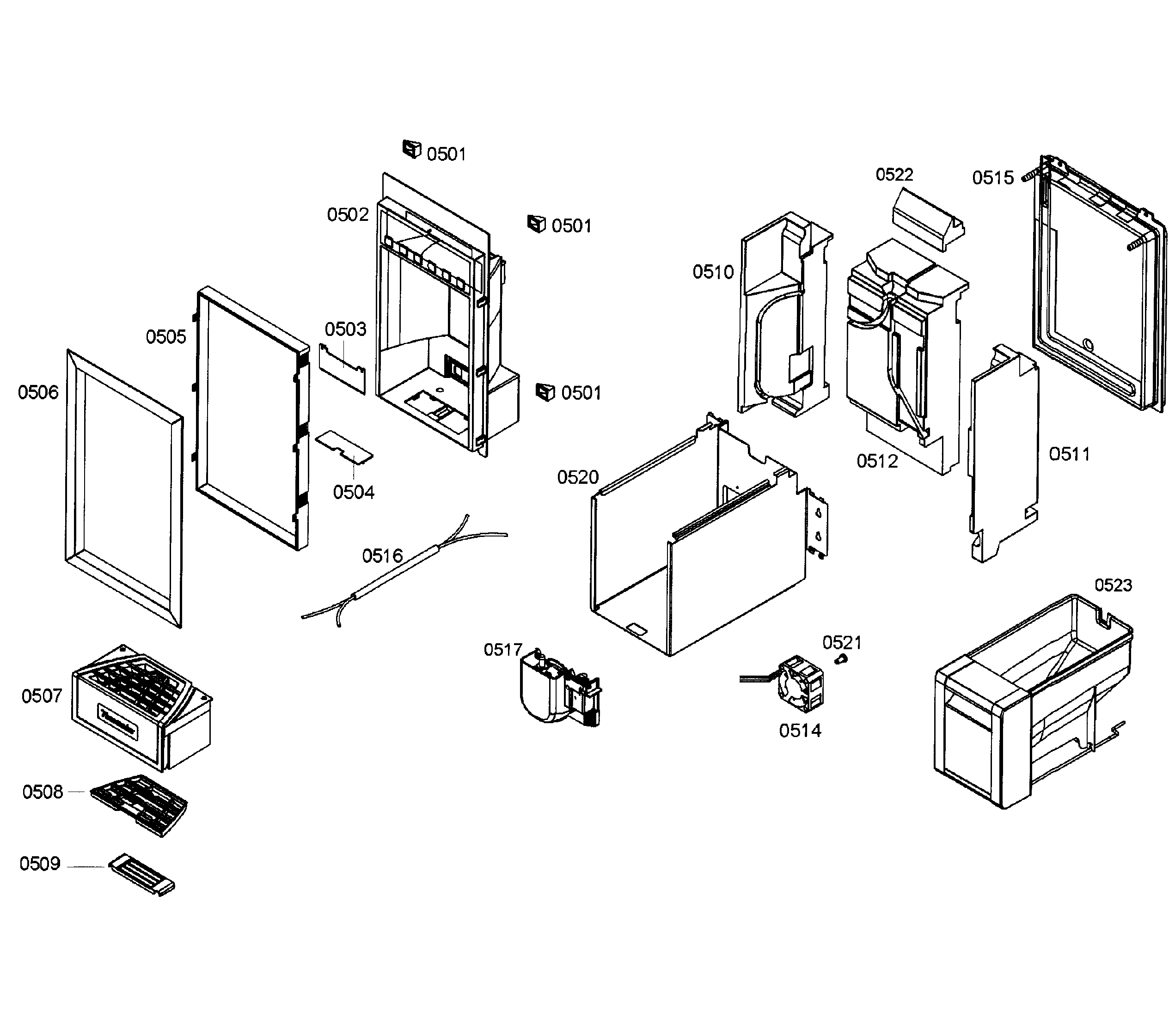

Dispenser diagram

Panel

Part #664225

Replaced by #00700539

?
Manufacturer substitution
This part replaces 664225. Substitute parts can look different from the original.
$242.39 |
5% OFF Phone Price : $254.39
In Stock
Holder 604674
#438

Compressor diagram

Holder

Part #604674

Replaced by #00604674

?
Manufacturer substitution
This part replaces 604674. Substitute parts can look different from the original.
$7.94
In Stock
Clip 603972
#321

Shelfs diagram

Clip

Part #603972

Replaced by #00603972

?
Manufacturer substitution
This part replaces 603972. Substitute parts can look different from the original.
This item is not returnable
$5.49
In Stock
Fixture 605404
#437

Compressor diagram

Fixture

Part #605404

Replaced by #00605404

?
Manufacturer substitution
This part replaces 605404. Substitute parts can look different from the original.
This item is not returnable
$5.26
In Stock
Plate 244003
#403

Compressor diagram

Plate

Part #244003

Replaced by #00709206

?
Manufacturer substitution
This part replaces 244003. Substitute parts can look different from the original.
$26.58
In Stock
Fixture 605604
#217

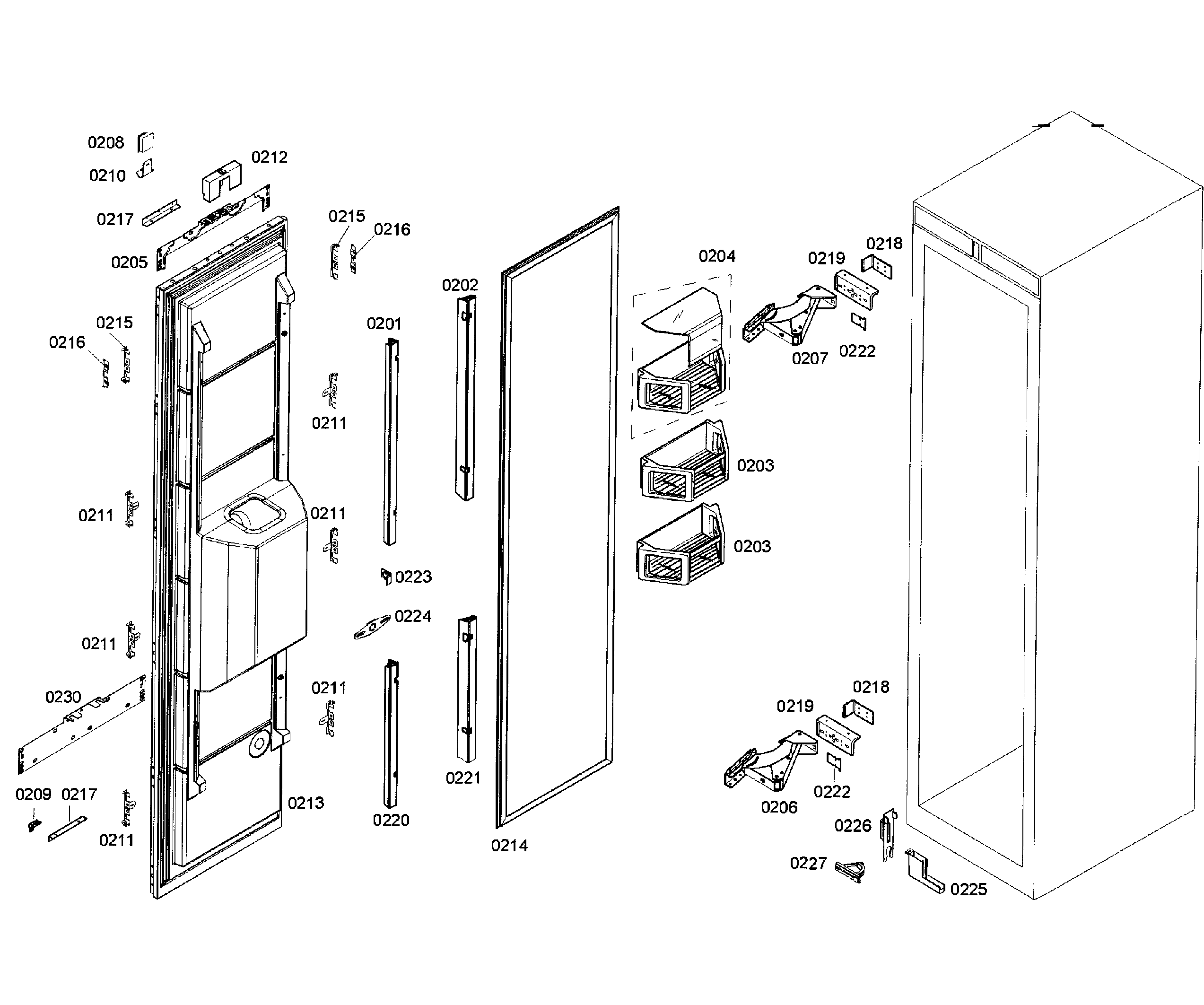

Door assy diagram

Fixture

Part #605604

Replaced by #00605604

?
Manufacturer substitution
This part replaces 605604. Substitute parts can look different from the original.
$12.71
In Stock
Sealing 604019
#315

Shelfs diagram

Sealing

Part #604019

Replaced by #10006958

?
Manufacturer substitution
This part replaces 604019. Substitute parts can look different from the original.
This item is not returnable
$3.82
In Stock
Fan Motor 499872
#109

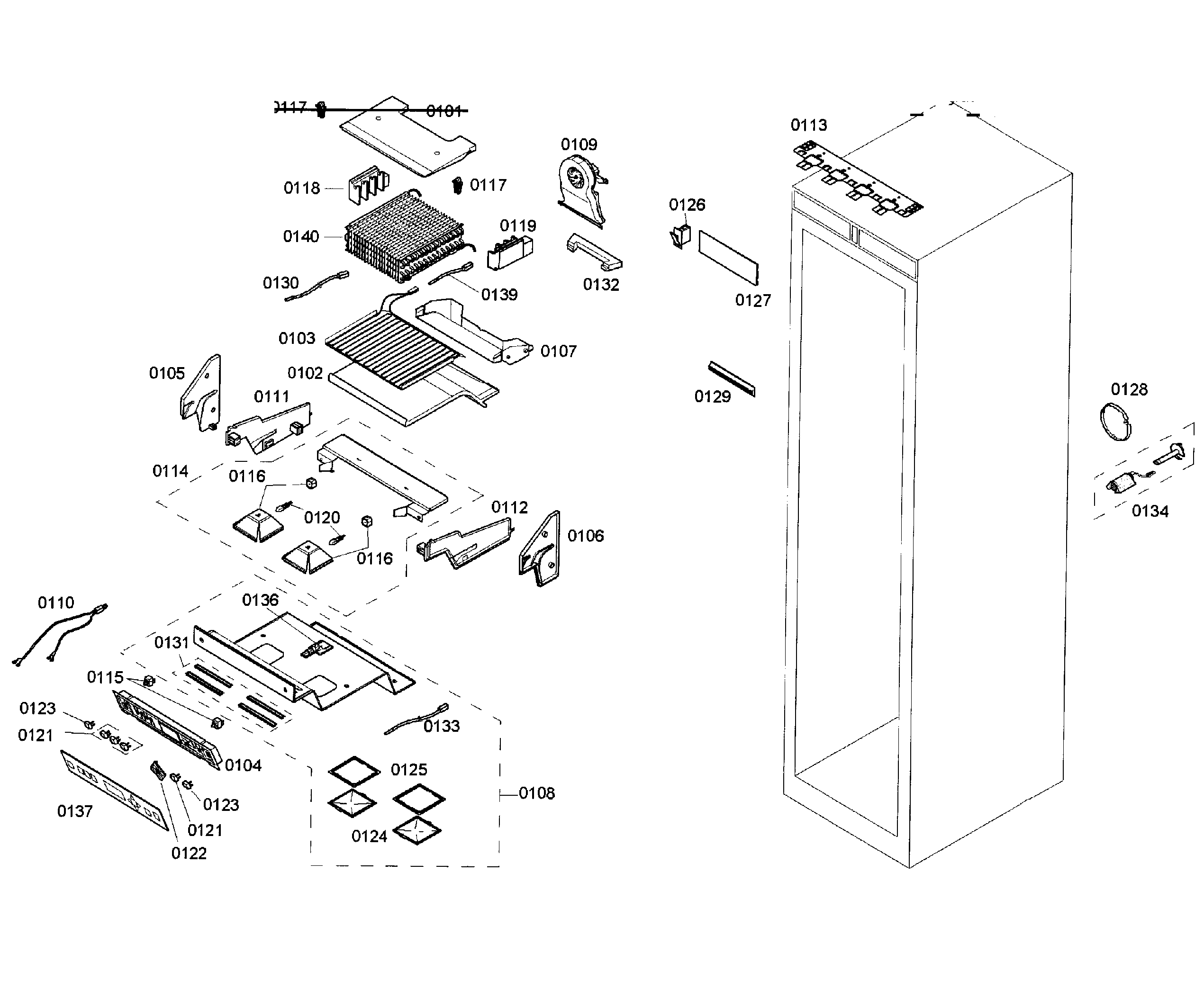

Cabinet parts diagram

Fan motor

Part #499872

Replaced by #00672636

?
Manufacturer substitution
This part replaces 499872. Substitute parts can look different from the original.
$208.51
In Stock
