Model # RE533DW0 Official Frigidaire electric range - lf32088010
Here are the diagrams and repair parts for Official Frigidaire RE533DW0 electric range - lf32088010, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

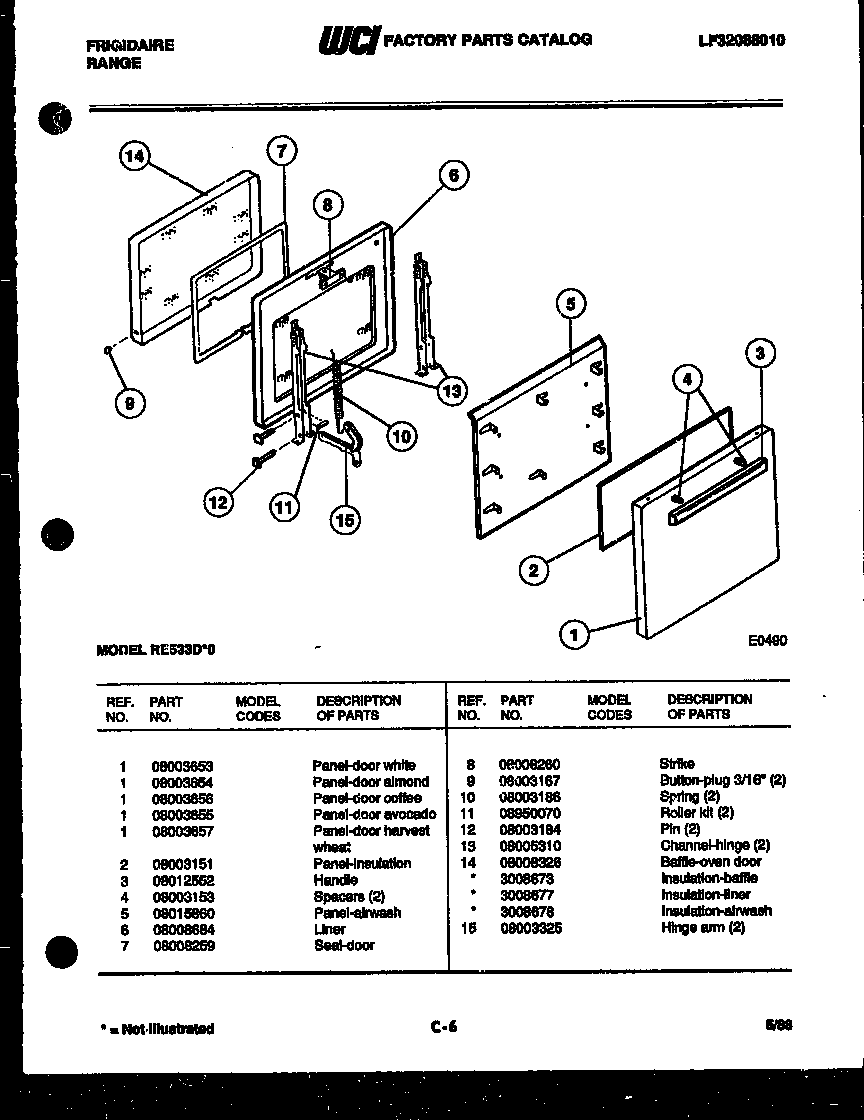

SELECT DIAGRAM
Browse Parts forRE533DW0 Ranges
- #2

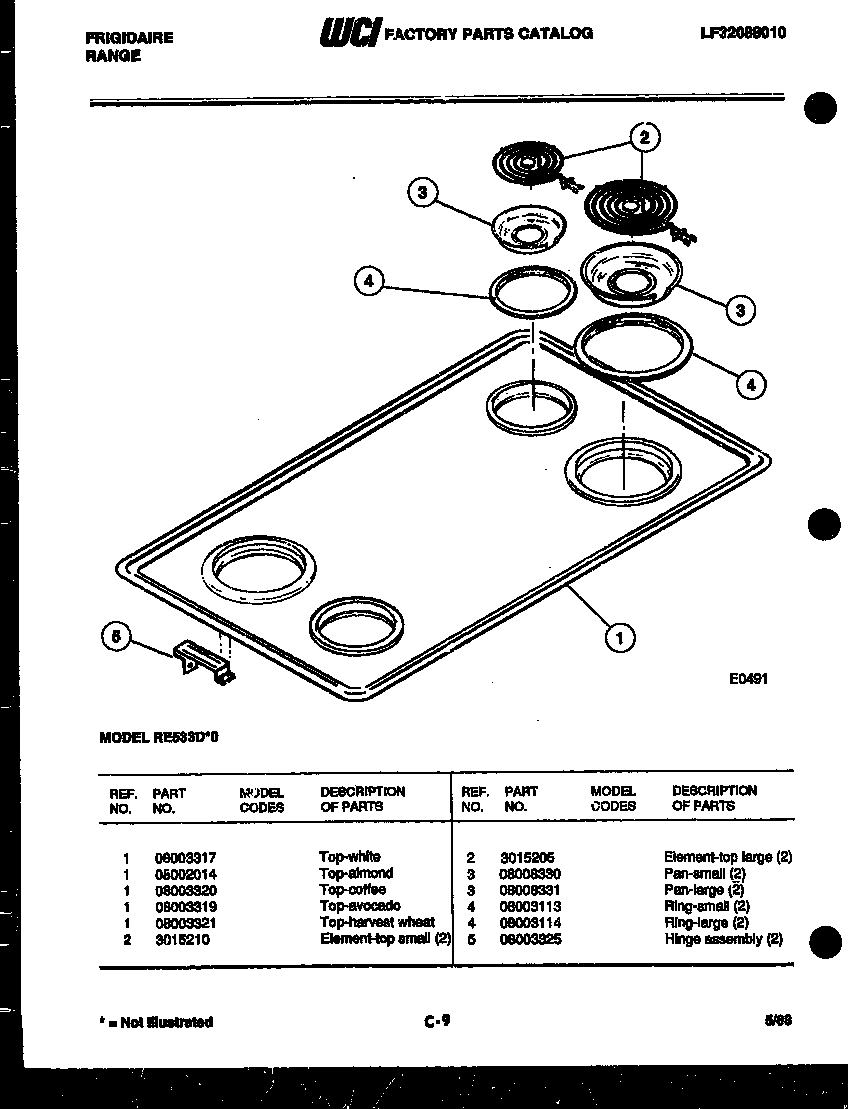

Cooktop parts diagram
Surface elementPart #3015210
Replaced by #318372211
?Manufacturer substitutionThis part replaces 3015210. Substitute parts can look different from the original.$89.45 |6% OFF Phone Price : $95.45In Stock - #18

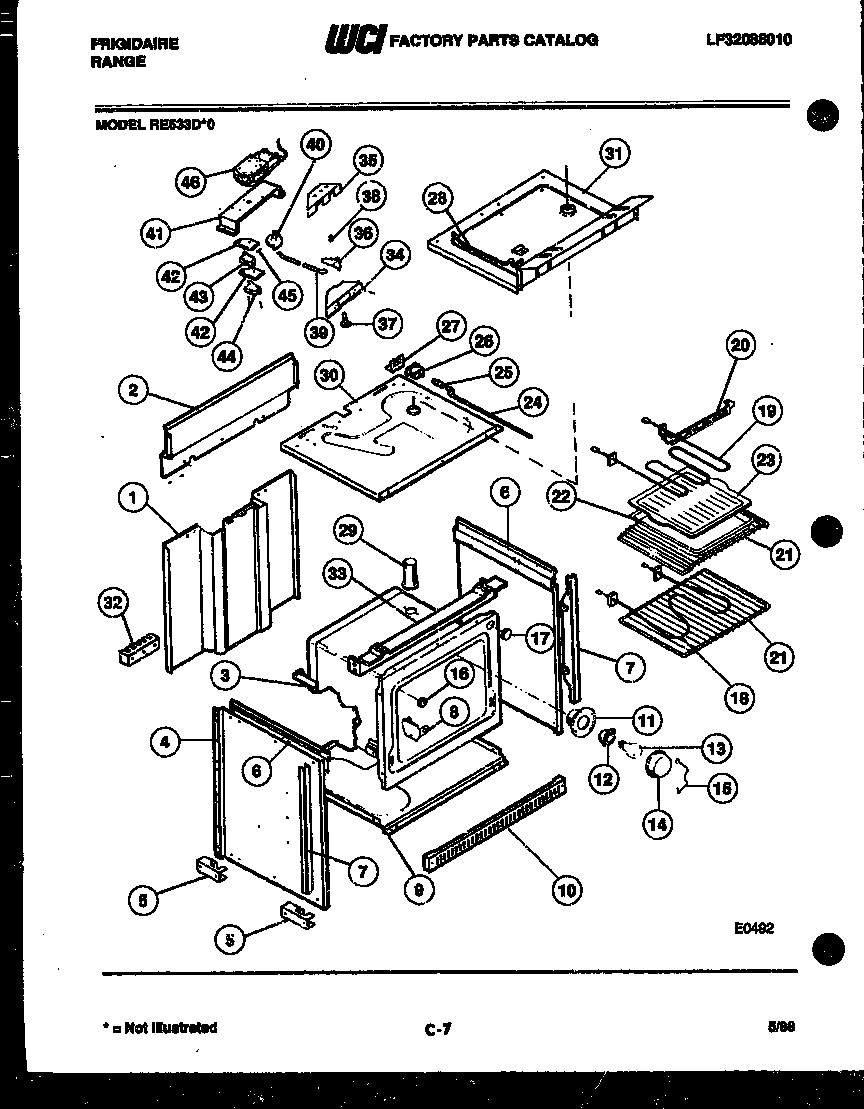

Body parts diagram
Bake elementPart #08002858
Replaced by #5303051519
?Manufacturer substitutionThis part replaces 08002858. Substitute parts can look different from the original.$36.14 |14% OFF Phone Price : $42.14In Stock - #23
Body parts diagram
Br.pan/inserPart #08003200
Replaced by #5304442087
?Manufacturer substitutionThis part replaces 08003200. Substitute parts can look different from the original.$69.03 |8% OFF Phone Price : $75.03In Stock - #21
Body parts diagram
Oven rackPart #3131973
Replaced by #316067902
?Manufacturer substitutionThis part replaces 3131973. Substitute parts can look different from the original.$71.44 |8% OFF Phone Price : $77.44In Stock - #2
Cooktop parts diagram
Surface elementPart #3015205
Replaced by #5308011964
?Manufacturer substitutionThis part replaces 3015205. Substitute parts can look different from the original.$157.51 |7% OFF Phone Price : $169.51In Stock - #14
Body parts diagram
Lens-light/lPart #08011084
Replaced by #5304524341
?Manufacturer substitutionThis part replaces 08011084. Substitute parts can look different from the original.$13.49 |13% OFF Phone Price : $15.49In Stock - #12
Body parts diagram
ReceptaclePart #08011085
Replaced by #316116400
?Manufacturer substitutionThis part replaces 08011085. Substitute parts can look different from the original.$41.39 |13% OFF Phone Price : $47.39In Stock - #19
Body parts diagram
Broiler elementPart #08002856
Replaced by #5303051516
?Manufacturer substitutionThis part replaces 08002856. Substitute parts can look different from the original.$142.52 |8% OFF Phone Price : $154.52In Stock - #8

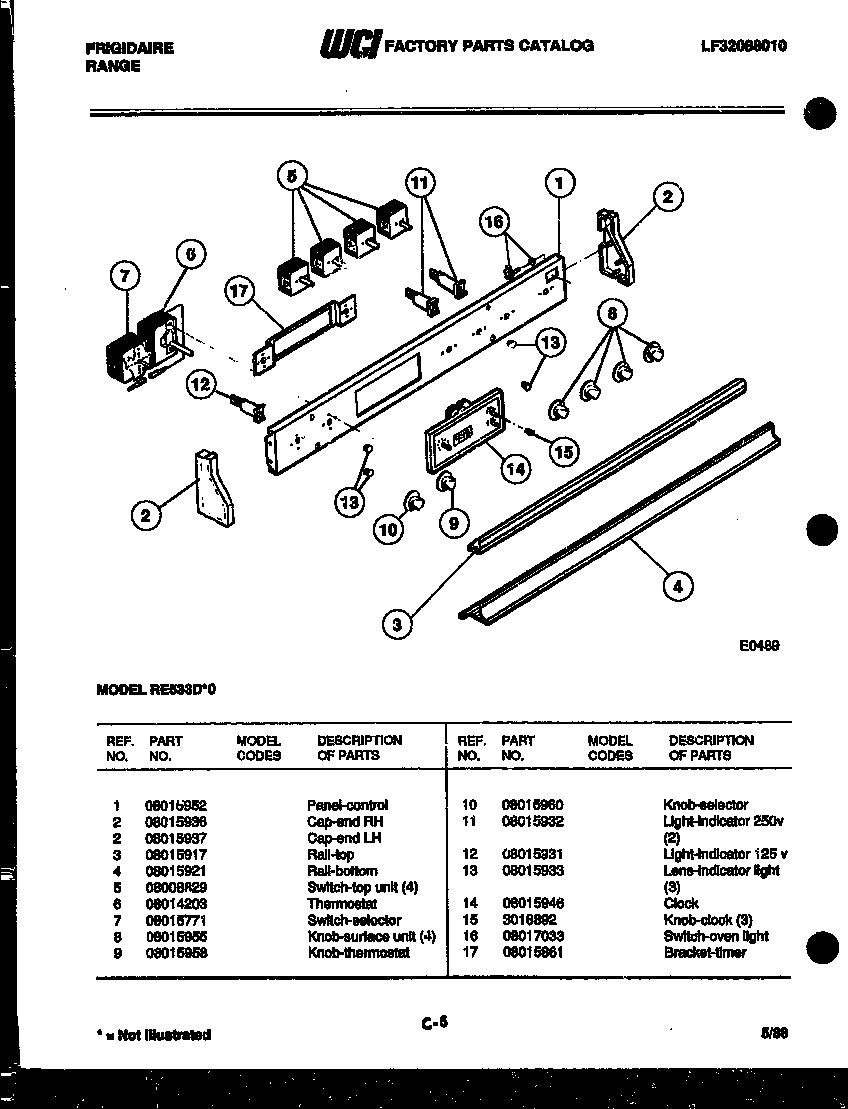

Control panel diagram
KnobPart #08015955
The manufacturer no longer makes this part, and there's no substitute part
- #5
Body parts diagram
BracketPart #08012244
The manufacturer no longer makes this part, and there's no substitute part
