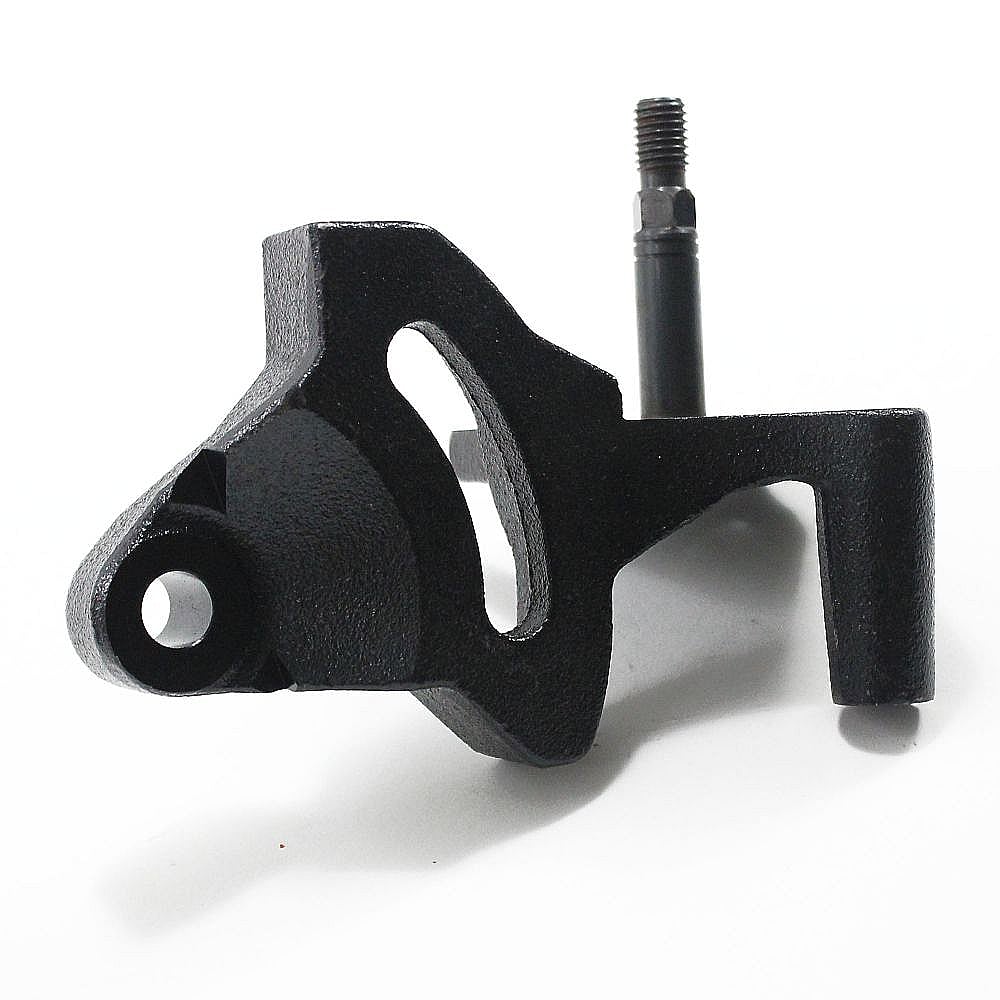

Miter Saw Bevel Lock Support Bracket 511D04020

Miter Saw Bevel Lock Support Bracket 511D04020

Part #511D04020

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

This part fits

Part Information

This bevel lock support bracket (part number 511D04020) is for miter saws.

Bevel lock support bracket 511D04020 holds the bevel lock handle and the bevel indicator arrow.

Unplug the miter saw before installing this part. Wear work gloves to protect your hands.

Top models using the same part

Model NameModel NumberDiagram Name
Model #315212500 Craftsman miter saw315212500
Gear assy
Shop Parts
Model #315243130 Craftsman miter saw315243130
Suport assy
Shop Parts
Model #315212130 Craftsman miter saw315212130
Arm assy 1
Shop Parts
Model #315285260 Craftsman miter saw315285260
Bevel scale
Shop Parts
Model #315212040 Craftsman miter saw315212040
Bevel scale/support bracket
Shop Parts
Model #315243150 Craftsman miter saw315243150
Miter saw
Shop Parts
Model #TS1340 Ryobi miter sawTS1340
Support bracket/pivot support
Shop Parts
