Model # 315212130 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 315212130 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

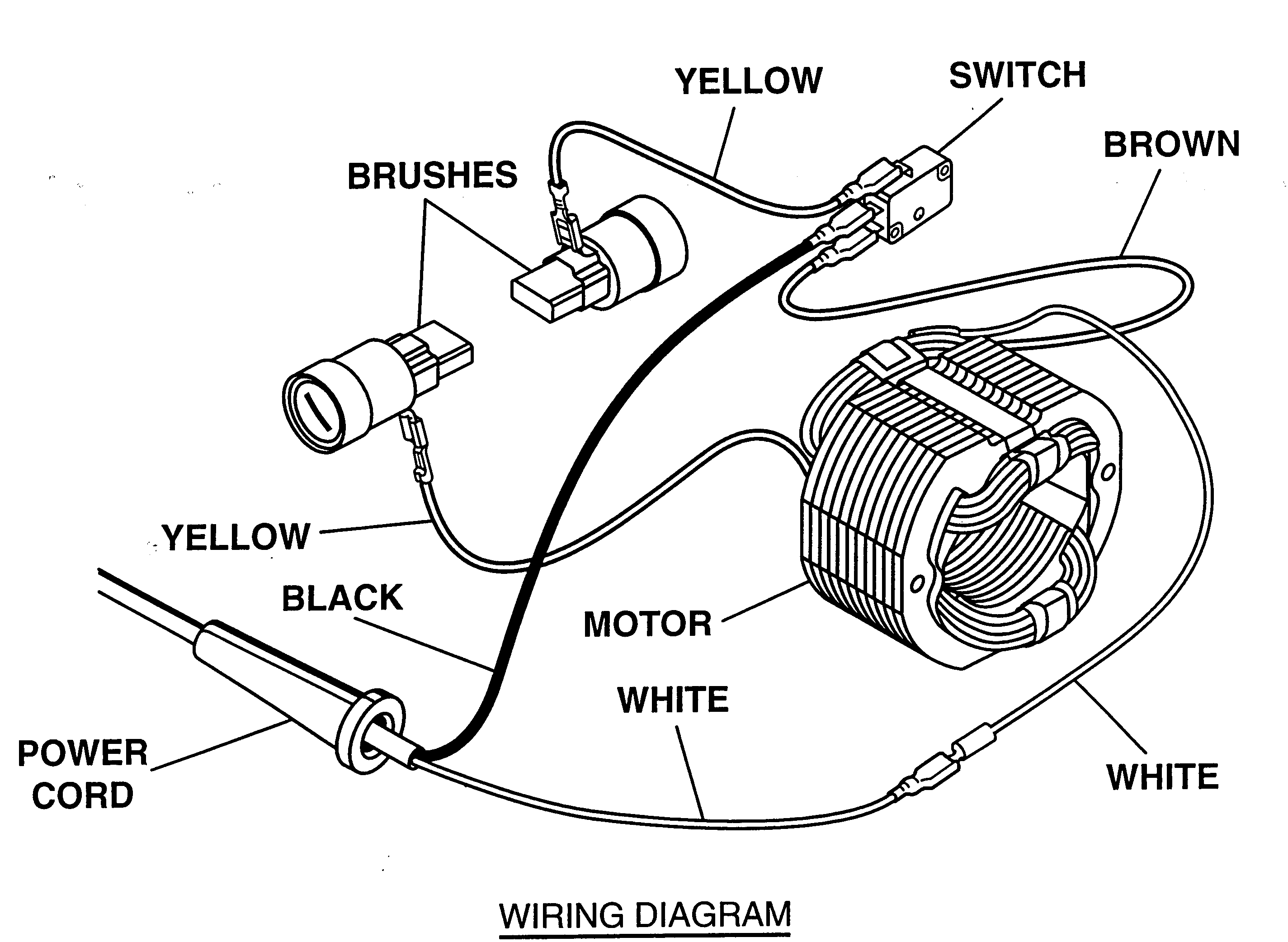

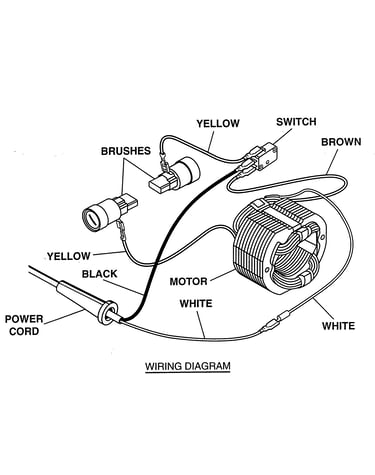

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Lead Wire 511305000
#28

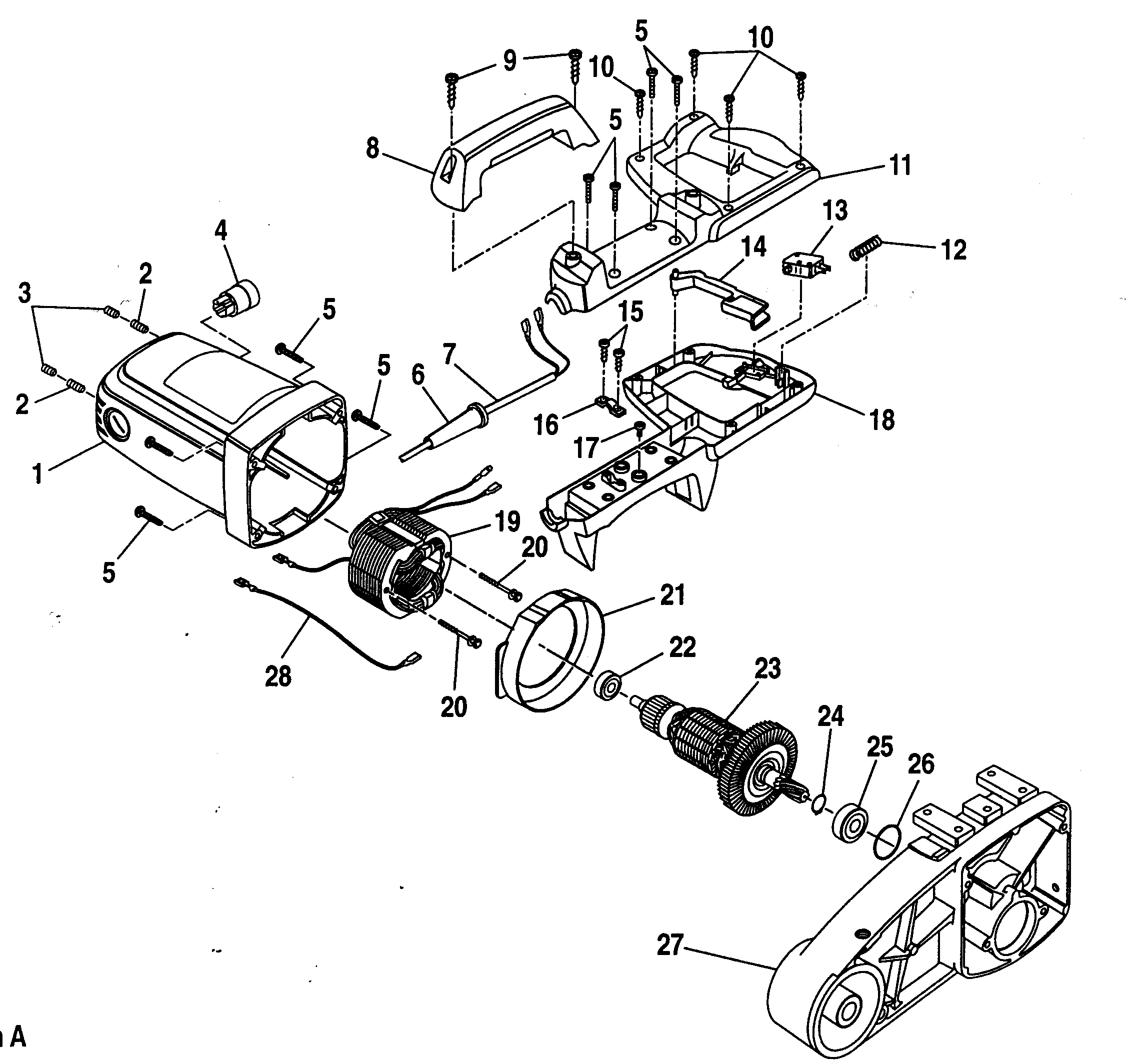

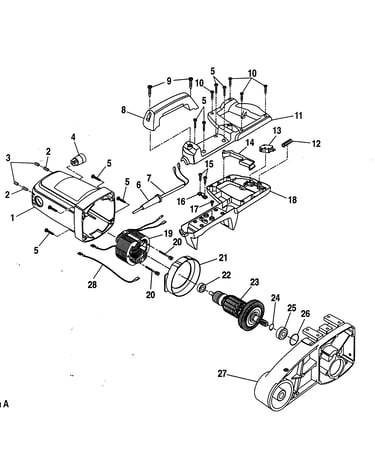

Motor assy diagram

Lead wire

Part #511305000

The manufacturer no longer makes this part, and there's no substitute part

Screw 982103-001
#5

Motor assy diagram

Screw

Part #982103-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 511103000
#32

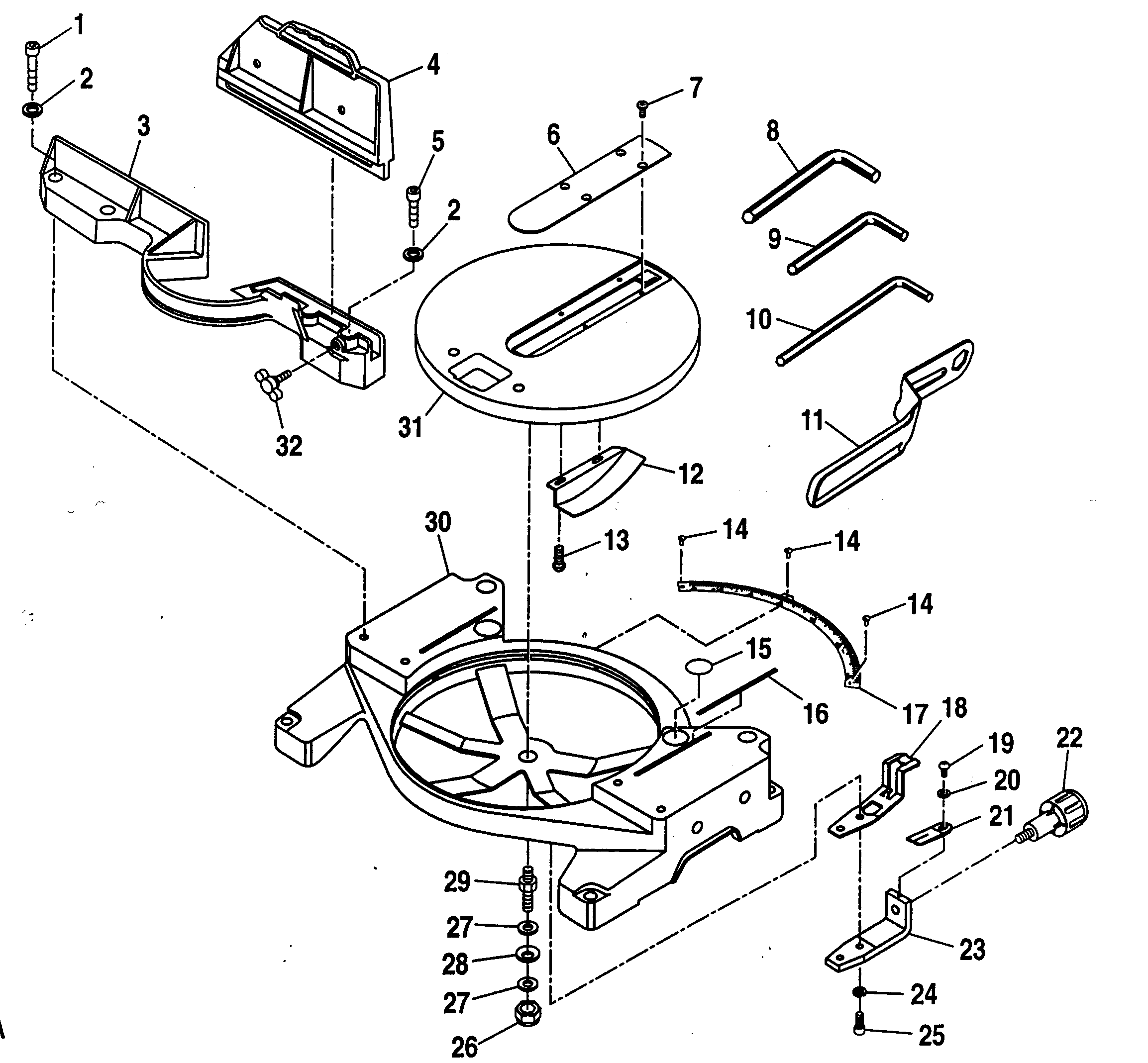

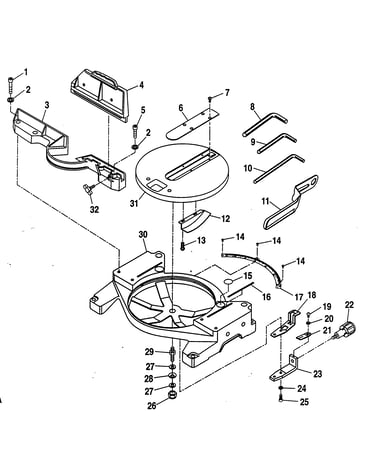

Base assy diagram

Screw

Part #511103000

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Trigger Spring 511308000
#12

Motor assy diagram

Miter saw trigger spring

Part #511308000

The manufacturer no longer makes this part, and there's no substitute part

Screw 900030-401
#15

Motor assy diagram

Screw

Part #900030-401

The manufacturer no longer makes this part, and there's no substitute part

Lock Pin 976576-001
#2

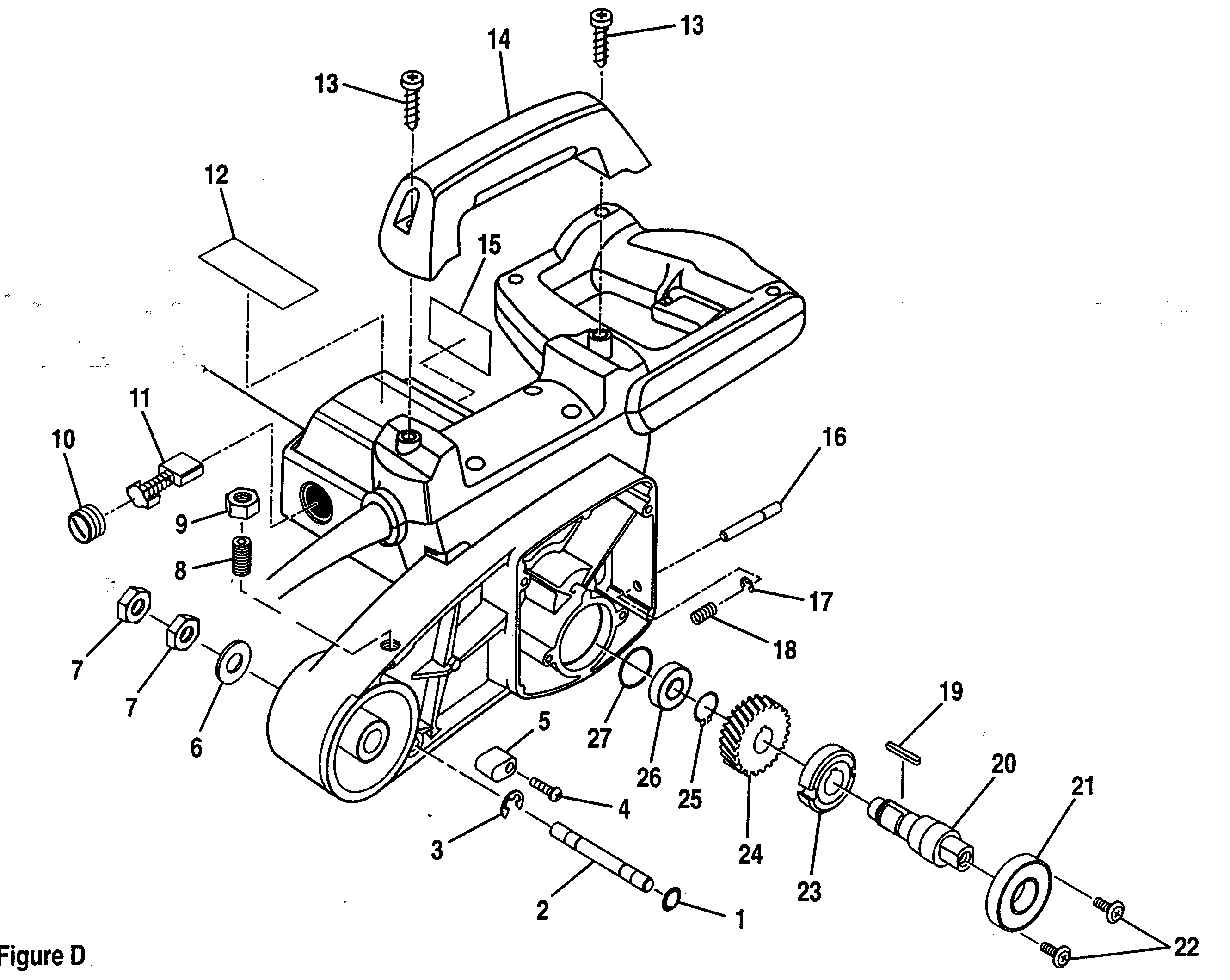

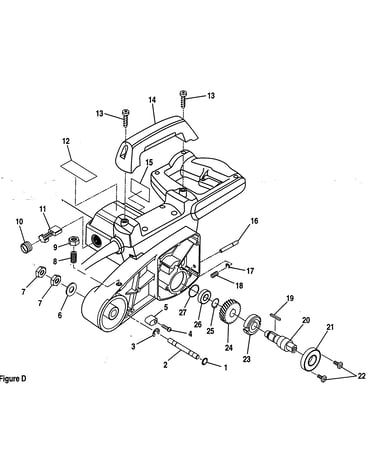

Arm assy 2 diagram

Lock pin

Part #976576-001

The manufacturer no longer makes this part, and there's no substitute part

Ph Screw 976604-001
#9

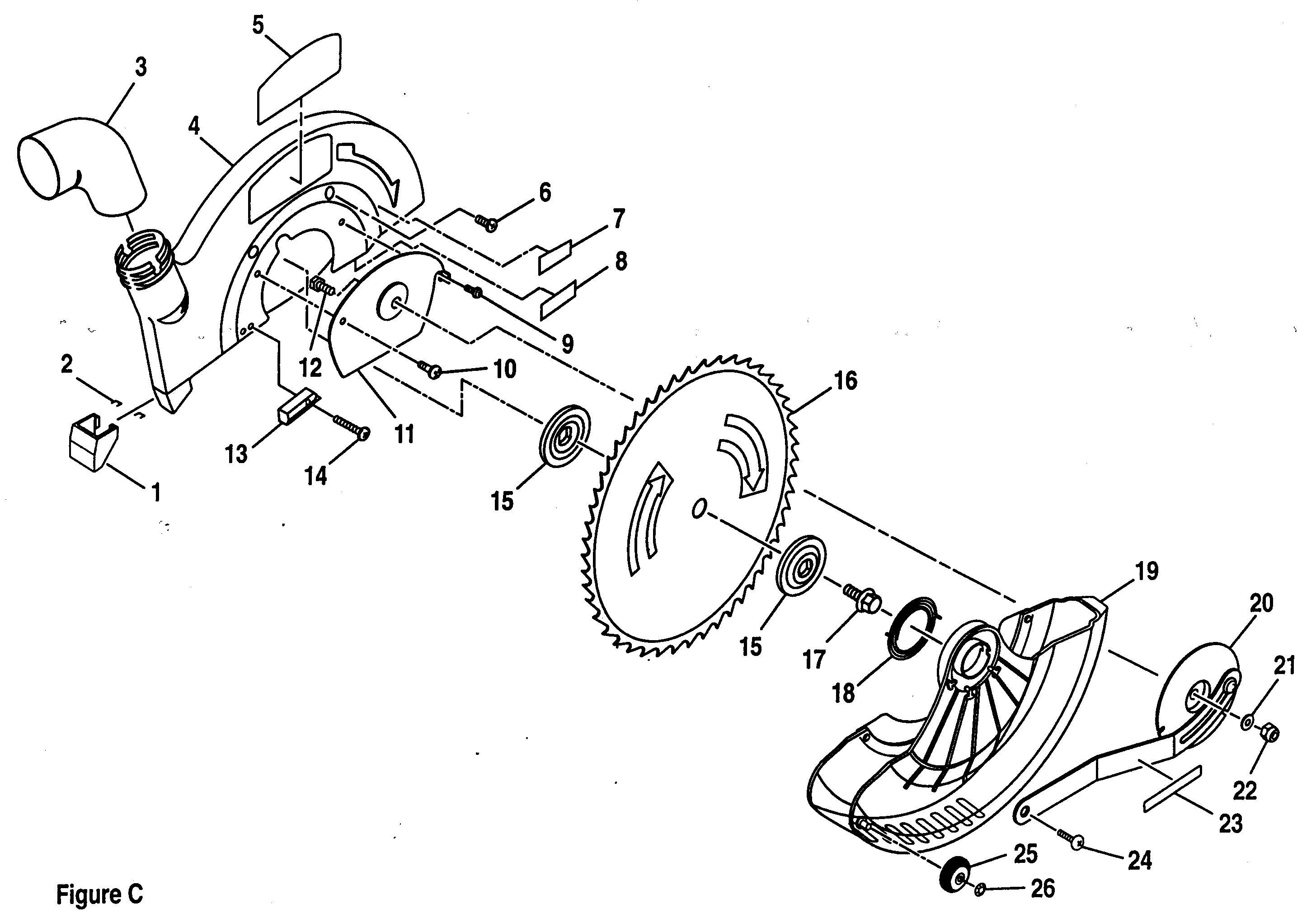

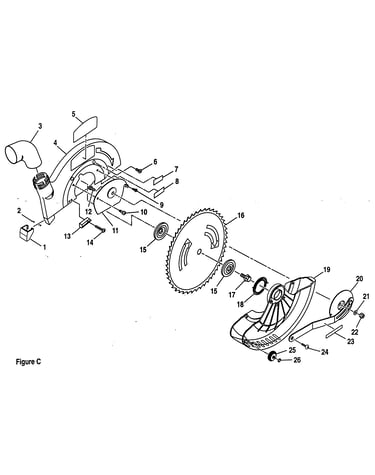

Blade assy diagram

Ph screw

Part #976604-001

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Screw, M4 X 20 982101-001
#10

Motor assy diagram

Miter saw screw, m4 x 20

Part #982101-001

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Blade Washer 976547-001
#15

Blade assy diagram

Miter saw blade washer

Part #976547-001

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Bevel Lock Support Bracket 511D04020
#2

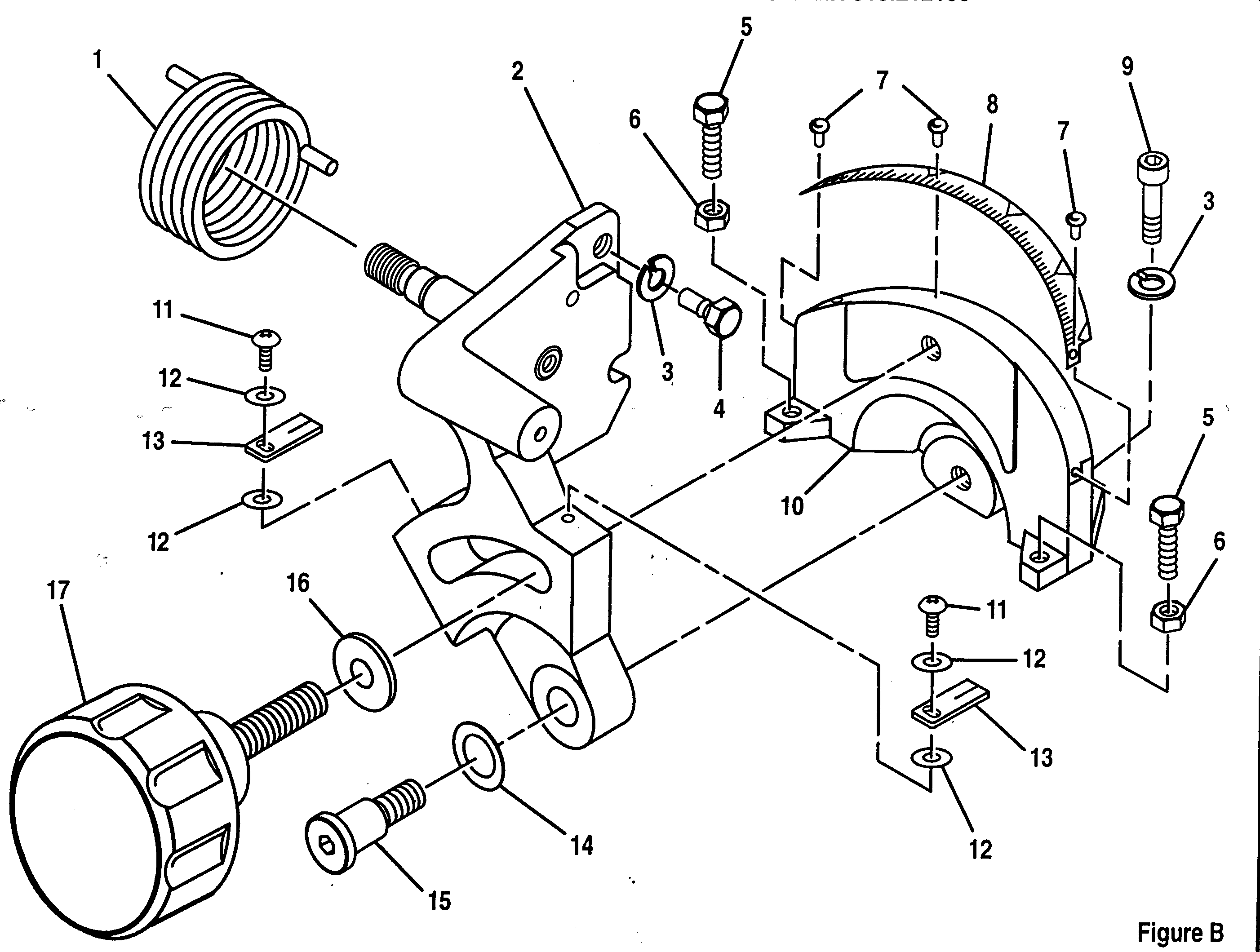

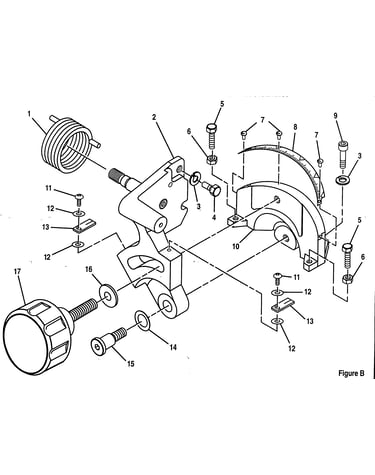

Arm assy 1 diagram

Miter saw bevel lock support bracket

Part #511D04020

The manufacturer no longer makes this part, and there's no substitute part
