Miter Saw

Model # 315285260 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 315285260 miter saw, as well as links to manuals and error code tables, if available.

By Schematic

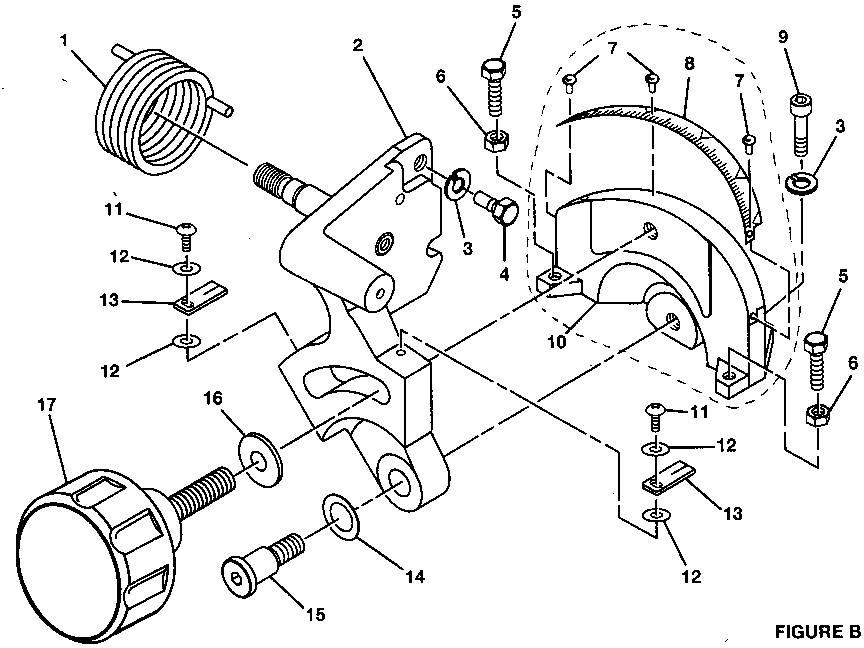

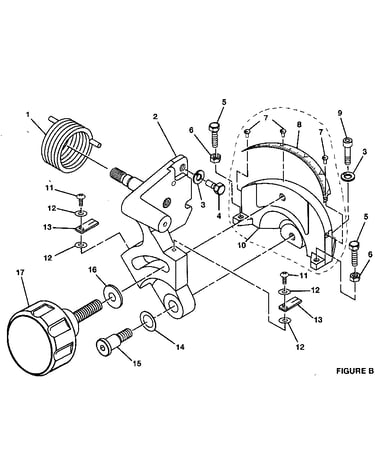

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for315285260 Power Tools

  • Repair Sheet 983000-537R
    #NI

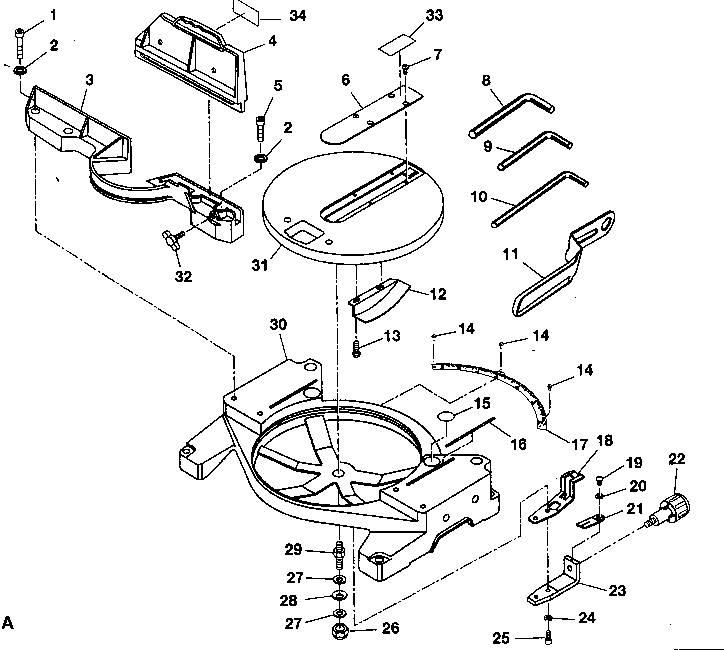

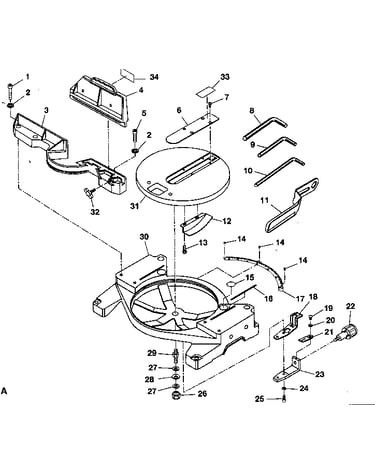

    Base assy diagram

    Repair sheet

    Part #983000-537R

    The manufacturer no longer makes this part, and there's no substitute part

  • Bearing 976875-001
    #25

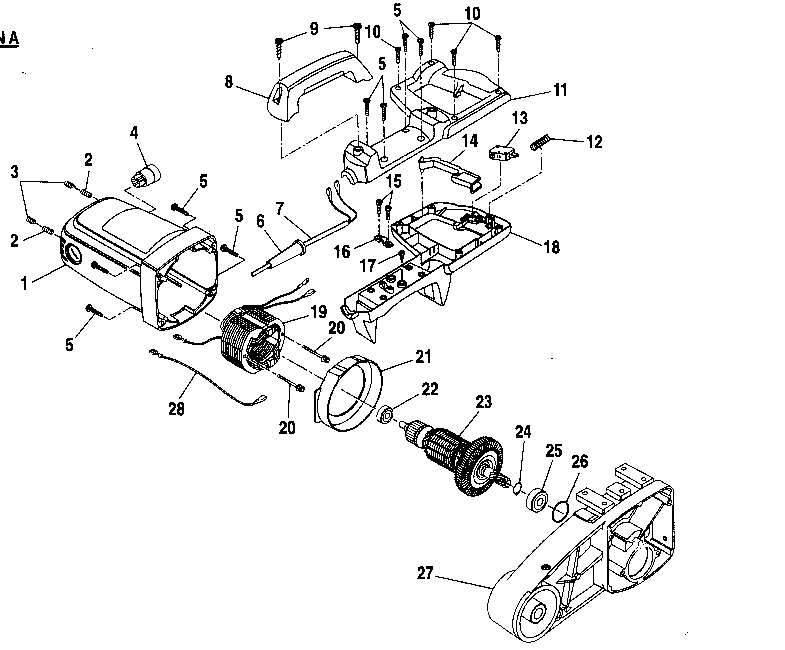

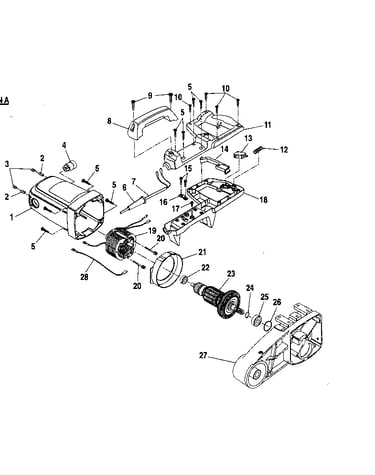

    Motor assy diagram

    Bearing

    Part #976875-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Square Key 976654-001
    #19

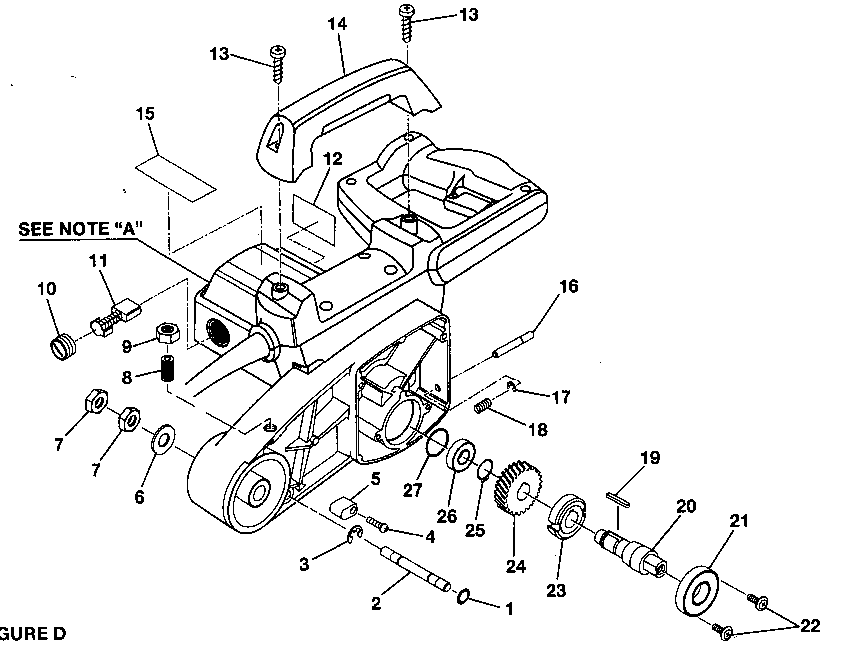

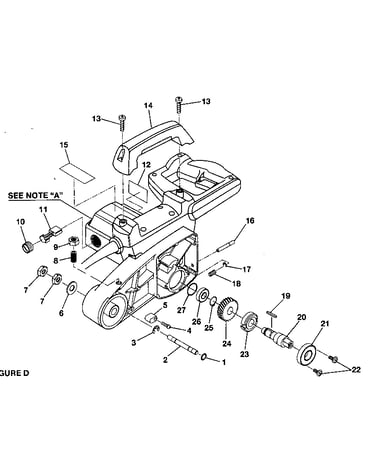

    Armature/geat housing diagram

    Square key

    Part #976654-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Bearing 976873-001
    #22

    Motor assy diagram

    Bearing

    Part #976873-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Fence 513102000
    #3

    Base assy diagram

    Fence

    Part #513102000

    The manufacturer no longer makes this part, and there's no substitute part

  • Holder Brs 976684-001
    #4

    Motor assy diagram

    Holder brs

    Part #976684-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Lock Nut 976549-001
    #22

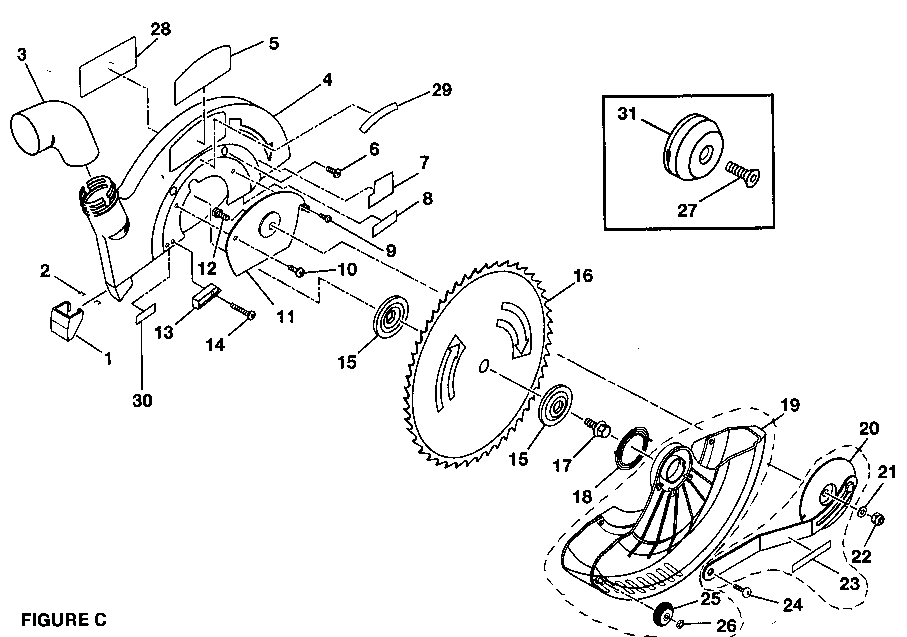

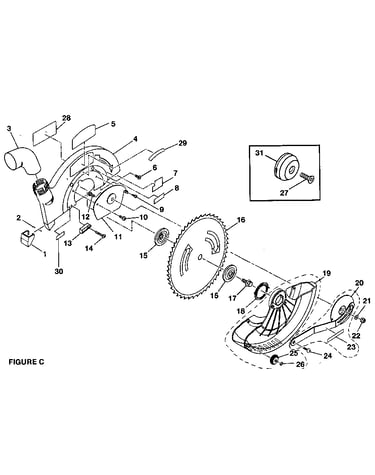

    Blade guard assy diagram

    Lock nut

    Part #976549-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 130030-401
    #14

    Blade guard assy diagram

    Screw

    Part #130030-401

    The manufacturer no longer makes this part, and there's no substitute part

  • Miter Saw Set Screw 981315-001
    #2

    Motor assy diagram

    Miter saw set screw

    Part #981315-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Blade Guard 976543-001
    #4

    Blade guard assy diagram

    Blade guard

    Part #976543-001

    The manufacturer no longer makes this part, and there's no substitute part
