Microwave Door Latch Housing and Interlock Switch Assembly (replaces 3500W1A018A, 3501W1A003U) 3501W1A053A
Part #3501W1A053A
Online Only Price
$21.40 |
22% OFF Phone Price : $27.40
In Stock
For ZIP codes near Edit
This part fits
Part Information

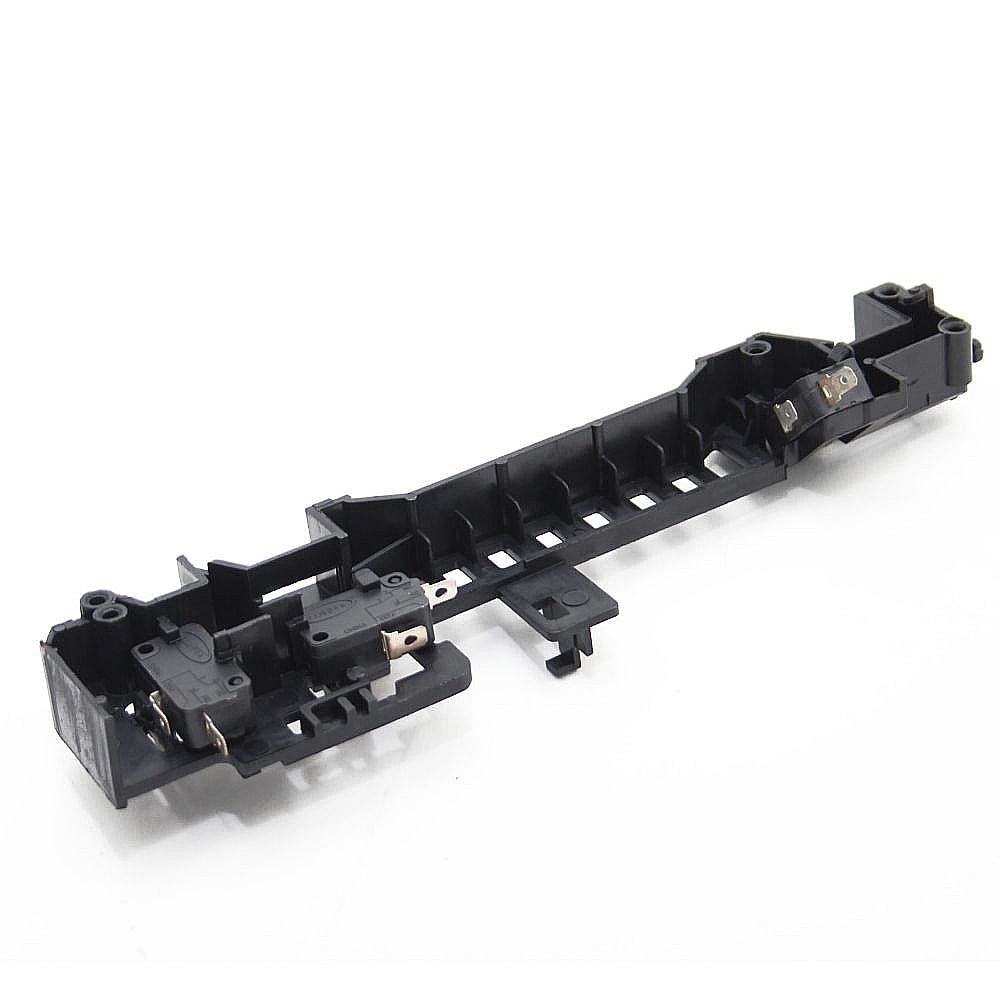

This door latch housing and interlock switch assembly (part number 3501W1A053A) is for microwaves.
Door latch housing and interlock switch assembly 3501W1A053A engages the door latch when the door is closed, and includes the switches that prevent the microwave from starting if the door is opened. The assembly includes multiple parts; refer to your parts diagram for a complete list of parts included.
Because high-voltage capacitors in a microwave can retain a lethal electrical charge even when the microwave is unplugged, a service technician should install this part.
Frequently Used Together
- $10.27 |16% OFF Phone Price : $12.27
- $27.47 |18% OFF Phone Price : $33.47
- $5.76 |15% OFF Phone Price : $6.76
- $8.73 |10% OFF Phone Price : $9.73
- $8.29
- $10.27 |16% OFF Phone Price : $12.27
- $7.62 |12% OFF Phone Price : $8.62
- $91.94 |6% OFF Phone Price : $97.94
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #72166463500 Kenmore countertop microwave | 72166463500 | Latch board parts |
| Model #72179203900 Kenmore Elite countertop microwave | 72179203900 | All parts |
| Model #LMC2075ST/00 LG countertop microwave | LMC2075ST/00 | All parts |
| Model #72169123010 Kenmore countertop microwave | 72169123010 | Latch board parts |
| Model #72169122010 Kenmore countertop microwave | 72169122010 | Latchboard parts |
| Model #72169129010 Kenmore countertop microwave | 72169129010 | Latchboard parts |
| Model #72179203010 Kenmore Elite countertop microwave | 72179203010 | Latchboard parts |
| Model #72179209010 Kenmore Elite countertop microwave | 72179209010 | Latchboard parts |
| Model #72179202010 Kenmore Elite countertop microwave | 72179202010 | Latchboard parts |
| Model #72179209900 Kenmore Elite countertop microwave | 72179209900 | Latch board parts |
Reviews
Not easy, no instructions, not even on line
It took a long time , no instructions no videos and after you took the whole cover off the microwave I put the part in it still doesn't open the door you have to use two hands push the button with one hand pull the door open with the other
Saffire, Pinopolis, SC
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Repaired oven overshadows installation challenges
Accessing the failed part required taking off the outer cover, which was held on with Torx screws (TX-20) and clipped tightly onto the oven front. The biggest challenge, however, was to disconnect the wiring. Dimples in the connectors made it very difficult to unhook the wires from the microswitches. Perhaps there is some tool that would have helped, but I do not own such a thing. Brute force did the trick, but the attachment of the wires to the new switch may be less secure as a result.
JRBixby, Bixby, OK
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Put my microwave back on line

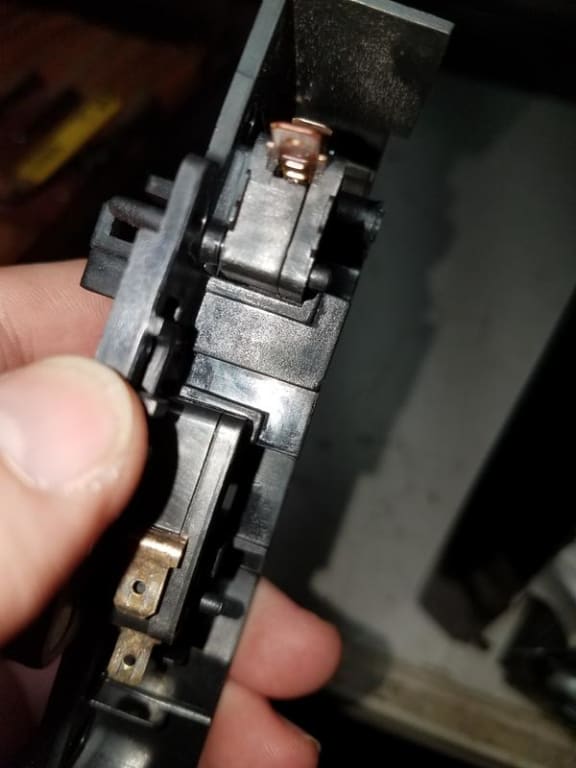

The lower door switch gave out causing the microwave turntable, fan, and light to be on when the door was open. I replaced the micro-switch assembly and had planned to replace the wiring harness since the connectors to the switch had heat damage but the harness was not an exact match. I was able to use use the connectors on the new harness to replace the bad connectors on the existing harness. The rest of the new harness was discarded.
Captain-Z03, MA
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Microwave parts it was easy to get the right parts
Kenmore microwave. Big one. Fixed it for $25 dollars + shipping. New one would of been around $200 dollars. Ready for another 10 years.
KC C, Kansas City Mo.
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Installation of the door latch switch assembly.
The problem was the microwave wouldn't stay running when door would close. If you push the button just a little the microwave would run, sometimes. I took the cover off, inspected and test the switches using DVOM. And discover that the lower switch was bad. Order the part I needed, upon arrival I install it and yeehaw, it's working great.
Mobutu Y, Philadelphia, Pa 19141
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
