Kenmore
Countertop Microwave

Model # 72168281790 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72168281790 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

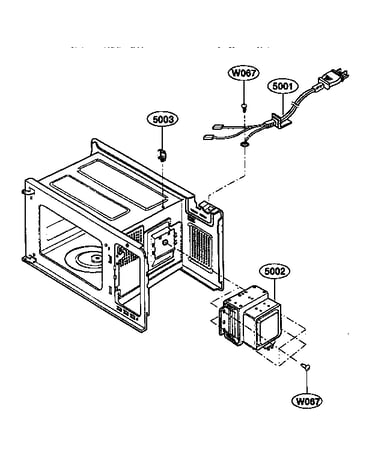

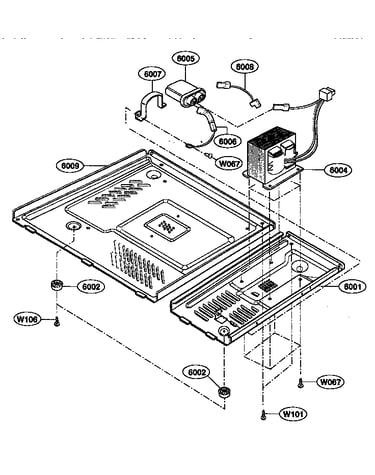

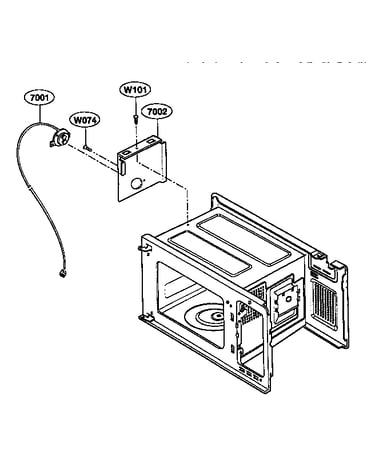

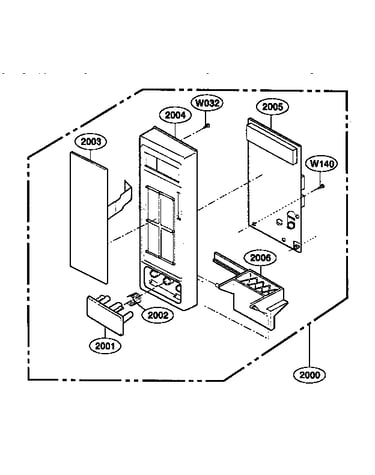

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Microwave Door Interlock Switch 3B73361E
#4003

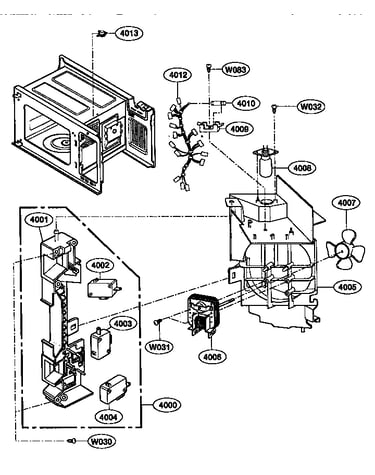

Suction guide diagram

Microwave door interlock switch

Part #3B73361E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
$11.77 |
15% OFF Phone Price : $13.77
In Stock
Latch Board 3501W1A003H
#4000

Suction guide diagram

Latch board

Part #3501W1A003H

Replaced by #3501W1A053A

?
Manufacturer substitution
This part replaces 3501W1A003H. Substitute parts can look different from the original.
BEST SELLER
$21.40 |
22% OFF Phone Price : $27.40
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#3004

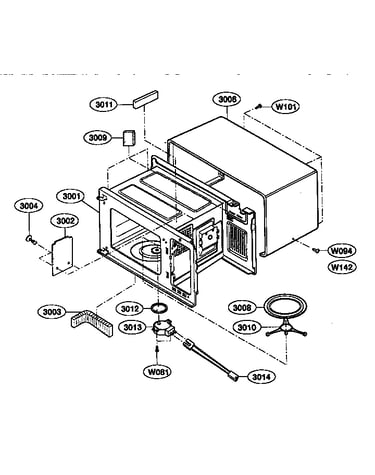

Oven cavity diagram

Microwave waveguide cover rivet

Part #4051W3A001A

This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
Latch 4026W2A012A
#1005

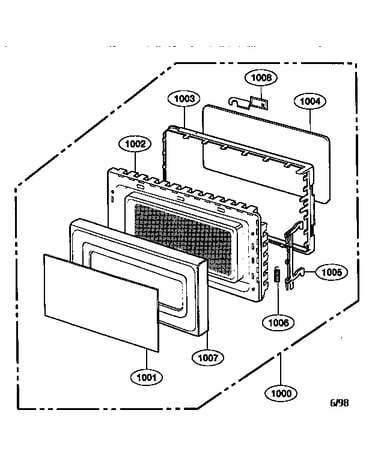

Door diagram

Latch

Part #4026W2A012A

Replaced by #4026W2A016A

?
Manufacturer substitution
This part replaces 4026W2A012A. Substitute parts can look different from the original.
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Us Pressed Steel Microwave Screw 1TTL0402818
Us pressed steel microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Fuse 3B74133H
#4010

Suction guide diagram

Microwave fuse

Part #3B74133H

This item is not returnable
$8.29
In Stock
Integrated Circuit 0IKE791500A
#U05

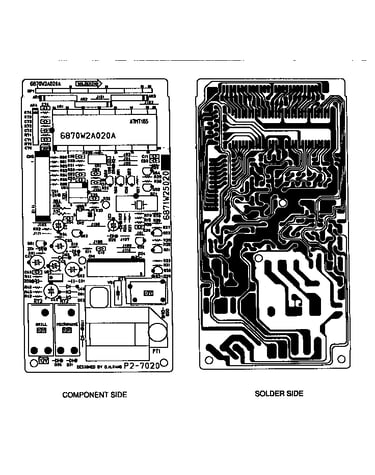

Power, control circuit board diagram

Integrated circuit

Part #0IKE791500A

$13.20
In Stock
Resistor 0RD2004F608
#R56

Power, control circuit board diagram

Resistor

Part #0RD2004F608

$8.29
In Stock
Capacitor 0CK2230K518
Capacitor

Part #0CK2230K518

$8.29
In Stock
Spring 4970WRA001C
#1006

Door diagram

Spring

Part #4970WRA001C

This item is not returnable
$2.83
In Stock
