  • Range Surface Burner Orifice Assembly 316459500
  • Range Surface Burner Orifice Assembly 316459500

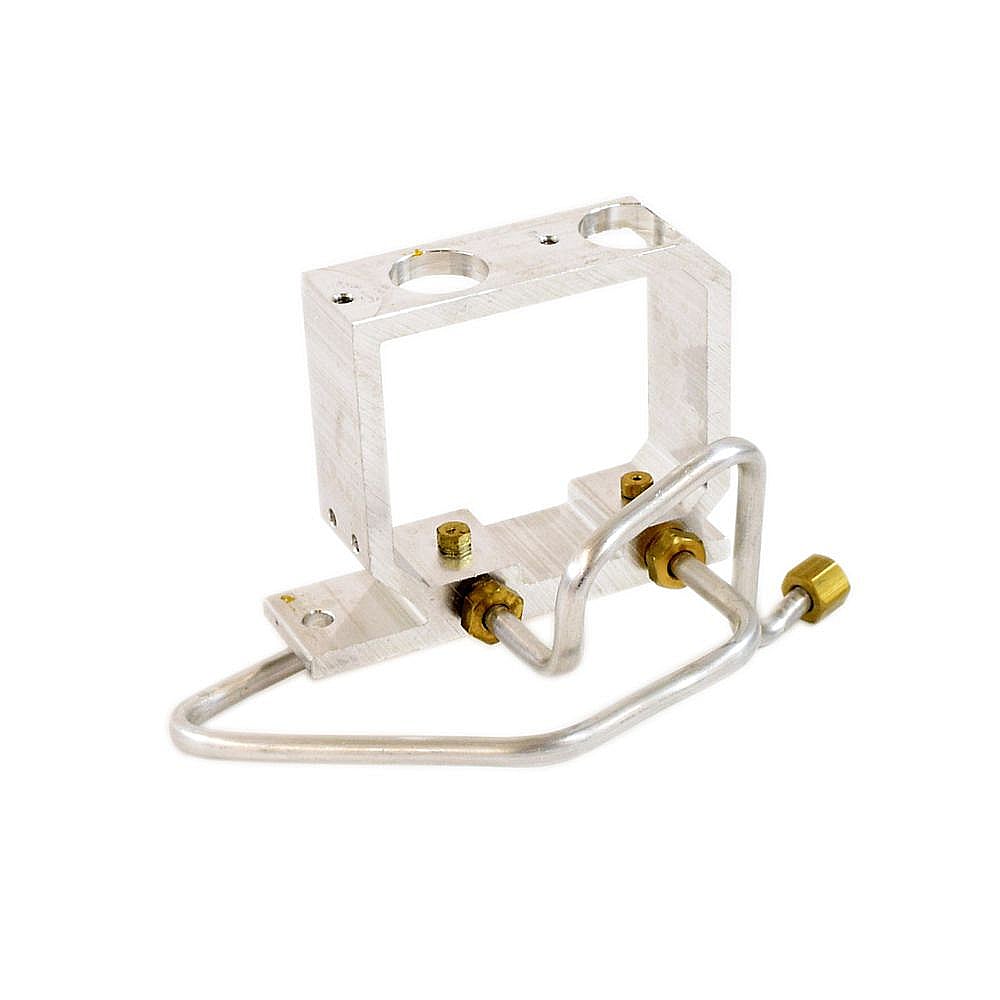

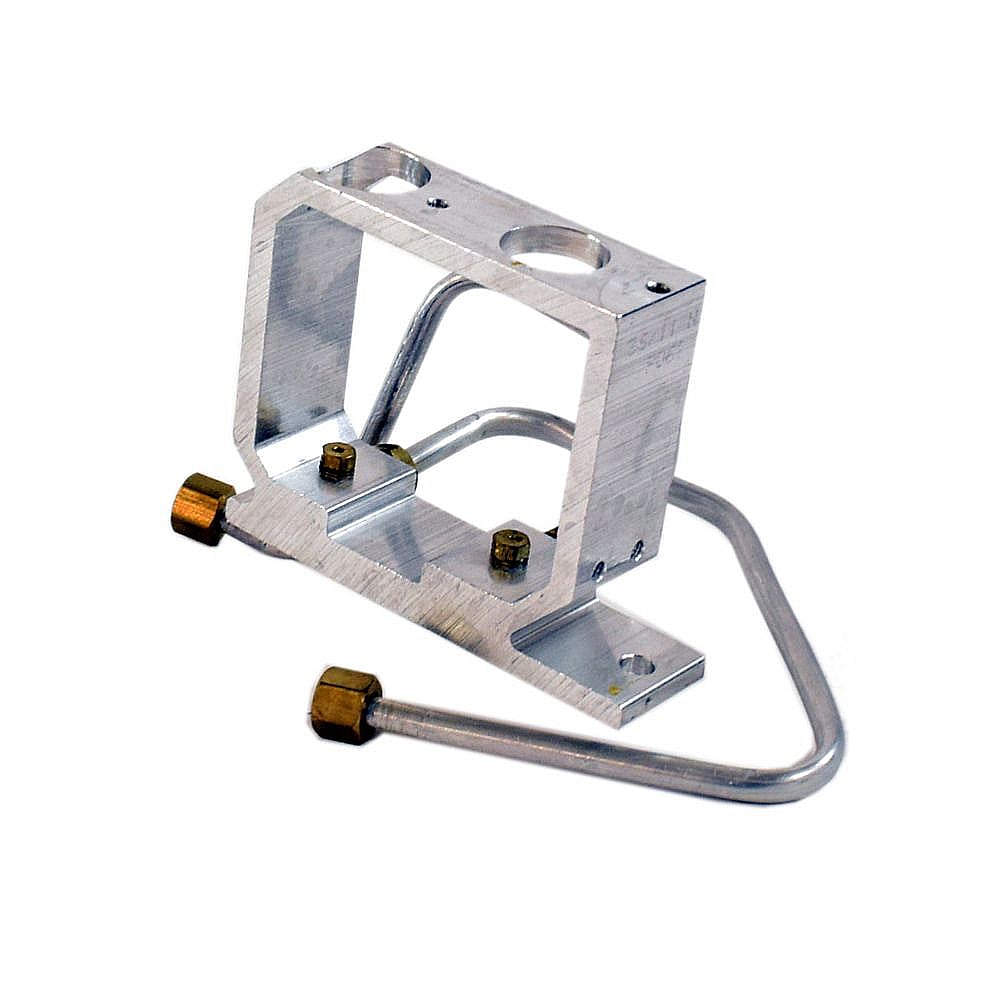

Range Surface Burner Orifice Assembly 316459500

Part #316459500

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

This part fits

Part Information

This surface burner orifice assembly (part number 316459500) is for ranges.

Surface burner orifice assembly 316459500 controls the gas coming from surface burner tube and includes the front and rear orifices for the left or right surface burners.

Unplug the range and shut off the gas supply before installing this part.

Frequently Used Together

Top models using the same part

Model NameModel NumberDiagram Name
Model #79079442600 Kenmore Elite gas range79079442600
Burner
Shop Parts
Model #79079443600 Kenmore Elite gas range79079443600
Burner
Shop Parts
Model #79079449600 Kenmore Elite gas range79079449600
Burner
Shop Parts
Model #79079443601 Kenmore Elite gas range79079443601
Burner
Shop Parts
Model #79079443602 Kenmore Elite gas range79079443602
Burner
Shop Parts
Model #79079442601 Kenmore Elite gas range79079442601
Burner
Shop Parts
