CONFIRM THE PART FITS

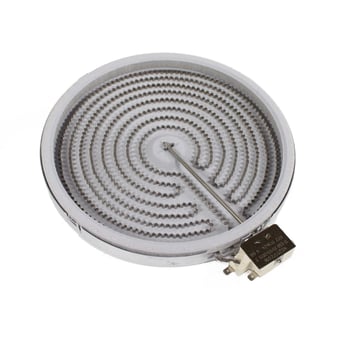

Range Radiant Surface Element, 9-in 316224200

BEST SELLER

Part #316224200

Replaced by #316135401
?
Manufacturer substitution
This part replaces 316224200. Substitute parts can look different from the original.
Online Only Price
$161.94 |
7% OFF Phone Price : $173.94
In Stock
For ZIP codes near Edit
60-day return policy

Part Information

Helpful DIY instructions: Installation guide with video.

This surface element (part number 316135401) is for ranges.

Surface element 316135401 supplies the heat to a cooking area on top of the range.

Unplug the range or shut off the house circuit breaker for the range before installing this part. Wear work gloves to protect your hands.

Reviews

Almost Perfect
January 08, 2023

The replacement went pretty well. Almost an exact fit. The wire connections were not arranged the same as on the original. As a result, one of the wires was a bit short. I had to do some "McGyver-ing" to make it reach. First changing a glasstop burner. Online videos were very helpful. Cooking on all four!

Alvino, Virginia Beach, Va

Did you find this review helpful?

Ease of Installation
Moderate
Duration of Installation
30 minutes - 1 hour

Yes, I would recommend this to a friend

Burner for stove
April 26, 2022

It was broken. It looked used. No wrapping to protect it. Box all smashed and you didn't give me the shipping $$ back

David, Eureka MT

Did you find this review helpful?

Ease of Installation
Moderate
Duration of Installation
More than 2 hours

Yes, I would recommend this to a friend

Yes
January 15, 2022

Yes Was easy to install and my mom was very happy Very happy and now she can cook

Toro, New York

Did you find this review helpful?

Ease of Installation
Very Difficult
Duration of Installation
More than 2 hours

Yes, I would recommend this to a friend

Fast shipping, great parts
April 13, 2021

It was easy to install, just need to pay attention to wiring. Take picture of old wiring before removing. The posts were different on new element.

DIY95, Louisiana

Did you find this review helpful?

Ease of Installation
Moderate
Duration of Installation
30 minutes - 1 hour

Yes, I would recommend this to a friend

Fully compatible
March 08, 2021

Easy to install - but one word of caution: before you throw out the old part, be sure to unscrew and keep the two black springs on its perimeter, along with the screws: the new part does not have them. Also you'll want to take a snapshot of the wiring before disconnecting it from the old part.

Serge, Boston, MA

Did you find this review helpful?

Ease of Installation
Very Easy
Duration of Installation
30 minutes - 1 hour

Yes, I would recommend this to a friend

Easy to install but it wasn't the problem
February 28, 2021

Not much to say. Thought it was the heating element but it still doesn't work so it must be something else with the stove

Shellibender, Auburn Washington

Did you find this review helpful?

Ease of Installation
Easy
Duration of Installation
30 minutes - 1 hour

Yes, I would recommend this to a friend

Saved a lot of money installing ourselves!
February 24, 2021

We watched a Youtube video and installed the new element easily.

Darla, Ashland, Oregon

Did you find this review helpful?

Ease of Installation
Easy
Duration of Installation
30 minutes - 1 hour

Yes, I would recommend this to a friend

Works great!!
February 20, 2021

Installed in 20 minutes and works as intended. The terminal locations were different than the original burner but I took a picture of previous wire locations and matched them to the new part and works great.

Robert, Aurora Mo

Did you find this review helpful?

Ease of Installation
Easy
Duration of Installation
Less than 30 minutes

Yes, I would recommend this to a friend
