Part Information
Basic Information

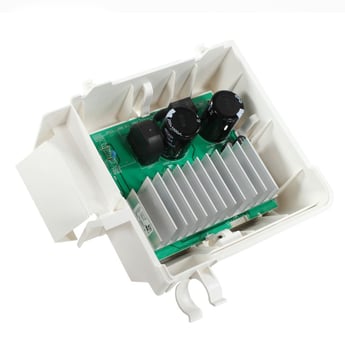

- Part Name: Washer Motor Control Board
- Manufacturer: Whirlpool
- Category: Washer Component
- Primary Function: Monitors and controls the drive motor speeds and directions in top-load washers.
Installation & Compatibility
- Compatible Models:
- Whirlpool: 7MWFW8, 7MWFW9, BNQ11C, BNQ11D, WFL98H, WFW70H, WFW80H, WFW864, WFW86H, WFW88H, WFW94H, WFW95H, WFW96H, WFW97H series
- Maytag: 7MMHW6, 7MMHW7, MHW300, MHW420, MHW600, MHW700, MHW800, MHW900 series
- Installation Difficulty: Medium — Basic electrical knowledge required for connecting wire harnesses.
- Tools Required: Screwdriver, pliers
Additional Information
The motor control board WPW10374126 is an original equipment manufacturer (OEM) part designed to fit select Whirlpool and Maytag top-load washers. This component actively manages and adjusts the speed and directional movements of the washer drive motor.
Replacing the motor control board is recommended if the washer shows error codes F1 E2 or F6 E1, provided the wire harness connections between the main electronic control board and the motor control board are secure. This board is a replacement for previous part numbers W10245123 and W10374126.
For optimal performance, ensure all connections are securely fastened during installation. If further assistance is required, consult the step-by-step installation guide available through Sears PartsDirect for detailed instructions.
Frequently Used Together
- $164.69 |Â7% OFFÂ Phone Price : $176.69
- $192.23 |Â6% OFFÂ Phone Price : $204.23
- $20.99 |Â22% OFFÂ Phone Price : $26.99
- $70.55 |Â8% OFFÂ Phone Price : $76.55
- $301.26 |Â$12.00 OFFÂ Phone Price : $313.26
- $119.79 |Â9% OFFÂ Phone Price : $131.79
- $171.13
- $91.89 |Â6% OFFÂ Phone Price : $97.89
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #WFW88HEAC0 Whirlpool washer | WFW88HEAC0 | Top and cabinet parts |
| Model #WFW97HEXR3 Whirlpool washer | WFW97HEXR3 | Top and cabinet parts |
| Model #MHW6000XR0 Maytag washer | MHW6000XR0 | Top and cabinet parts |
| Model #MHW6000XG0 Maytag washer | MHW6000XG0 | Top and cabinet parts |
| Model #WFW97HEXW0 Whirlpool washer | WFW97HEXW0 | Top and cabinet parts |
| Model #WFW94HEXL0 Whirlpool washer | WFW94HEXL0 | Top and cabinet parts |
| Model #WFL98HEBU0 Whirlpool washer | WFL98HEBU0 | Top and cabinet parts |
| Model #WFW70HEBW0 Whirlpool washer | WFW70HEBW0 | Top and cabinet parts |
| Model #7MWFW80HEBW0 Whirlpool washer | 7MWFW80HEBW0 | Top and cabinet parts |
| Model #7MWFW86HEBC0 Whirlpool washer | 7MWFW86HEBC0 | Top and cabinet parts |
Reviews
Order came days late.
The web site said 'order in the next xx minutes and get this part delivered by (tomorrow). Yea right. Should have arrived on Tuesday but got here Thursday. Not cool. Otherwise it came and performed fine. They failed to deliver it as promised, and I specifically ordered from Sears because of the quick delivery promised. So I vote POOR.
John, Valhalla, NY
1 person thought this review was helpful.
- Ease of Installation
- Difficult
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Fixed Our Washer Ourselves!

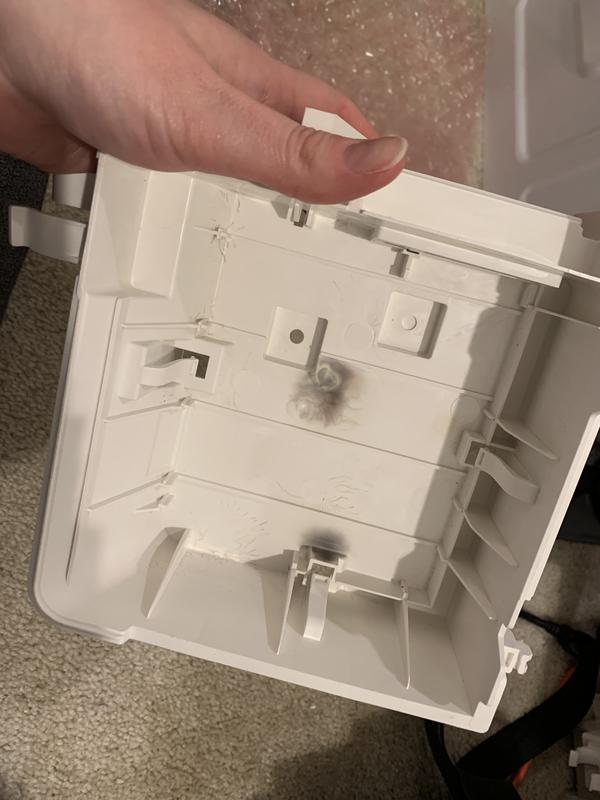

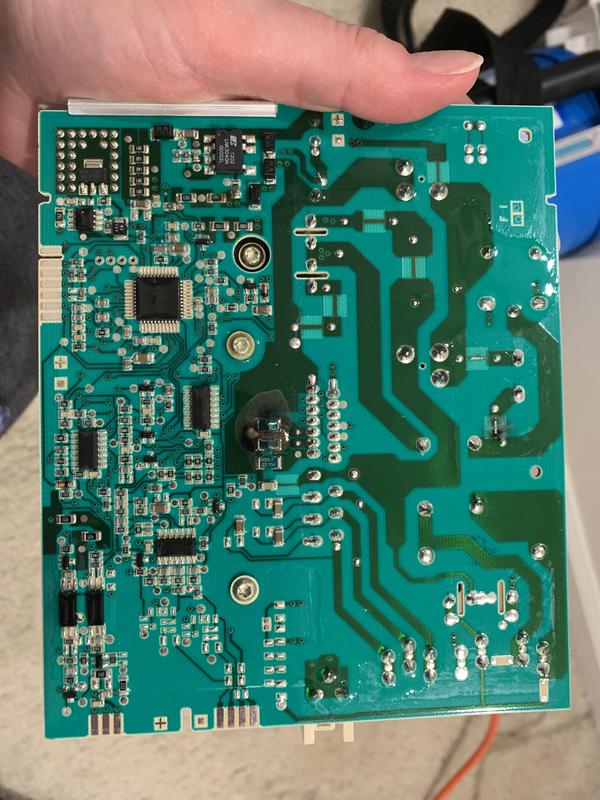

Whirlpool washer made a loud pop and stopped mid load with E01 F06 error code that wouldn't clear with basic reset or turning it off at the breaker. Following advice of many that this board may be at fault ordered one. Part took 8 days to arrive to the West Coast. Our machines are stacked in a tight closet so we rented an air sled tool to pull them out (the hardest part of the job really). Took off the back panel of the machine approx 15 screws and this part clips in the bottom of the machine with 3 wire harnesses plugged into it. If you can build legos you can follow a YouTube video to replace this circuit board. We had a well known repairman turn down the job because 'he doesn't deal with that kind of stuff' and 'it's not a guaranteed fix so then what?' Waits at major repair companies were very long, new machines are months out due to covid. Our best shot was DIY. Turns out the old circuit board did burn out 2 resistors with a big black burn mark on the circuit board and 2 black burn marks on the white plastic housing. My dad repairs industrial machine tools and sees this happen often when things get too hot, the washer failed during a sanitize load (very hot!) with a standard sized load. If you can easily access the back panel of your washing machine (no need to unstack) and have the E01 F06 error take out this circuit board and check for burns it's likely the problem!
Julia, Seattle
3 people thought this review was helpful.
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Expensive shipping and arrived three days late.
I paid approx. $50 for expedited shipping so the part would arrive on Friday. I received a confirmation stating it would arrive on Friday but instead, it did not ship until Friday, arriving the following week.
Undisclosed, Cincinnati, Ohio
1 person thought this review was helpful.
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Very easy to install
Very simple process to replace part. Took about 10 minutes.
Sappleb794, Waukesha, WI
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Easy Installation
It only took about 20 minutes to install. Hardest part was moving the washer and removing the 14 screws.
Big D 4, Lebanon, PA
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Perfect Part and Perfect fit
had to get the snaps out of the old one that attached to the washer bottom. once you get the back off the washer its right there. only had 3 wires to hook up and snap this in and it worked amazing. of course unplug the washer well doing this.
Des1988, Broken Bow NE
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Worked like a charm
Quick shipping and part fixed the problem. Easy to install.
Ron63, Camp Hill, PA
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- 30 minutes - 1 hour
Easy to install
It was great to get my washer fixed it was easy to install
James M F, Clintwood Va
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
