CONFIRM THE PART FITS
Part Information
Special details: If the timer doesn't advance during the wash cycle, unplug the washer and check for continuity through the timer motor using a multimeter. Replace timer WP3946475 if your meter measures infinite resistance.

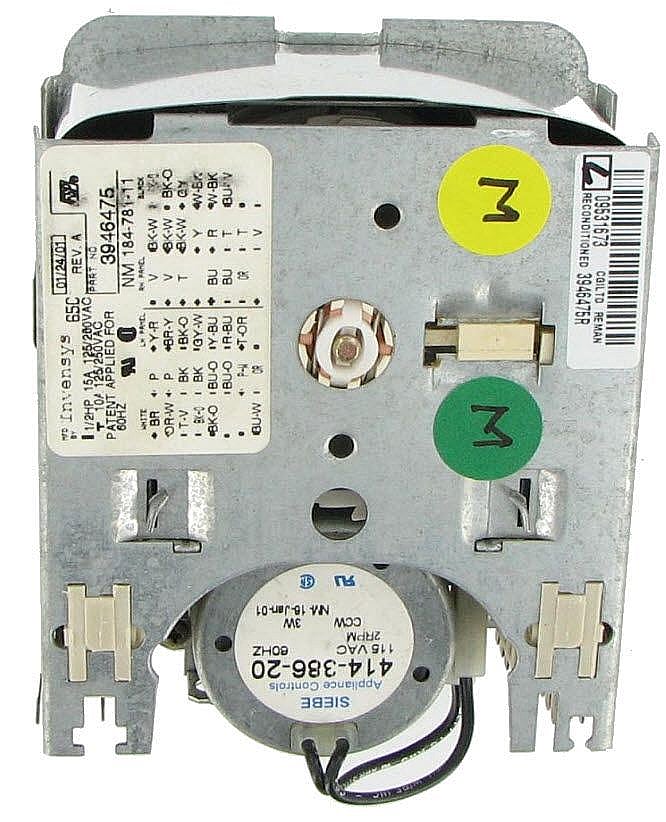

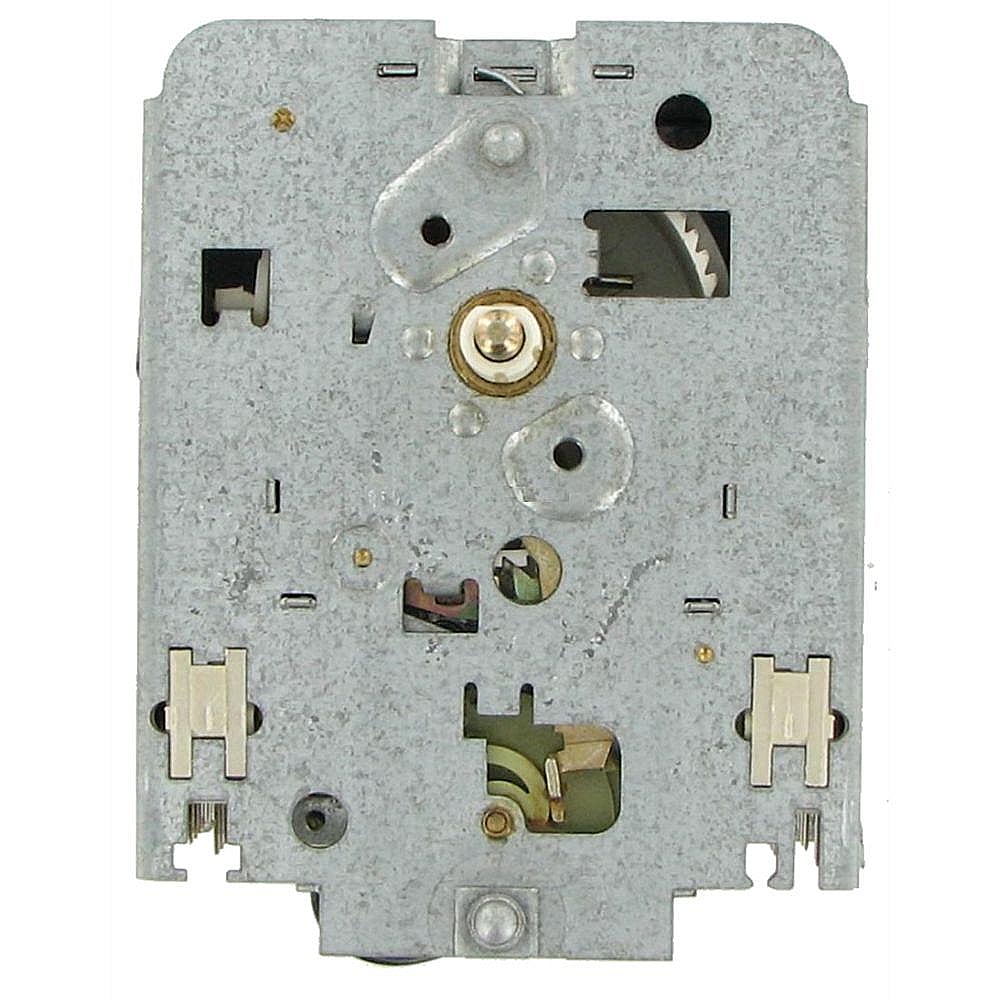

This timer (part number WP3946475) is for washers.
Timer WP3946475 controls the electrical components and the duration of the washer's cycles.
Unplug the washer before installing this part. Wear work gloves to protect your hands.
Frequently Used Together
- $35.78 |Â14% OFFÂ Phone Price : $41.78
- $4.94 |Â17% OFFÂ Phone Price : $5.94
- $254.63 |Â5% OFFÂ Phone Price : $266.63
- $32.87
- $3.81 |Â21% OFFÂ Phone Price : $4.81
- $13.09 |Â13% OFFÂ Phone Price : $15.09
- $114.63 |Â9% OFFÂ Phone Price : $126.63
- $32.40 |Â16% OFFÂ Phone Price : $38.40
- $36.24 |Â14% OFFÂ Phone Price : $42.24
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #11092590100 Kenmore washer | 11092590100 | Control panel |
| Model #11092586400 Kenmore washer | 11092586400 | Control panel |
| Model #11092587400 Kenmore washer | 11092587400 | Control panel |
| Model #11092585110 Kenmore washer | 11092585110 | Control panel |
| Model #11092585100 Kenmore washer | 11092585100 | Control panel |
| Model #11092389200 Kenmore washer | 11092389200 | Control panel |
| Model #11092592200 Kenmore washer | 11092592200 | Control panel parts |
| Model #11092590800 Kenmore washer | 11092590800 | Control panel |
| Model #11092491210 Kenmore washer | 11092491210 | Control panel |
| Model #11092586200 Kenmore washer | 11092586200 | Control panel |
Reviews
Easy Installation
This unit was to replace the old timer on the Kenmore washing machine which was 25 years old. The old timer was getting stuck (contacts were failing) and required banging on the unit to get the contacts to mate. The new timer was easy to install, and took about 1/2 hour. So far it works like new. There was a lead time to get it shipped of about 5 months because Sears Parts Direct was out of stock, and I imagine that the manufacturer had to get enough orders to build and ship.
DIYer 2, Houston, TX
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Part fit really nice. Washer works great now!
Pretty quick install, just pay attention to what things look like before you start the disassembly.
Mike, San Diego
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Older kenmore washer timer replacement
Exact part replacement - works well. Need to remove center control knob by turning it left to unscrew it, then 2 screws holding timer assembly.
Undisclosed, Wake Forest, NC
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Easy to install ... but it didn't work.
With original timer: It fills but does nothing after (no agitation) except the timer advances. It eventually empties, spins etc. Lid switch OK. Motor runs fine (spin, empties). No 'burnt' motor connector. Checked timer switches. Could not get continuity across switch 16 (agitation) by manually advancing timer. "New" timer also has no continuity across switch 16.
JimboThom, Freeport, IL
1 person thought this review was helpful.
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
