GE
Top-Mount Refrigerator

Model # GTE16BBSNRWW Official GE refrigerator - s series

Here are the diagrams and repair parts for Official GE GTE16BBSNRWW refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Refrigerator Replacement Compressor WR87X10096
#725

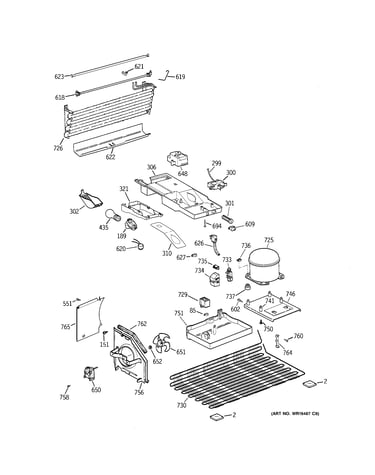

Unit parts diagram

Refrigerator replacement compressor

Part #WR87X10096

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X10096. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Evaporator Fan Blade (replaces Wr60x10047, Wr60x10188) WR60X10204
#613

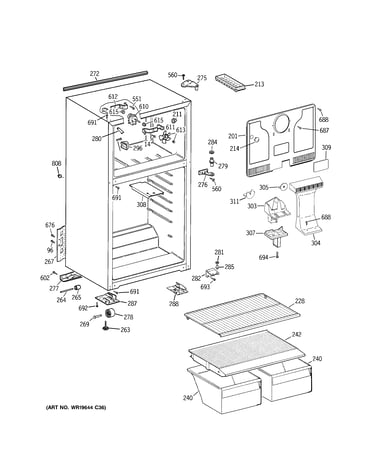

Cabinet diagram

Refrigerator evaporator fan blade (replaces wr60x10047, wr60x10188)

Part #WR60X10204

BEST SELLER
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Unit parts diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

Cabinet diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Refrigerator Door Shelf Rail (replaces Wr17x12916) WR17X11889
#19

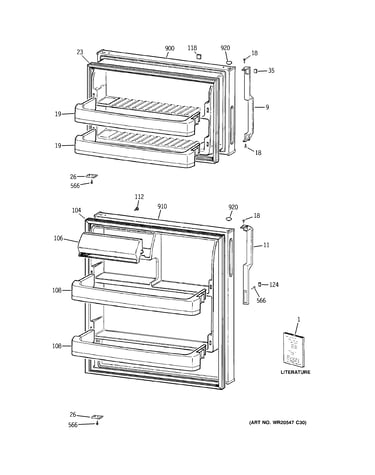

Doors diagram

Refrigerator door shelf rail (replaces wr17x12916)

Part #WR17X11889

BEST SELLER
$26.47 |
18% OFF Phone Price : $32.47
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces Wr50x10021, Wr50x10076, Wr50x22304, Wr50x30071) WR50X10071
#620

Unit parts diagram

Refrigerator defrost bi-metal thermostat (replaces wr50x10021, wr50x10076, wr50x22304, wr50x30071)

Part #WR50X10071

BEST SELLER
This item is not returnable
$17.43 |
10% OFF Phone Price : $19.43
In Stock
Refrigerator Drawer Cover (replaces Wr32x10353, Wr32x1083, Wr32x1086, Wr32x1094) WR32X10398
#242

Cabinet diagram

Refrigerator drawer cover (replaces wr32x10353, wr32x1083, wr32x1086, wr32x1094)

Part #WR32X10398

$83.52 |
7% OFF Phone Price : $89.52
In Stock
Refrigerator Temperature Control Thermostat WR09X10133
#300

Unit parts diagram

Refrigerator temperature control thermostat

Part #WR09X10133

Replaced by #WR09X20002

?
Manufacturer substitution
This part replaces WR09X10133. Substitute parts can look different from the original.
$69.88 |
8% OFF Phone Price : $75.88
In Stock
Refrigerator Freezer Door Gasket (replaces Wr24x10050, Wr24x524) WR24X10228
#23

Doors diagram

Refrigerator freezer door gasket (replaces wr24x10050, wr24x524)

Part #WR24X10228

$71.05 |
8% OFF Phone Price : $77.05
In Stock
Refrigerator Fan Blade Retainer Ring (replaces Wr02x10509, Wr02x10581) WR02X12149
#652

Unit parts diagram

Refrigerator fan blade retainer ring (replaces wr02x10509, wr02x10581)

Part #WR02X12149

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
