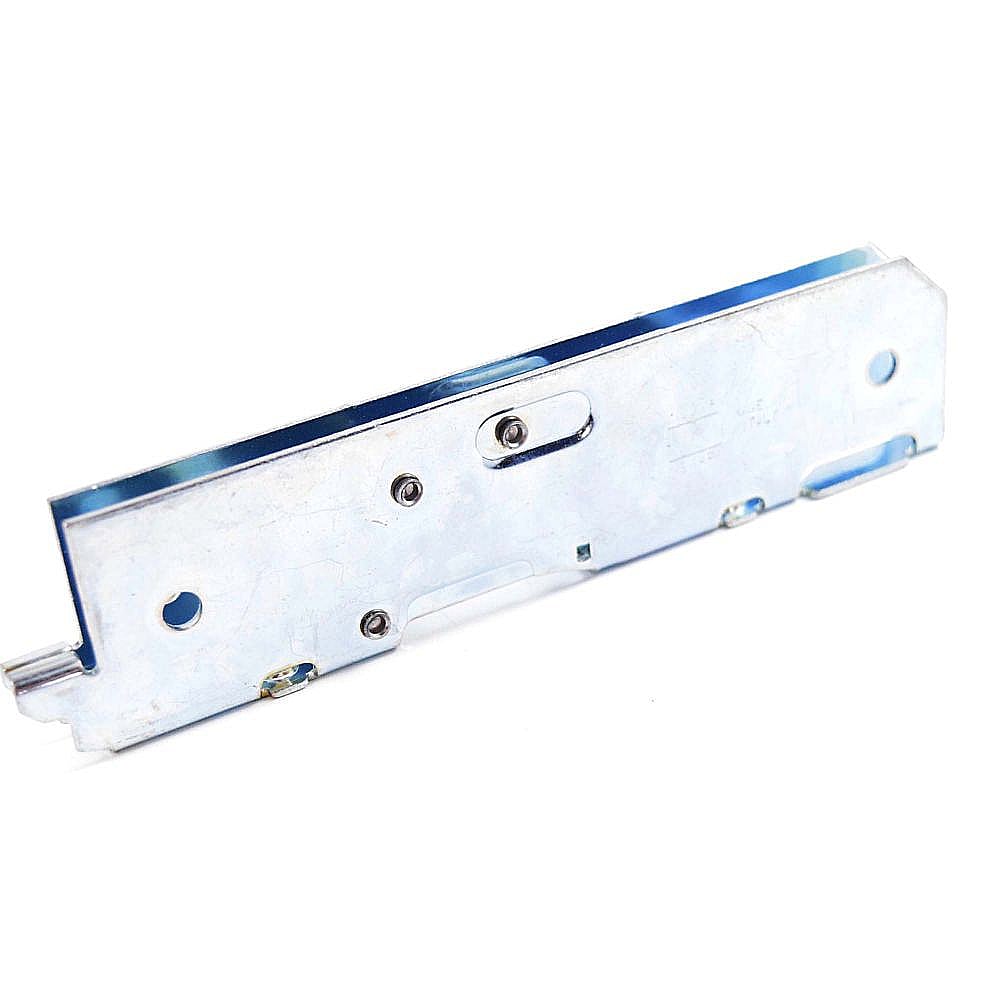

Range Oven Door Hinge Receiver WB10T10005

Range Oven Door Hinge Receiver WB10T10005

Part #WB10T10005

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

Only ground shipment is available for this item.

This part fits

Part Information

This oven door hinge receiver (part number WB10T10005) is for ranges.

Oven door hinge receiver WB10T10005 connects the oven door hinge to the oven front frame.

Unplug the range or shut off the house circuit breaker for the range before installing this part. Wear work gloves to protect your hands.

Top models using the same part

Model NameModel NumberDiagram Name
Model #91195494300 Kenmore electric range91195494300
Body parts
Shop Parts
Model #91192812300 Kenmore electric range91192812300
Body parts
Shop Parts
Model #91192812301 Kenmore electric range91192812301
-
Shop Parts
Model #JCBP35CJ1CC GE electric rangeJCBP35CJ1CC
-
Shop Parts
Model #JCBP35BJ1BB GE electric rangeJCBP35BJ1BB
-
Shop Parts
Model #91194491300 Kenmore electric range91194491300
Body parts
Shop Parts
Model #91194604300 Kenmore electric range91194604300
Body parts
Shop Parts
Model #91192814301 Kenmore electric range91192814301
-
Shop Parts
Model #91194494010 Kenmore electric range91194494010
Body
Shop Parts
Model #91195494301 Kenmore electric range91195494301
-
Shop Parts

Reviews

Hinge Receiver Lasted 7-1/2 Years
July 25, 2019

I installed a hinge receiver in December 2011 and just had to replace it in July 2019. To install the hinge receiver, I had to take off the side panel of the stove. The key to getting the hinge into the hinge receiver is to lock the hinges (push down on the clips on top of each hinge) which allows you to take the oven door off by lifting it up to about 3/4 of the way closed. I needed 1/4" socket or wrench and a star bit to take out 7 screws.

mda63, Connecticut

1 person thought this review was helpful.

Ease of Installation
Moderate
Duration of Installation
30 minutes - 1 hour
