Jenn-Air
Electric Wall Oven

Model # WW2750B Official Jenn-Air electric wall oven

Here are the diagrams and repair parts for Official Jenn-Air WW2750B electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Screw 707347
#25A

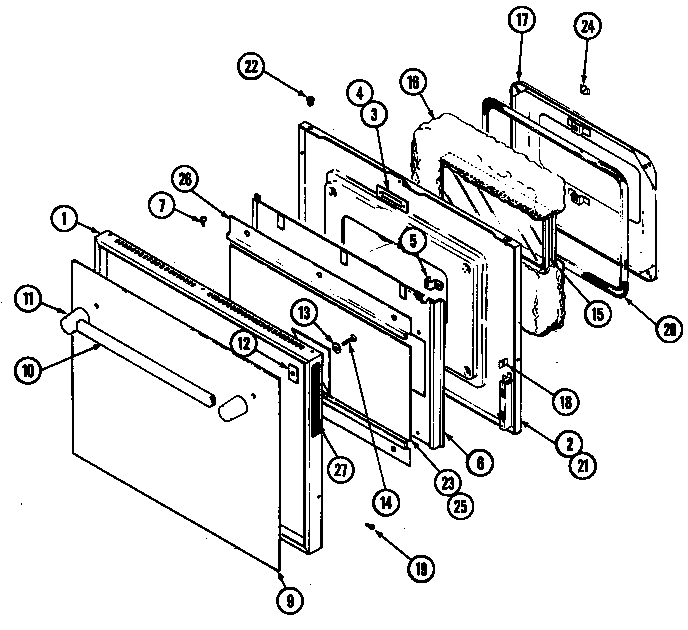

Door diagram

Screw

Part #707347

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 707347. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 708733
Screw

Part #708733

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 708733. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Cable Tie 702105
#25L

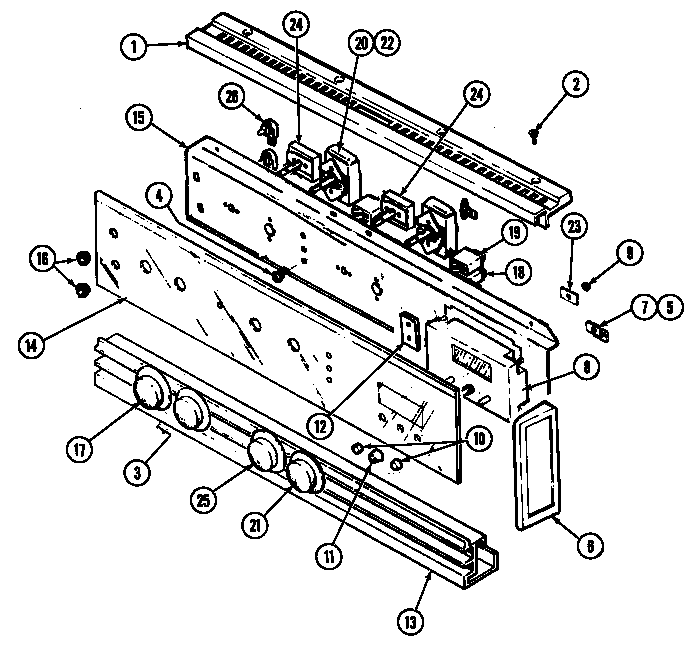

Control panel diagram

Cable tie

Part #702105

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 702105. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 708764
#20

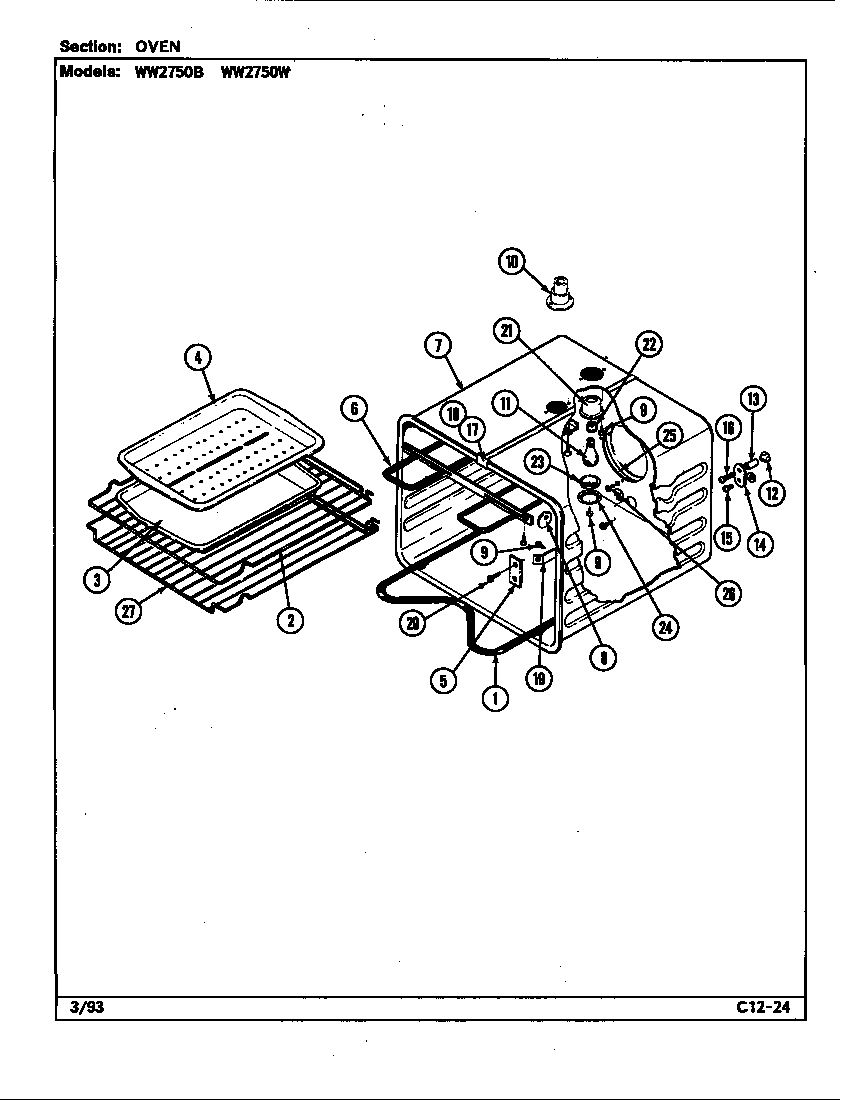

Oven diagram

Screw

Part #708764

Replaced by #WP179051

?
Manufacturer substitution
This part replaces 708764. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 701664
#13

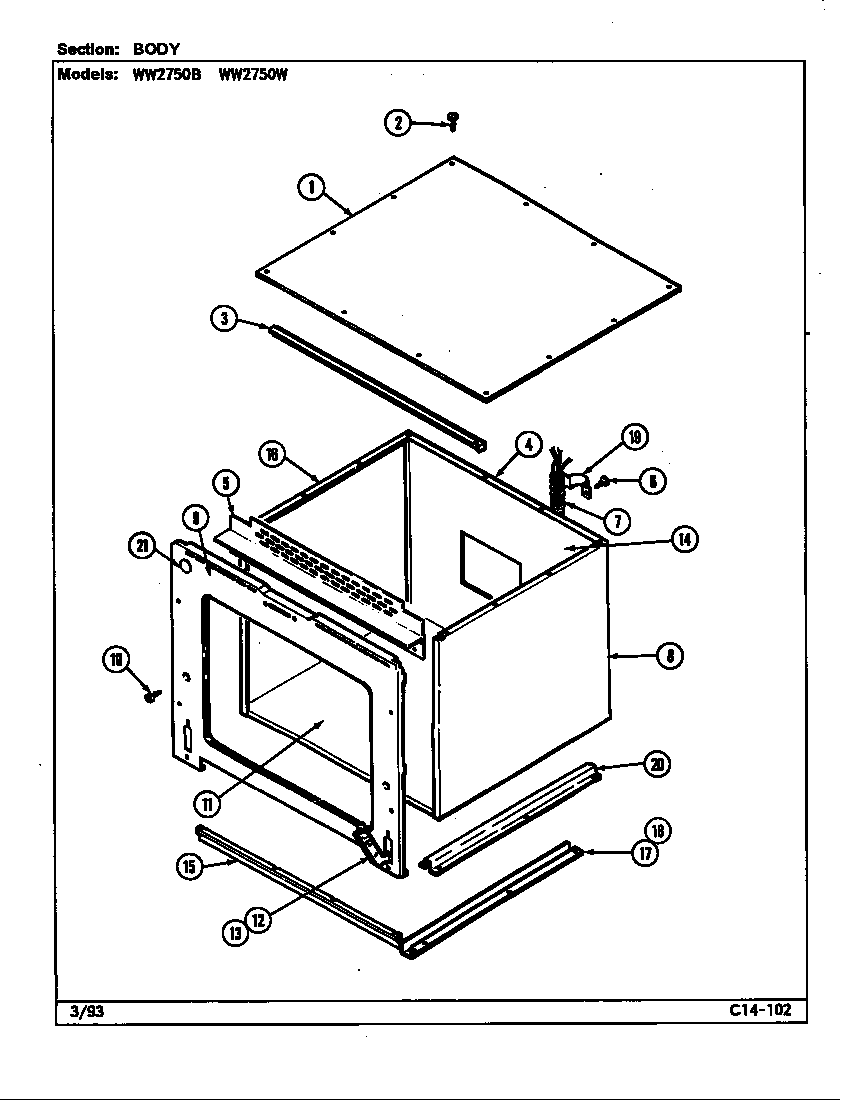

Body diagram

Screw

Part #701664

Replaced by #WP3196183

?
Manufacturer substitution
This part replaces 701664. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Broiler Element 704667
#6

Oven diagram

Broiler element

Part #704667

Replaced by #WPY04100514

?
Manufacturer substitution
This part replaces 704667. Substitute parts can look different from the original.
$74.59 |
7% OFF Phone Price : $80.59
In Stock
Clock Knob 704485
#11A

Control panel diagram

Clock knob

Part #704485

Replaced by #WP7711P492-60

?
Manufacturer substitution
This part replaces 704485. Substitute parts can look different from the original.
This item is not returnable
$13.20 |
13% OFF Phone Price : $15.20
In Stock
Washer 702592
Washer

Part #702592

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 702592. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Rivet 701662
Rivet

Part #701662

Replaced by #WP210720

?
Manufacturer substitution
This part replaces 701662. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Clock Knob 704239
#10

Control panel diagram

Clock knob

Part #704239

Replaced by #WP7711P492-60

?
Manufacturer substitution
This part replaces 704239. Substitute parts can look different from the original.
This item is not returnable
$13.20 |
13% OFF Phone Price : $15.20
In Stock
