Thermador
Upright Freezer

Model # T18ID80NRP/20 Official Thermador freezer

Here are the diagrams and repair parts for Official Thermador T18ID80NRP-20 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

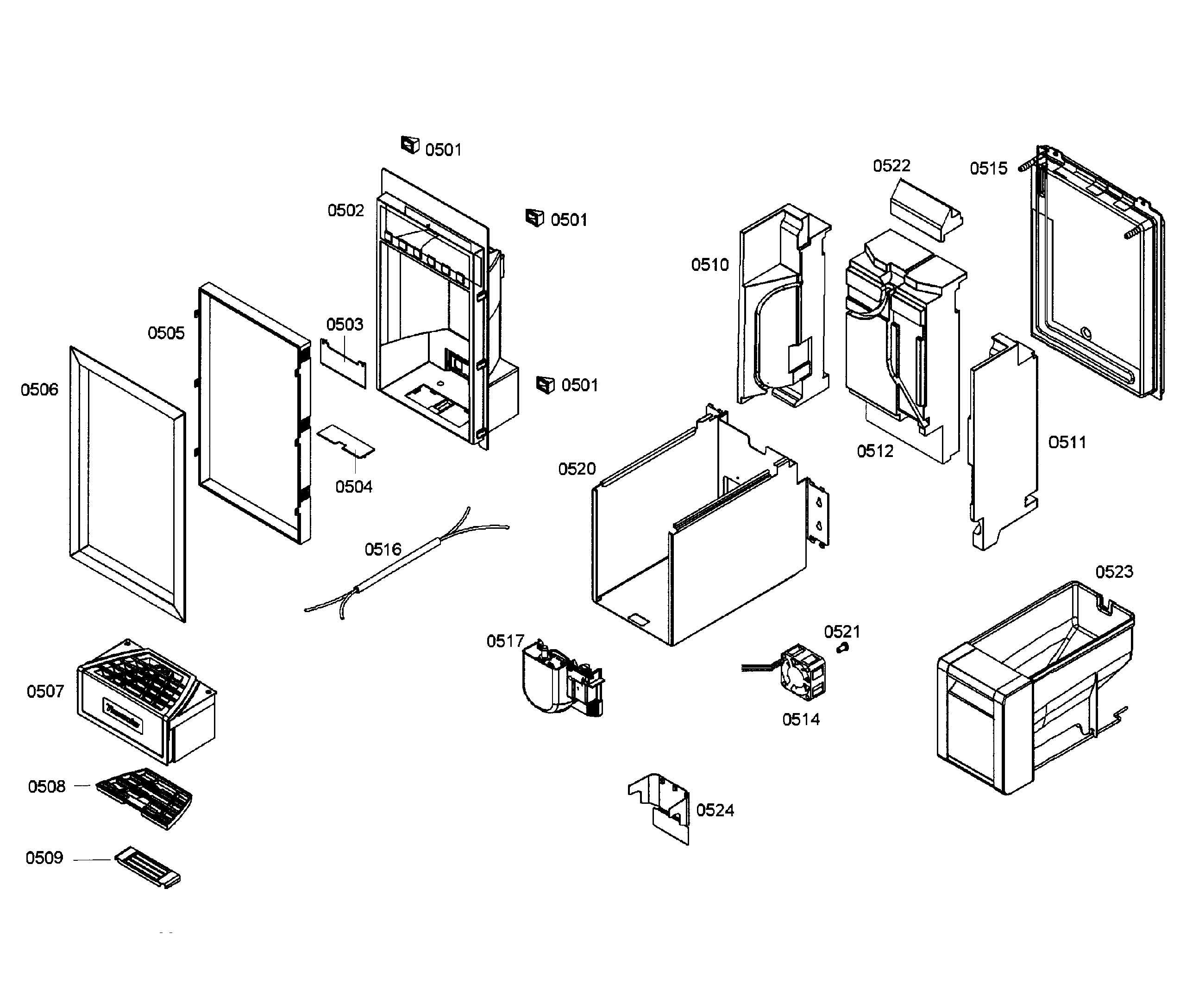

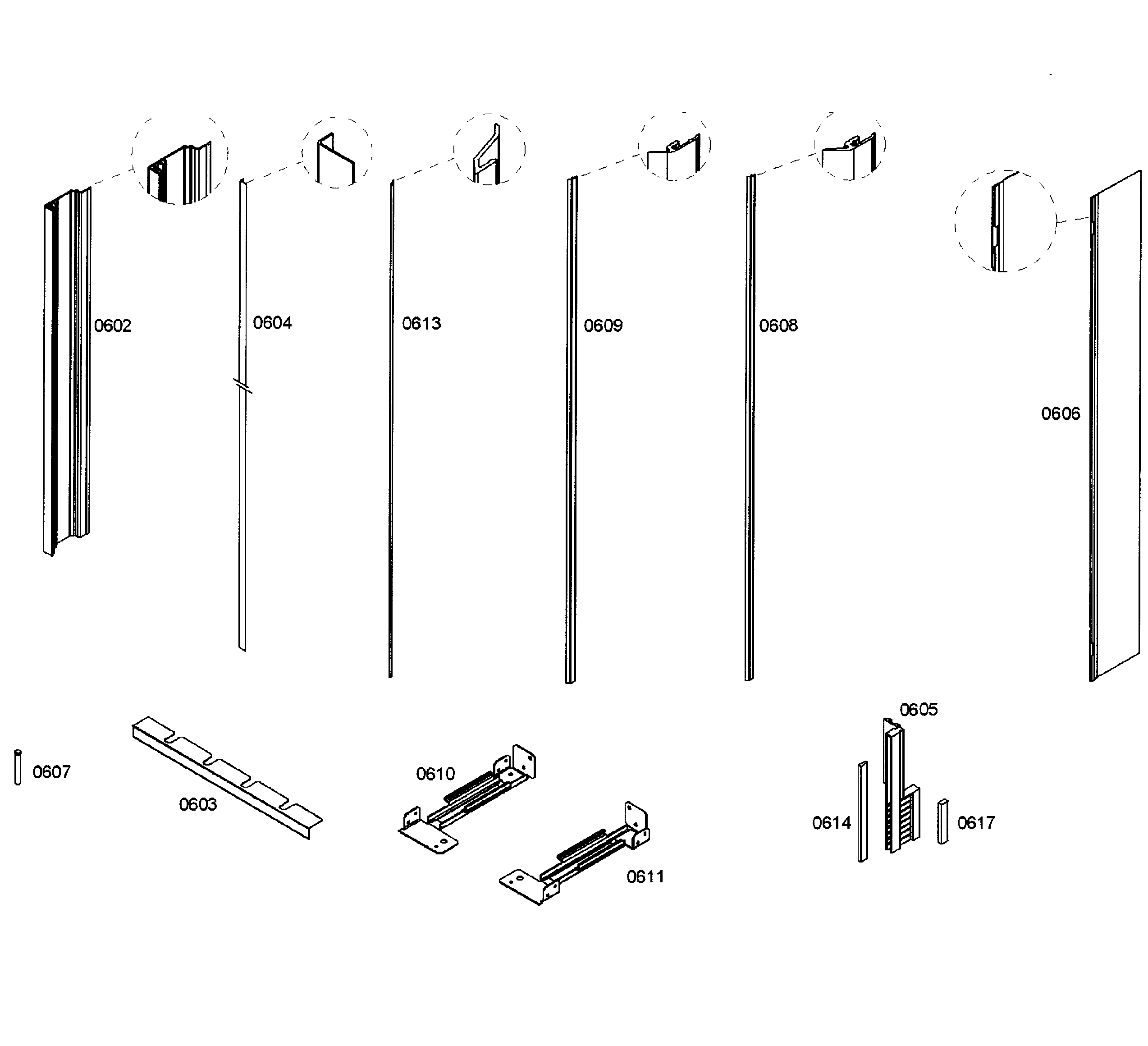

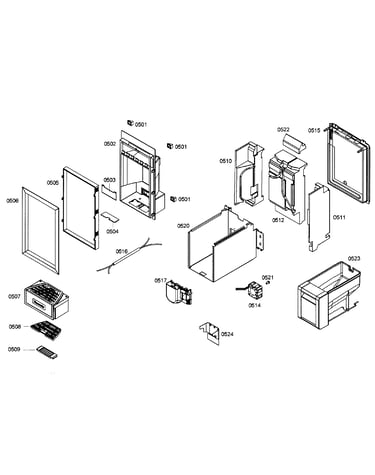

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Clip 603971
#313

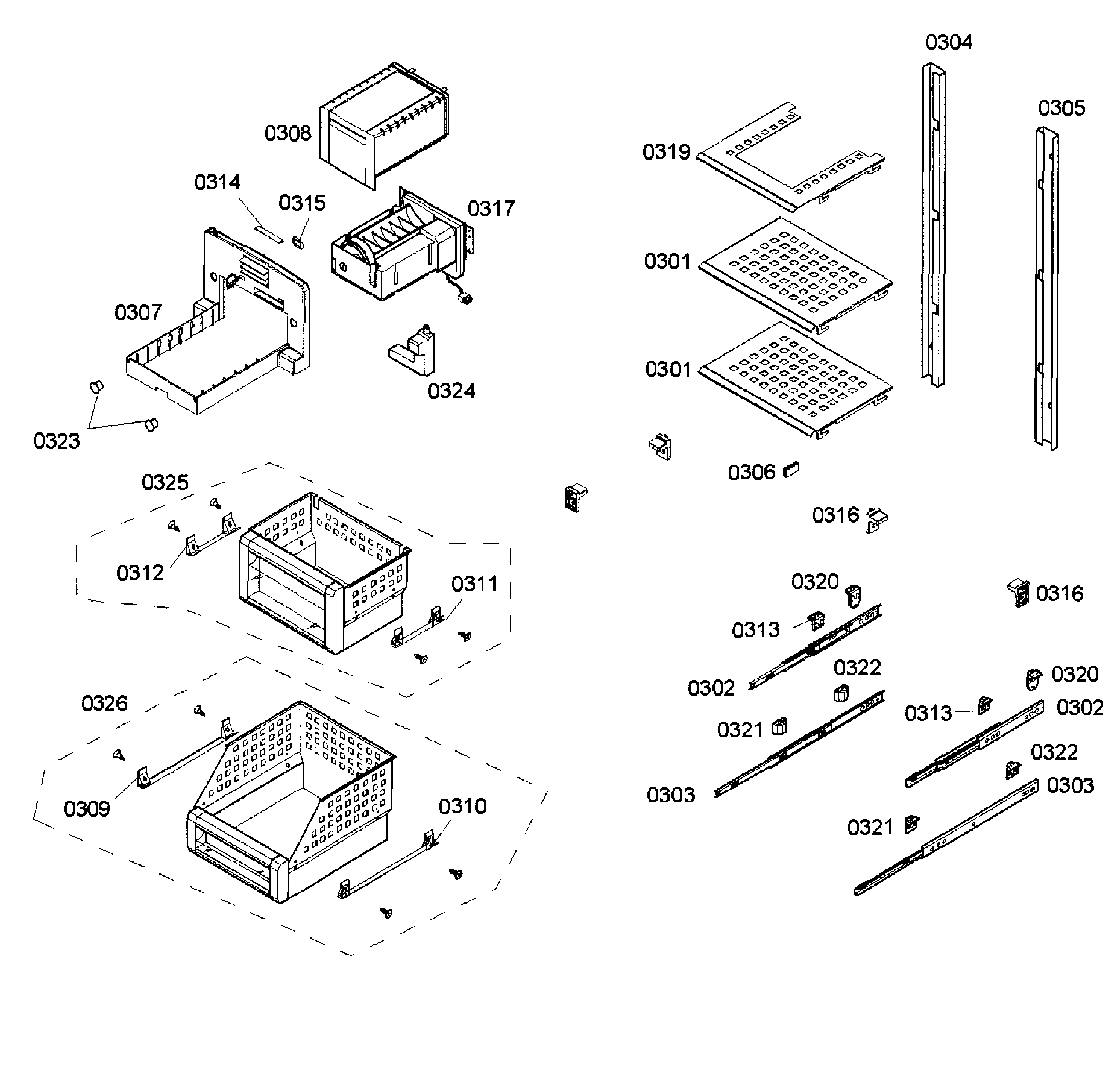

Shelfs diagram

Clip

Part #603971

Replaced by #00623319

?
Manufacturer substitution
This part replaces 603971. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Relay 609254
#451

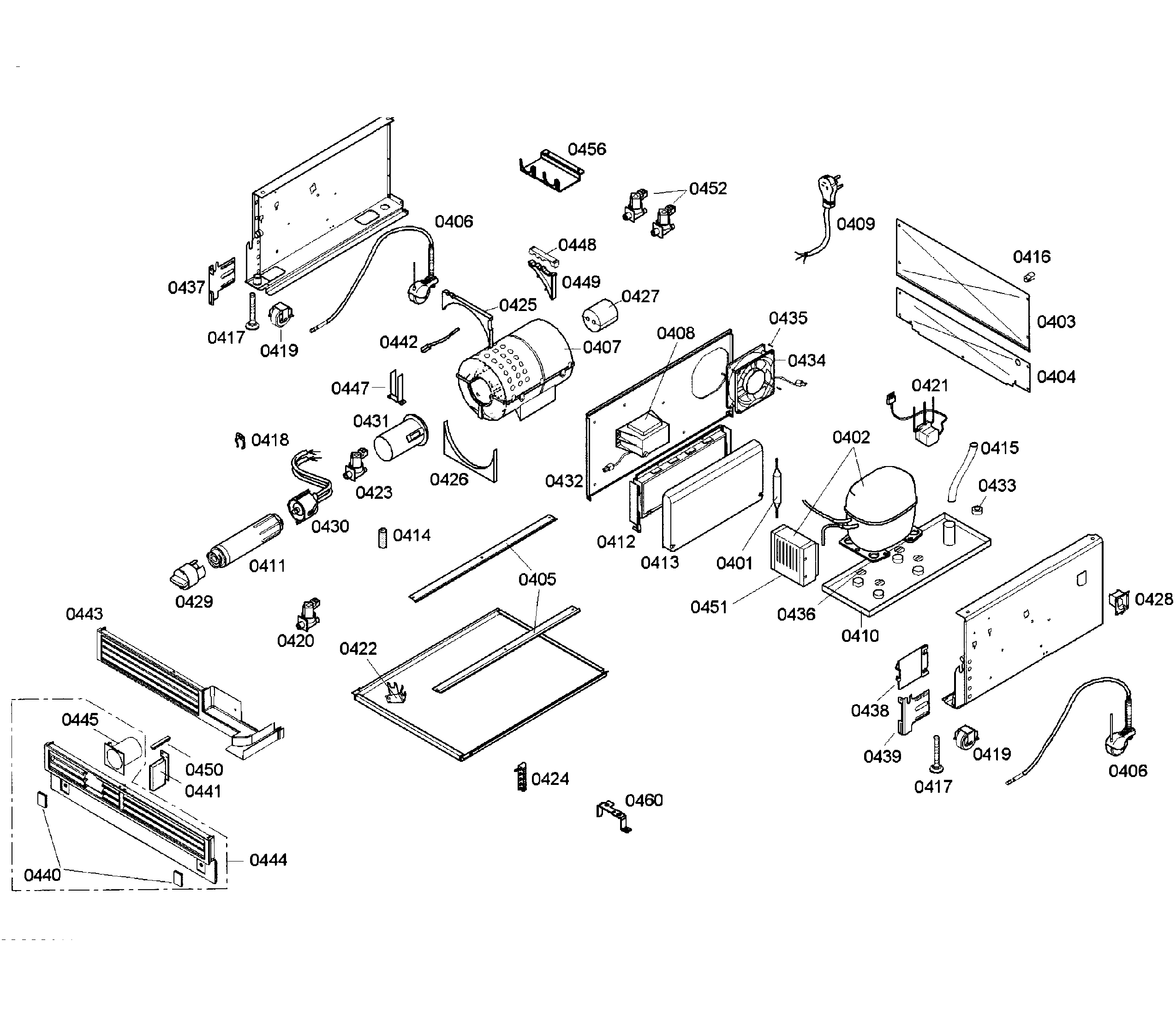

Compressor diagram

Relay

Part #609254

Replaced by #00654622

?
Manufacturer substitution
This part replaces 609254. Substitute parts can look different from the original.
$185.05
In Stock
Fan 605322
#434

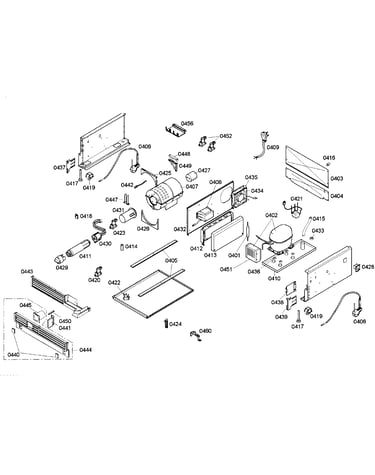

Compressor diagram

Fan

Part #605322

Replaced by #00652338

?
Manufacturer substitution
This part replaces 605322. Substitute parts can look different from the original.
$97.79 |
11% OFF Phone Price : $109.79
In Stock
Door Seal 246852
#214

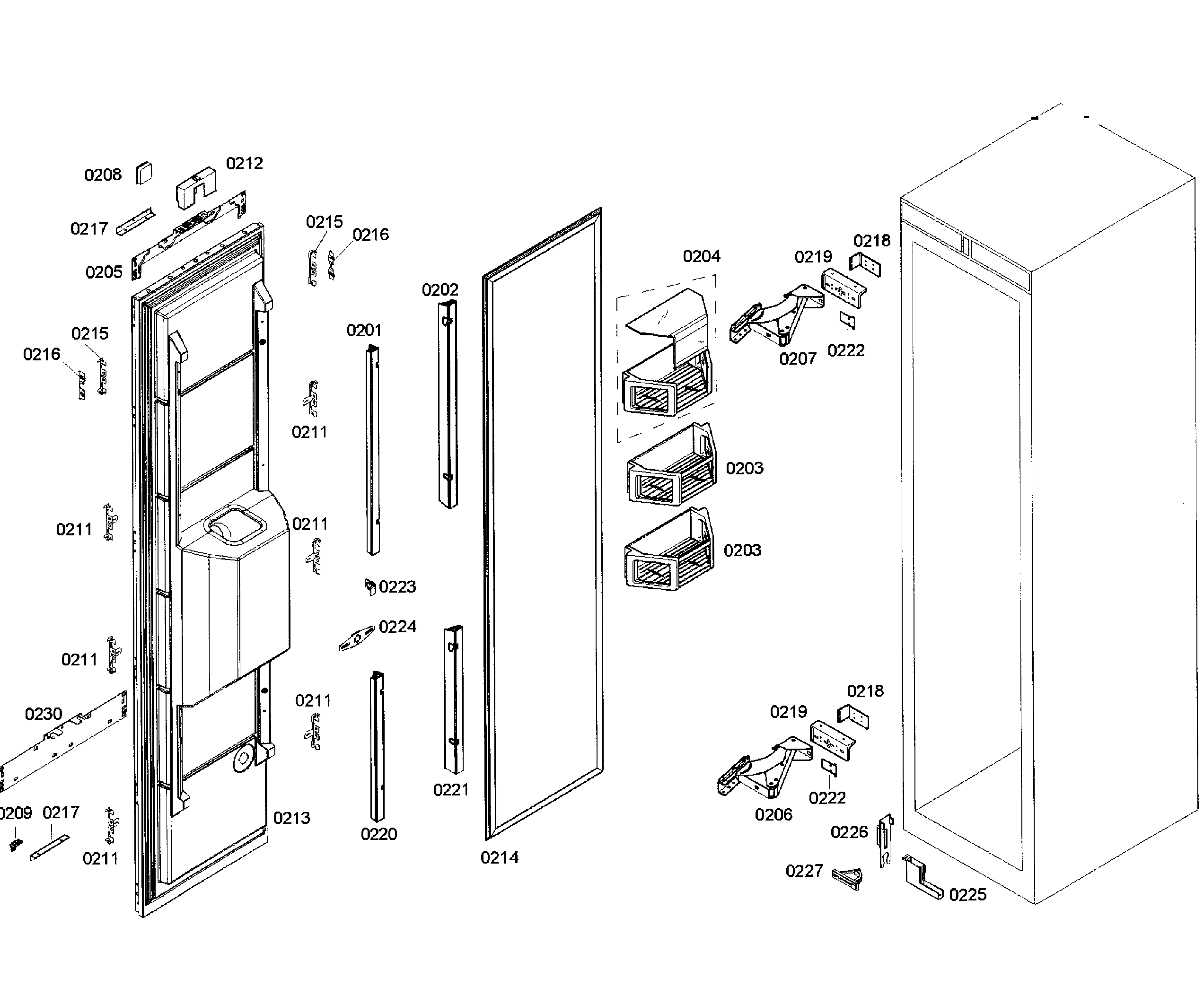

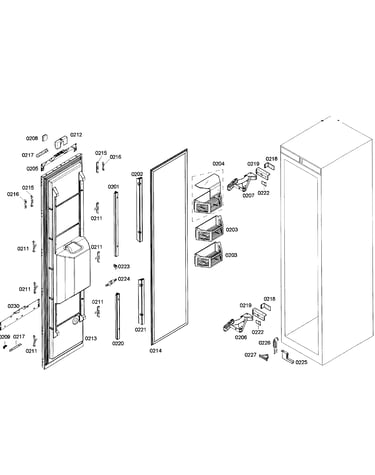

Door assy diagram

Door seal

Part #246852

Replaced by #00716383

?
Manufacturer substitution
This part replaces 246852. Substitute parts can look different from the original.
$131.79 |
8% OFF Phone Price : $143.79
In Stock
Operating 667838
#104

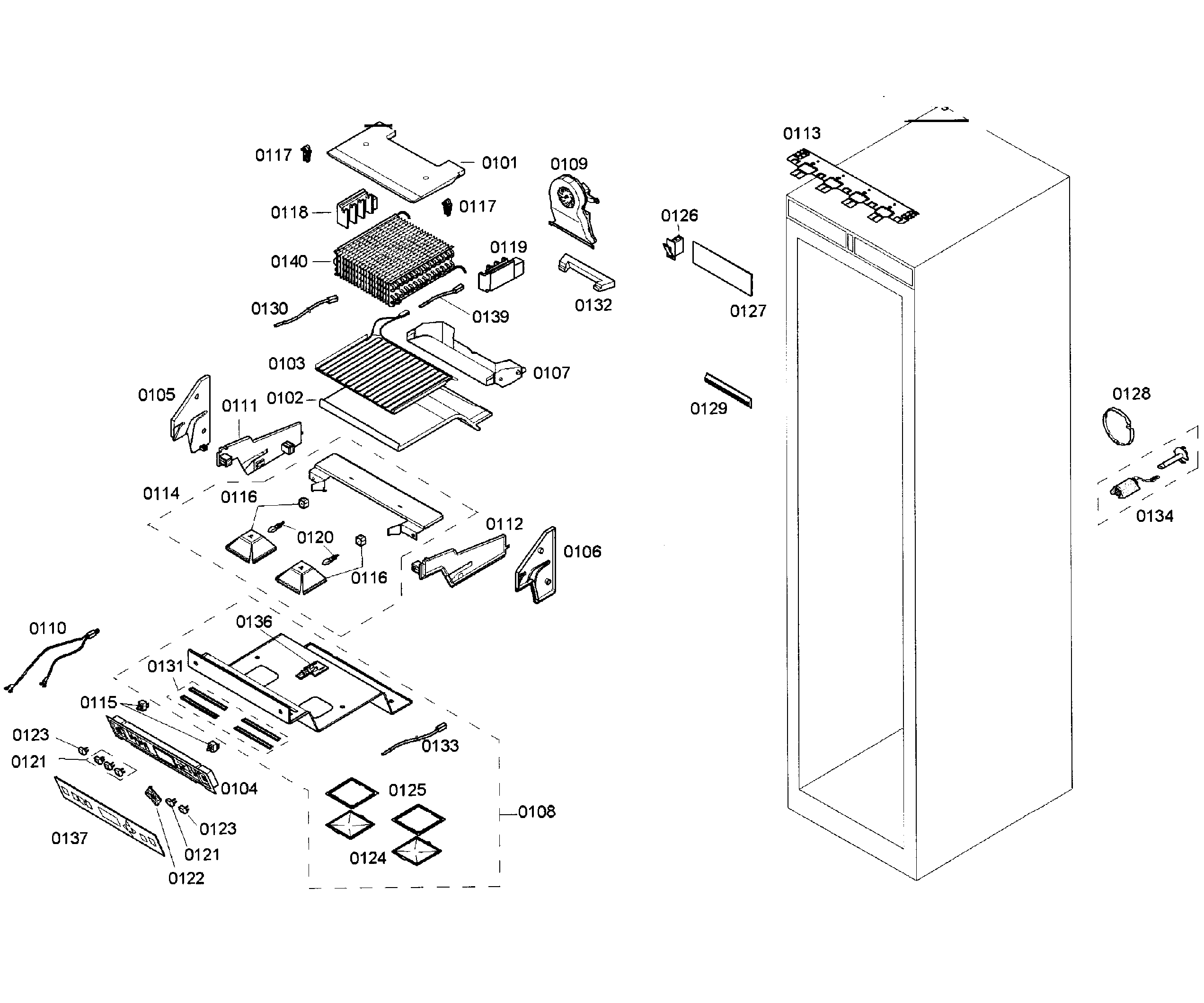

Cabinet parts diagram

Operating

Part #667838

Replaced by #11041652

?
Manufacturer substitution
This part replaces 667838. Substitute parts can look different from the original.
$239.70 |
5% OFF Phone Price : $251.70
In Stock
Housing Pa 607364
#431

Compressor diagram

Housing pa

Part #607364

Replaced by #00607364

?
Manufacturer substitution
This part replaces 607364. Substitute parts can look different from the original.
This item is not returnable
$5.26
In Stock
Basket 640320
#325

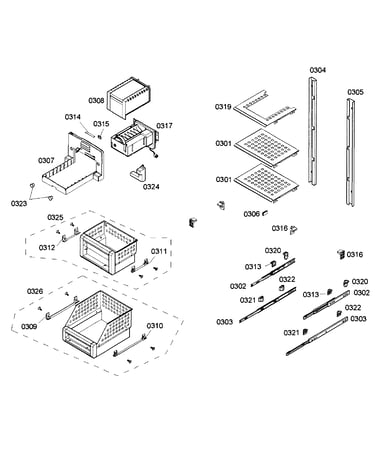

Shelfs diagram

Basket

Part #640320

Replaced by #00640320

?
Manufacturer substitution
This part replaces 640320. Substitute parts can look different from the original.
$160.44
In Stock
Fixture 605404
#437

Compressor diagram

Fixture

Part #605404

Replaced by #00605404

?
Manufacturer substitution
This part replaces 605404. Substitute parts can look different from the original.
This item is not returnable
$5.26
In Stock
Defrost Sensor 604025
#130

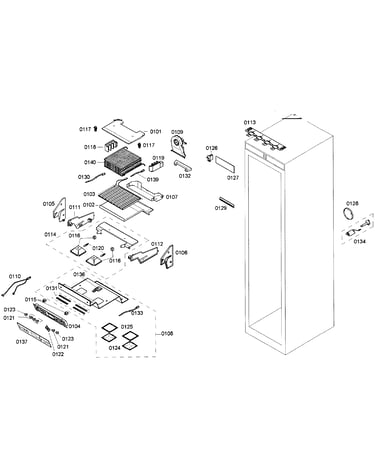

Cabinet parts diagram

Defrost sensor

Part #604025

Replaced by #00617203

?
Manufacturer substitution
This part replaces 604025. Substitute parts can look different from the original.
This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Rail, Left 499958
#309

Shelfs diagram

Rail, left

Part #499958

Replaced by #00499958

?
Manufacturer substitution
This part replaces 499958. Substitute parts can look different from the original.
$7.83
In Stock
