Model # FWT647GHS0 Official Frigidaire washer

Here are the diagrams and repair parts for Official Frigidaire FWT647GHS0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

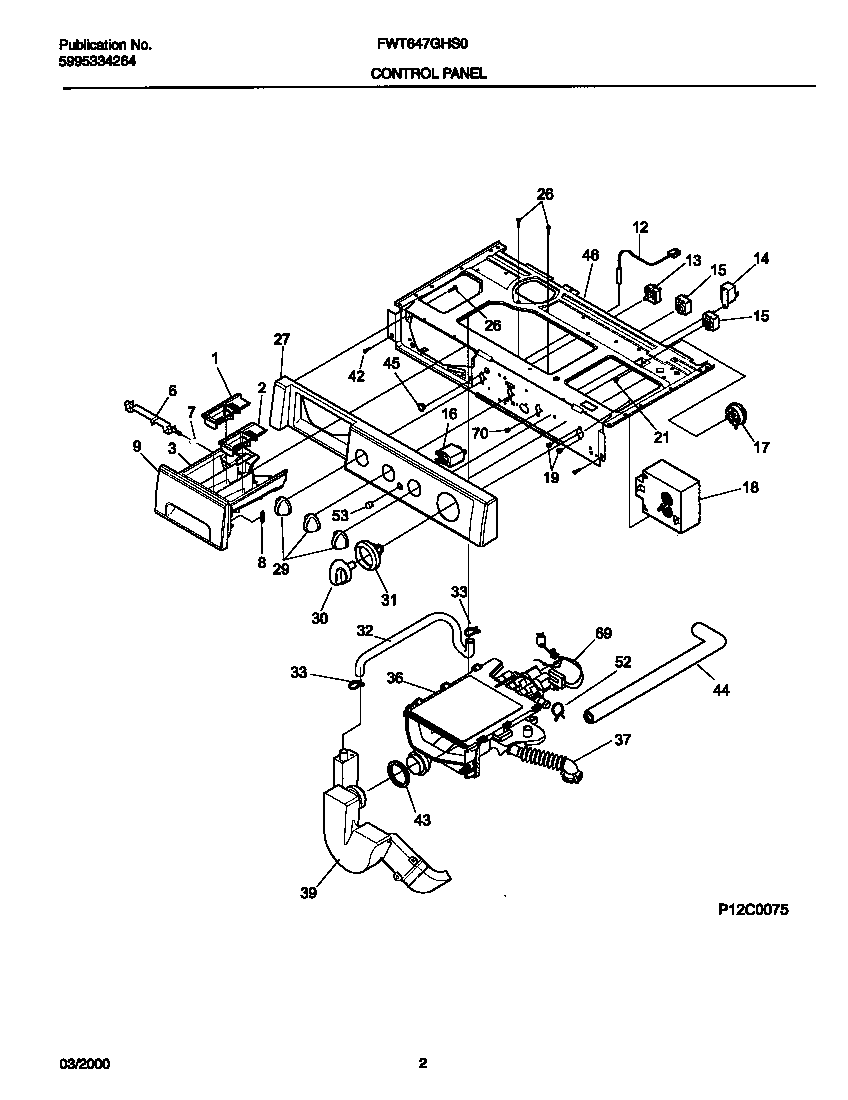

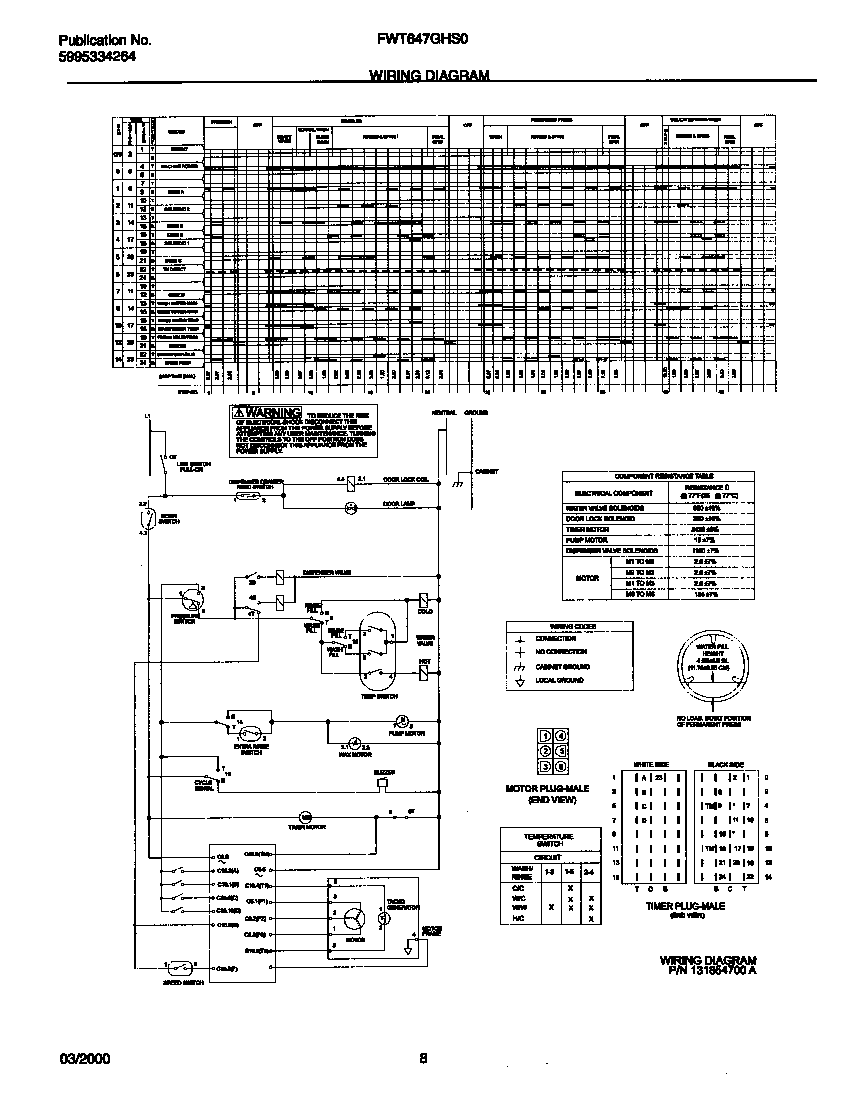

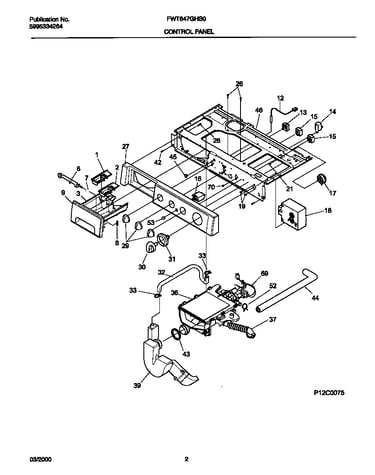

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Door Catch 131763200
#8

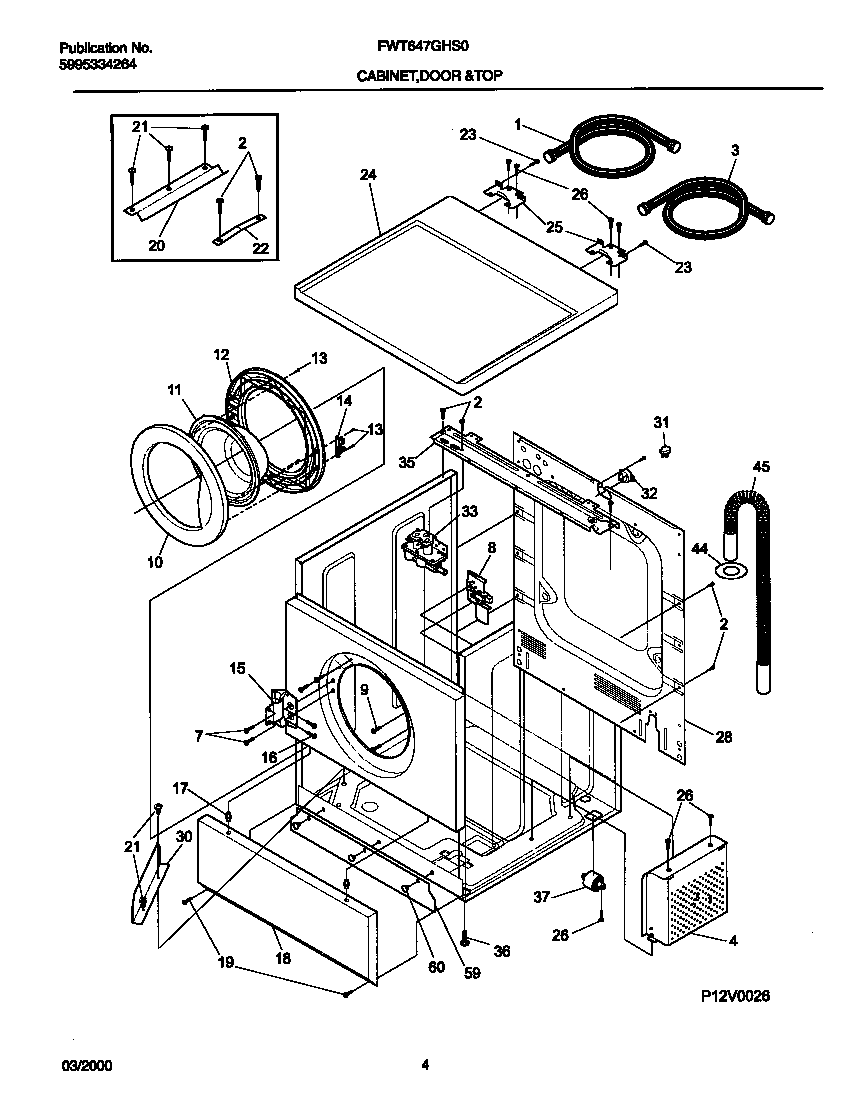

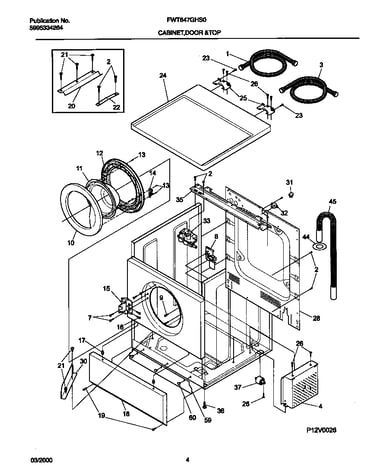

P12v0026 wshr cab,door diagram

Door catch

Part #131763200

Replaced by #131763256

?
Manufacturer substitution
This part replaces 131763200. Substitute parts can look different from the original.
BEST SELLER
$110.66 |
10% OFF Phone Price : $122.66
In Stock
Door Strike 131763300
#14

P12v0026 wshr cab,door diagram

Door strike

Part #131763300

Replaced by #131763310

?
Manufacturer substitution
This part replaces 131763300. Substitute parts can look different from the original.
BEST SELLER
$15.23 |
12% OFF Phone Price : $17.23
In Stock
Level Shock 131268200
#30

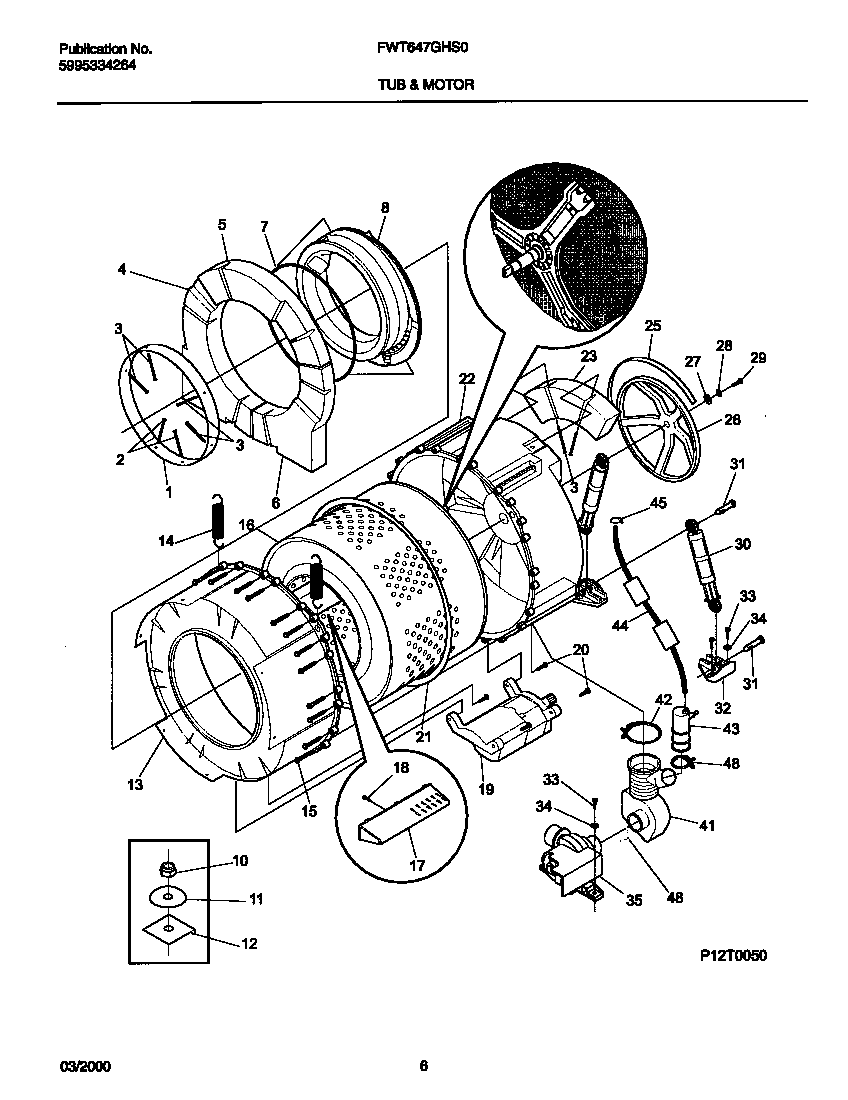

P12t0050 wshr tub,motor diagram

Level shock

Part #131268200

Replaced by #5304485917

?
Manufacturer substitution
This part replaces 131268200. Substitute parts can look different from the original.
BEST SELLER
$49.77 |
11% OFF Phone Price : $55.77
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Pump 131889800
#35

P12t0050 wshr tub,motor diagram

Pump

Part #131889800

The manufacturer no longer makes this part, and there's no substitute part

Bearing Shell 131462800
#22

P12t0050 wshr tub,motor diagram

Bearing shell

Part #131462800

Replaced by #131525500

?
Manufacturer substitution
This part replaces 131462800. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$501.90 |
$12.00 OFF Phone Price : $513.90
In Stock
Washer Shock Absorber Mounting Pin (replaces 7131268300) 131268300
#31

P12t0050 wshr tub,motor diagram

Washer shock absorber mounting pin (replaces 7131268300)

Part #131268300

BEST SELLER
$17.99 |
10% OFF Phone Price : $19.99
In Stock
Electrolux Washer Spin Basket (replaces 131274700) 131618500
#16

P12t0050 wshr tub,motor diagram

Electrolux washer spin basket (replaces 131274700)

Part #131618500

This item is not returnable
$578.89 |
$12.00 OFF Phone Price : $590.89
In Stock
Bellows 131277100
#8

P12t0050 wshr tub,motor diagram

Bellows

Part #131277100

Replaced by #5303937187

?
Manufacturer substitution
This part replaces 131277100. Substitute parts can look different from the original.
$114.62 |
9% OFF Phone Price : $126.62
In Stock
Belt-inner T 131276300
#25

P12t0050 wshr tub,motor diagram

Belt-inner t

Part #131276300

Replaced by #134051000

?
Manufacturer substitution
This part replaces 131276300. Substitute parts can look different from the original.
This item is not returnable
$23.23 |
21% OFF Phone Price : $29.23
In Stock
