KitchenAid
Stand Mixer

Model # KSM55SXTXIC0 Official KitchenAid stand mixer

Here are the diagrams and repair parts for Official KitchenAid KSM55SXTXIC0 stand mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Clip W10504114
#5

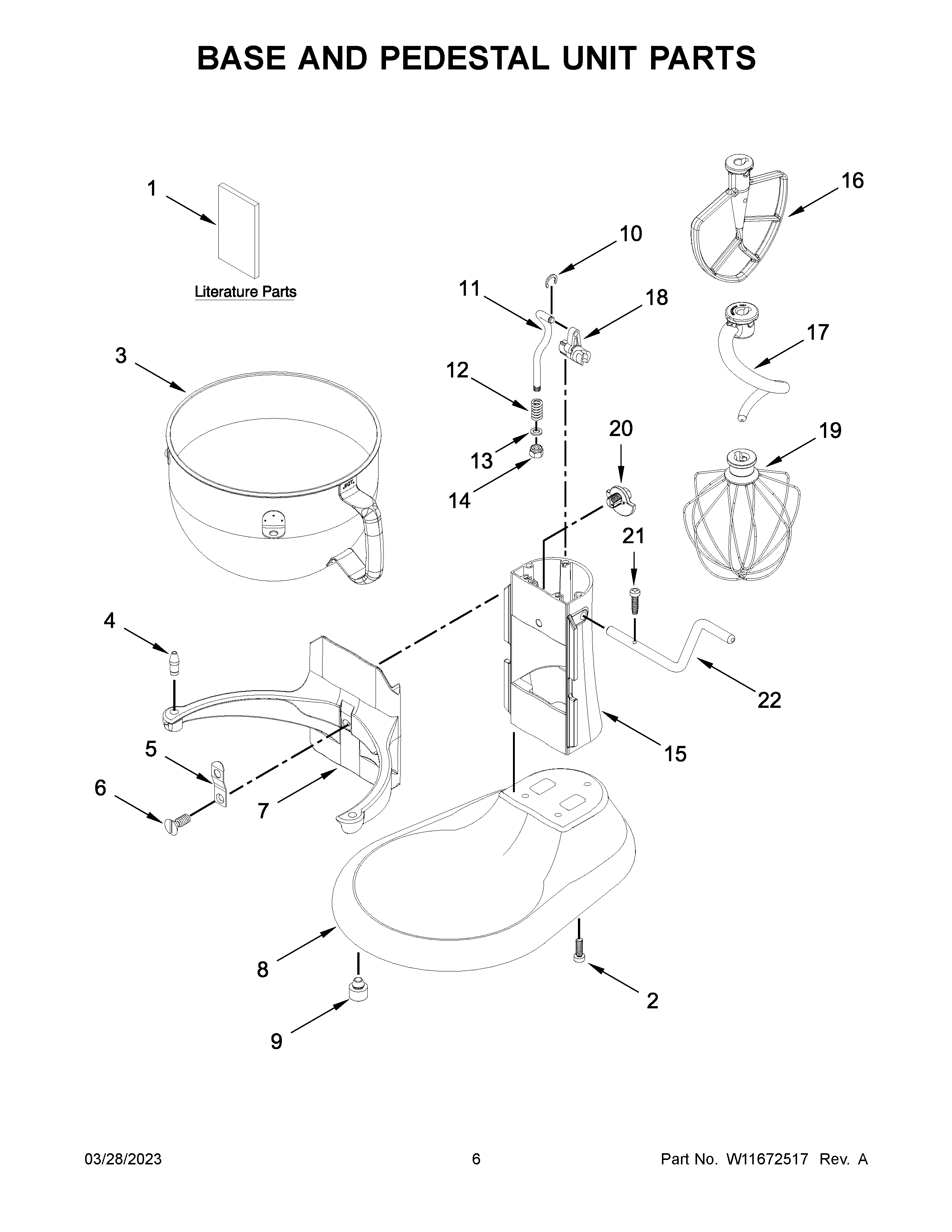

Base and pedestal unit parts diagram

Clip

Part #W10504114

Replaced by #WPW10504114

?
Manufacturer substitution
This part replaces W10504114. Substitute parts can look different from the original.
This item is not returnable
$3.79
In Stock
Retaining Ring 9703680
#19

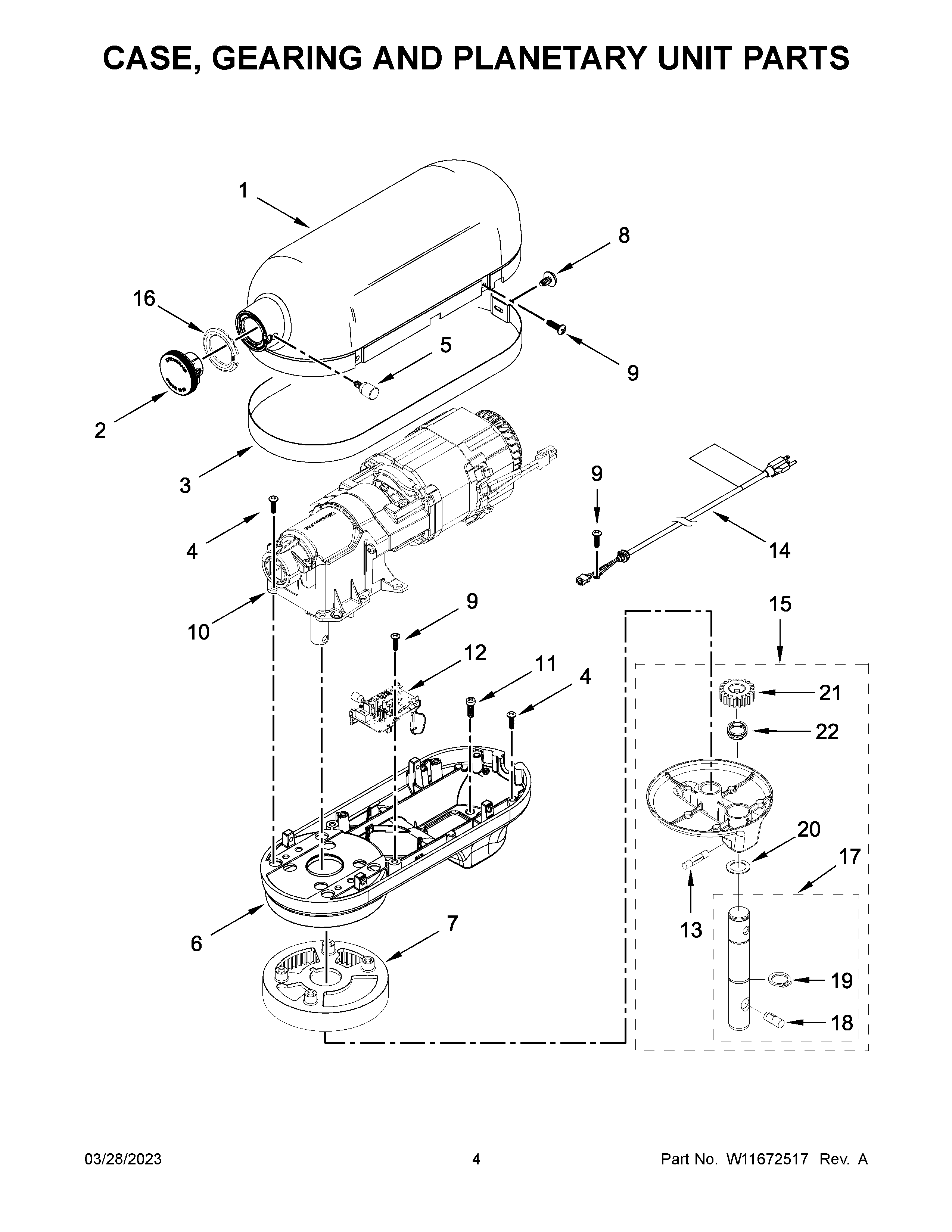

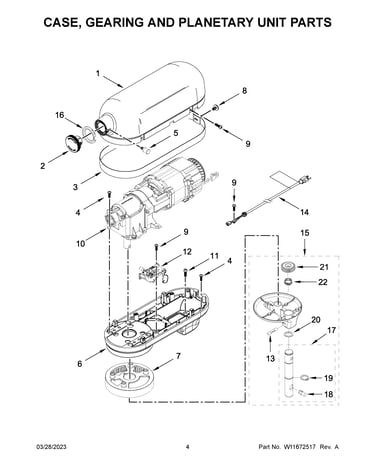

Case, gearing and planetary unit parts diagram

Retaining ring

Part #9703680

Replaced by #WP9703680

?
Manufacturer substitution
This part replaces 9703680. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Beater W10672616
#16

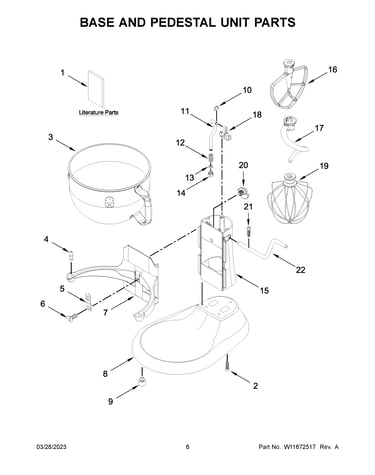

Base and pedestal unit parts diagram

Beater

Part #W10672616

Replaced by #WPW10672616

?
Manufacturer substitution
This part replaces W10672616. Substitute parts can look different from the original.
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Wire Whip 9703491
#19

Base and pedestal unit parts diagram

Wire whip

Part #9703491

Replaced by #WP9703491

?
Manufacturer substitution
This part replaces 9703491. Substitute parts can look different from the original.
$25.56 |
19% OFF Phone Price : $31.56
In Stock
Kitchenaid Planetary (ice) W11527656
#4

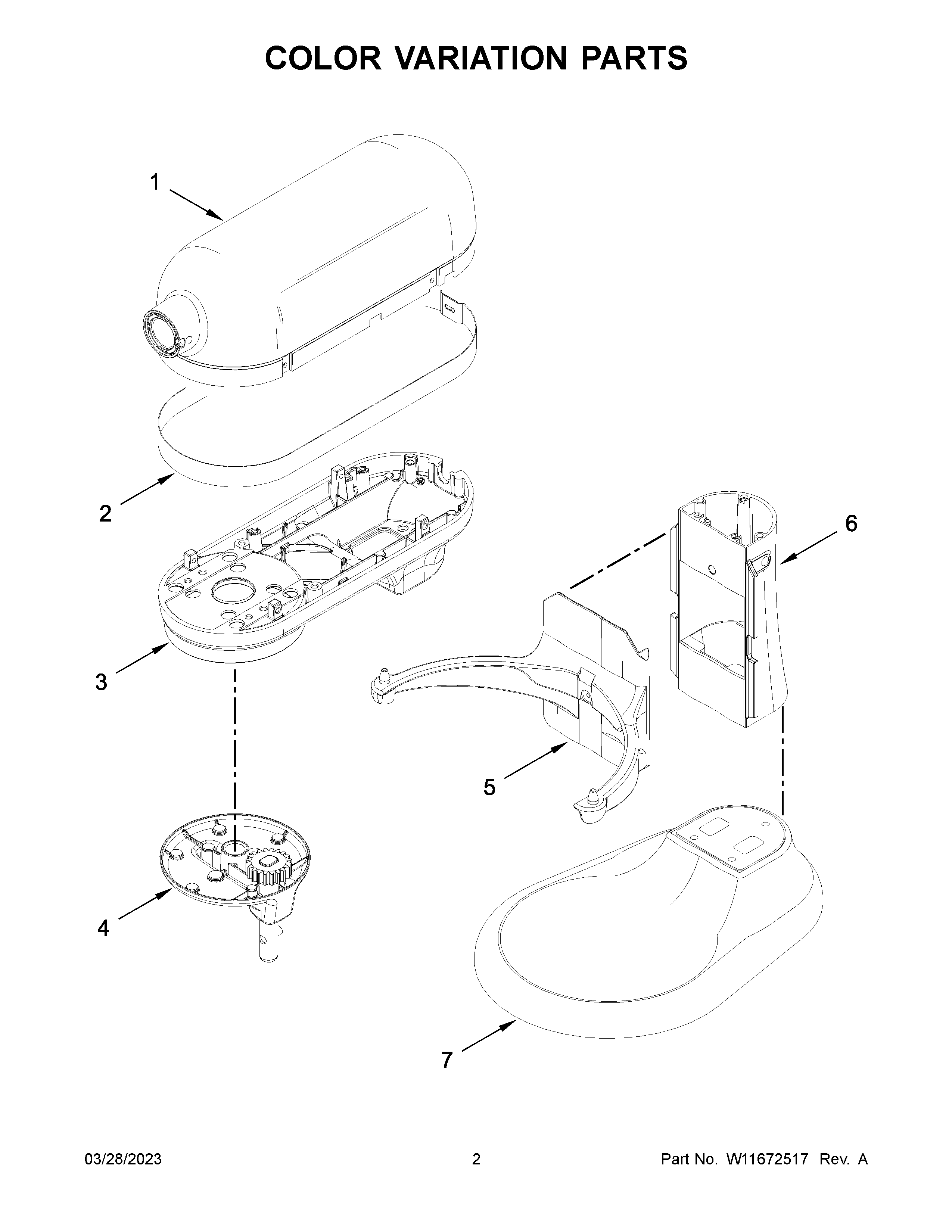

Color variation parts diagram

Kitchenaid planetary (ice)

Part #W11527656

$64.18
In Stock
Bowl Support & Pins (ice) W11234531
#5

Color variation parts diagram

Bowl support & pins (ice)

Part #W11234531

$83.25
In Stock
Base Assembly W10726441
#7

Color variation parts diagram

Base assembly

Part #W10726441

$80.85
In Stock
Column W10726438
#6

Color variation parts diagram

Column

Part #W10726438

$83.85
In Stock
Trim Band (bright Aluminum) W11420346
#2

Color variation parts diagram

Trim band (bright aluminum)

Part #W11420346

$38.96
In Stock
Screw 3400617
#8

Case, gearing and planetary unit parts diagram

Screw

Part #3400617

This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
