Model # KGYS850JQ0 Official KitchenAid gas dryer

Here are the diagrams and repair parts for Official KitchenAid KGYS850JQ0 gas dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forKGYS850JQ0 Gas Dryer

  • Dryer Drum Belt 8066065
    #56

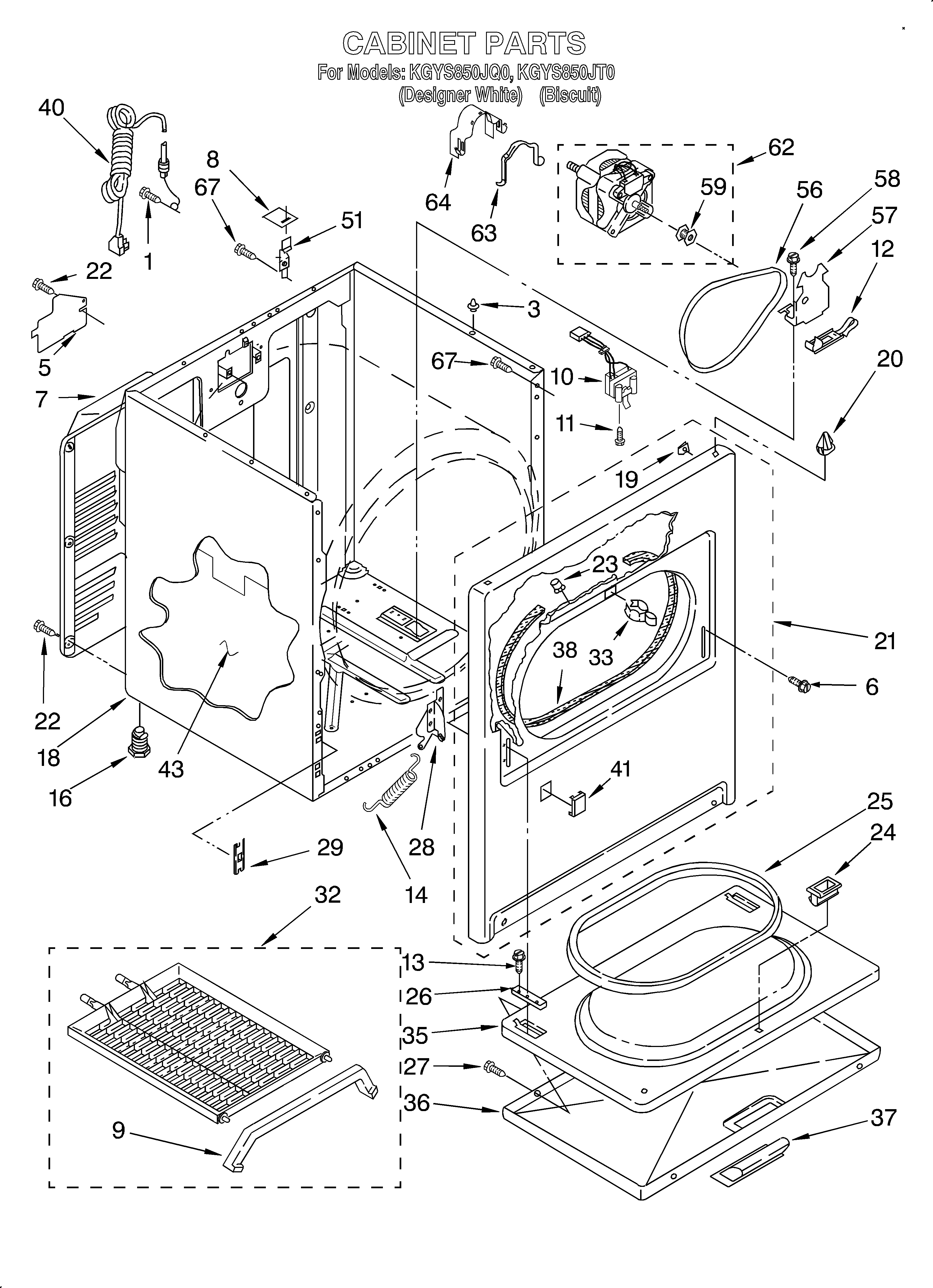

    Cabinet diagram

    Dryer drum belt

    Part #8066065

    Replaced by #341241

    ?
    Manufacturer substitution
    This part replaces 8066065. Substitute parts can look different from the original.
    BEST SELLER
    $9.39
    10% OFF Phone Price : $10.39
    In Stock
  • Dryer Valve Coil Kit 694540
    #13

    3402844 burner assembly diagram

    Dryer valve coil kit

    Part #694540

    Replaced by #279834

    ?
    Manufacturer substitution
    This part replaces 694540. Substitute parts can look different from the original.
    BEST SELLER
    $23.77
    20% OFF Phone Price : $29.77
    In Stock
  • Dryer Gas Valve Coil Kit 694539
    #14

    3402844 burner assembly diagram

    Dryer gas valve coil kit

    Part #694539

    Replaced by #279834

    ?
    Manufacturer substitution
    This part replaces 694539. Substitute parts can look different from the original.
    BEST SELLER
    $23.77
    20% OFF Phone Price : $29.77
    In Stock
  • Motor 3976707
    #62

    Cabinet diagram

    Motor

    Part #3976707

    Replaced by #279827

    ?
    Manufacturer substitution
    This part replaces 3976707. Substitute parts can look different from the original.
    BEST SELLER
    $83.61
    7% OFF Phone Price : $89.61
    In Stock
  • Dryer Operating Thermostat 3387134
    #7

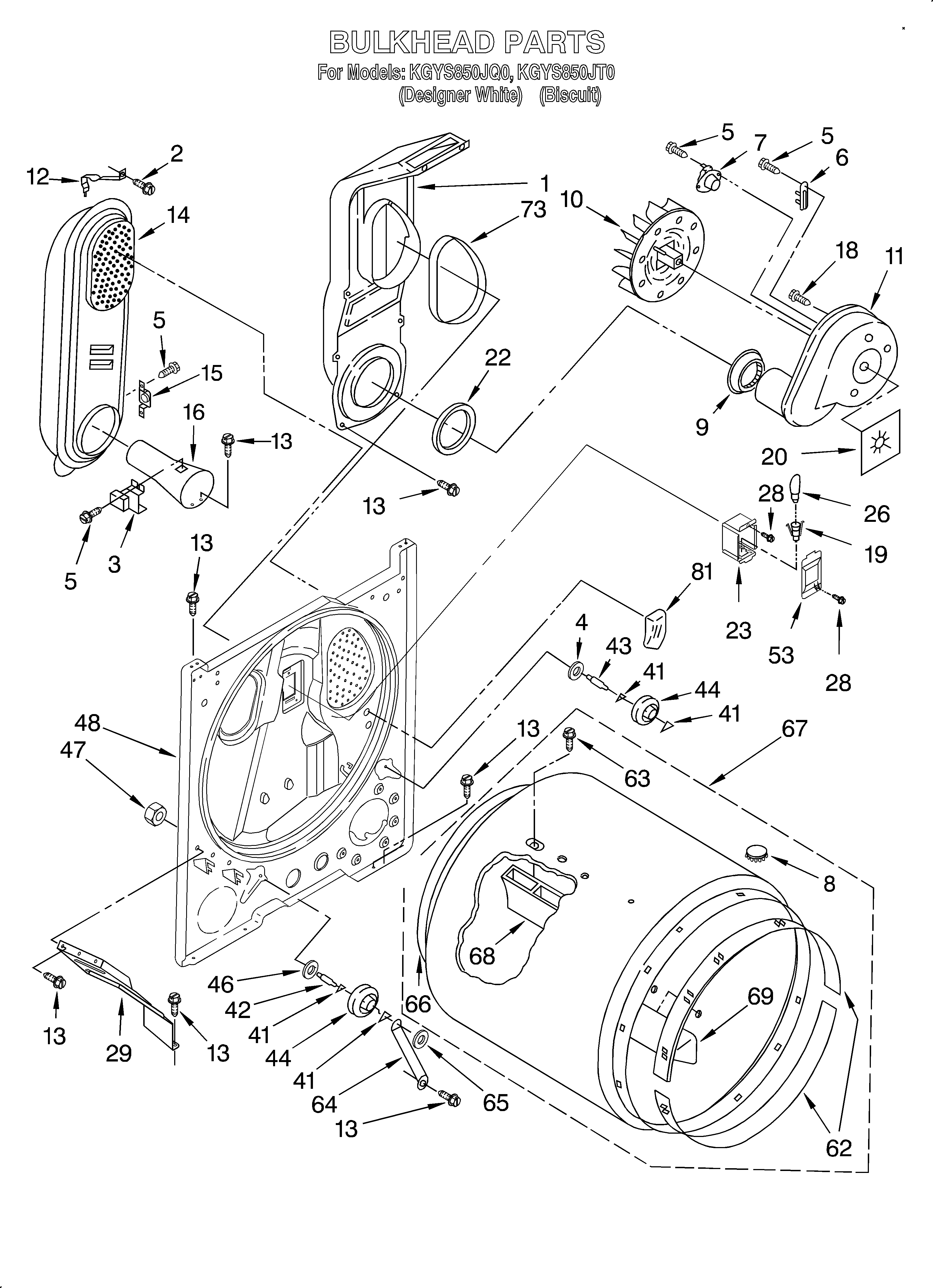

    Bulkhead diagram

    Dryer operating thermostat

    Part #3387134

    Replaced by #WP3387134

    ?
    Manufacturer substitution
    This part replaces 3387134. Substitute parts can look different from the original.
    BEST SELLER
    $17.44
    10% OFF Phone Price : $19.44
    In Stock
  • Igniter 686590
    #4

    3402844 burner assembly diagram

    Igniter

    Part #686590

    Replaced by #279311

    ?
    Manufacturer substitution
    This part replaces 686590. Substitute parts can look different from the original.
    BEST SELLER
    $25.73
    19% OFF Phone Price : $31.73
    In Stock
  • Dryer Blower Wheel 694089
    #10

    Bulkhead diagram

    Dryer blower wheel

    Part #694089

    Replaced by #WP694089

    ?
    Manufacturer substitution
    This part replaces 694089. Substitute parts can look different from the original.
    BEST SELLER
    $24.31
    20% OFF Phone Price : $30.31
    In Stock
  • Strike 696144
    #33

    Cabinet diagram

    Strike

    Part #696144

    Replaced by #279570

    ?
    Manufacturer substitution
    This part replaces 696144. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.08
    20% OFF Phone Price : $5.08
    In Stock
  • Dryer High-limit Thermostat 3403140
    #15

    Bulkhead diagram

    Dryer high-limit thermostat

    Part #3403140

    Replaced by #W11050897

    ?
    Manufacturer substitution
    This part replaces 3403140. Substitute parts can look different from the original.
    BEST SELLER
    $13.82
    13% OFF Phone Price : $15.82
    In Stock
  • Seal 3406130
    #66

    Bulkhead diagram

    Seal

    Part #3406130

    Replaced by #W10612022

    ?
    Manufacturer substitution
    This part replaces 3406130. Substitute parts can look different from the original.
    BEST SELLER
    $39.30
    13% OFF Phone Price : $45.30
    In Stock
