Model # 32-0007-00-02 Official Tappan gas range - lt32490130

Here are the diagrams and repair parts for Official Tappan 32-0007-00-02 gas range - lt32490130, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

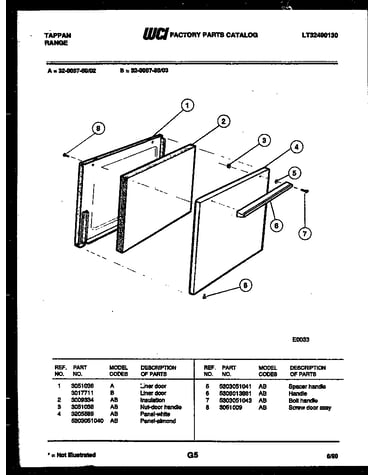

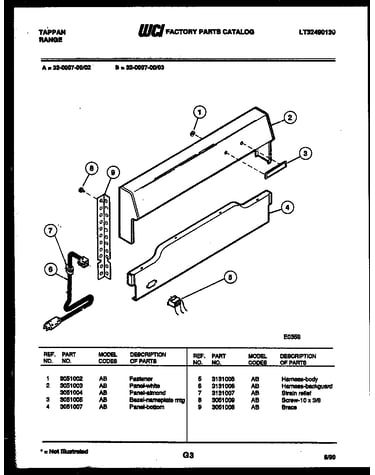

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Oven Hinge 5303204672
#9

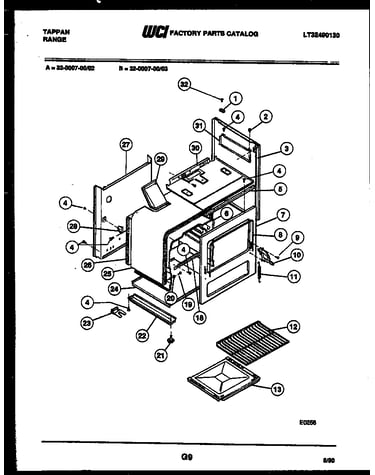

Body parts diagram

Oven hinge

Part #5303204672

Replaced by #318348801

?
Manufacturer substitution
This part replaces 5303204672. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Screw 3051070
#10

Body parts diagram

Screw

Part #3051070

Replaced by #5304500008

?
Manufacturer substitution
This part replaces 3051070. Substitute parts can look different from the original.
$13.29
In Stock
Range Pressure Regulator 5308007974
#1

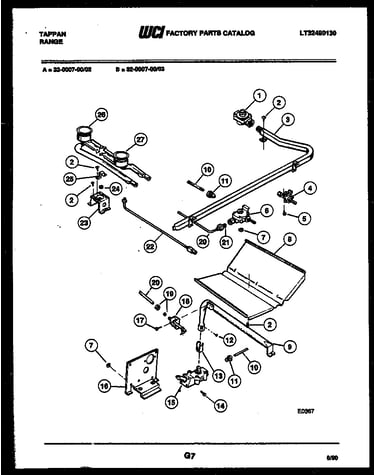

Burner, manifold and gas control diagram

Range pressure regulator

Part #5308007974

$186.45 |
6% OFF Phone Price : $198.45
In Stock
Range Surface Burner Knob 5308013898
#5

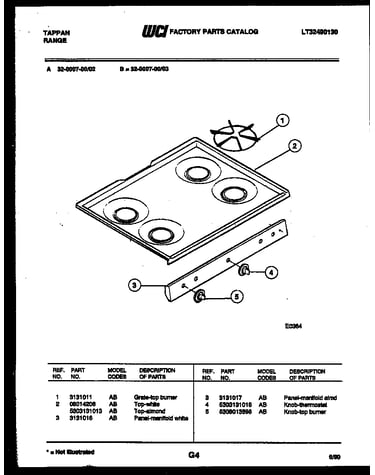

Cooktop parts diagram

Range surface burner knob

Part #5308013898

$26.73
In Stock
Pilot 3131077
#24

Burner, manifold and gas control diagram

Pilot

Part #3131077

This item is not returnable
$2.29
In Stock
Nut 3051038
Nut

Part #3051038

This item is not returnable
$2.91
In Stock
Insert 3131021
#1

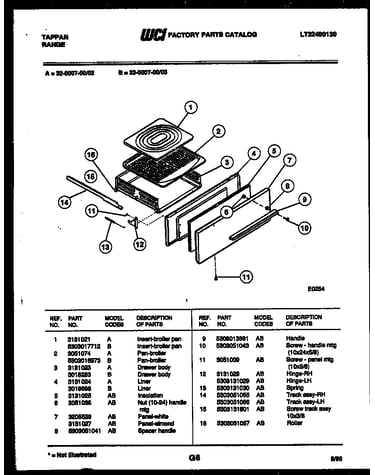

Broiler drawer parts diagram

Insert

Part #3131021

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 3131021. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Screw 5303051043
Screw

Part #5303051043

Replaced by #5303292012

?
Manufacturer substitution
This part replaces 5303051043. Substitute parts can look different from the original.
$13.29
In Stock
Drawer 3018283
#3

Broiler drawer parts diagram

Drawer

Part #3018283

Replaced by #5304504568

?
Manufacturer substitution
This part replaces 3018283. Substitute parts can look different from the original.
$182.07 |
6% OFF Phone Price : $194.07
In Stock
Thermostat 5308013927
#6

Burner, manifold and gas control diagram

Thermostat

Part #5308013927

The manufacturer no longer makes this part, and there's no substitute part
