Whirlpool
Top-Mount Refrigerator

Model # 5GR9SHKXLQ02 Official Whirlpool top-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool 5GR9SHKXLQ02 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Drier-tue 2199167
#29

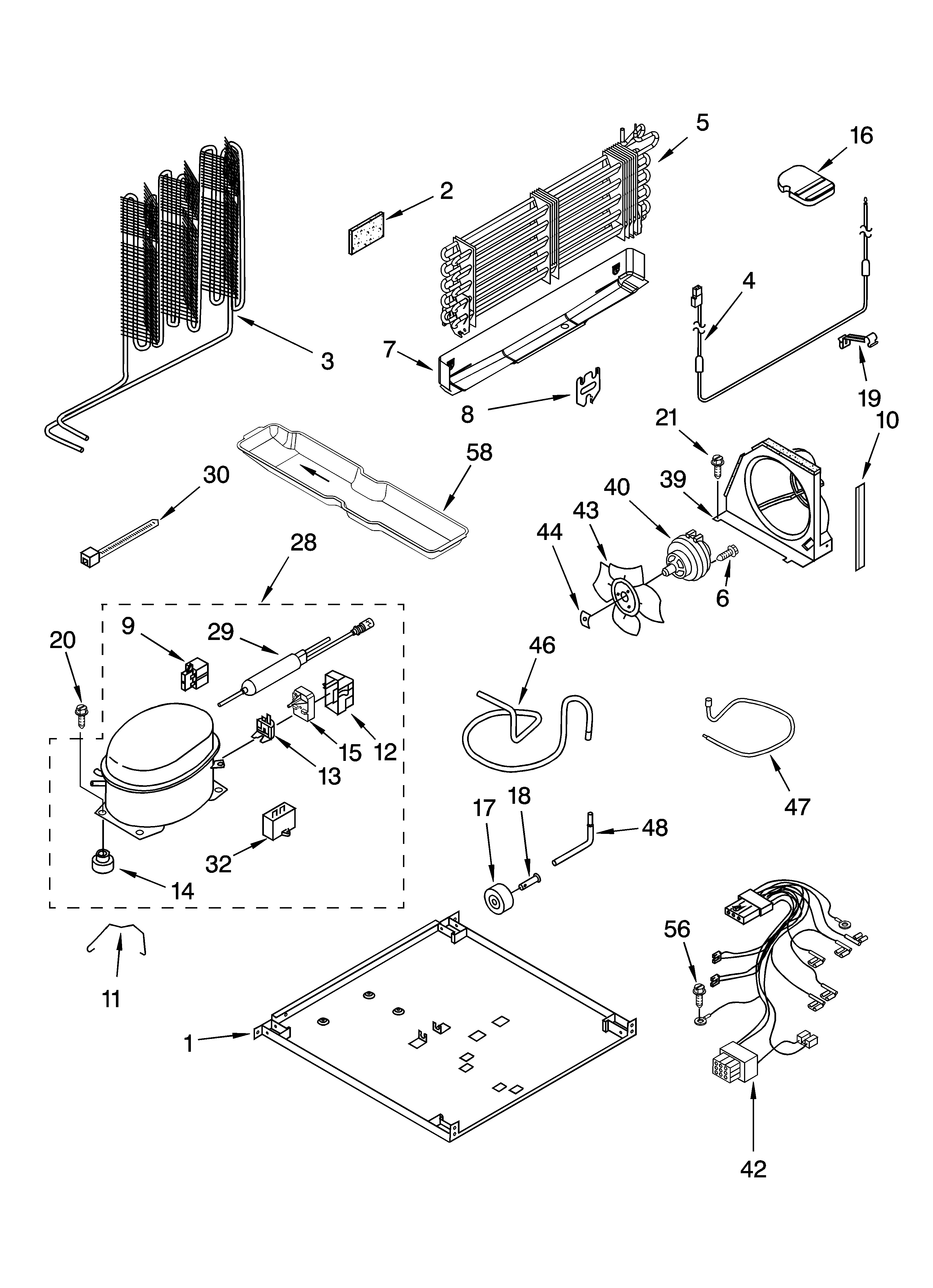

Unit parts diagram

Drier-tue

Part #2199167

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2199167. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Dryer Tube 4387019
#29A

Unit parts diagram

Refrigerator dryer tube

Part #4387019

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4387019. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Crisper Pan 2218139
#19

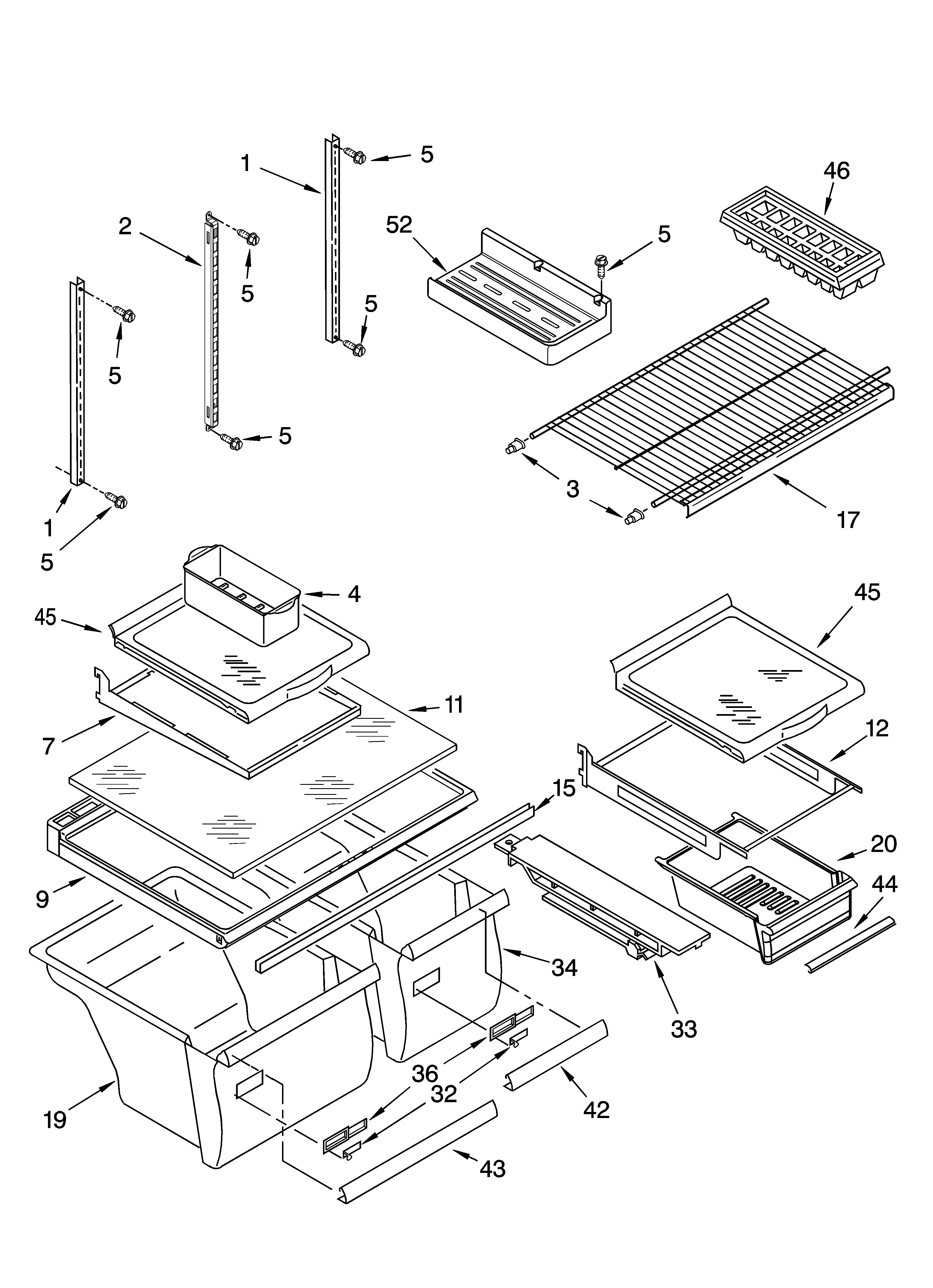

Shelf parts diagram

Refrigerator crisper pan

Part #2218139

Replaced by #W10854037

?
Manufacturer substitution
This part replaces 2218139. Substitute parts can look different from the original.
BEST SELLER
$82.04 |
7% OFF Phone Price : $88.04
In Stock
Ice Maker 2155469
#NI

Freezer door parts, optional parts diagram

Ice maker

Part #2155469

Replaced by #W11510803

?
Manufacturer substitution
This part replaces 2155469. Substitute parts can look different from the original.
BEST SELLER
$111.86 |
10% OFF Phone Price : $123.86
Back Order
Refrigerator Washer 487576
#38

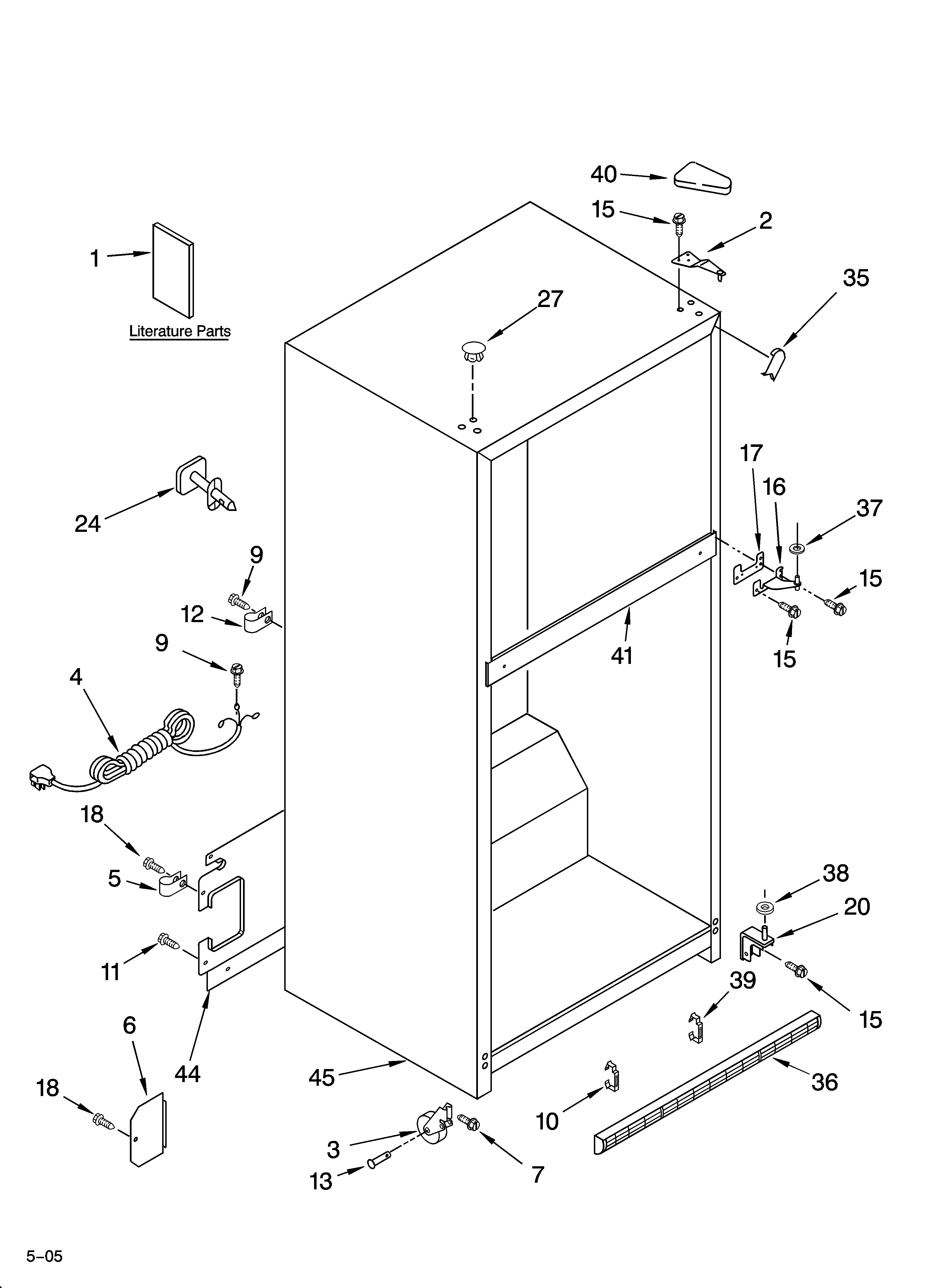

Cabinet parts diagram

Refrigerator washer

Part #487576

Replaced by #WP487576

?
Manufacturer substitution
This part replaces 487576. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

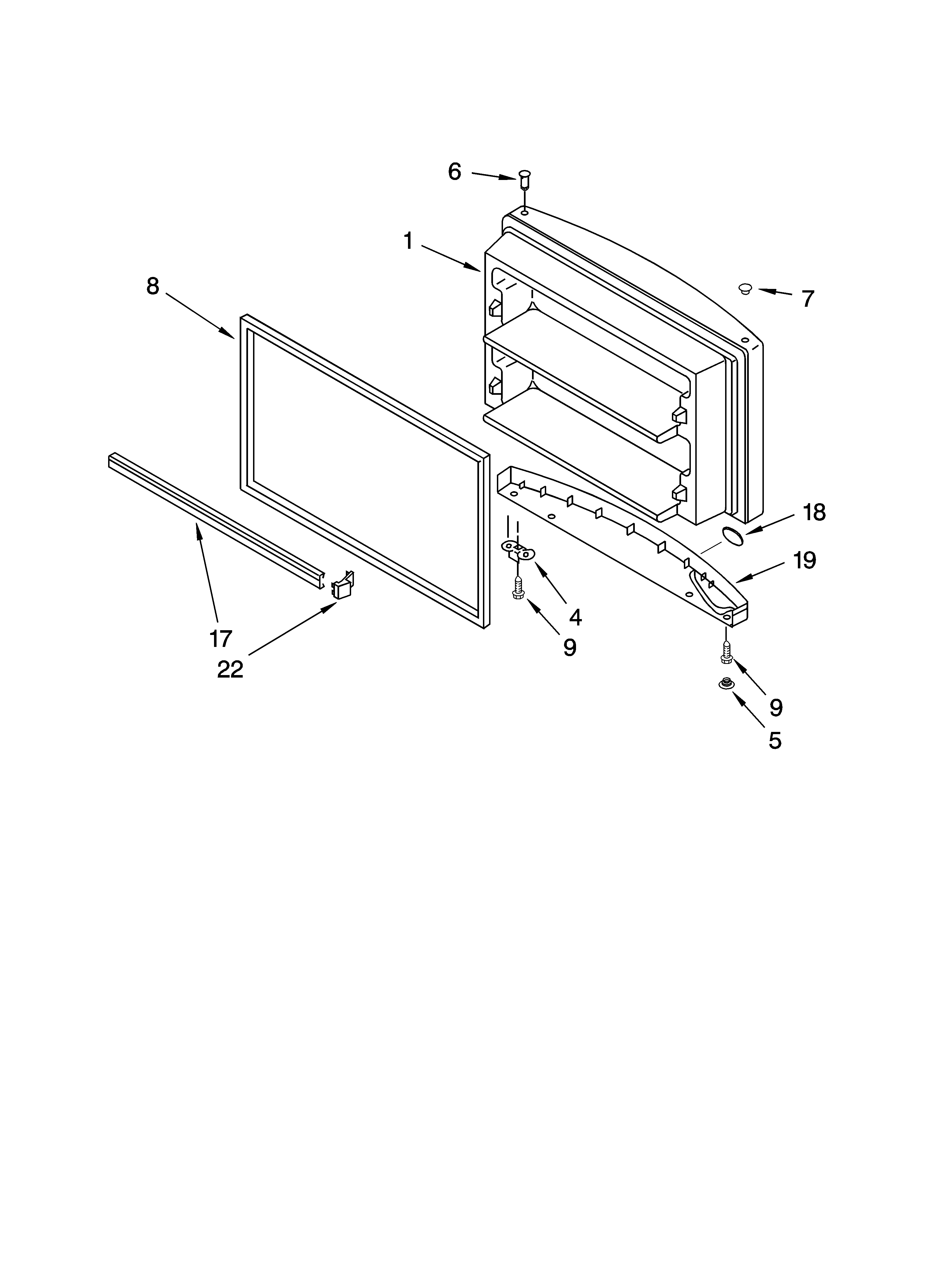

Freezer door parts, optional parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Gasket Panel (white) 2202874
#8

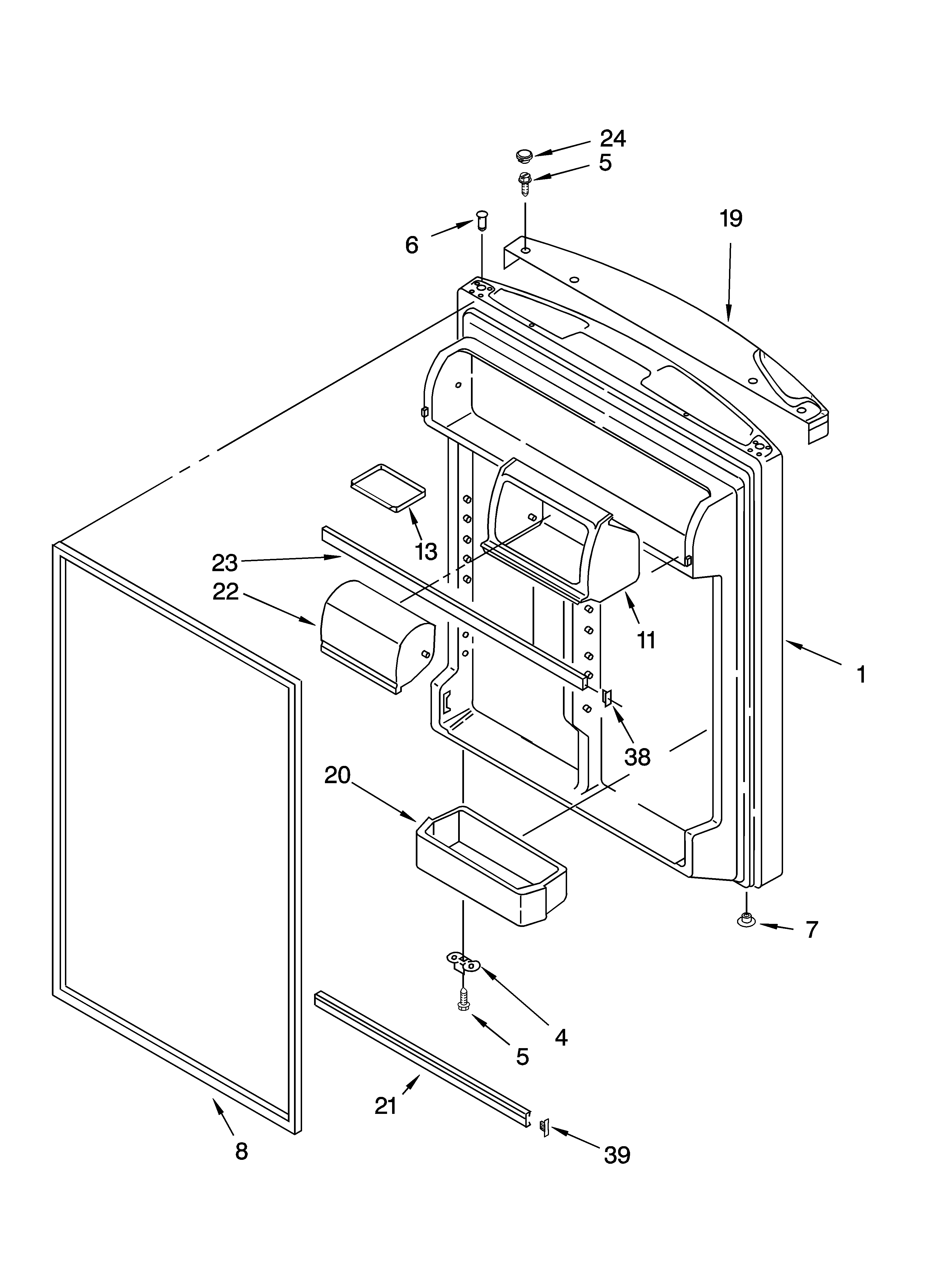

Refrigerator door parts diagram

Refrigerator gasket panel (white)

Part #2202874

Replaced by #2159057

?
Manufacturer substitution
This part replaces 2202874. Substitute parts can look different from the original.
BEST SELLER
$100.61 |
11% OFF Phone Price : $112.61
In Stock
Appliance Silicone Lubricant 542638
#NI

Freezer door parts, optional parts diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764
#58H

Unit parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Washer Screw 693995
#15

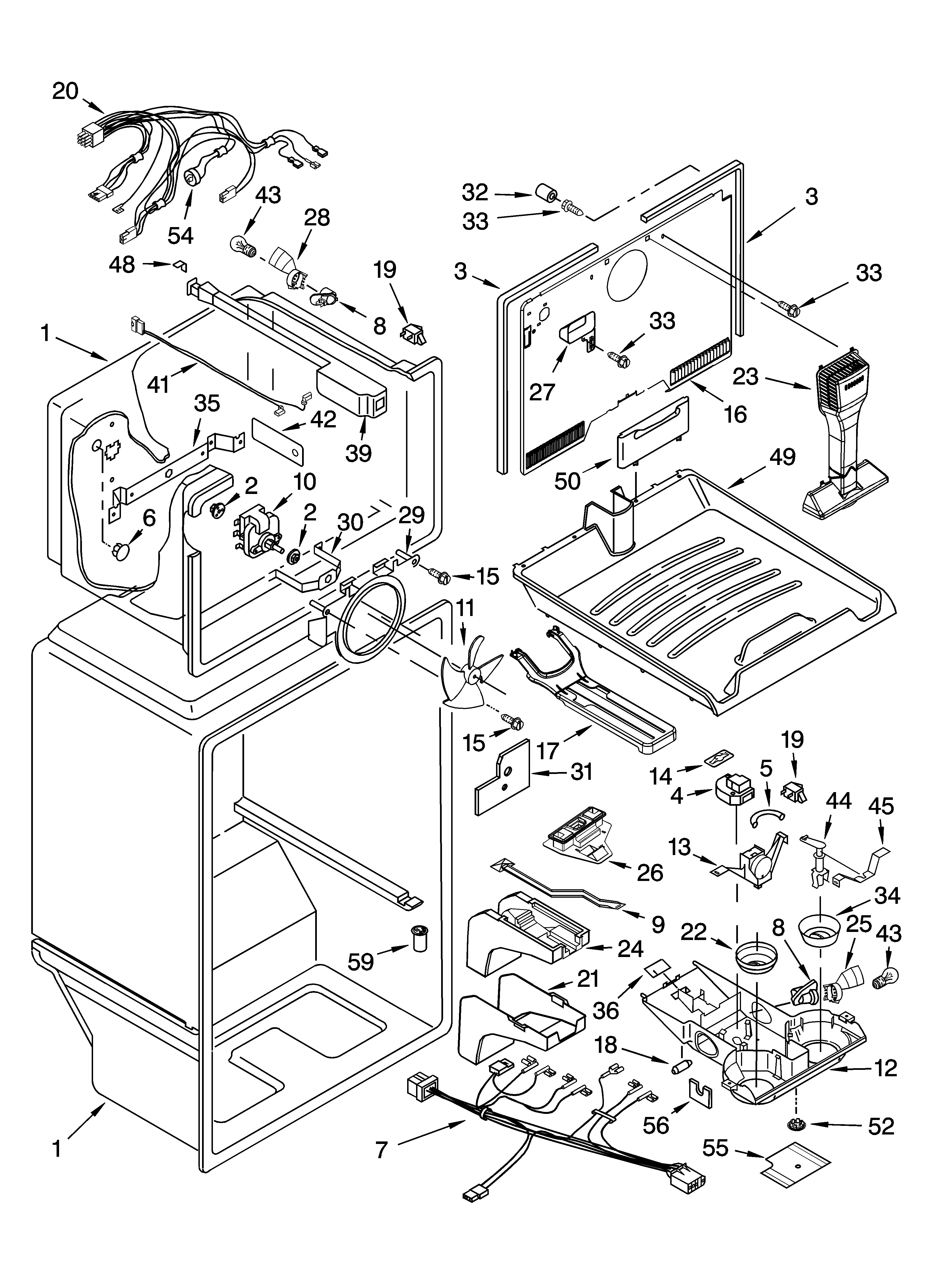

Liner parts diagram

Washer screw

Part #693995

Replaced by #WP693995

?
Manufacturer substitution
This part replaces 693995. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
