Model # FFEF3003NWA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FFEF3003NWA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Universal/multiflex (frigidaire) Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

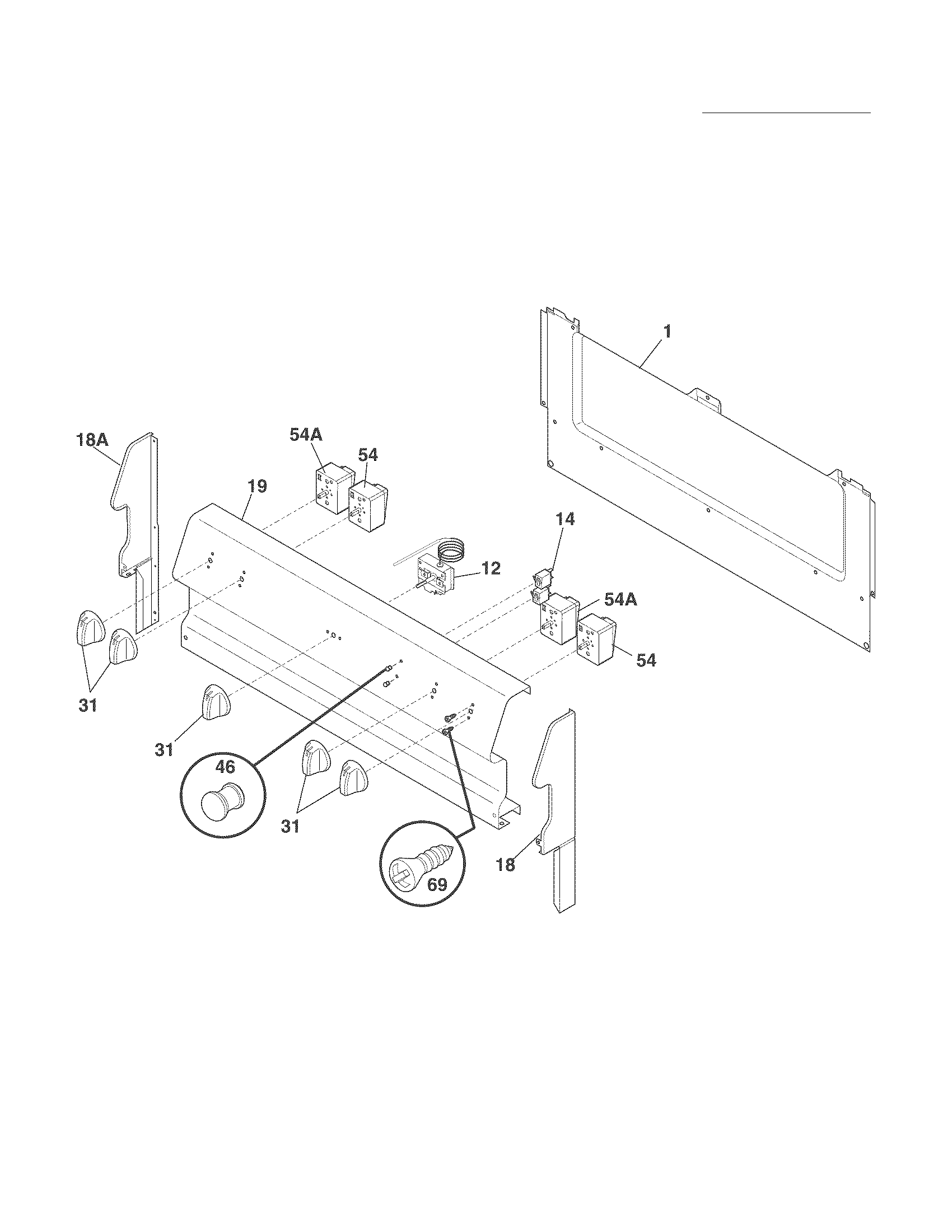

Backguard diagram

Universal/multiflex (frigidaire) range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.15 |
14% OFF Phone Price : $42.15
In Stock
Range Bake Element 316075104
#67

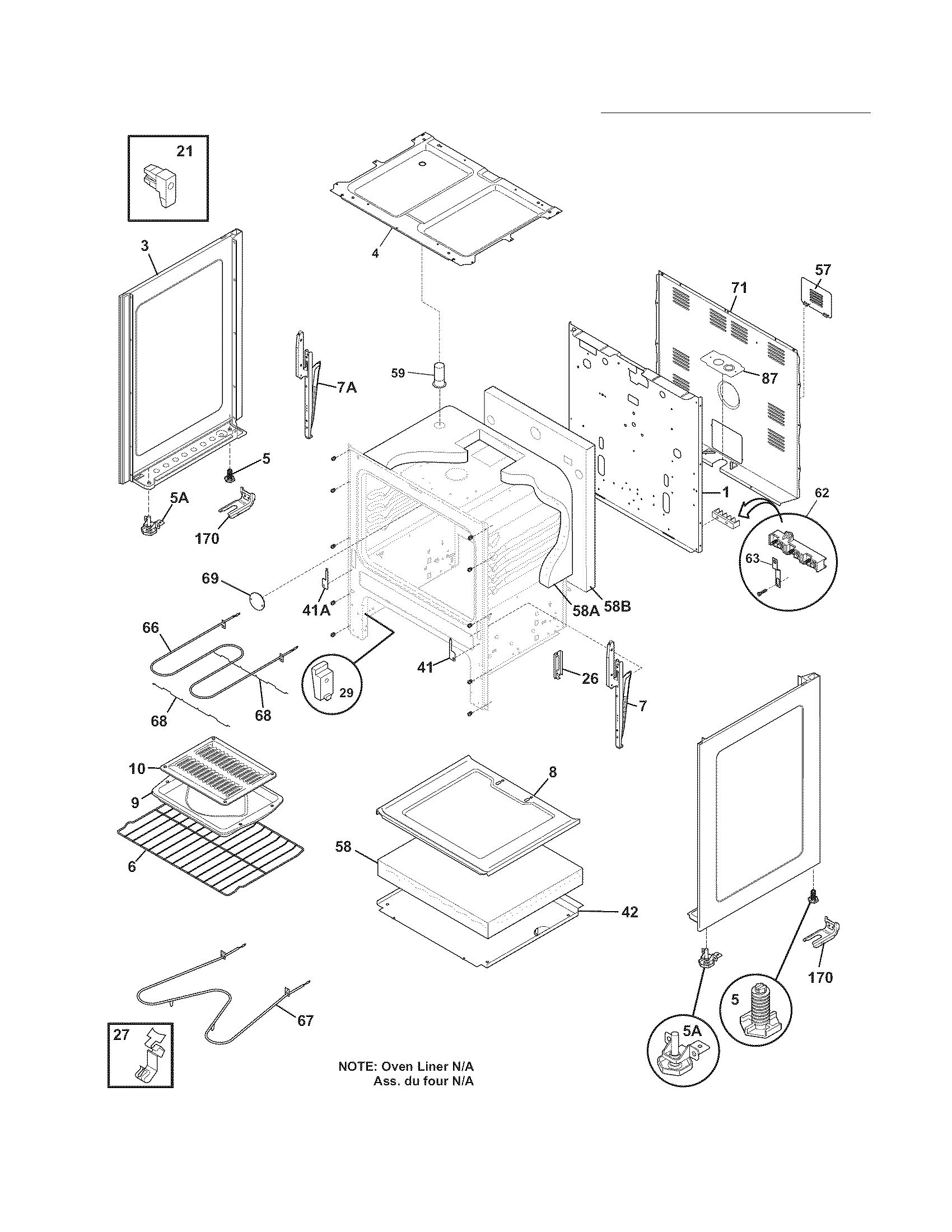

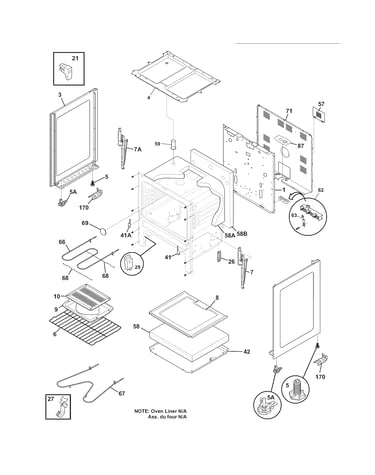

Body diagram

Range bake element

Part #316075104

Replaced by #316075103

?
Manufacturer substitution
This part replaces 316075104. Substitute parts can look different from the original.
BEST SELLER
$26.54 |
18% OFF Phone Price : $32.54
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$55.76 |
10% OFF Phone Price : $61.76
In Stock
Block 5303912666
#27

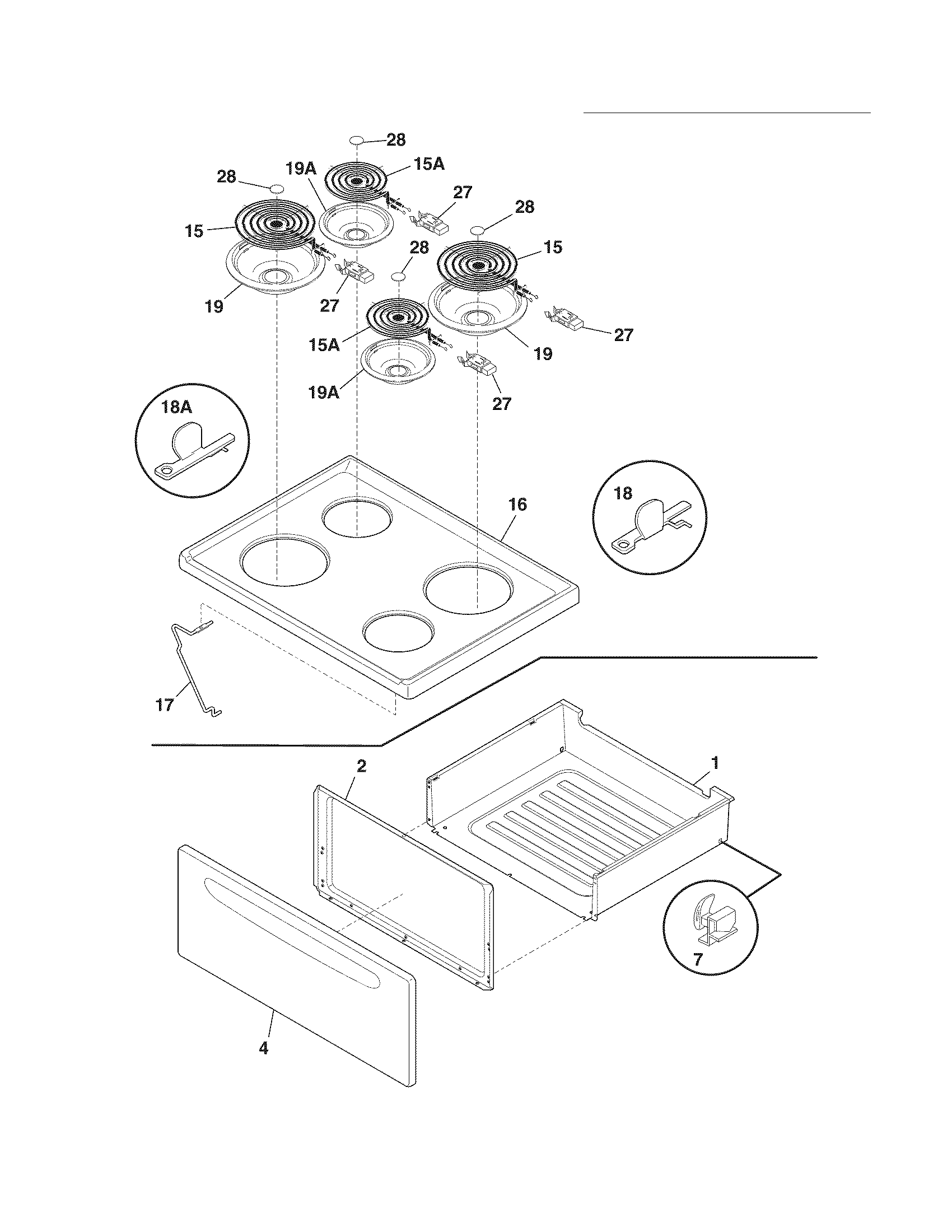

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.44 |
11% OFF Phone Price : $9.44
In Stock
Range Drip Pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495) 316048413
#19

Top/drawer diagram

Range drip pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495)

Part #316048413

BEST SELLER
This item is not returnable
$7.30 |
12% OFF Phone Price : $8.30
In Stock
Range Drip Pan, 6-in (chrome) (replaces 5303280336, 5303305658, 5304432494, A316221301) 316048414
#19A

Top/drawer diagram

Range drip pan, 6-in (chrome) (replaces 5303280336, 5303305658, 5304432494, a316221301)

Part #316048414

BEST SELLER
This item is not returnable
$5.97 |
14% OFF Phone Price : $6.97
In Stock
Element 318372213
#15

Top/drawer diagram

Element

Part #318372213

Replaced by #316442300

?
Manufacturer substitution
This part replaces 318372213. Substitute parts can look different from the original.
BEST SELLER
$26.81 |
18% OFF Phone Price : $32.81
In Stock
Range Broil Element 316199900
#66

Body diagram

Range broil element

Part #316199900

Replaced by #316203200

?
Manufacturer substitution
This part replaces 316199900. Substitute parts can look different from the original.
BEST SELLER
$122.39 |
9% OFF Phone Price : $134.39
In Stock
Universal/multiflex (frigidaire) Range Terminal Block (replaces 75303935271) 5303935271
#62

Body diagram

Universal/multiflex (frigidaire) range terminal block (replaces 75303935271)

Part #5303935271

BEST SELLER
$43.74 |
12% OFF Phone Price : $49.74
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#10B

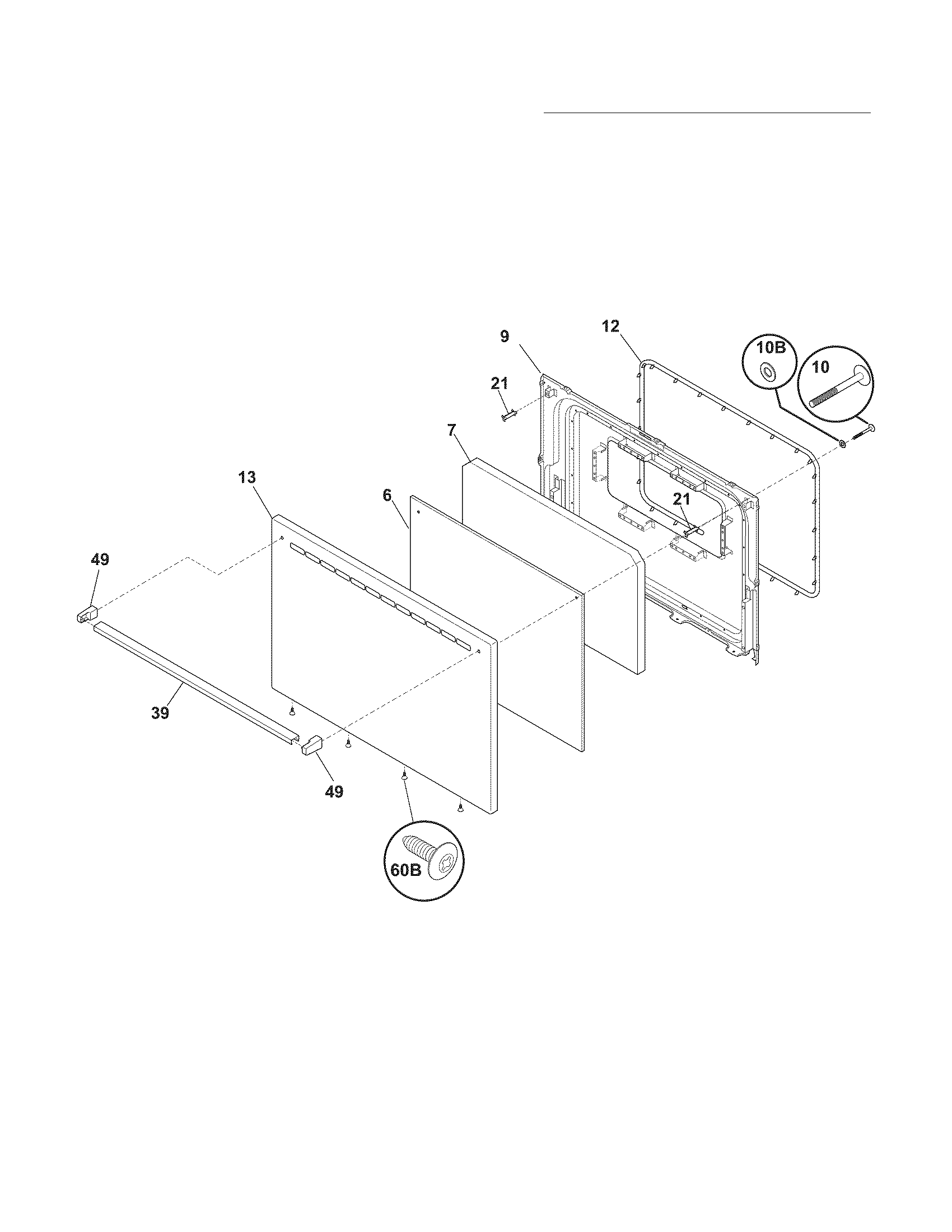

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
