Model # MTB189AARW Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MTB189AARW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

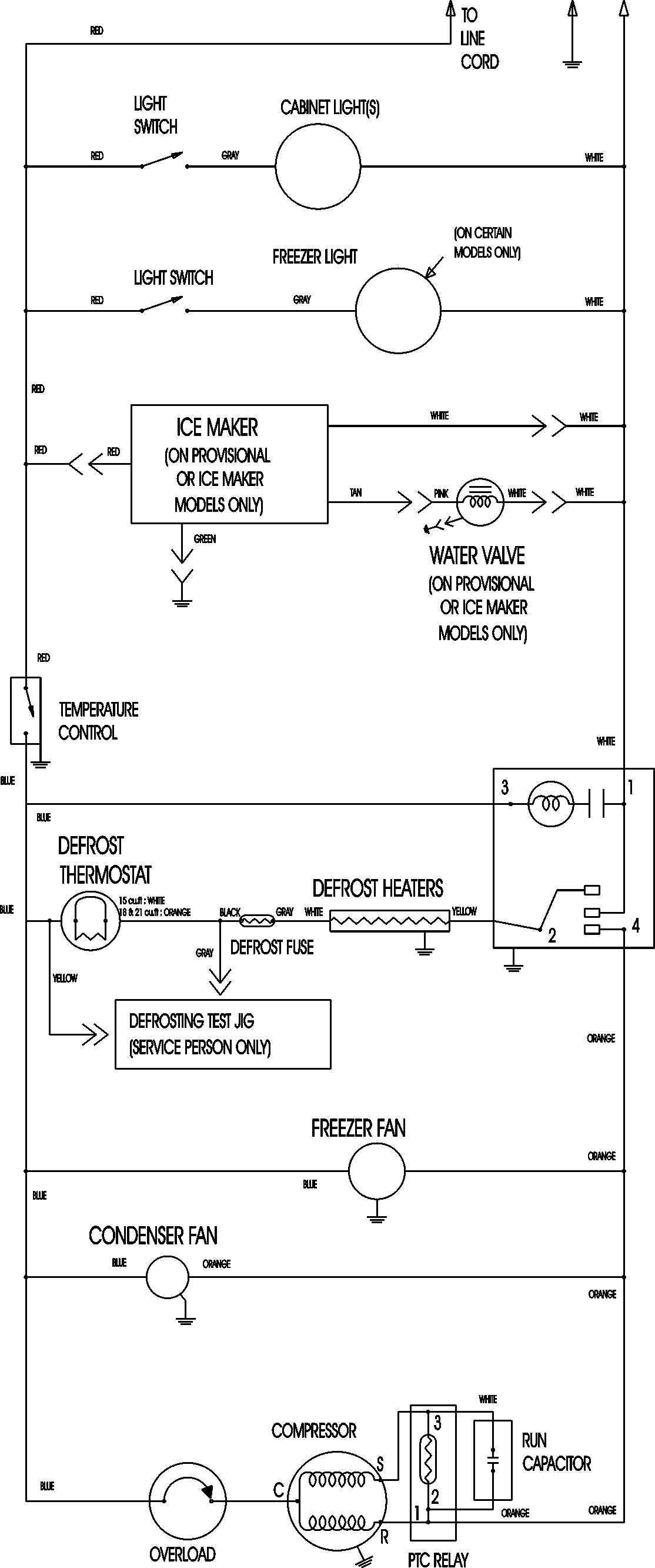

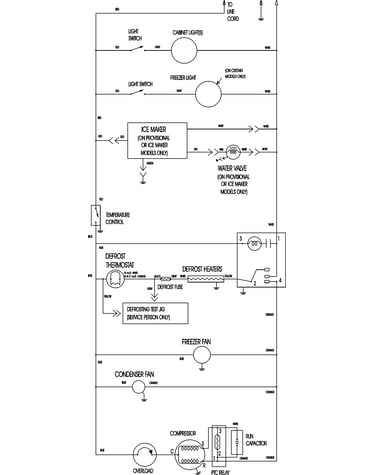

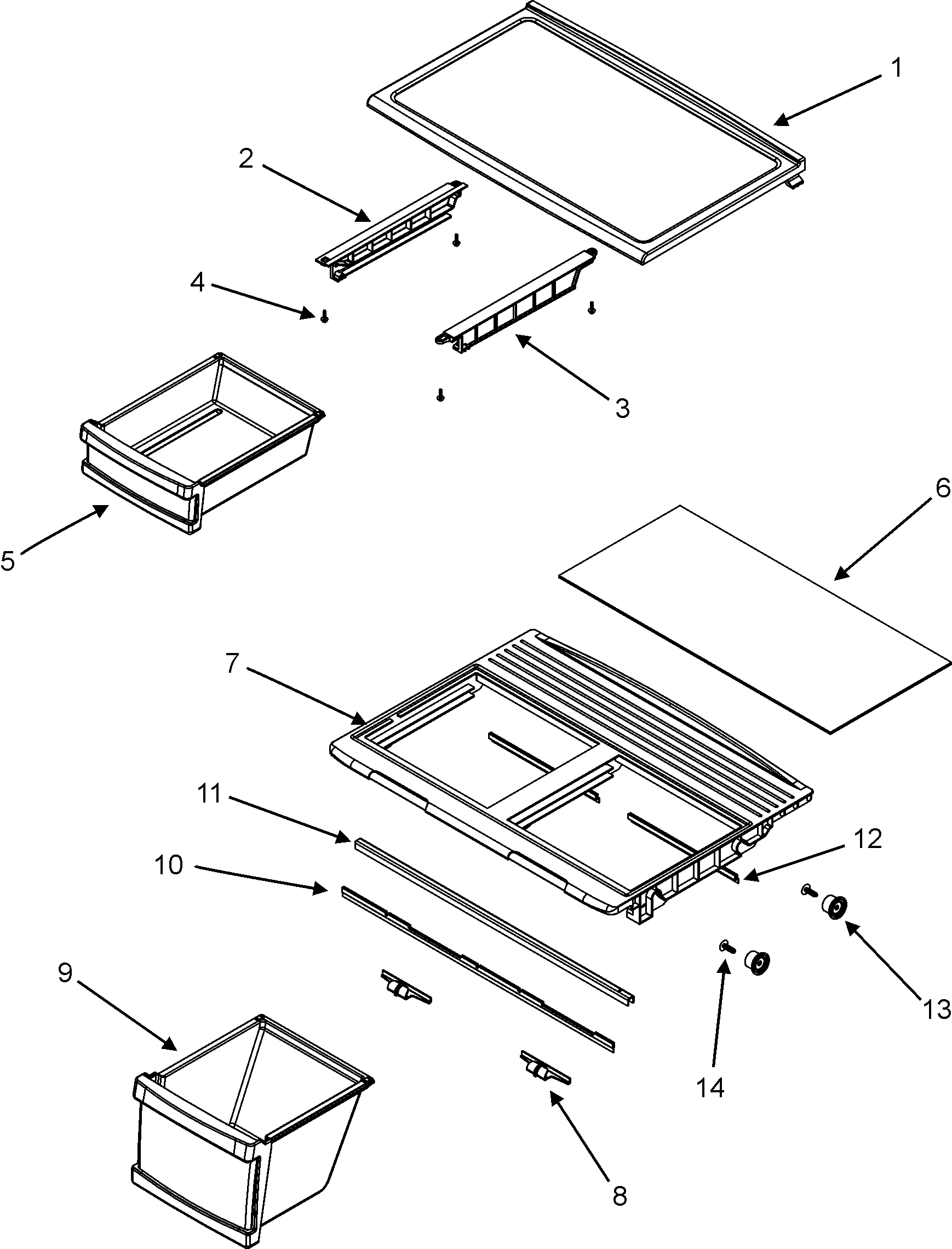

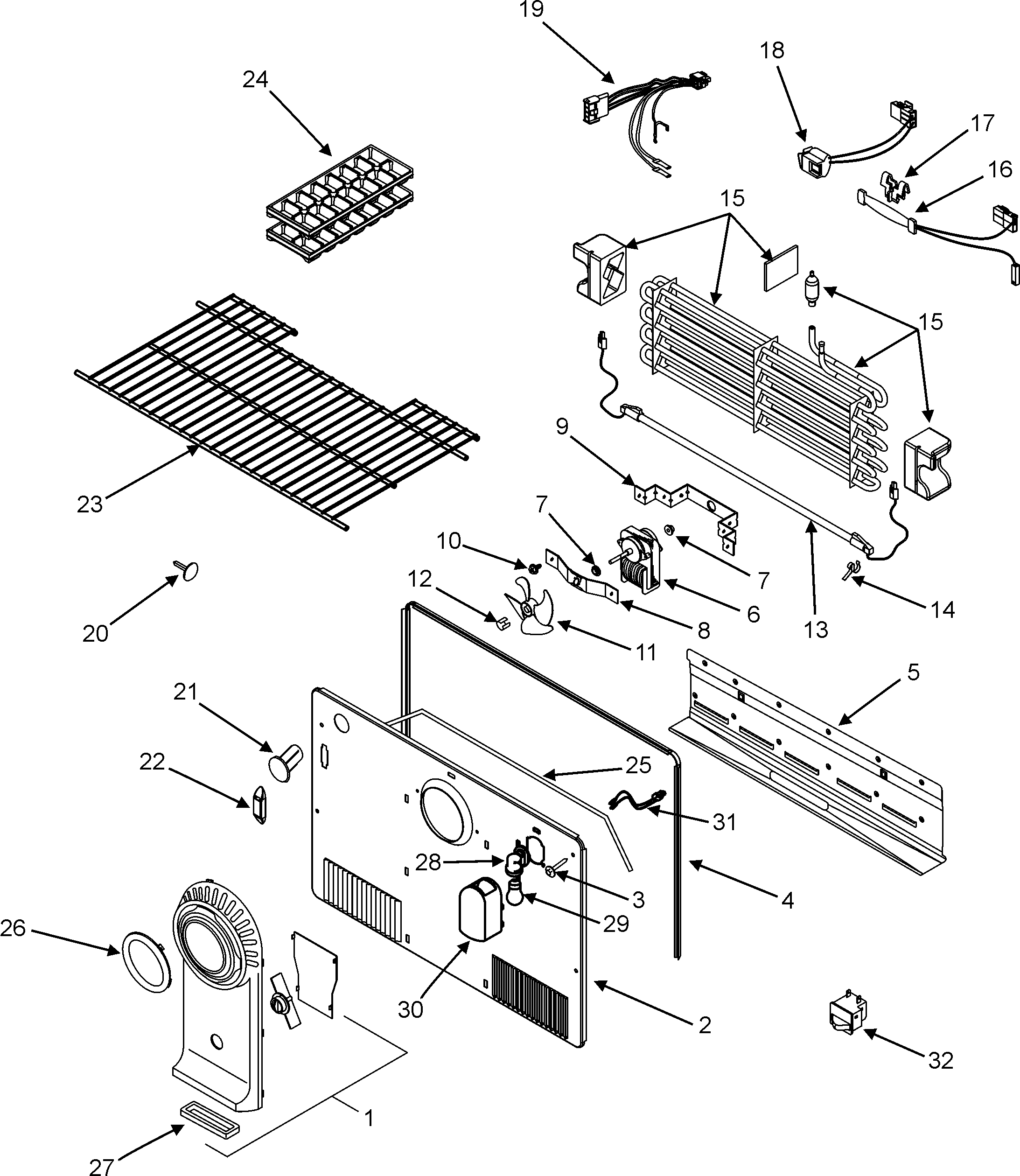

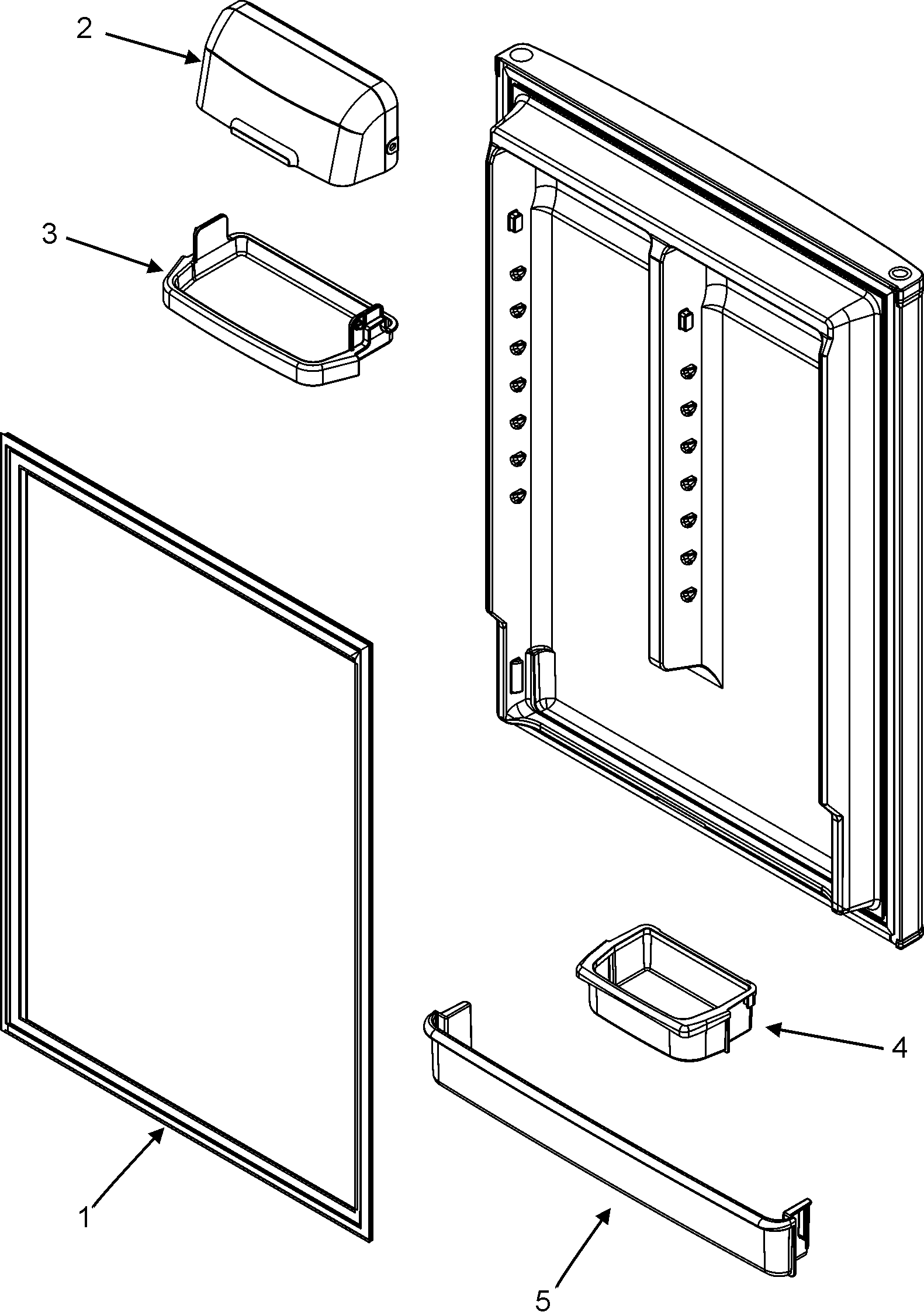

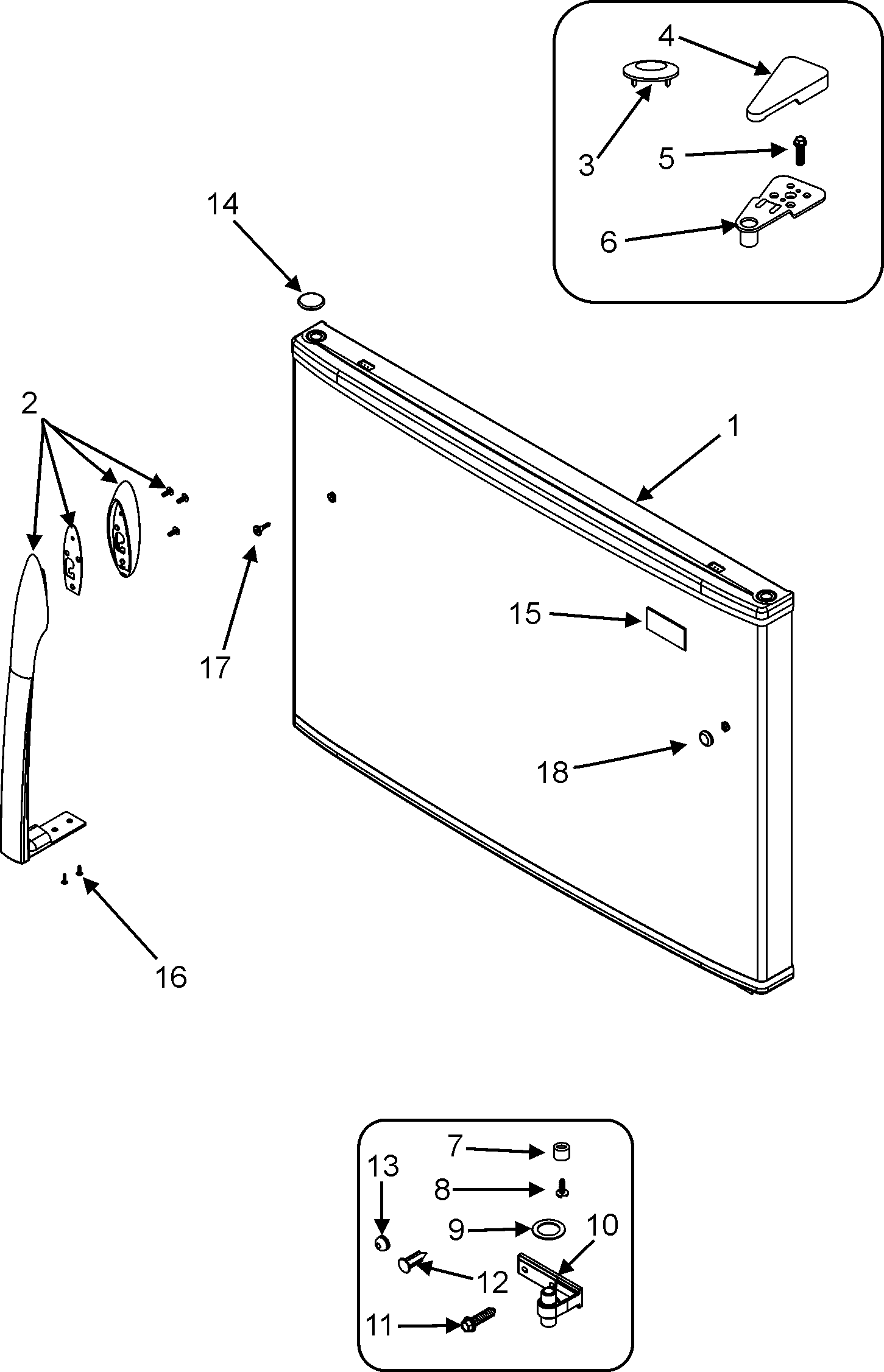

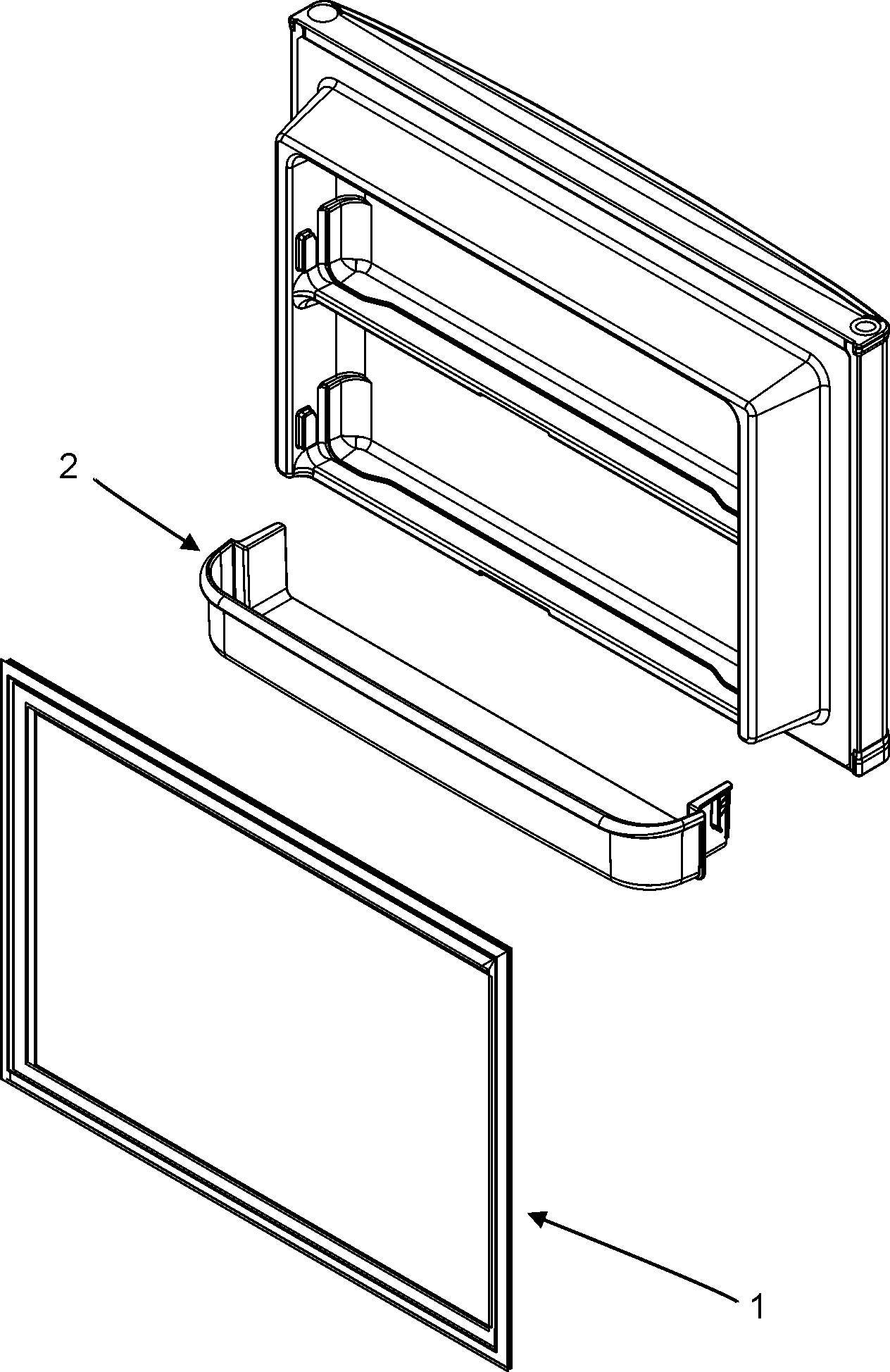

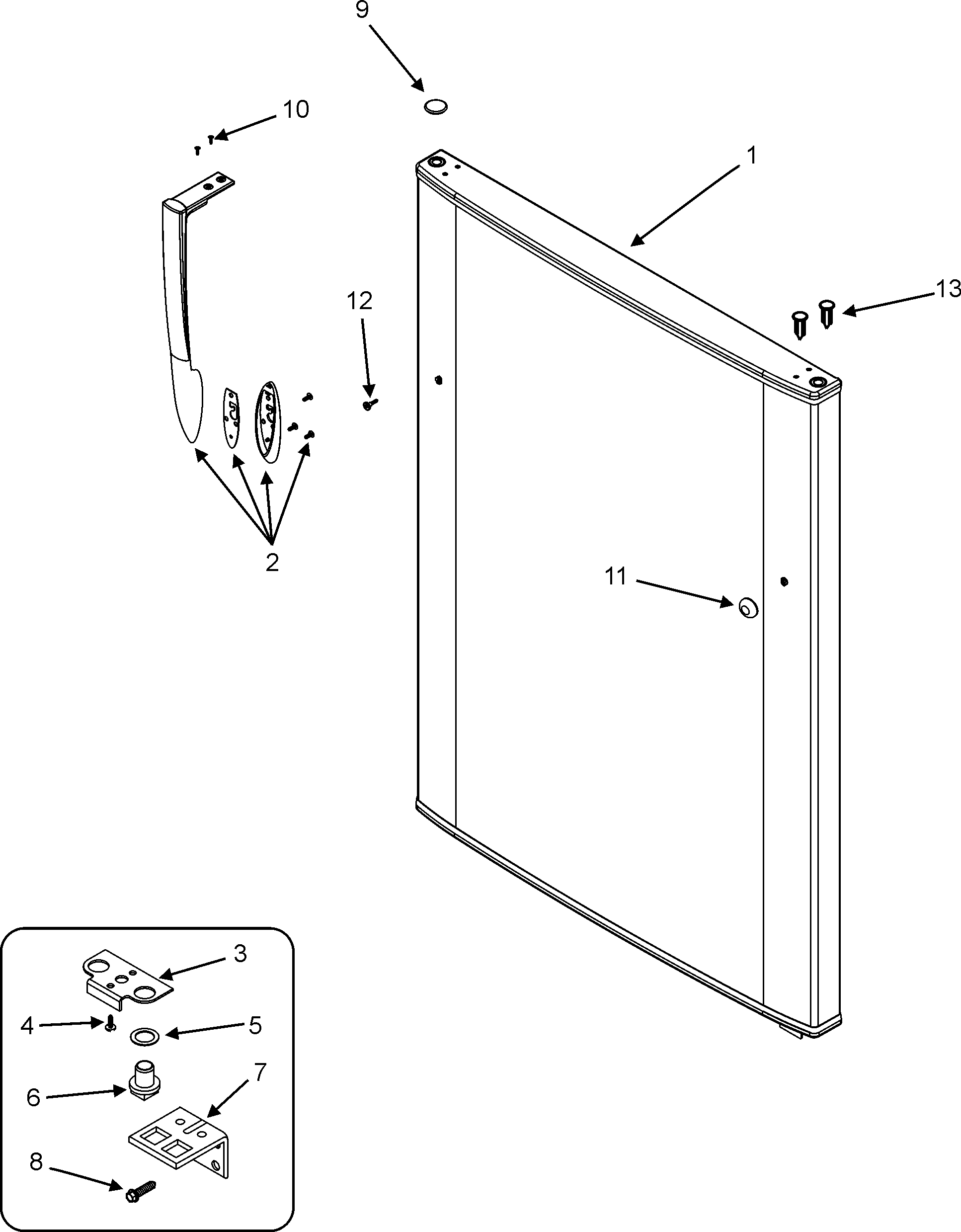

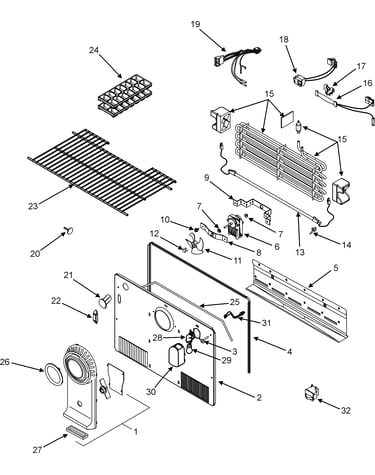

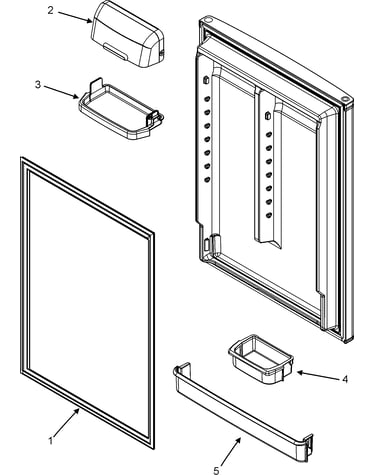

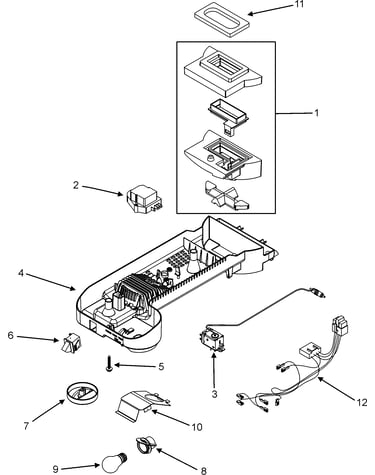

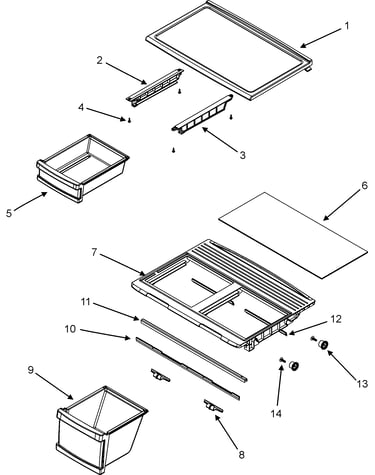

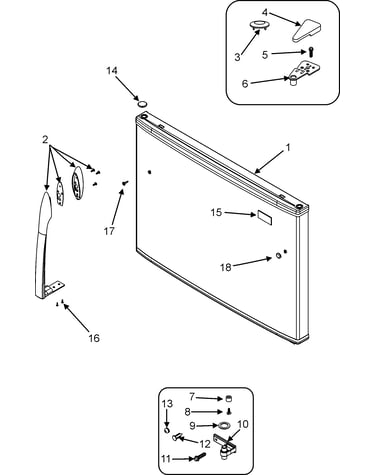

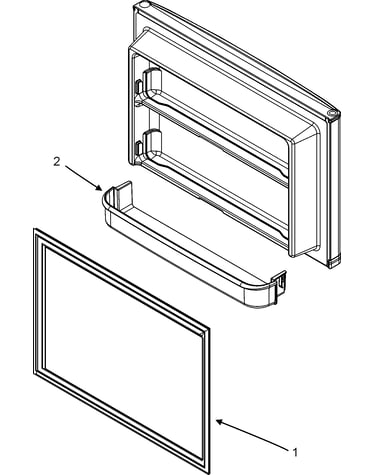

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Refrigerator Uv Dye Dryer 13900-1
#9

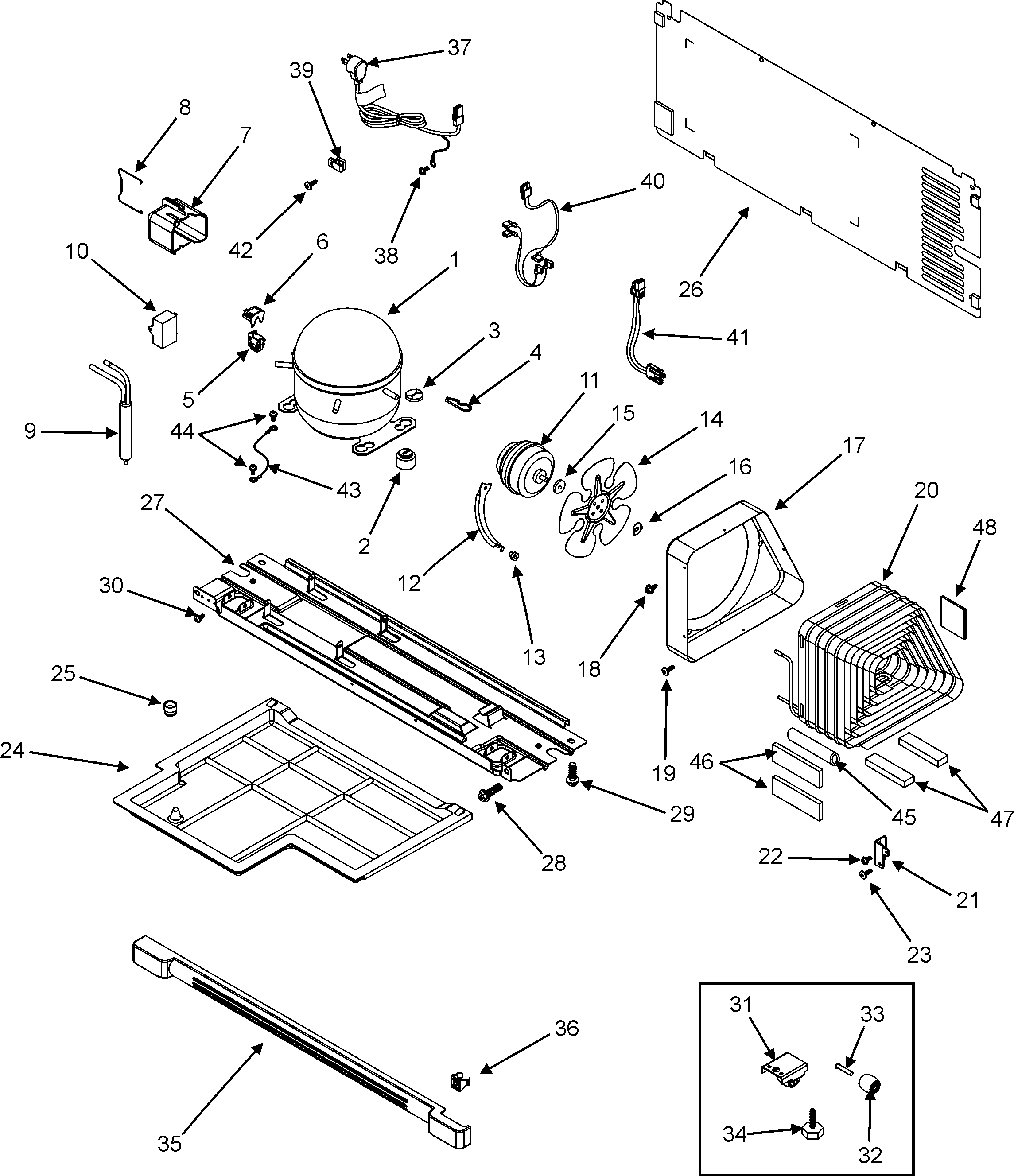

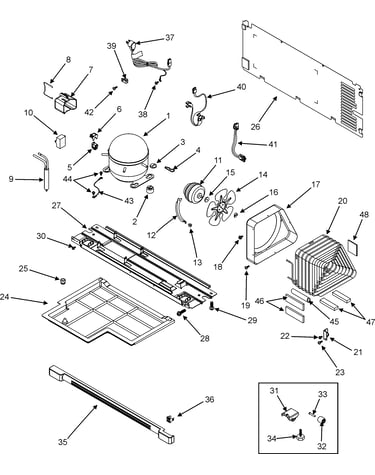

Compressor diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker 61005508
#1

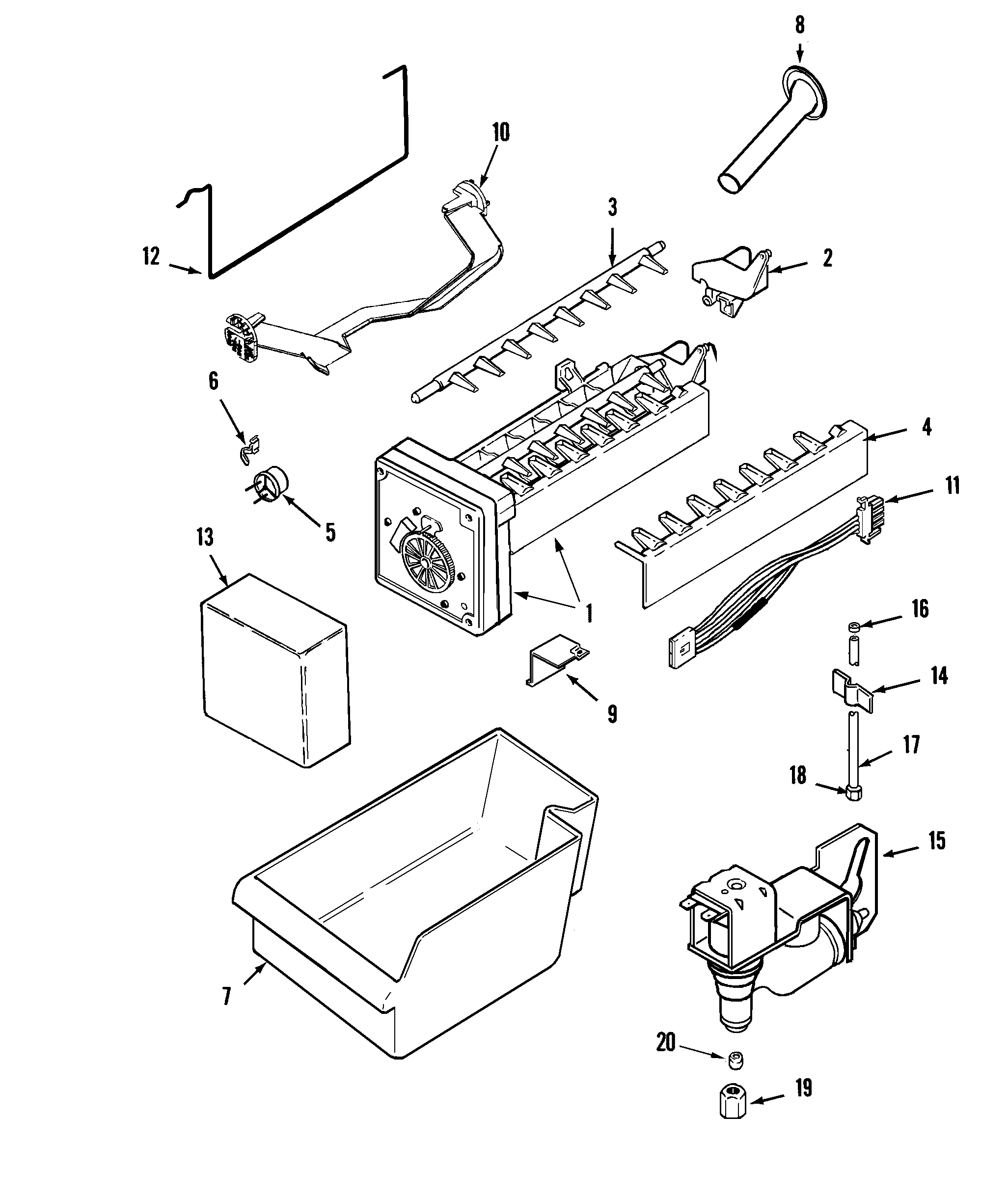

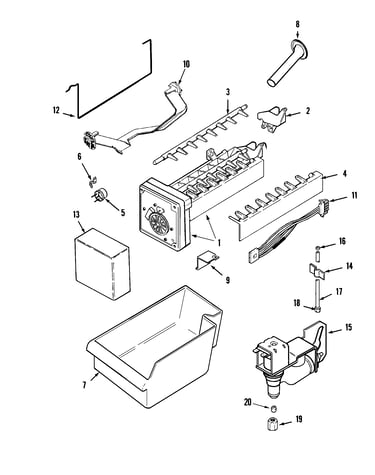

Optional ice maker kit-uki1500axx diagram

Refrigerator ice maker

Part #61005508

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 61005508. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock

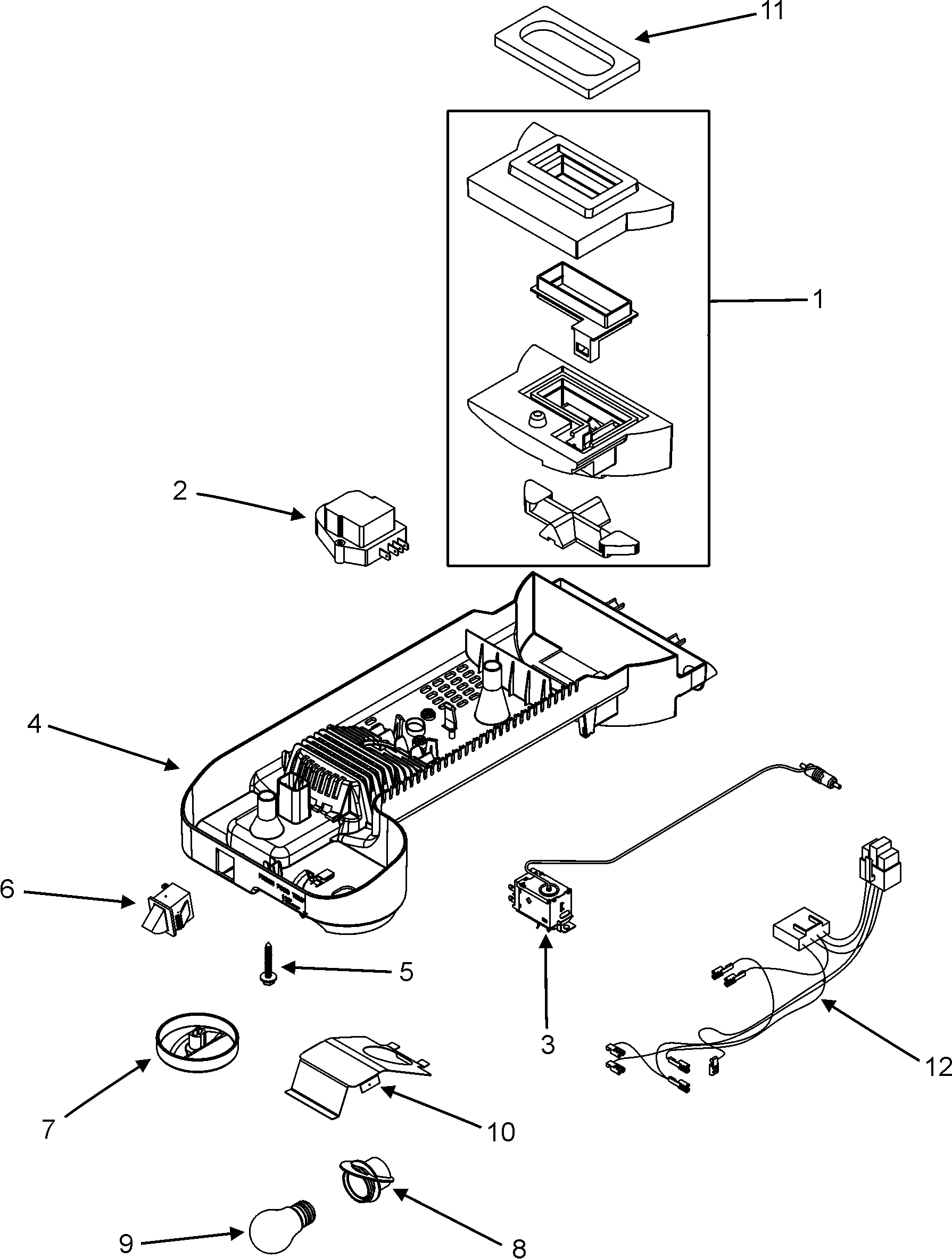

Refrigerator Bulb 63001035
Refrigerator bulb

Part #63001035

Replaced by #40A15

?
Manufacturer substitution
This part replaces 63001035. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Compressor Kit 12002448
#1

Compressor diagram

Refrigerator compressor kit

Part #12002448

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 12002448. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Refrigerator Thermostat 95092-1
#5

Optional ice maker kit-uki1500axx diagram

Refrigerator thermostat

Part #95092-1

Replaced by #WP627985

?
Manufacturer substitution
This part replaces 95092-1. Substitute parts can look different from the original.
BEST SELLER
$47.98 |
11% OFF Phone Price : $53.98
In Stock
Refrigerator Tubing 61003021
#17

Optional ice maker kit-uki1500axx diagram

Refrigerator tubing

Part #61003021

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces 61003021. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Screw 400016-1
#14A

Optional ice maker kit-uki1500axx diagram

Screw

Part #400016-1

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400016-1. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Ice Maker Fill Cup 95100-1
#2

Optional ice maker kit-uki1500axx diagram

Refrigerator ice maker fill cup

Part #95100-1

Replaced by #WP628356

?
Manufacturer substitution
This part replaces 95100-1. Substitute parts can look different from the original.
This item is not returnable
$27.77 |
18% OFF Phone Price : $33.77
In Stock
Refrigerator Light Switch 63001030
Refrigerator light switch

Part #63001030

Replaced by #W11291138

?
Manufacturer substitution
This part replaces 63001030. Substitute parts can look different from the original.
$24.79 |
19% OFF Phone Price : $30.79
In Stock
Refrigerator Screw 63001099
#26A

Compressor diagram

Refrigerator screw

Part #63001099

Replaced by #67006425

?
Manufacturer substitution
This part replaces 63001099. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
