Model # 303932100 Official Kenmore furnace humidifier

Here are the diagrams and repair parts for Official Kenmore 303932100 furnace humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

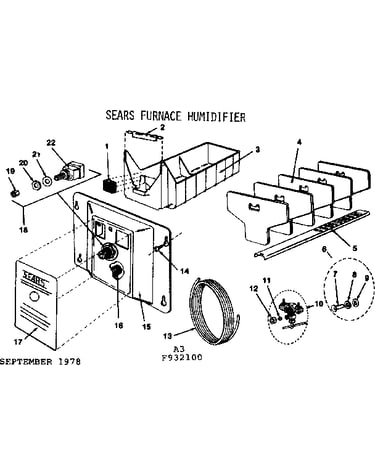

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Saddle Valve 281247-01
#10

Replacement parts diagram

Saddle valve

Part #281247-01

The manufacturer no longer makes this part, and there's no substitute part

Washer 215130-01
#8

Replacement parts diagram

Washer

Part #215130-01

The manufacturer no longer makes this part, and there's no substitute part

Nut 255140-01
#19

Replacement parts diagram

Nut

Part #255140-01

The manufacturer no longer makes this part, and there's no substitute part

Overflow Kit 355079-01
#6

Replacement parts diagram

Overflow kit

Part #355079-01

The manufacturer no longer makes this part, and there's no substitute part

Tubing 355284-01
#13

Replacement parts diagram

Tubing

Part #355284-01

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 030002-15
#20

Replacement parts diagram

Lock nut

Part #030002-15

The manufacturer no longer makes this part, and there's no substitute part

Washer 030014-77
#21

Replacement parts diagram

Washer

Part #030014-77

The manufacturer no longer makes this part, and there's no substitute part

Reservoir 280710-01
#3

Replacement parts diagram

Reservoir

Part #280710-01

The manufacturer no longer makes this part, and there's no substitute part

Plate Evaporator 315151-01
#4

Replacement parts diagram

Plate evaporator

Part #315151-01

The manufacturer no longer makes this part, and there's no substitute part

Reservoir 325079-01
#1A

Replacement parts diagram

Reservoir

Part #325079-01

The manufacturer no longer makes this part, and there's no substitute part
