Kenmore
Central Air Conditioner

Model # 867822450 Official Kenmore mobile home air conditioner

Here are the diagrams and repair parts for Official Kenmore 867822450 mobile home air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Motor 96799
#35

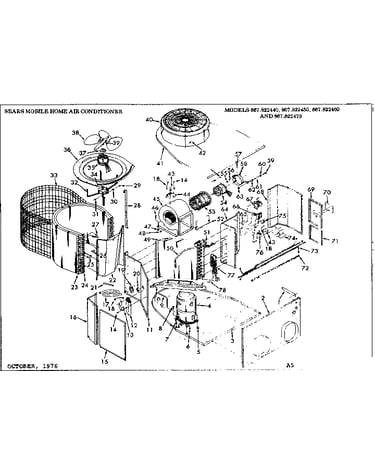

Unit parts diagram

Motor

Part #96799

Replaced by #WG840465

?
Manufacturer substitution
This part replaces 96799. Substitute parts can look different from the original.
BEST SELLER
$150.11
In Stock
Motor 703436
#54B

Unit parts diagram

Motor

Part #703436

Replaced by #45461

?
Manufacturer substitution
This part replaces 703436. Substitute parts can look different from the original.
BEST SELLER
$207.04
In Stock
Motor 703434
#54A

Unit parts diagram

Motor

Part #703434

Replaced by #45461

?
Manufacturer substitution
This part replaces 703434. Substitute parts can look different from the original.
BEST SELLER
$207.04
In Stock
Grille 702472
#40

Unit parts diagram

Grille

Part #702472

Replaced by #512848

?
Manufacturer substitution
This part replaces 702472. Substitute parts can look different from the original.
$164.46 |
7% OFF Phone Price : $176.46
In Stock
Contactor 704410
#67A

Unit parts diagram

Contactor

Part #704410

Replaced by #90-170

?
Manufacturer substitution
This part replaces 704410. Substitute parts can look different from the original.
$35.09 |
15% OFF Phone Price : $41.09
In Stock
Contactor 704409
#67B

Unit parts diagram

Contactor

Part #704409

Replaced by #90-170

?
Manufacturer substitution
This part replaces 704409. Substitute parts can look different from the original.
$35.09 |
15% OFF Phone Price : $41.09
In Stock
Fan Blade 703088
#38

Unit parts diagram

Fan blade

Part #703088

Replaced by #1080764

?
Manufacturer substitution
This part replaces 703088. Substitute parts can look different from the original.
$80.17
In Stock
Wheel 703494
#53B

Unit parts diagram

Wheel

Part #703494

$144.56
In Stock
Capacitor 94149
Capacitor

Part #94149

Replaced by #12005

?
Manufacturer substitution
This part replaces 94149. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Capacitor 94144
#12A

Unit parts diagram

Capacitor

Part #94144

The manufacturer no longer makes this part, and there's no substitute part
