Model # KECG260SWH0 Official KitchenAid electric range

Here are the diagrams and repair parts for Official KitchenAid KECG260SWH0 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Burner Bowl 4164315
#5

Main body unit diagram

Burner bowl

Part #4164315

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 4164315. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Burner Bowl 4164314
#6

Main body unit diagram

Burner bowl

Part #4164314

Replaced by #W10196405RW

?
Manufacturer substitution
This part replaces 4164314. Substitute parts can look different from the original.
This item is not returnable
$10.52 |
16% OFF Phone Price : $12.52
In Stock
Cover - Control (right) 307175
#16

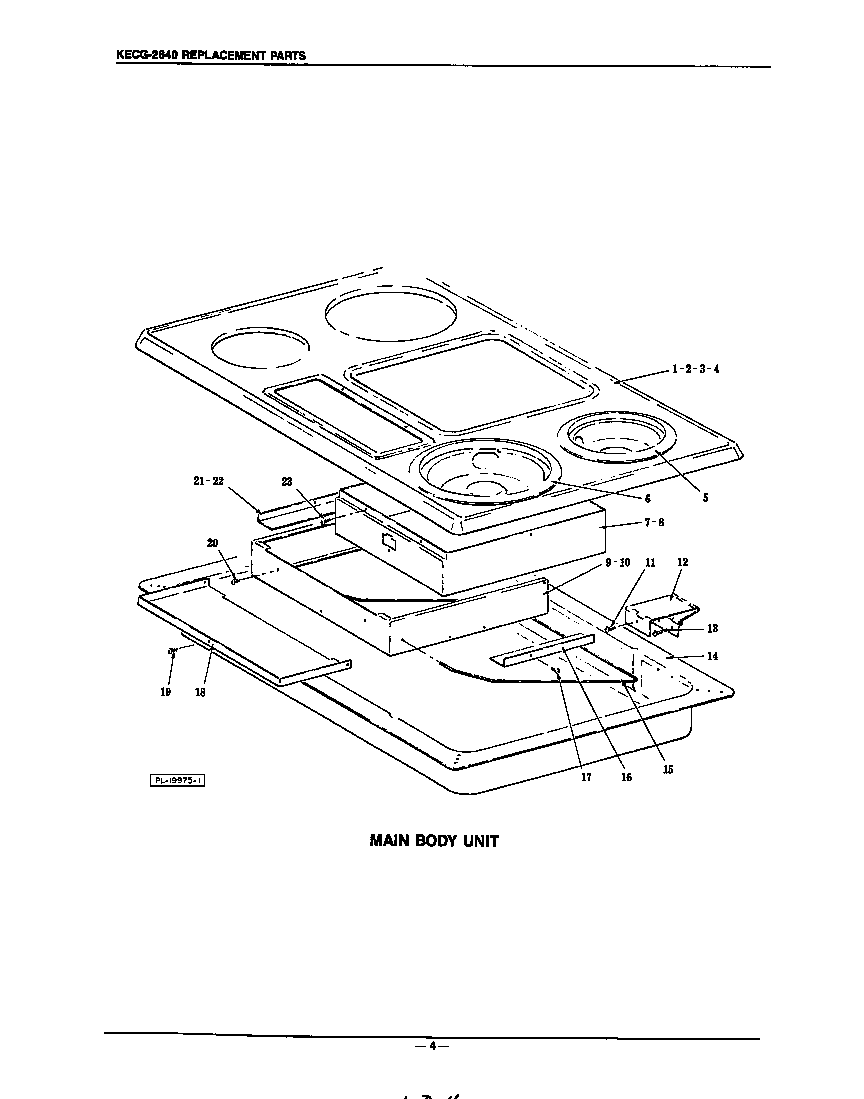

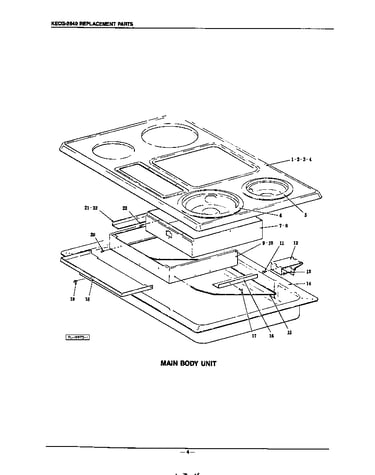

Main body unit diagram

Cover - control (right)

Part #307175

The manufacturer no longer makes this part, and there's no substitute part

Self-tapping Screw 8-18 X 3/8 Phil. Bind. Hd., Type Ab SD-17-8
Self-tapping screw 8-18 x 3/8 phil. bind. hd., type ab

Part #SD-17-8

The manufacturer no longer makes this part, and there's no substitute part

Bushing - Conduit 307148
Bushing - conduit

Part #307148

The manufacturer no longer makes this part, and there's no substitute part

Element 8" (2100 W 240 V.) 307046-1
#1

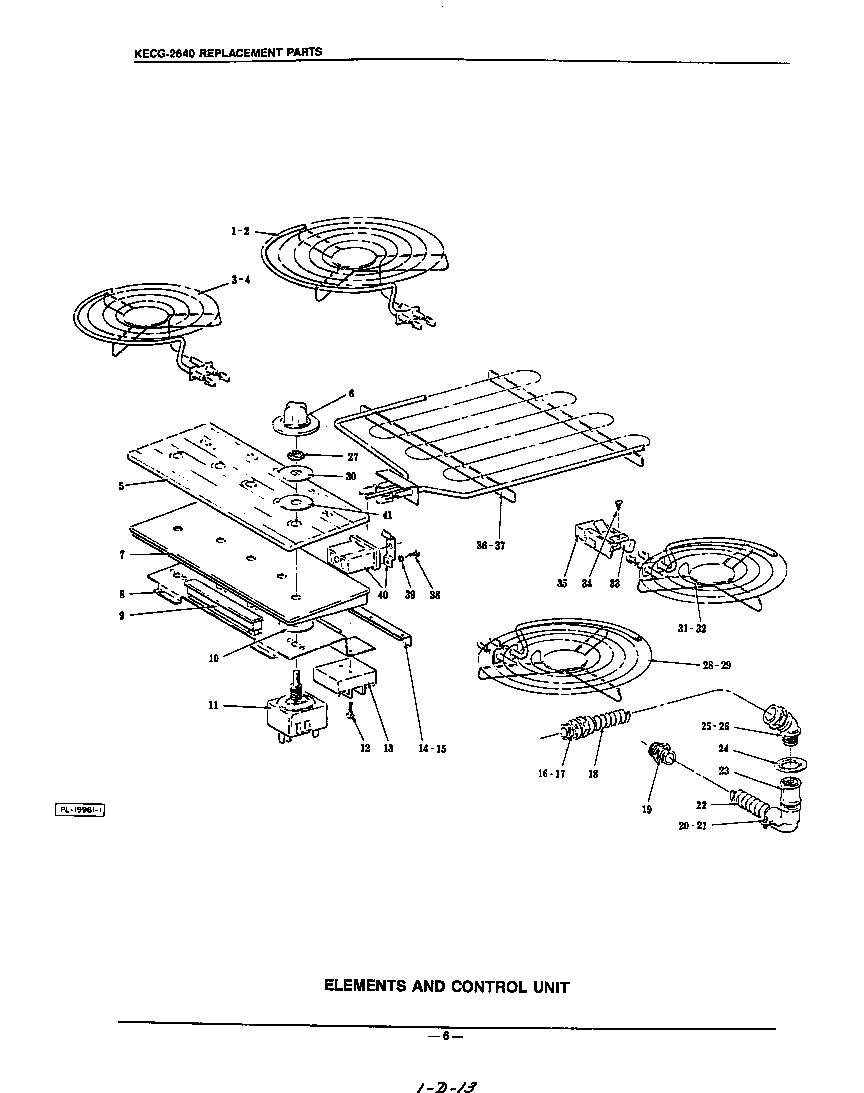

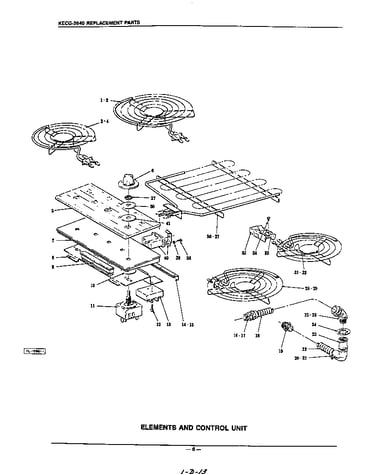

Elements and controls diagram

Element 8" (2100 w 240 v.)

Part #307046-1

The manufacturer no longer makes this part, and there's no substitute part

Mach. Screw 8-32 X 3/8 Phil. Pan Hd SC-18-31
#11

Main body unit diagram

Mach. screw 8-32 x 3/8 phil. pan hd

Part #SC-18-31

The manufacturer no longer makes this part, and there's no substitute part

Jam Nut 3/8-24 Hex NS-47-26
#27

Elements and controls diagram

Jam nut 3/8-24 hex

Part #NS-47-26

The manufacturer no longer makes this part, and there's no substitute part

Bushing 1/2 Fiber BF-2-21
#21

Elements and controls diagram

Bushing 1/2 fiber

Part #BF-2-21

The manufacturer no longer makes this part, and there's no substitute part

Rod - Top Support 307049
#15

Main body unit diagram

Rod - top support

Part #307049

The manufacturer no longer makes this part, and there's no substitute part
