GE
Electric Cooktop

Model # JP330L1 Official GE electric cooktop

Here are the diagrams and repair parts for Official GE JP330L1 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Condenser Plate WB2X9867

#595

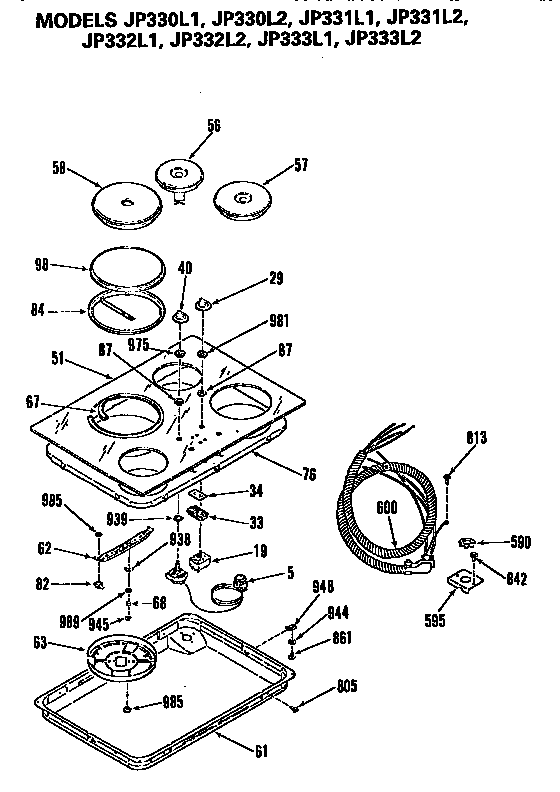

All parts diagram

Condenser plate

Part #WB2X9867

$19.05 |
10% OFF Phone Price : $21.05
In Stock
Use And Care Guide 49-8086
Use and care guide

Part #49-8086

$17.99
In Stock
Screw WB1X1297

#842

All parts diagram

Screw

Part #WB1X1297

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Technician Range Screw WB1X1261

#813

All parts diagram

Technician range screw

Part #WB1X1261

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Use And Care Guide 49-4958

#999

All parts diagram

Use and care guide

Part #49-4958

Replaced by #49-8086

?
Manufacturer substitution
This part replaces 49-4958. Substitute parts can look different from the original.
$17.99
In Stock
Cooktop Trim Ring WB32X111

#98

All parts diagram

Cooktop trim ring

Part #WB32X111

The manufacturer no longer makes this part, and there's no substitute part

Burner Box WB64M03

#61

All parts diagram

Burner box

Part #WB64M03

The manufacturer no longer makes this part, and there's no substitute part

Screw, 2-pack WB1X1307

#861

All parts diagram

Screw, 2-pack

Part #WB1X1307

The manufacturer no longer makes this part, and there's no substitute part

Range Surface Burner Knob WB3X819

#29

All parts diagram

Range surface burner knob

Part #WB3X819

The manufacturer no longer makes this part, and there's no substitute part

Disc Element WB30X262

#58

All parts diagram

Disc element

Part #WB30X262

The manufacturer no longer makes this part, and there's no substitute part
