Black & Decker
Electric Walk-Behind Mower

Model # LM175 TYPE 2 Official Black & Decker lawn mower

Here are the diagrams and repair parts for Official Black & Decker LM175-TYPE-2 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Dewalt Screw 242243-00
#55

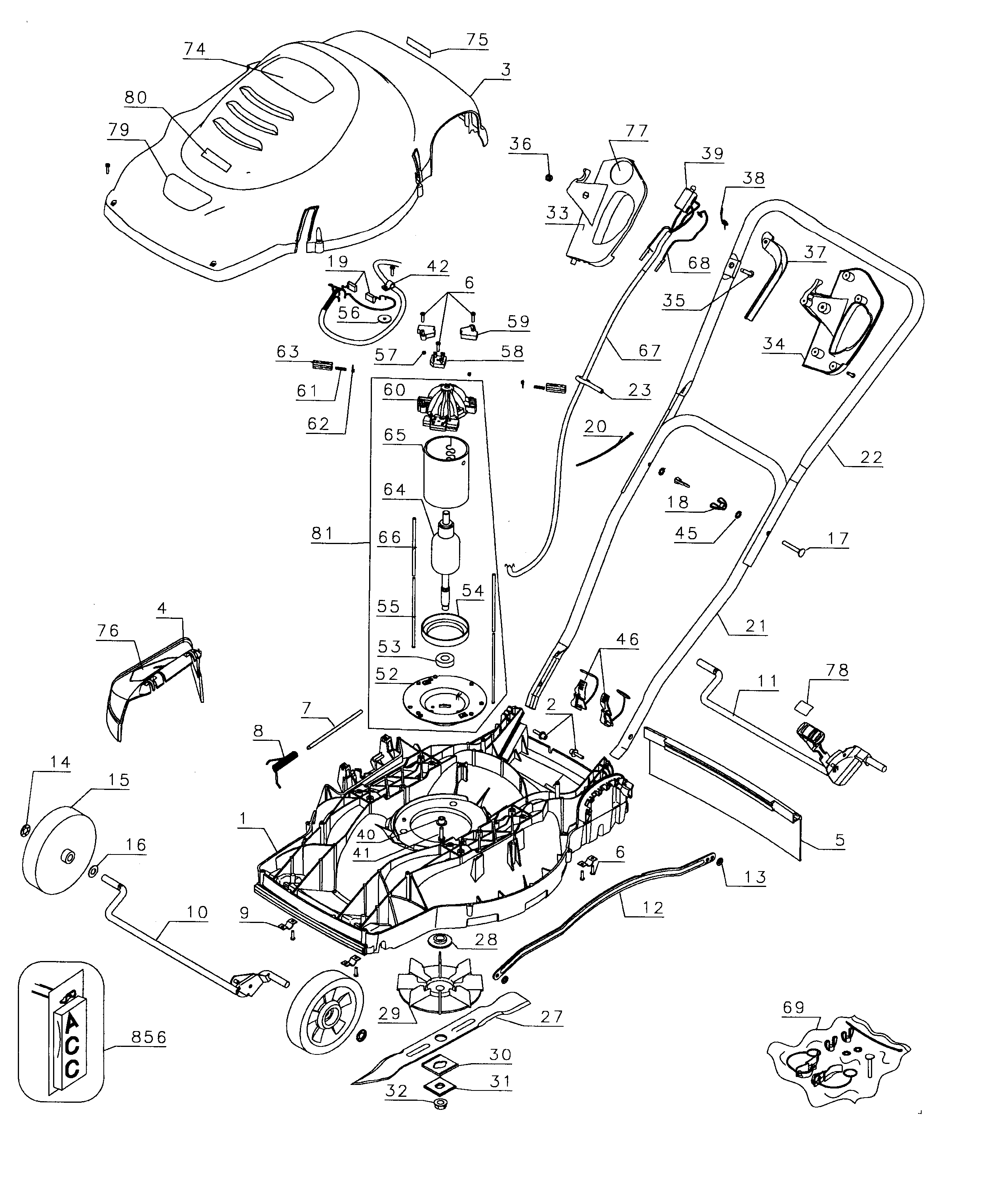

Mower assy diagram

Dewalt screw

Part #242243-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 082526-00
#45

Mower assy diagram

Washer

Part #082526-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Lawn Mower Washer 242488-00
#16

Mower assy diagram

Dewalt lawn mower washer

Part #242488-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Lawn Mower Electric Motor Armature 242028-08
#64

Mower assy diagram

Dewalt lawn mower electric motor armature

Part #242028-08

The manufacturer no longer makes this part, and there's no substitute part

Shoulder Pin 243514-00
#2

Mower assy diagram

Shoulder pin

Part #243514-00

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 330019-13
#6

Mower assy diagram

Lawn & garden equipment screw

Part #330019-13

The manufacturer no longer makes this part, and there's no substitute part

Washer 099361-10
#56

Mower assy diagram

Washer

Part #099361-10

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Eye Bolt 241948-01
#23

Mower assy diagram

Dewalt eye bolt

Part #241948-01

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Lawn Mower Motor Brush 242274-00
#63

Mower assy diagram

Craftsman lawn mower motor brush

Part #242274-00

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Spacer 092715-00
#31

Mower assy diagram

Lawn mower spacer

Part #092715-00

The manufacturer no longer makes this part, and there's no substitute part
