Craftsman
Front-Engine Lawn Tractor

Model # 917575131 Official Craftsman garden tractor

Here are the diagrams and repair parts for Official Craftsman 917575131 garden tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

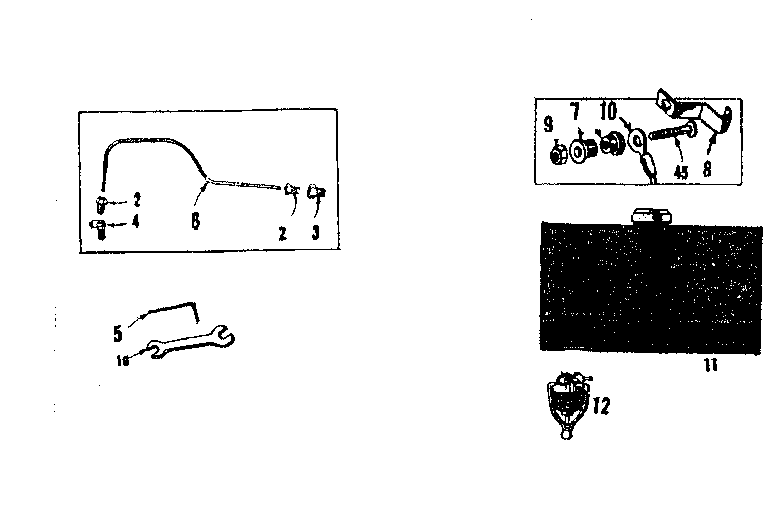

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Ball 7392M
#42

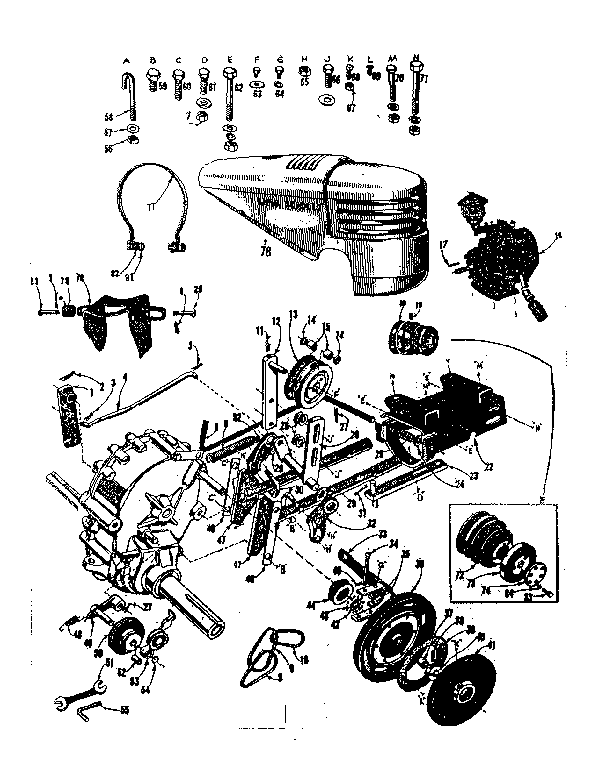

Main frame diagram

Ball

Part #7392M

Replaced by #532100482

?
Manufacturer substitution
This part replaces 7392M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Wizard Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#11

Main frame diagram

Wizard lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

Replaced by #532183226

?
Manufacturer substitution
This part replaces 6855M. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Rivet 673H
#21

Main frame diagram

Rivet

Part #673H

The manufacturer no longer makes this part, and there's no substitute part

Canopy Strap 7069H
#34

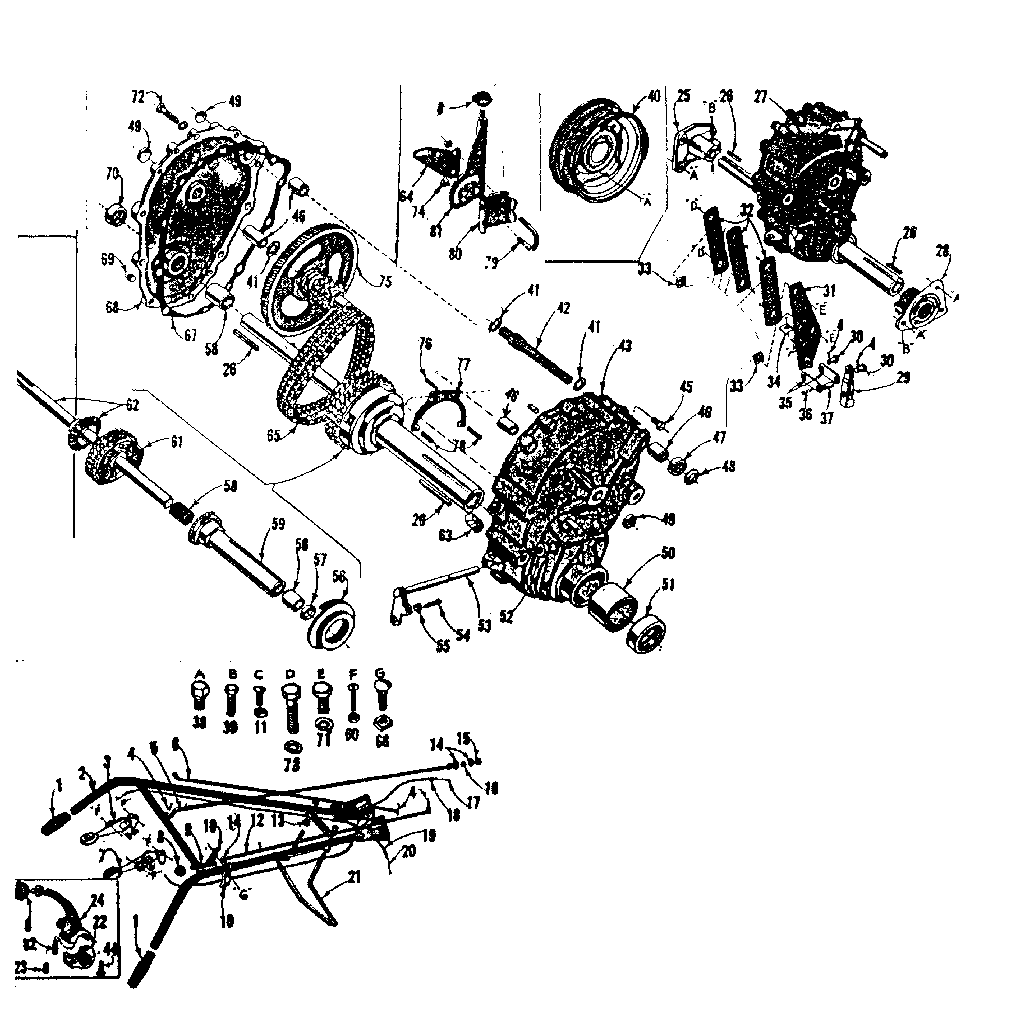

Transmission diagram

Canopy strap

Part #7069H

The manufacturer no longer makes this part, and there's no substitute part

Grip 9412M
#1

Transmission diagram

Grip

Part #9412M

The manufacturer no longer makes this part, and there's no substitute part

Washer 09141614
#57

Main frame diagram

Washer

Part #09141614

The manufacturer no longer makes this part, and there's no substitute part

Tr Sup Stand 465H
#5

Main frame diagram

Tr sup stand

Part #465H

The manufacturer no longer makes this part, and there's no substitute part

Nut 03060600
#15

Transmission diagram

Nut

Part #03060600

The manufacturer no longer makes this part, and there's no substitute part

Nut 357H
#7

Main frame diagram

Nut

Part #357H

The manufacturer no longer makes this part, and there's no substitute part

Th Lev/yoke 575PA827
#33

Main frame diagram

Th lev/yoke

Part #575PA827

The manufacturer no longer makes this part, and there's no substitute part
