Dacor
Electric Cooktop

Model # CER304R Official Dacor cooktop

Here are the diagrams and repair parts for Official Dacor CER304R cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |

Heater 66131
#25

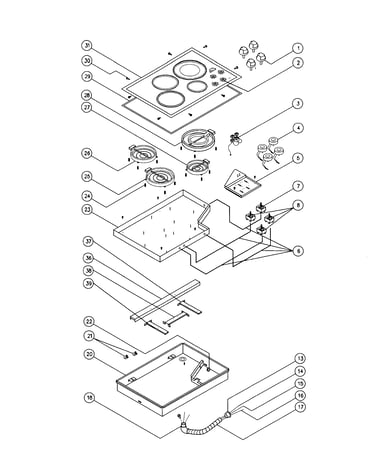

Cooktop diagram

Heater

Part #66131

Back Order
Spring 83277
#24

Cooktop diagram

Spring

Part #83277

This item is not returnable
In Stock
Control Panel 26651
#5

Cooktop diagram

Control panel

Part #26651

In Stock
Bushing 83133
#13

Cooktop diagram

Bushing

Part #83133

This item is not returnable
In Stock
Heater 66130
#26

Cooktop diagram

Heater

Part #66130

In Stock
Conduit 83346
#17

Cooktop diagram

Conduit

Part #83346

This item is not returnable
In Stock
Green Wire 14267
#16

Cooktop diagram

Green wire

Part #14267

In Stock
Gasket 13208
#29

Cooktop diagram

Gasket

Part #13208

This item is not returnable
In Stock
Power Lead 14360
#15

Cooktop diagram

Power lead

Part #14360

In Stock
Cooktop Wire Harness 62631
#6

Cooktop diagram

Cooktop wire harness

Part #62631

In Stock
