Frigidaire
Built-In Microwave

Model # FPMO209KFB Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire FPMO209KFB microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

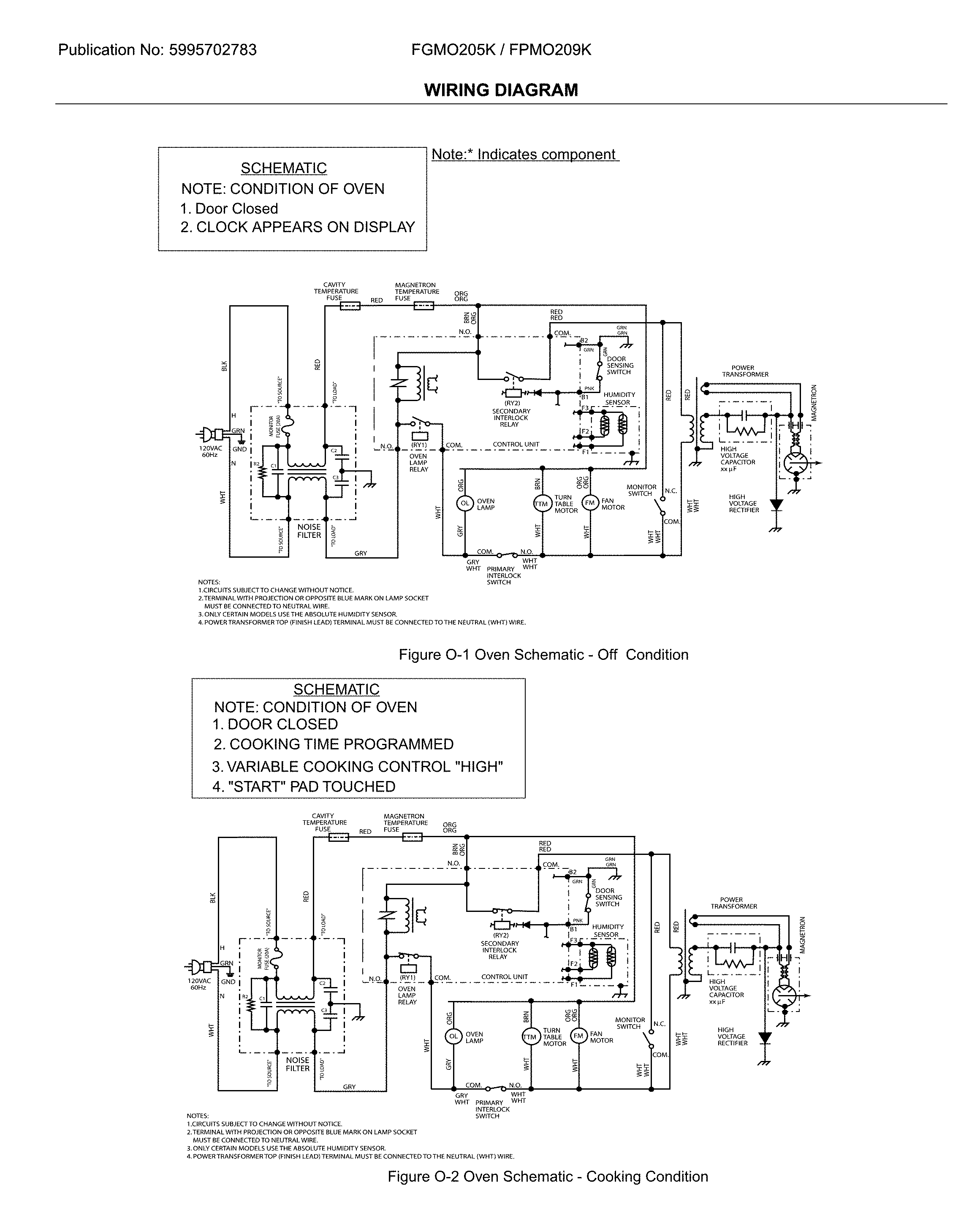

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Wall Oven Microwave Magnetron 5304440781
#8

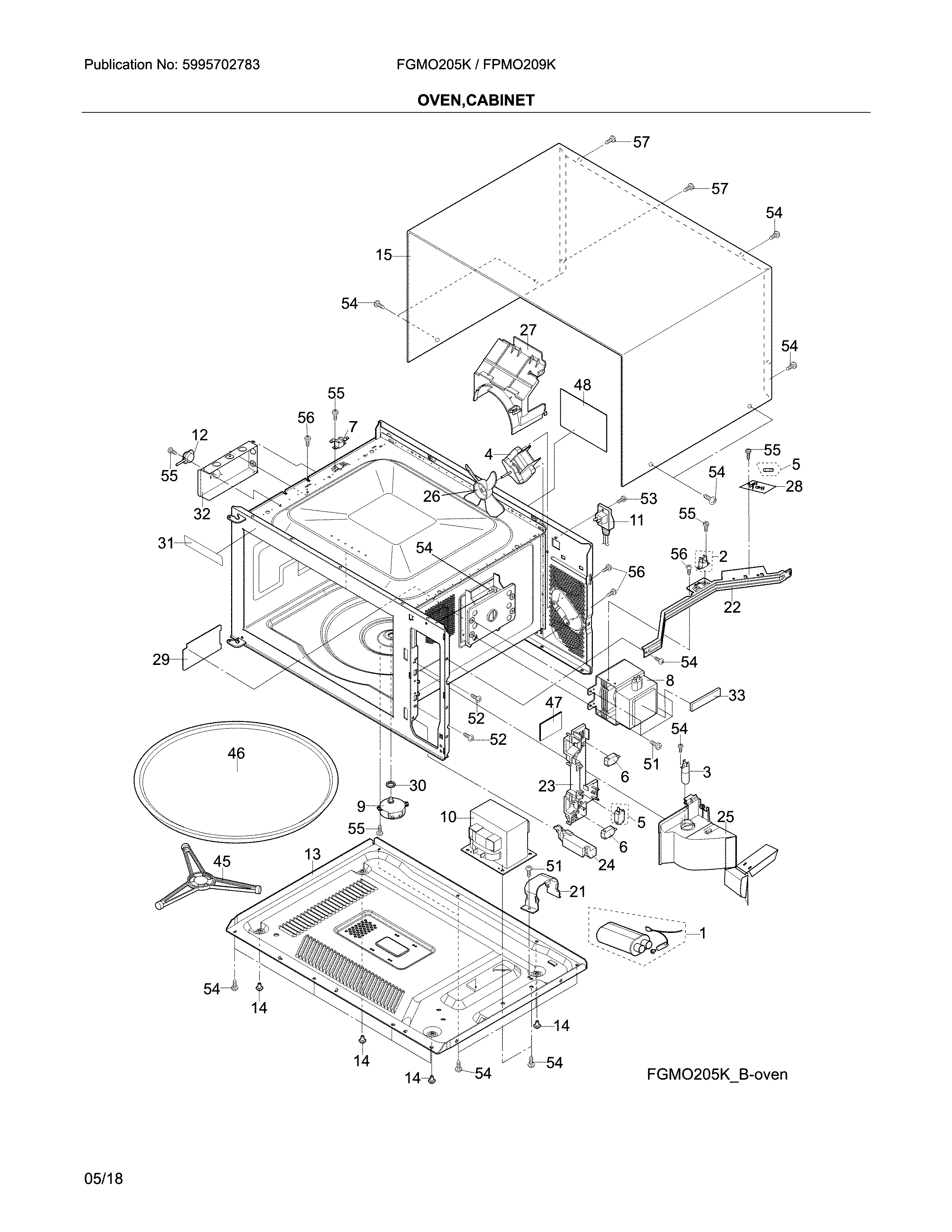

Oven,cabinet diagram

Wall oven microwave magnetron

Part #5304440781

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304440781. Substitute parts can look different from the original.
BEST SELLER
$140.66 |
10% OFF Was : $156.29
In Stock
Cover 5304478947
#29

Oven,cabinet diagram

Cover

Part #5304478947

Replaced by #5304462314

?
Manufacturer substitution
This part replaces 5304478947. Substitute parts can look different from the original.
$49.09 |
11% OFF Phone Price : $55.09
In Stock
Microwave Magnetron Fuse (replaces 5304458211, 75303319550) 5303319550
#2

Oven,cabinet diagram

Microwave magnetron fuse (replaces 5304458211, 75303319550)

Part #5303319550

$95.19 |
11% OFF Phone Price : $107.19
In Stock
Filter 5304467698
#28

Oven,cabinet diagram

Filter

Part #5304467698

Replaced by #5304492543

?
Manufacturer substitution
This part replaces 5304467698. Substitute parts can look different from the original.
$60.24 |
9% OFF Phone Price : $66.24
In Stock
Wall Oven Microwave Door Latch 5304441893
#35

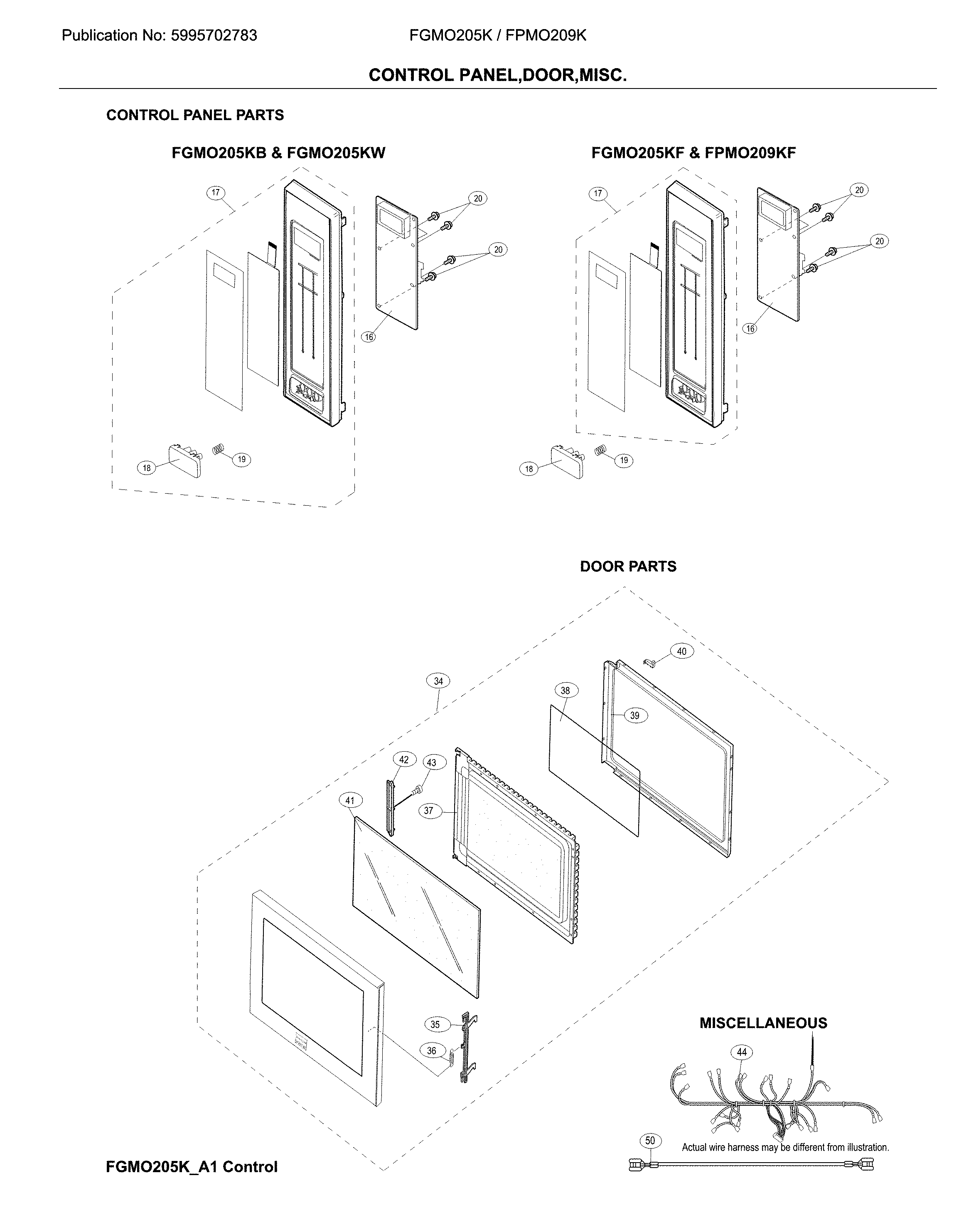

Control panel,door,misc. diagram

Wall oven microwave door latch

Part #5304441893

$39.67 |
13% OFF Phone Price : $45.67
In Stock
Microwave Door Interlock Switch And Fuse 5304479020
#5

Oven,cabinet diagram

Microwave door interlock switch and fuse

Part #5304479020

$86.53
In Stock
Lamp Assembly 5304478955
#3

Oven,cabinet diagram

Lamp assembly

Part #5304478955

Replaced by #5304500304

?
Manufacturer substitution
This part replaces 5304478955. Substitute parts can look different from the original.
$49.09 |
11% OFF Phone Price : $55.09
In Stock
Microwave Electronic Control Board 5304472840
#16

Control panel,door,misc. diagram

Microwave electronic control board

Part #5304472840

$234.02 |
5% OFF Phone Price : $246.02
In Stock
Wall Oven Microwave Door Choke Cover 5304440861
#39

Control panel,door,misc. diagram

Wall oven microwave door choke cover

Part #5304440861

$54.98
In Stock
Screw 5304450253
#56

Oven,cabinet diagram

Screw

Part #5304450253

$14.71
In Stock
