Gas Walk-Behind Mower

Model # 917374823 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917374823 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 247 parts  |
Lawn Mower 21-in Deck 3-in-1 Blade (replaces 532189028, 5321890-28) 189028
#31

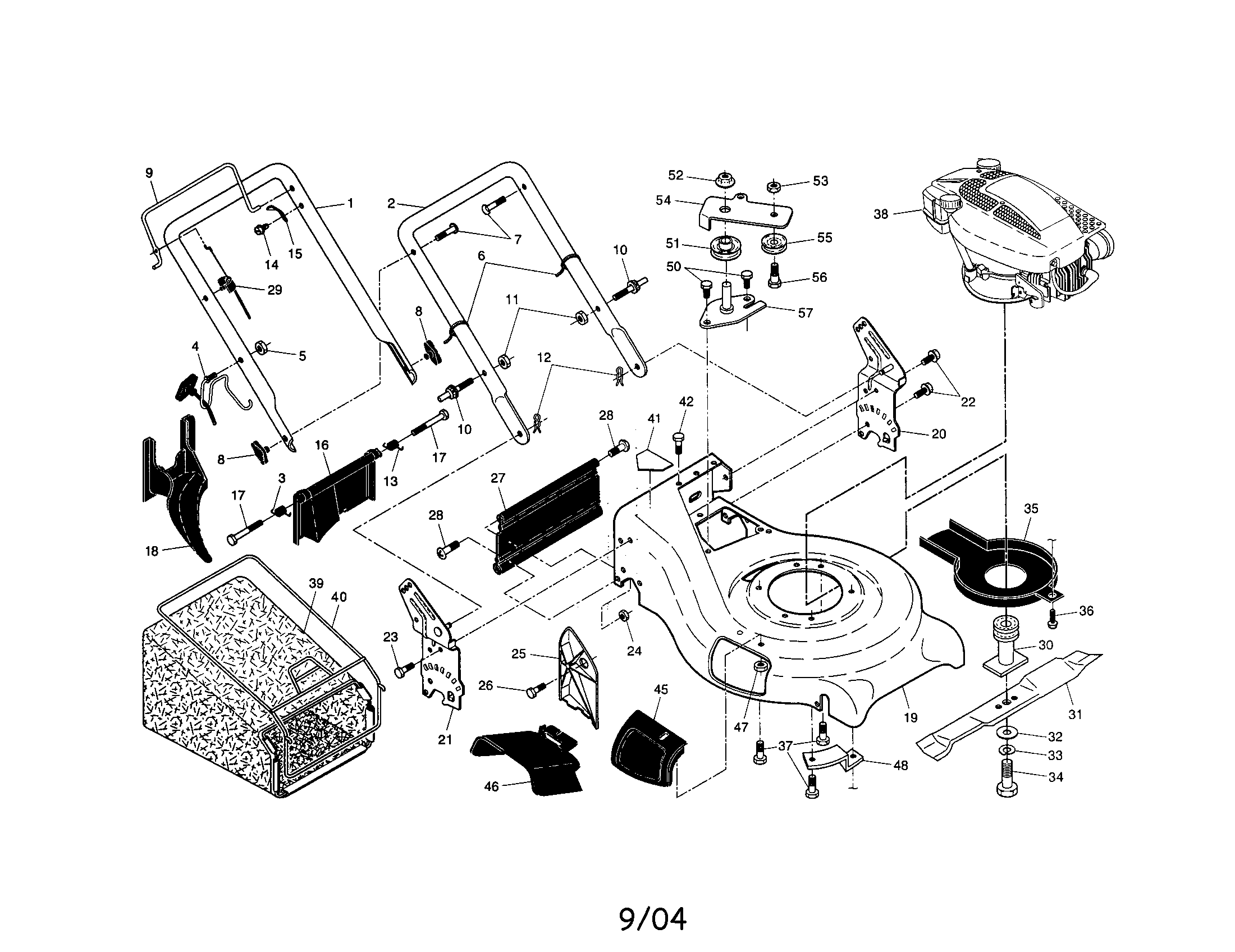

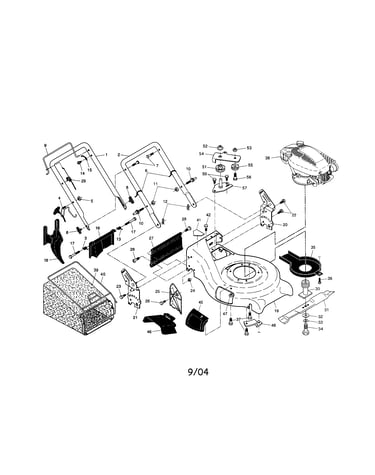

Engine/handle/housing/bag diagram

Lawn mower 21-in deck 3-in-1 blade (replaces 532189028, 5321890-28)

Part #189028

BEST SELLER

Get free shipping with Automatic Reorder

$11.41 |
15% OFF Phone Price : $13.41
In Stock
Pipe Fitting 132010
#8

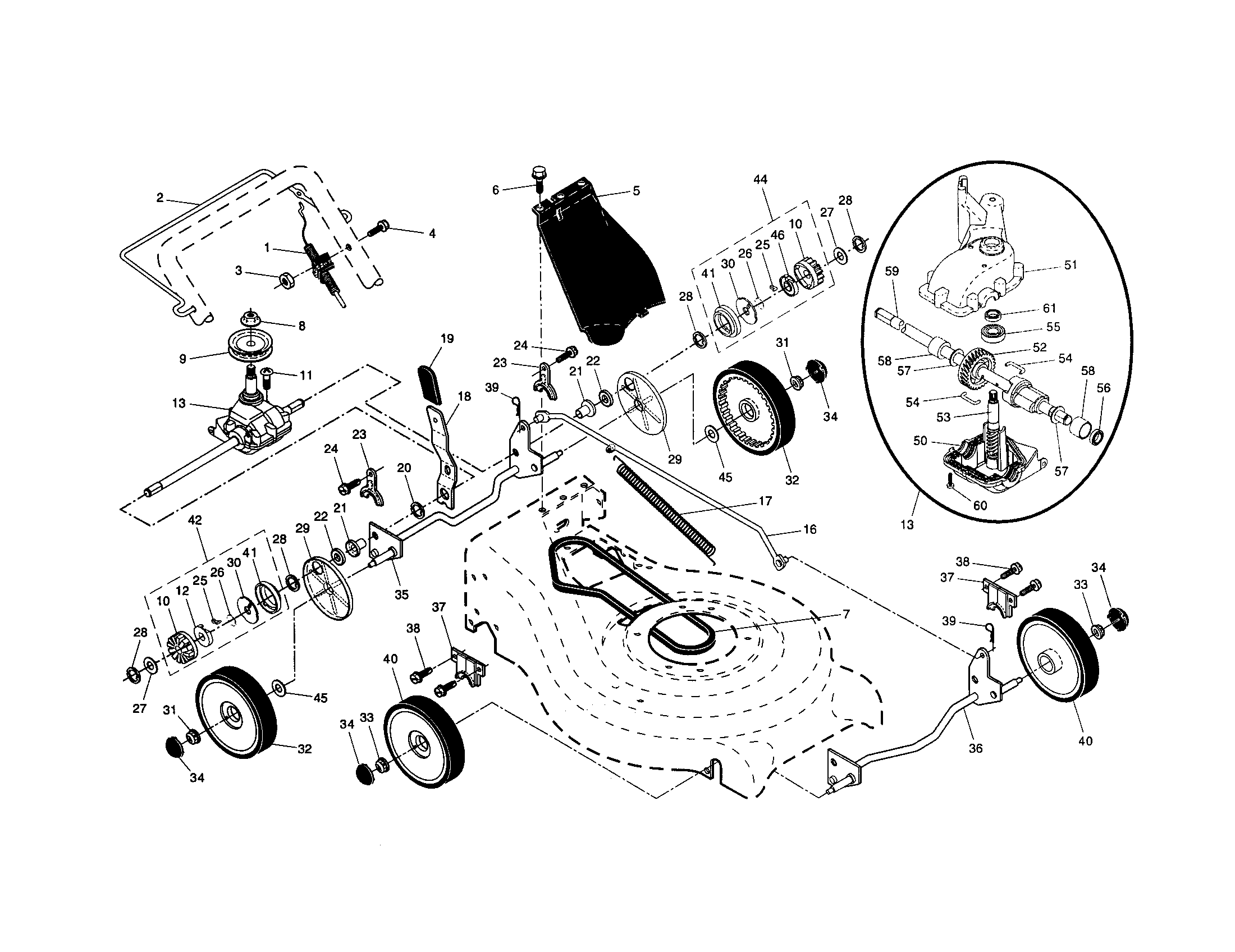

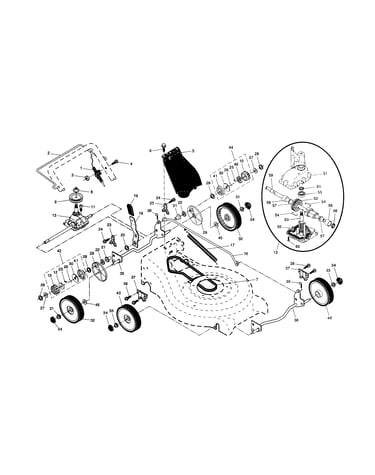

Wheels/tires diagram

Pipe fitting

Part #132010

Replaced by #532409149

?
Manufacturer substitution
This part replaces 132010. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 83923
#33

Wheels/tires diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#8

Engine/handle/housing/bag diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Handle Bolt 191574
#7

Engine/handle/housing/bag diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Nut 132004
#5

Engine/handle/housing/bag diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn Mower Drive Cable 189181
#1

Wheels/tires diagram

Lawn mower drive cable

Part #189181

Replaced by #583180101

?
Manufacturer substitution
This part replaces 189181. Substitute parts can look different from the original.
BEST SELLER
$27.98 |
18% OFF Phone Price : $33.98
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#28

Engine/handle/housing/bag diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Wheel.9x2.pr 180772
#32

Wheels/tires diagram

Wheel.9x2.pr

Part #180772

Replaced by #532193139

?
Manufacturer substitution
This part replaces 180772. Substitute parts can look different from the original.
$54.98 |
10% OFF Phone Price : $60.98
In Stock
