Model # T24ID80NLP/38 Official Thermador built-in freezer column

Here are the diagrams and repair parts for Official Thermador T24ID80NLP-38 built-in freezer column, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

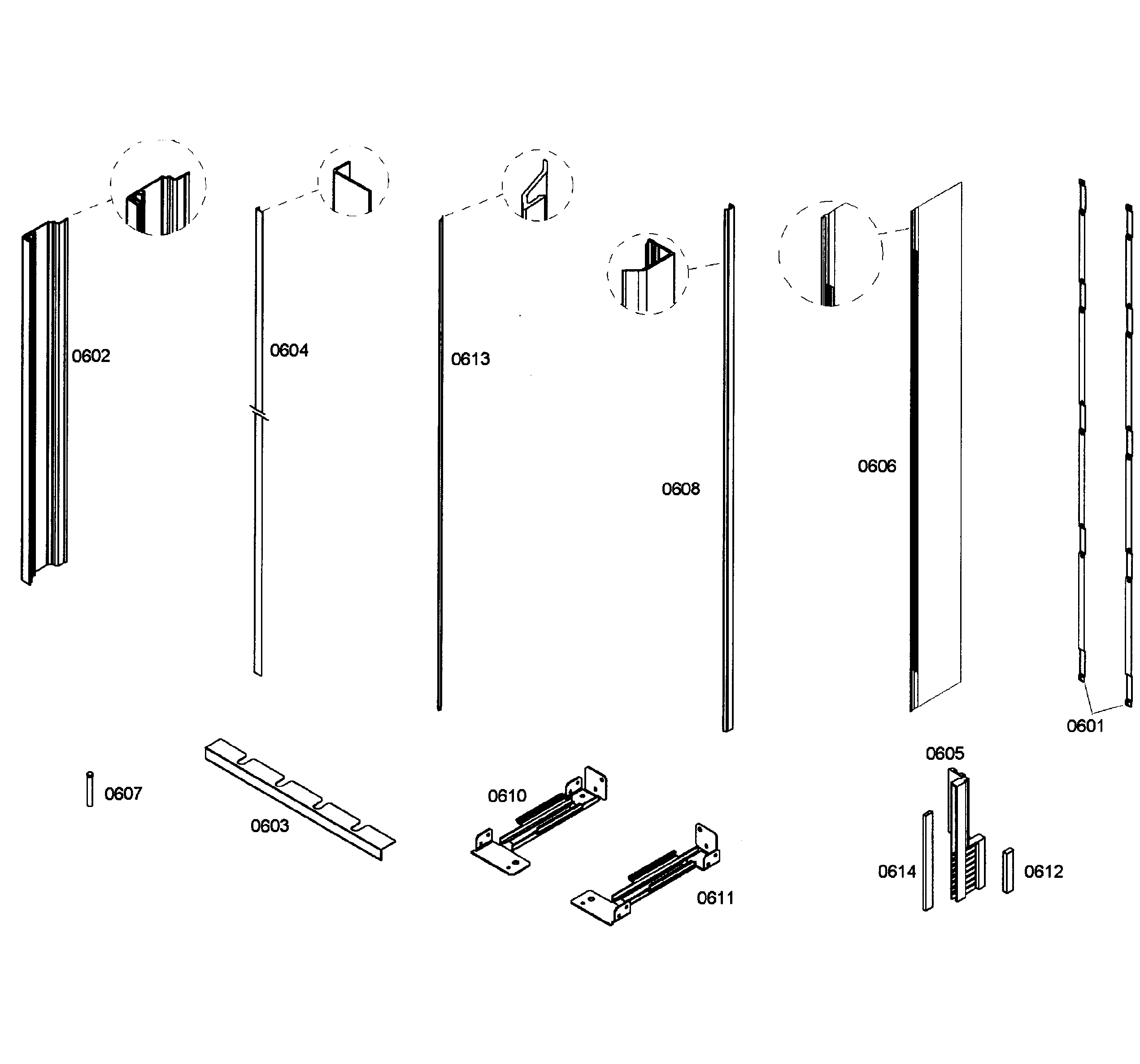

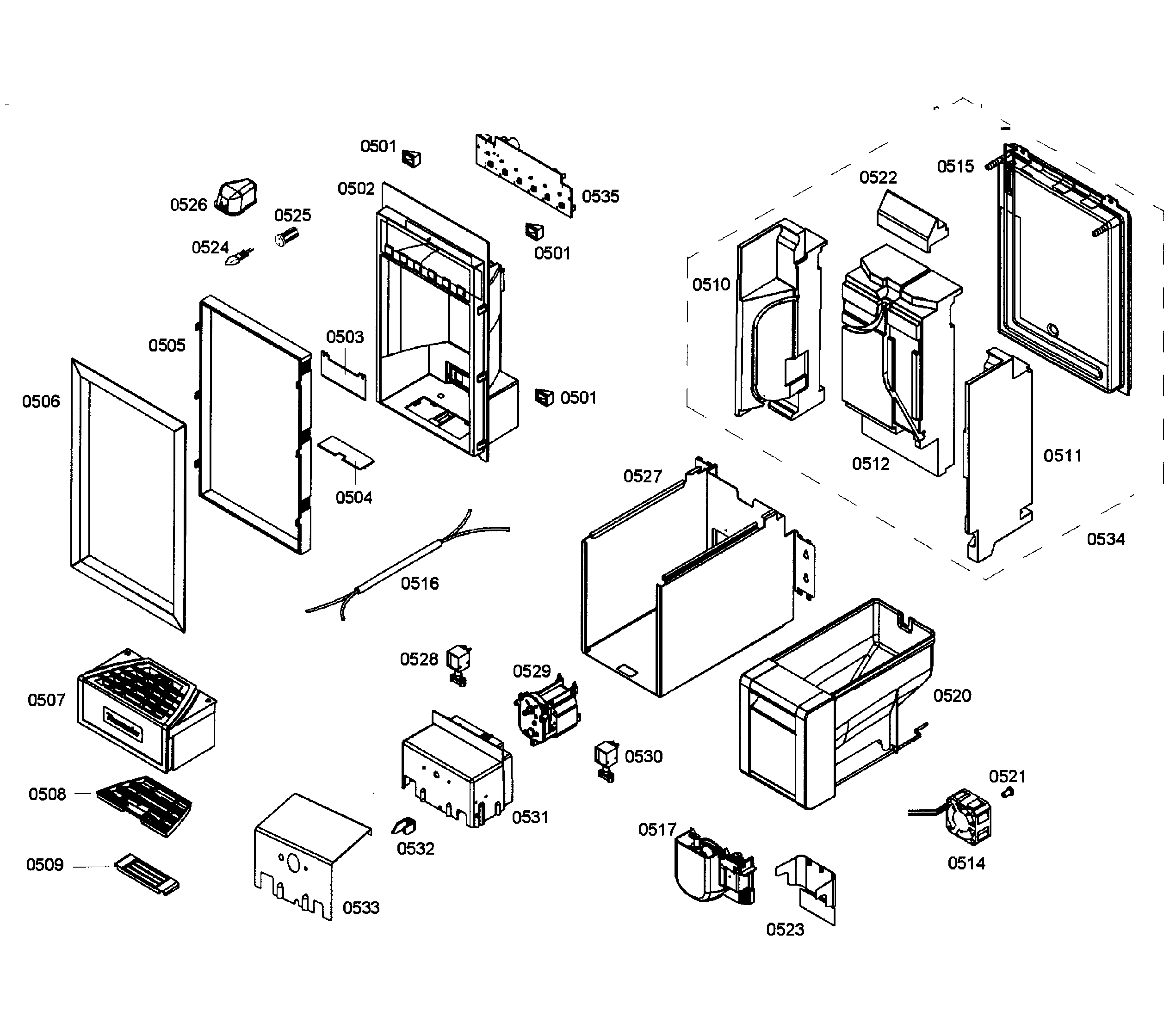

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Refrigerator Water Filter 641425
#411

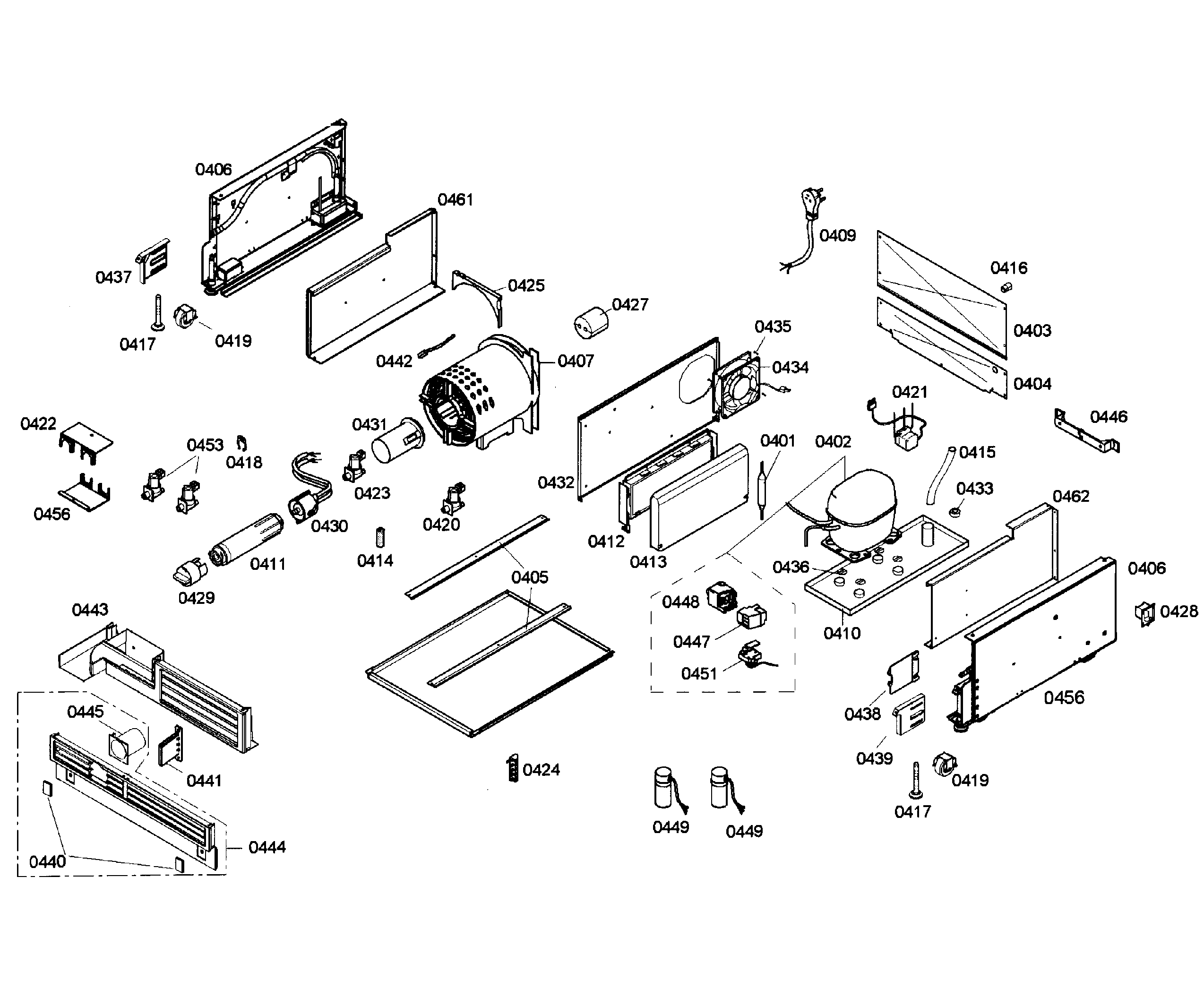

Compressor diagram

Refrigerator water filter

Part #641425

Replaced by #11034151

?
Manufacturer substitution
This part replaces 641425. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$89.19 |
6% OFF Phone Price : $95.19
In Stock
Sensor 617203
#130

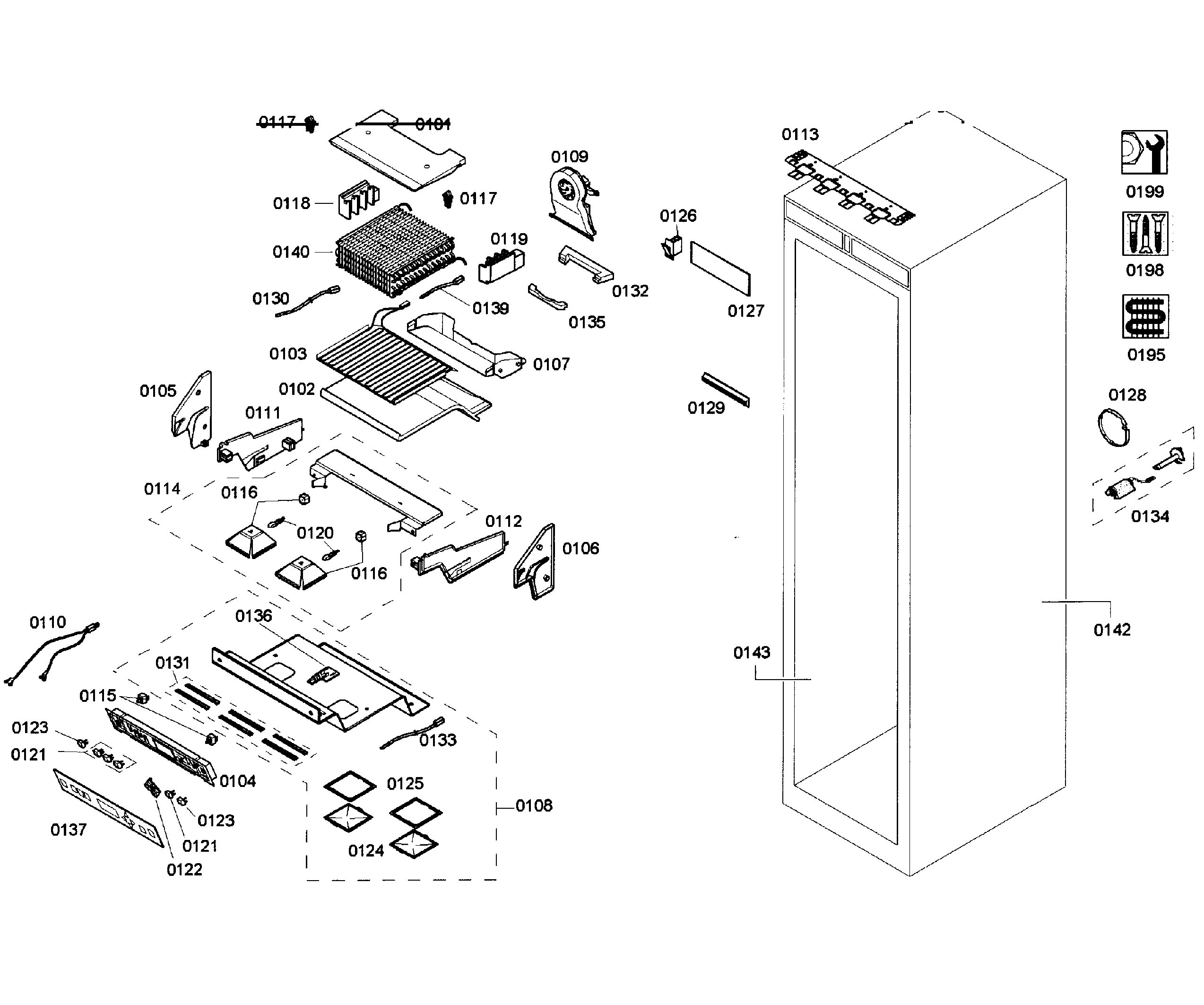

Cabinet parts diagram

Sensor

Part #617203

Replaced by #00617203

?
Manufacturer substitution
This part replaces 617203. Substitute parts can look different from the original.
This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Freezer Water Filter Cap 604684
#429

Compressor diagram

Freezer water filter cap

Part #604684

Replaced by #00604684

?
Manufacturer substitution
This part replaces 604684. Substitute parts can look different from the original.
$11.49 |
15% OFF Phone Price : $13.49
In Stock
Cover 499853
#413

Compressor diagram

Cover

Part #499853

Replaced by #00499853

?
Manufacturer substitution
This part replaces 499853. Substitute parts can look different from the original.
$50.89 |
11% OFF Phone Price : $56.89
In Stock
Freezer Water Valve 603967
#423

Compressor diagram

Freezer water valve

Part #603967

Replaced by #00639065

?
Manufacturer substitution
This part replaces 603967. Substitute parts can look different from the original.
$39.19 |
13% OFF Phone Price : $45.19
In Stock
Sealing 604019
#315

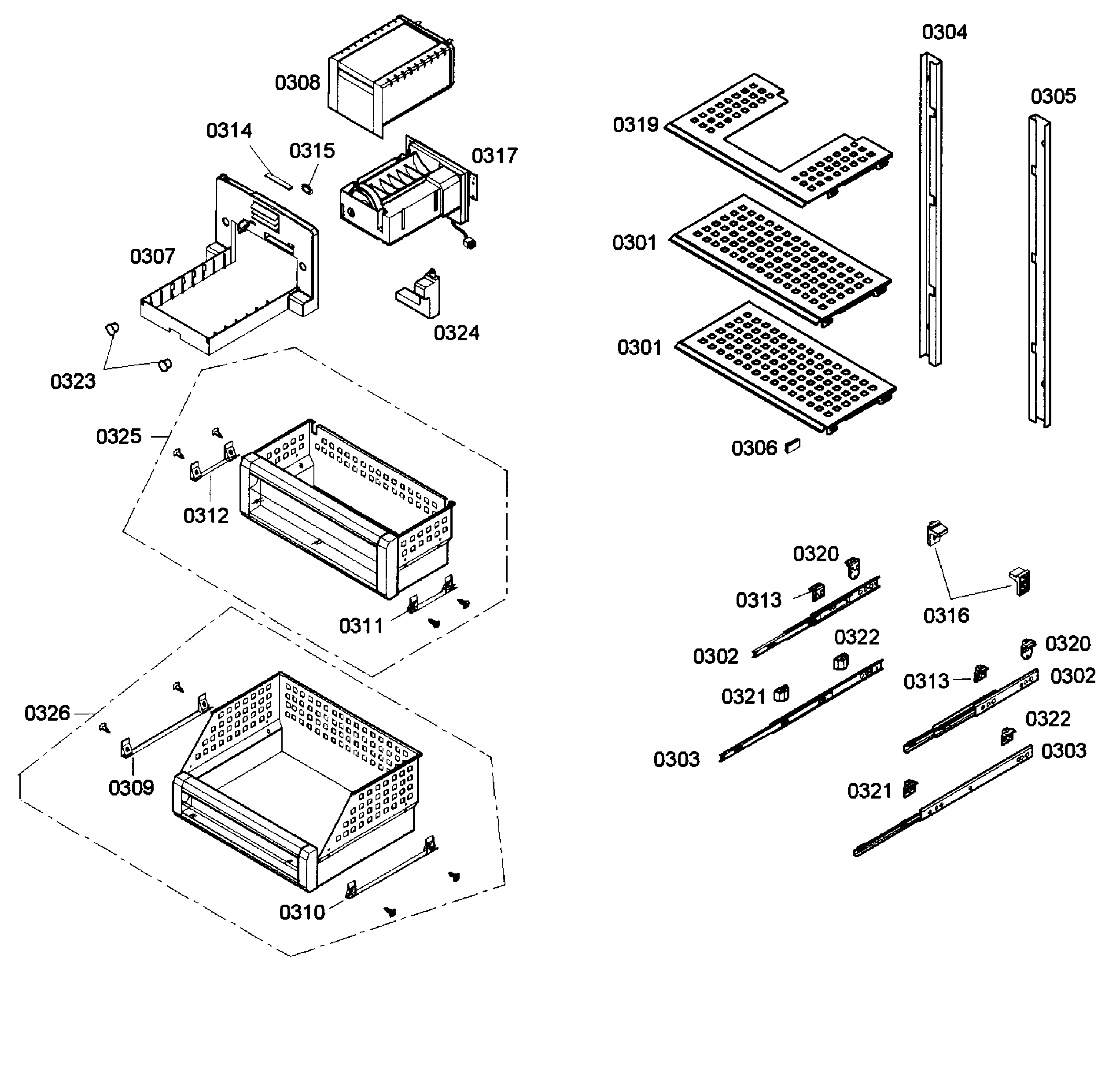

Shelfs diagram

Sealing

Part #604019

Replaced by #10006958

?
Manufacturer substitution
This part replaces 604019. Substitute parts can look different from the original.
This item is not returnable
$3.82
In Stock
Switch 604020
#126

Cabinet parts diagram

Switch

Part #604020

Replaced by #00604020

?
Manufacturer substitution
This part replaces 604020. Substitute parts can look different from the original.
$18.94
In Stock
Rail, Right 499960
#311

Shelfs diagram

Rail, right

Part #499960

Replaced by #00499960

?
Manufacturer substitution
This part replaces 499960. Substitute parts can look different from the original.
$8.40
In Stock
Door Seal 247252
#214

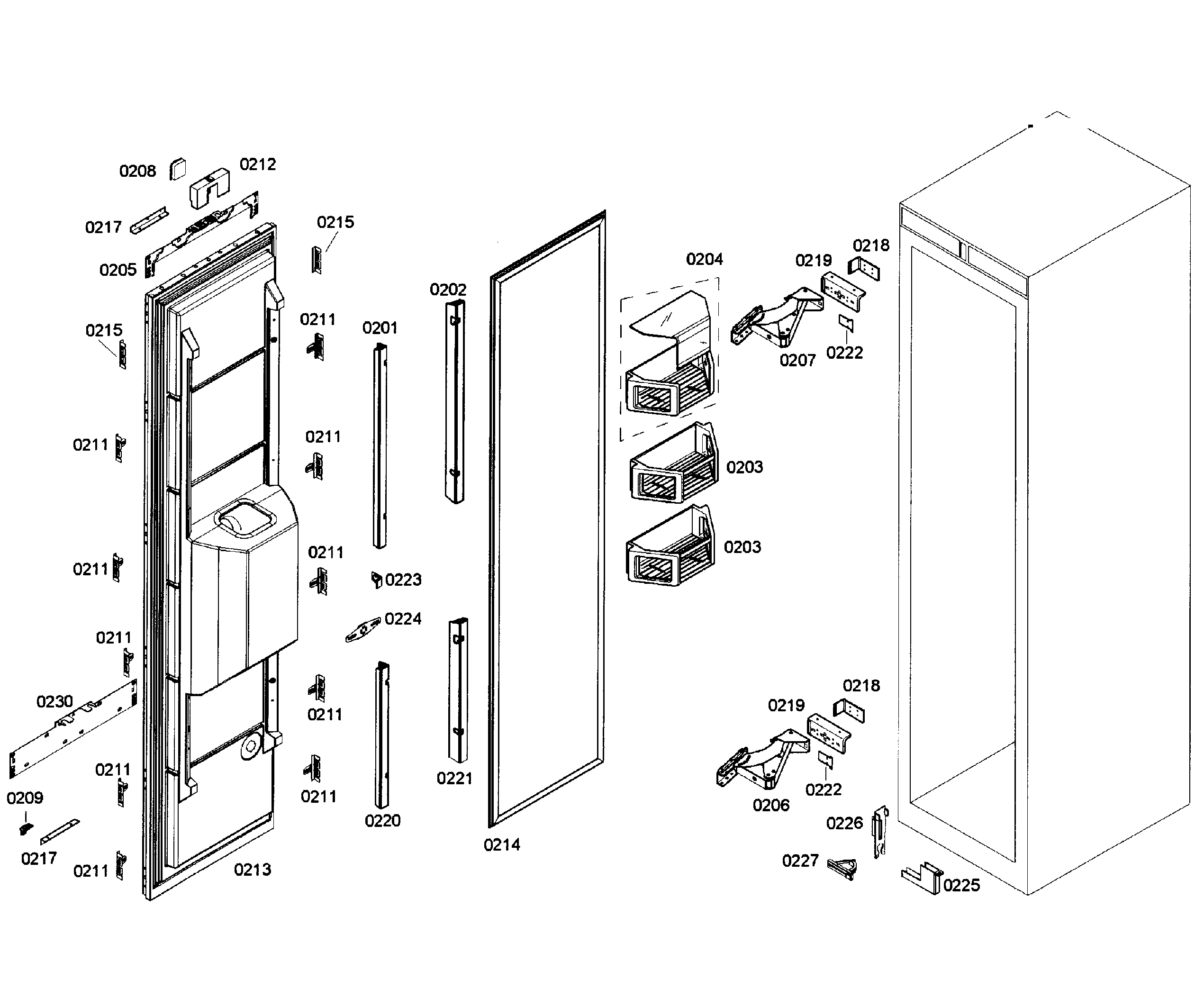

Door assy diagram

Door seal

Part #247252

Replaced by #00716384

?
Manufacturer substitution
This part replaces 247252. Substitute parts can look different from the original.
$142.09 |
8% OFF Phone Price : $154.09
Back Order
Fixture 684542
#205

Door assy diagram

Fixture

Part #684542

Replaced by #00684542

?
Manufacturer substitution
This part replaces 684542. Substitute parts can look different from the original.
$22.91
In Stock
