GE
Upright Freezer

Model # CAF16DCB Official GE freezer

Here are the diagrams and repair parts for Official GE CAF16DCB freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Defrost Control WR9X5127
#119A

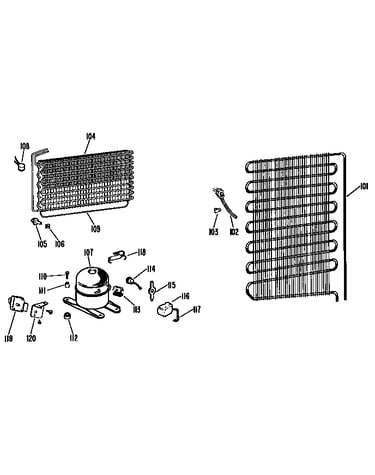

Unit diagram

Defrost control

Part #WR9X5127

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR9X5127. Substitute parts can look different from the original.
BEST SELLER
$42.02 |
12% OFF Phone Price : $48.02
In Stock
Power Cord WR23X108
#102

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Fan Blade WR60X5055
#64B

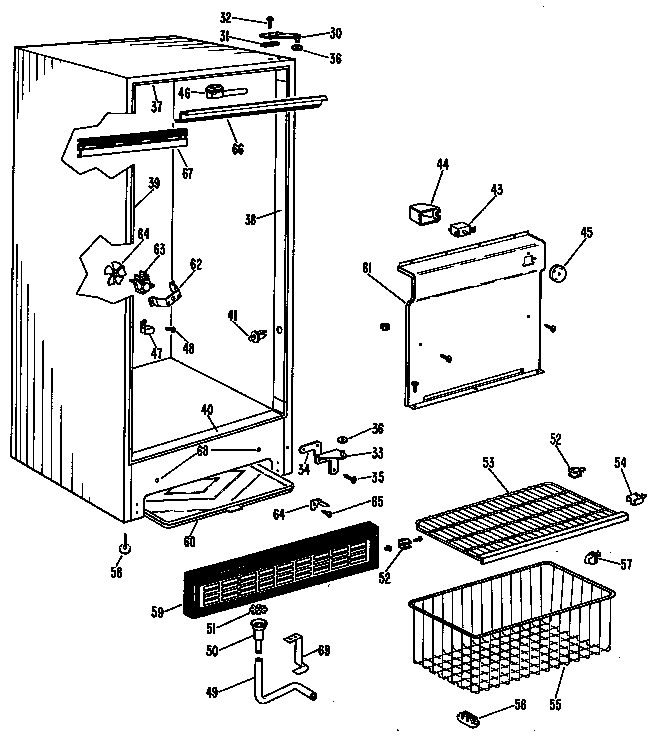

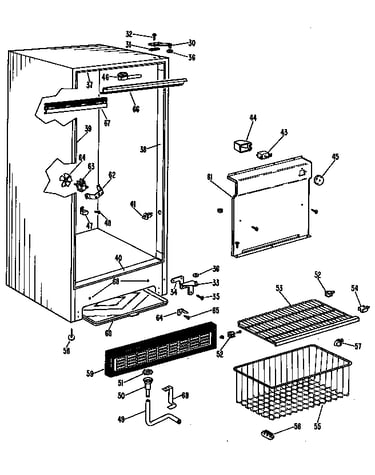

Cabinet diagram

Fan blade

Part #WR60X5055

$12.49
In Stock
Freezer Basket Bumper WR2X6361
#55B

Cabinet diagram

Freezer basket bumper

Part #WR2X6361

$17.11
In Stock
Condenser WR84X5007
#101

Unit diagram

Condenser

Part #WR84X5007

$279.53
In Stock
Refrigerator Water Tubing Clip WR1X5278
#103

Unit diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Glide WR2X6808
#56

Cabinet diagram

Glide

Part #WR2X6808

Replaced by #WR02X11444

?
Manufacturer substitution
This part replaces WR2X6808. Substitute parts can look different from the original.
$81.57 |
7% OFF Phone Price : $87.57
In Stock
Freezer Defrost Thermostat WR50X5032
#108

Unit diagram

Freezer defrost thermostat

Part #WR50X5032

Replaced by #WR50X50

?
Manufacturer substitution
This part replaces WR50X5032. Substitute parts can look different from the original.
$14.34 |
12% OFF Phone Price : $16.34
In Stock
Refrigerator Screw WR1X5450
Refrigerator screw

Part #WR1X5450

Replaced by #WR02X13481

?
Manufacturer substitution
This part replaces WR1X5450. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
Insulator WR2X6309
#43B

Cabinet diagram

Insulator

Part #WR2X6309

Replaced by #WR2X9500

?
Manufacturer substitution
This part replaces WR2X6309. Substitute parts can look different from the original.
$37.40
In Stock
